RAM retainer clip broke

Discussion in 'MacBook Pro' started by MacInTO, Jul 19, 2016.

  1. MacInTO macrumors 65816

    MacInTO

    Joined:
    Apr 25, 2005
    Location:
    Canada, eh!
    #1

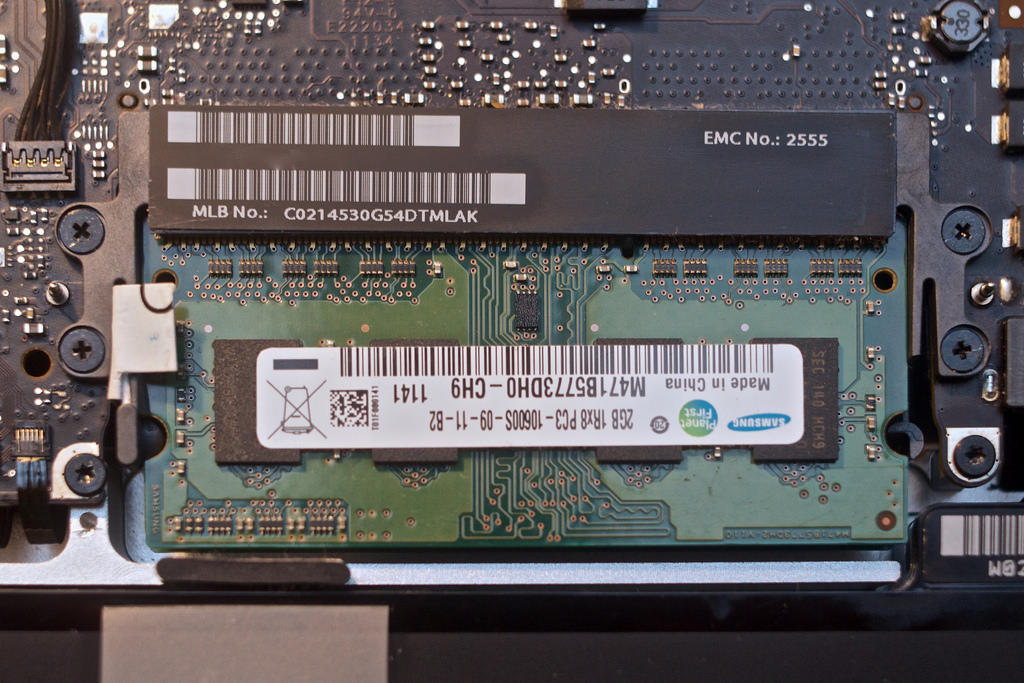

    The RAM retainer broke on one side on the top slot in a 13" 2011 MBP. Is this part replaceable?

    [​IMG]

  2. flyinmac macrumors 68030

    flyinmac

    Joined:
    Sep 2, 2006
    Location:
    United States
    #2
    If it's only the retainer clip that broke, and everything else is fine, and you can't find a suitable way to repair it, you could try hot glue.

    Insert the memory properly. Make sure it's seated right, and working. Then take some hot glue and form a glob that gets under the edge and comes around and up onto the top of the ram card.

    Not elegant. But it might work fine. And being a surface contact, shouldn't harm anything.

    I've used hot glue inside electronics at times when there wasn't any other option. And it works fine. And it can be peeled up manually if it was later necessary to replace the memory module.

    My preferred option would be 2-part epoxy. It can withstand a ton of heat. And its permanent. Of course permanent can be a problem if something needs replacing.

    Epoxy is also safe on the surface of electronics.

    Naturally I have to say do it at your own risk. But I've never seen a problem.

  3. jerryk macrumors 68020

    Joined:
    Nov 3, 2011
    Location:
    SF Bay Area
    #3
    The exact same thing (I believe even the same side) happened to my 2011 13 MBP. I put a little foam tape on top of the module and let the pressure from the back cover hold down the SIM module. So far it is still running after 2 years.

  4. MacInTO, Jul 19, 2016
    Last edited: Jul 19, 2016

    MacInTO thread starter macrumors 65816

    MacInTO

    Joined:
    Apr 25, 2005
    Location:
    Canada, eh!
    #4
    Thanks for the replies!

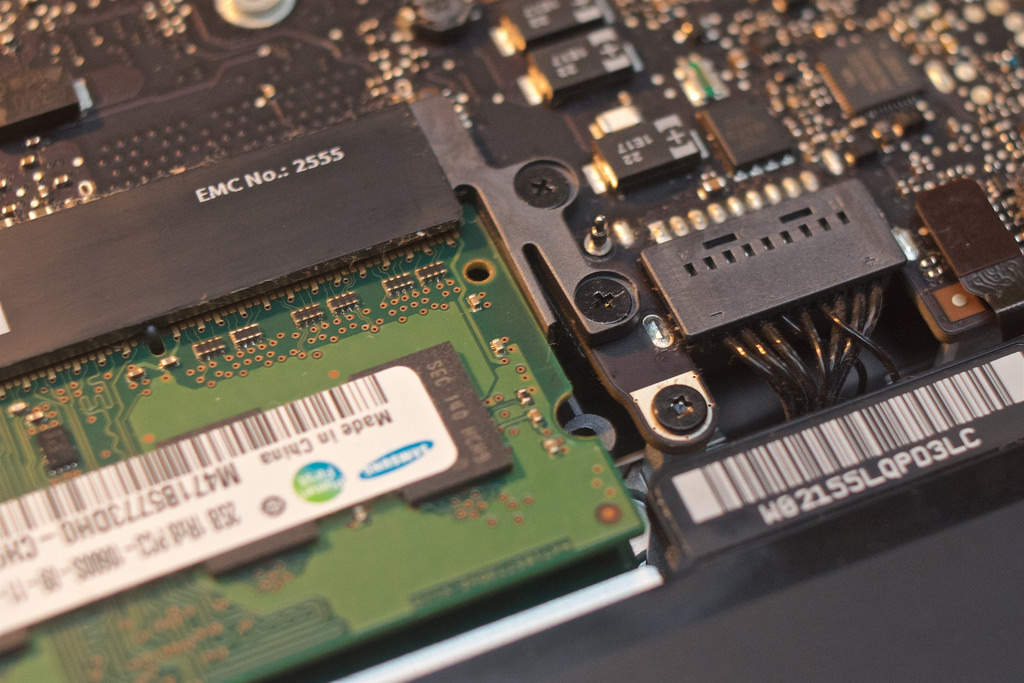

    Fixed it! 'Mac-Gyver', cut a piece of a post card, folded it and slipped it on the outside of the other clip! :D

    [​IMG]
