replace northbridge heatsink clips

Discussion in 'Mac Pro' started by colin warburton, Dec 28, 2018.

  1. colin warburton macrumors member

    Joined:
    Jun 5, 2011
    Location:
    Yorba linda, Ca
    #1
    hey all, so i got some new heatsink northbridge clips for my mac pro as well, since ive been hearing apples ones are crap. whats the best way to take them off?
    --- Post Merged, Dec 28, 2018 ---

  2. leon771 macrumors regular

    Joined:
    Sep 17, 2011
    Location:
    Australia
    #2
    If they aren’t broken I would just leave them.

  3. startergo macrumors 6502a

    startergo

    Joined:
    Sep 20, 2018
    #3
    You have to squeeze the ends with pliers and push out. Watch out they become brittle over the time and may break.

  4. theone29 macrumors member

    theone29

    Joined:
    May 6, 2013
    #4
    Where did you pick up the clips from? I'm looking to get some. Ty.

  5. startergo macrumors 6502a

    startergo

    Joined:
    Sep 20, 2018
    #5
  6. colin warburton thread starter macrumors member

    Joined:
    Jun 5, 2011
    Location:
    Yorba linda, Ca
    #6

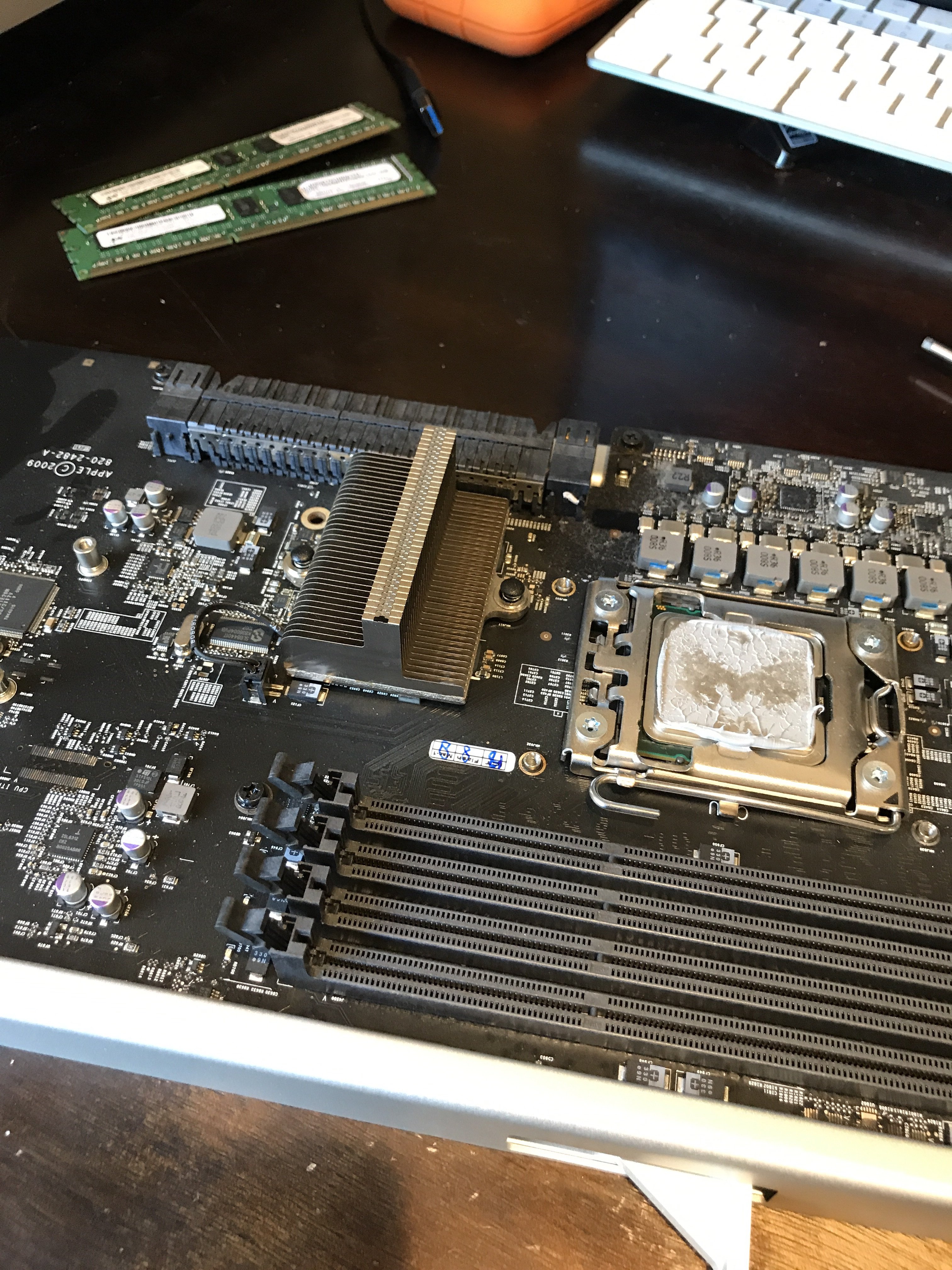

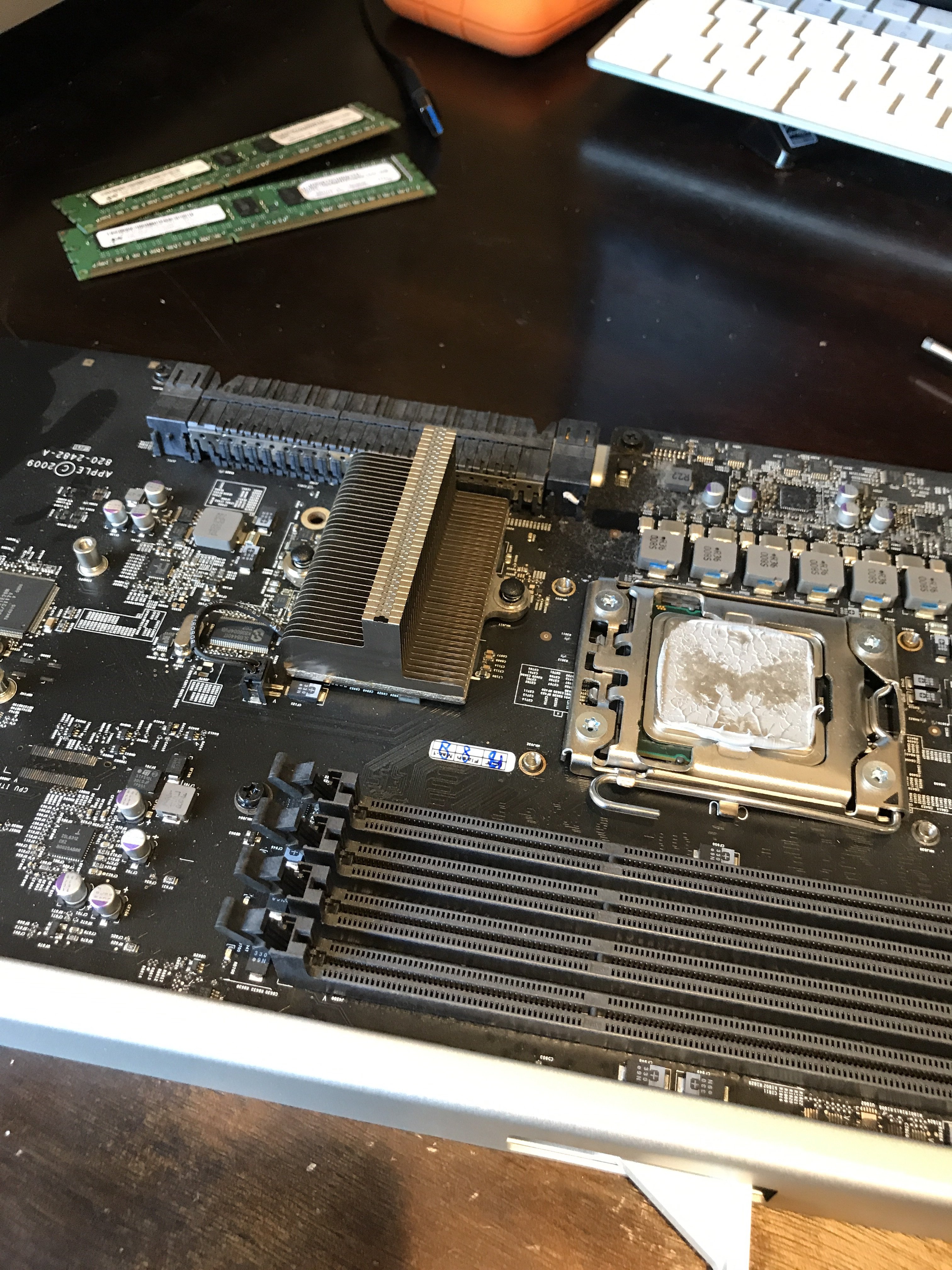

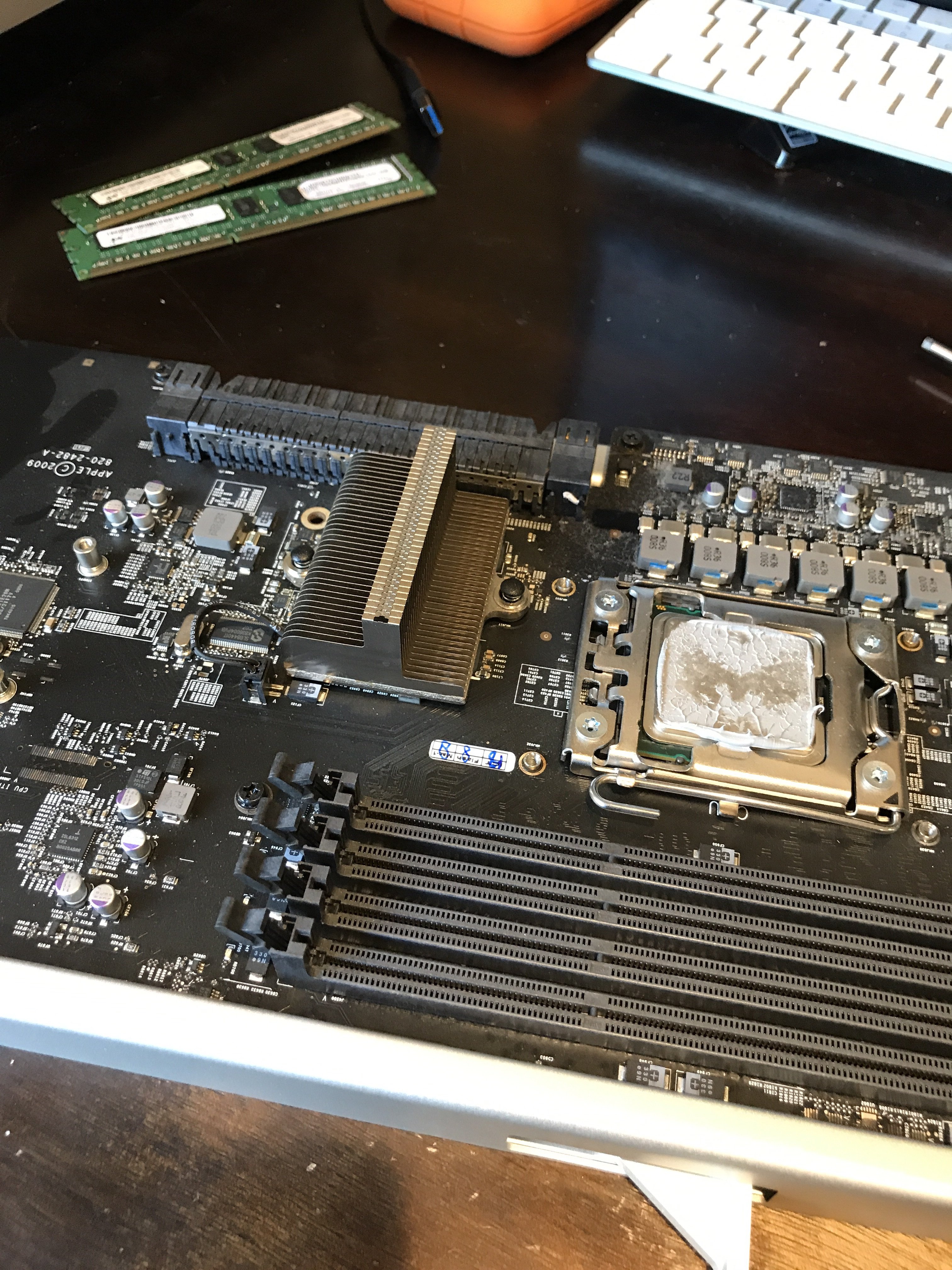

    hey all, it was successful, replaced the clips applied thermal paste, rebooted got a red light on my processor, so i took heatsink off again, appled more thermal paste to my processor, even though i upgraded it 2 days ago. put the heatsink back on and no more light.

  7. smirk macrumors 6502a

    smirk

    Joined:
    Jul 18, 2002
    Location:
    Orange County, CA
    #7
    Has it affected your temperatures at all? Were you just doing this preventatively, in case a clip broke and things overheated?

  8. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #8
    I don't think change the rivet will help cooling. But because must re-do the thermal paste, this may help a bit.

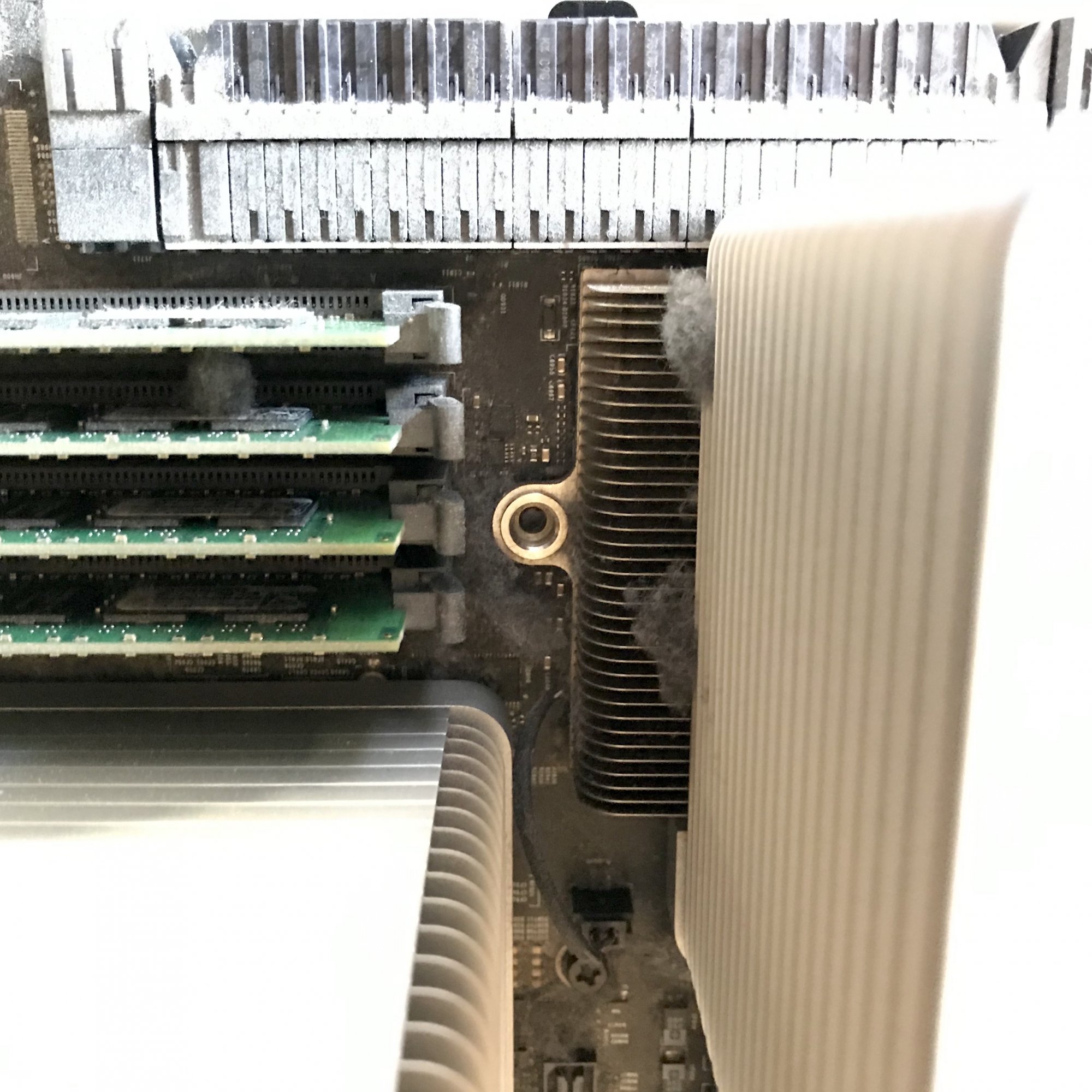

    Anyway, for single processor cMP. Northbridge temperature should not be an issue as long as the heatsink is free from dust.

    I just just a clean up yesterday. It gives me an almost 10C drop.
    Screenshot 2019-01-01 at 6.24.08 PM.png

    IMO, keep it clean is the key. And no need to touch the rivet unless it breaks.

  9. colin warburton thread starter macrumors member

    Joined:
    Jun 5, 2011
    Location:
    Yorba linda, Ca
    #9
    yeah i did that i put a new amount of thermal paste on the heatsink

  10. Magee Miller macrumors newbie

    Joined:
    Mar 13, 2019
    #10

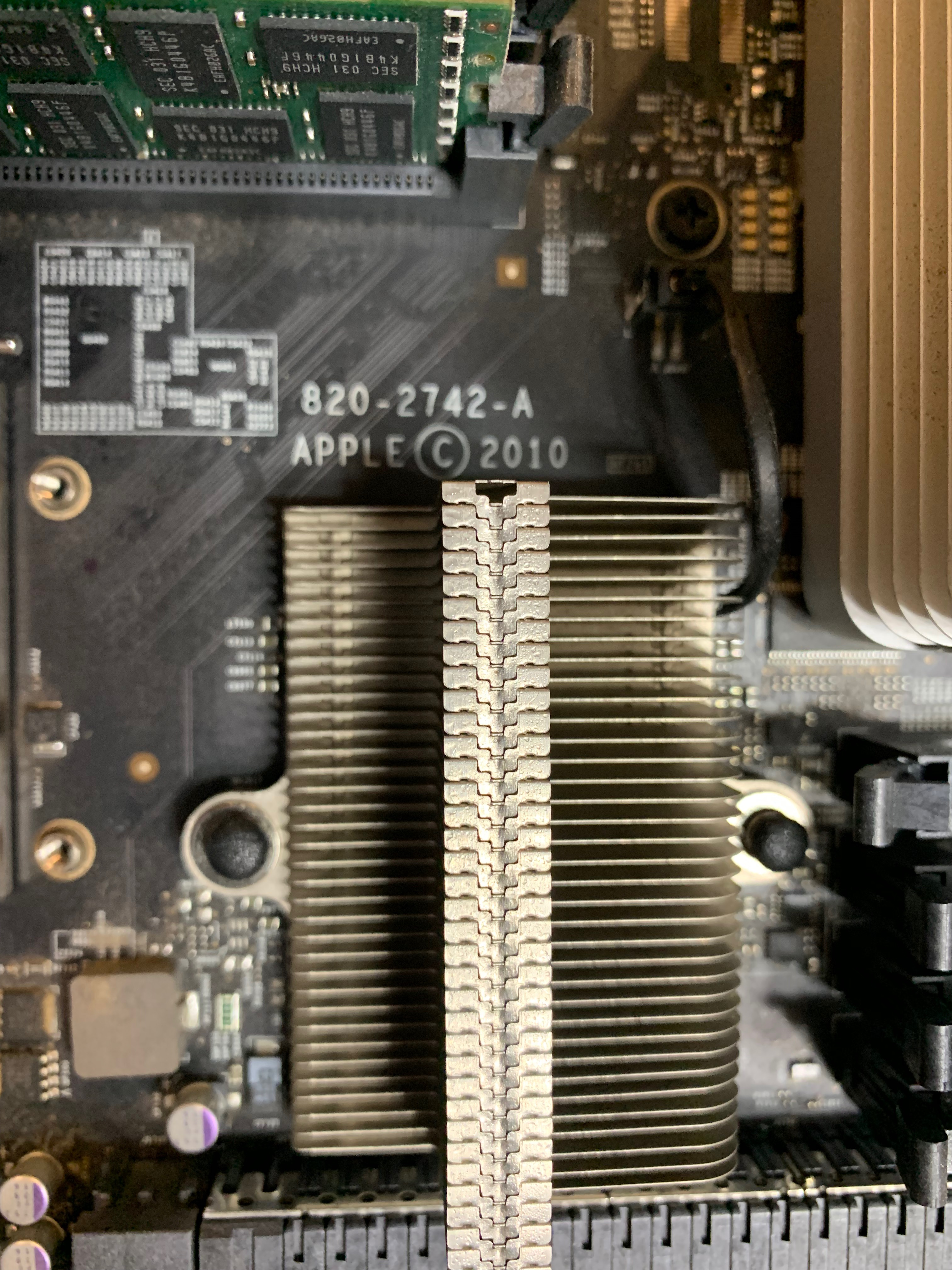

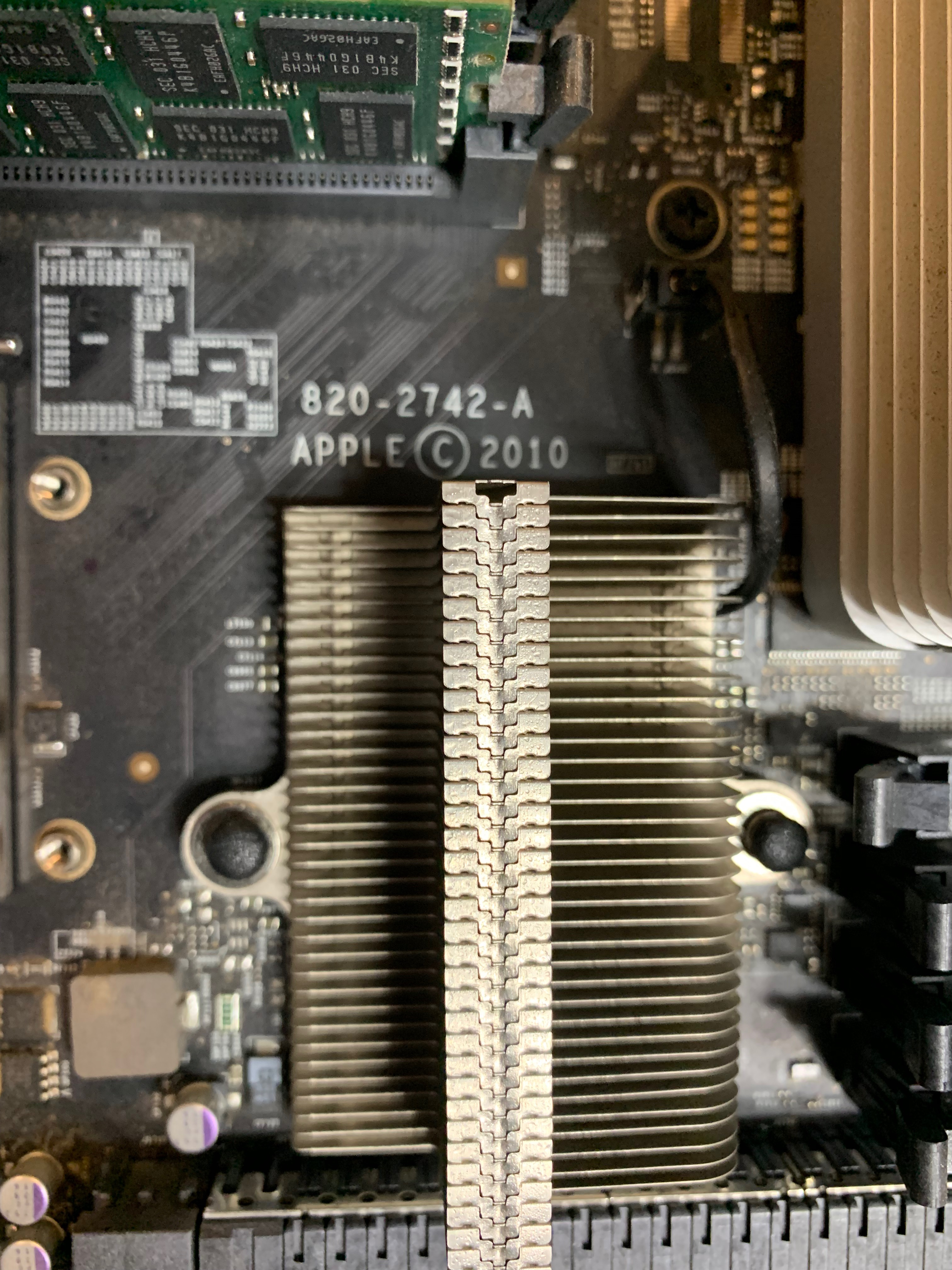

    Colin, how did you get the two clips out. My Mac Pro started overheating and the Northbridge heatsink is loose. I got in new clips for it. Did you just pull up with a pair of needle nose pliers?


    Attached Files:

  11. Razzerman macrumors regular

    Joined:
    Sep 11, 2007
    #11
    You can't just pull them out from that side. You might do some damage. You need to squeeze the nipple on the clip from the underside to release, if that makes sense.

  12. DPUser macrumors 6502a

    Joined:
    Jan 17, 2012
    #12
    Or clip the underside off with diagonal wire cutters.

  13. Magee Miller macrumors newbie

    Joined:
    Mar 13, 2019
    #13
    LOL. Unfortunately it makes perfect sense. Have my grandson this weekend. I'll work on it in a couple of days. Thanks for your help. I really didn't want to take the mother board off but it is what is it.
    --- Post Merged, Mar 14, 2019 ---
    LOL. Unfortunately it makes perfect sense. Have my grandson this weekend. I'll work on it in a couple of days. Thanks for your help. I really didn't want to take the mother board off but it is what is it.

  14. IndioX macrumors member

    IndioX

    Joined:
    Oct 1, 2018
    Location:
    austria/europe
    #14
    good clips?

    he need only new thermal pasta

    and the northbridge is not solid on the board!

  15. Magee Miller macrumors newbie

    Joined:
    Mar 13, 2019
    #15
    I do have another question. Will the new clips stay in once I place them or will I have to heat/melt the ends to secure that the heatsink remains positioned?

  16. tsialex macrumors 68040

    tsialex

    Joined:
    Jun 13, 2016
    Location:
    Brazil
    #16
    The arrow like end of the plastic rivet will open and stay in place locking the heatsink.
