Replacement iMac SSD

shane0524

macrumors newbie
Original poster
Jun 23, 2019
9
1
I had a failure of my Fusion Drive SSD. I am trying to replace the HDD and SSD to put it back to how it was from the factory. I am having trouble finding the SSD component of this system. Does anyone know where to get it? (Besides a used on ebay) The part I removed and need to replace is a San Disk SDNEP 655-1837F 128 GB.

I am not interested in an SSD to replace the HDD, just want to put it back to how it was from the factory.

Last edited:

CoastalOR

macrumors 68030
Jan 19, 2015
2,758
1,013
Oregon, USA
That makes it one of 4 late 2014 iMacs (one of 8 if you count the SSD models). Either tell us what you have or no one can help you.
Reread the OP's post 1. They are looking to replace the OEM SSD of a FUSION drive without using eBay.
I had a failure of my Fusion Drive SSD. I am trying to replace the HDD and SSD to put it back to how it was from the factory. I am having trouble finding the SSD component of this system. Does anyone know where to get it? (Besides a used on ebay) The part I removed and need to replace is a San Disk SDNEP 655-1837F 128 GB.
I am not interested in an SSD to replace the HDD, just want to put it back to how it was from the factory.
The only place I know of to get a replacement OEM SSD is from eBay.

Comment

mikehalloran

macrumors 68000
Oct 14, 2018
1,900
512
The Sillie Con Valley
The only place I know of to get a replacement OEM SSD is from eBay.

I’ll sell the OP one but I don’t recommend it. Like all of them before 2017, it’s an AHCI, about 1/4 the speed of an NVMe 3 x4 blade (in a 2015) or half the speed in a 2013–2014.

It’s a 128GB that I pulled from my wife’s 2013 MacBook Air when I installed a 512GB. Contact me back channel. $25 plus a little postage, it’s yours.

The NVMe has a wake from sleep issue with an easy workaround through a Terminal Command. A slow 2TB Intel 660p is $207; 1TB is $98. A fast 970 EVO is a waste of money in these as the buss is too slow for anyone to realize the increased speed.

Comment

shane0524

macrumors newbie
Original poster
Jun 23, 2019
9
1
its a 27 inch 5k with 3tb fusion drive,

sounds like there isnt a place to get a replacement ssd brand new, must be a proprietary size from the oem, im going to try just replacing hdd and seeing it if will allow me to reinstall macos, the data recovery place i went to said the ssd was dead but im not totally sure of it after i did a bit more digging

Comment

macguru9999

macrumors 6502
Aug 9, 2006
382
125
Your old fusion drive was made of 2 components, only one of those would have been faulty, probably the HDD but possibly the SSD given its age. Test them in isolation. ANY HDD such as the Seagate 1TB , and ANY correct form factor SSD can be configured into a fusion drive using instructions available online. You do not need the original brand to get a working fusion drive.

Comment

Fishrrman

macrumors Core
Feb 20, 2009
20,431
7,246
The blade SSD may not be "dead".
You need to get booted from internet recovery (command-OPTION-R at boot).
Then check BOTH drives with disk utility.

You MIGHT be able to re-initialize (re-format) both drives.
You won't know this unless you try.

See if you can just get booted to internet recovery (key command above).
This IS NOT "the recovery partition" (which you get from "command-R").

Give it a try.
Then come back and report your results.

Alternative course of action:
You could just leave the platter-based hard drive in there, and boot and run from that.
It will work ok, but it won't be "fast".

Or... buy a USB3 SSD, connect that externally, and boot and run the iMac that way.
The internal HDD will still be usable.

Comment

EnderBeta

macrumors 6502a
Aug 5, 2016
559
520
I had a failure of my Fusion Drive SSD. I am trying to replace the HDD and SSD to put it back to how it was from the factory. I am having trouble finding the SSD component of this system. Does anyone know where to get it? (Besides a used on ebay) The part I removed and need to replace is a San Disk SDNEP 655-1837F 128 GB.

I am not interested in an SSD to replace the HDD, just want to put it back to how it was from the factory.
If the iMac from 2014 uses the same sad as the early 2015 MacBook Pro I have a 128GB drive that I am not using after I purchased a 512GB ssd off eBay $20 plus shipping and it’s yours. PM if you’re interested.

Another option is OWC has a adapter that allows you to use m.2 ssd drives in the Apple ssd slot. I believe the adapter is $11 and then you can use whatever off the shelf m.2 ssd you want.

Comment

shane0524

macrumors newbie
Original poster
Jun 23, 2019
9
1
Your old fusion drive was made of 2 components, only one of those would have been faulty, probably the HDD but possibly the SSD given its age. Test them in isolation. ANY HDD such as the Seagate 1TB , and ANY correct form factor SSD can be configured into a fusion drive using instructions available online. You do not need the original brand to get a working fusion drive.
this is what i figured, but where can i get that ssd component of the fusion drive? is it a standard form factor? to directly replace what came with this imac?
[doublepost=1564177215][/doublepost]
The blade SSD may not be "dead".
You need to get booted from internet recovery (command-OPTION-R at boot).
Then check BOTH drives with disk utility.

You MIGHT be able to re-initialize (re-format) both drives.
You won't know this unless you try.

See if you can just get booted to internet recovery (key command above).
This IS NOT "the recovery partition" (which you get from "command-R").

Give it a try.
Then come back and report your results.

Alternative course of action:
You could just leave the platter-based hard drive in there, and boot and run from that.
It will work ok, but it won't be "fast".

Or... buy a USB3 SSD, connect that externally, and boot and run the iMac that way.
The internal HDD will still be usable.

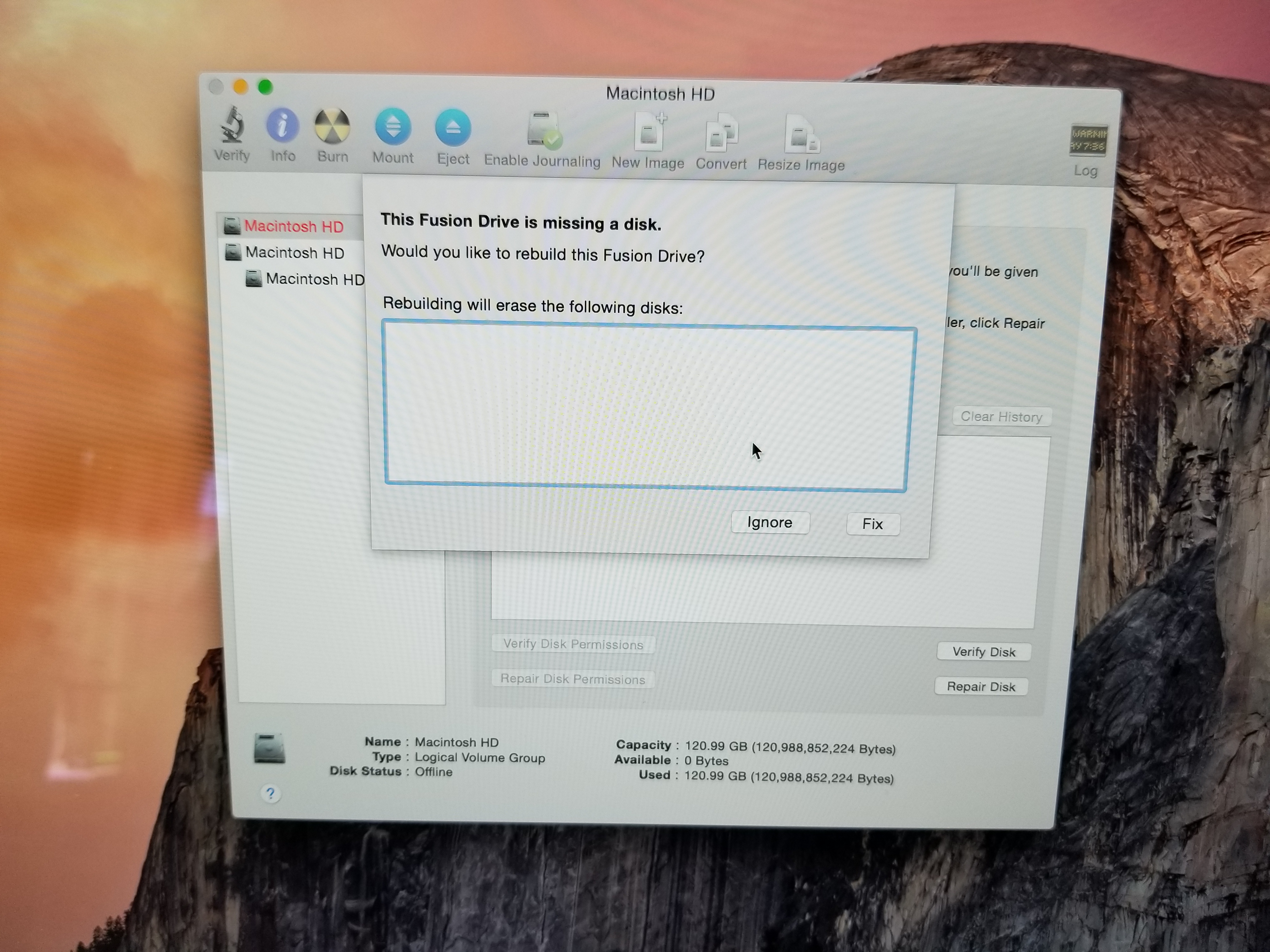

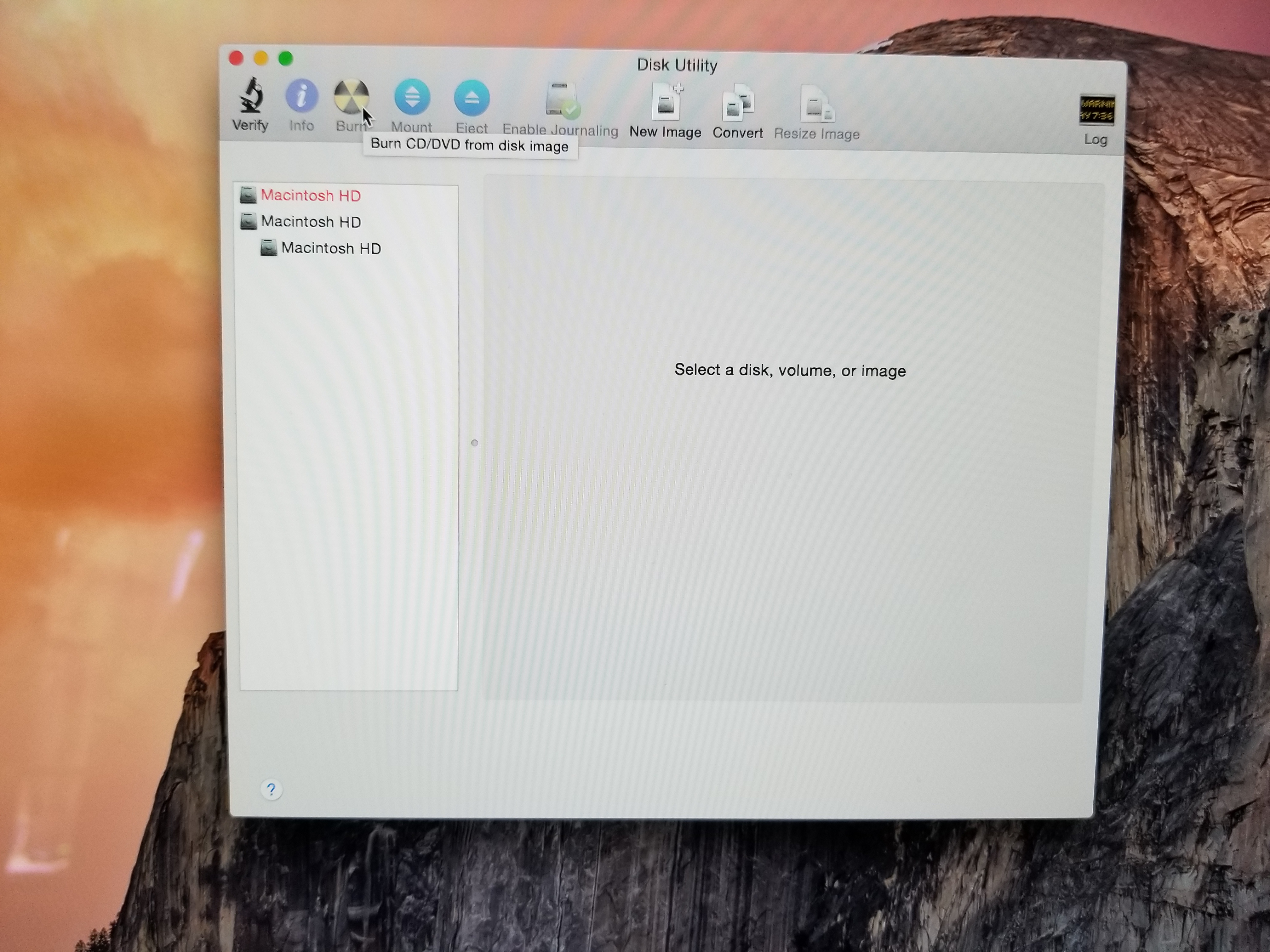

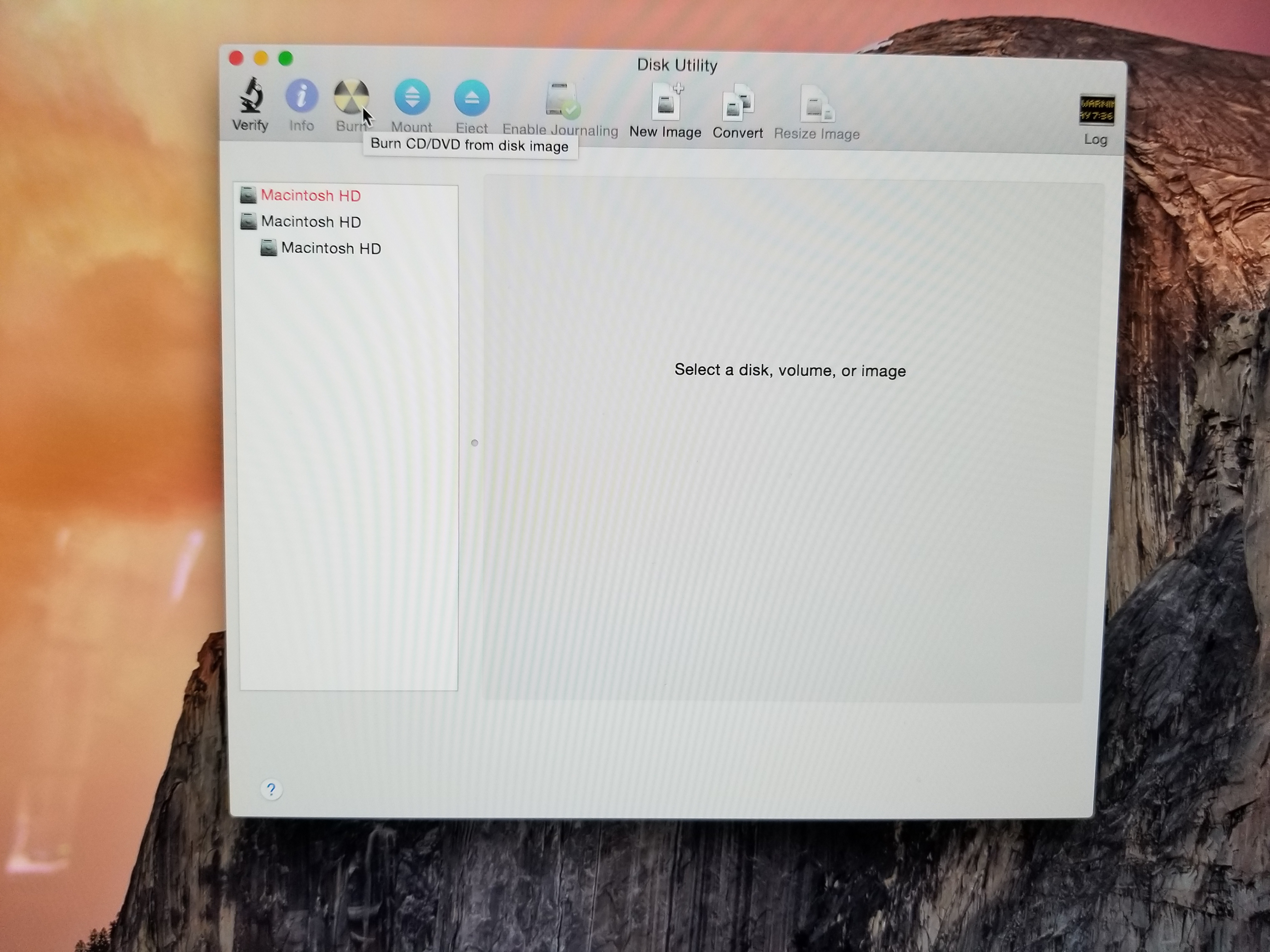

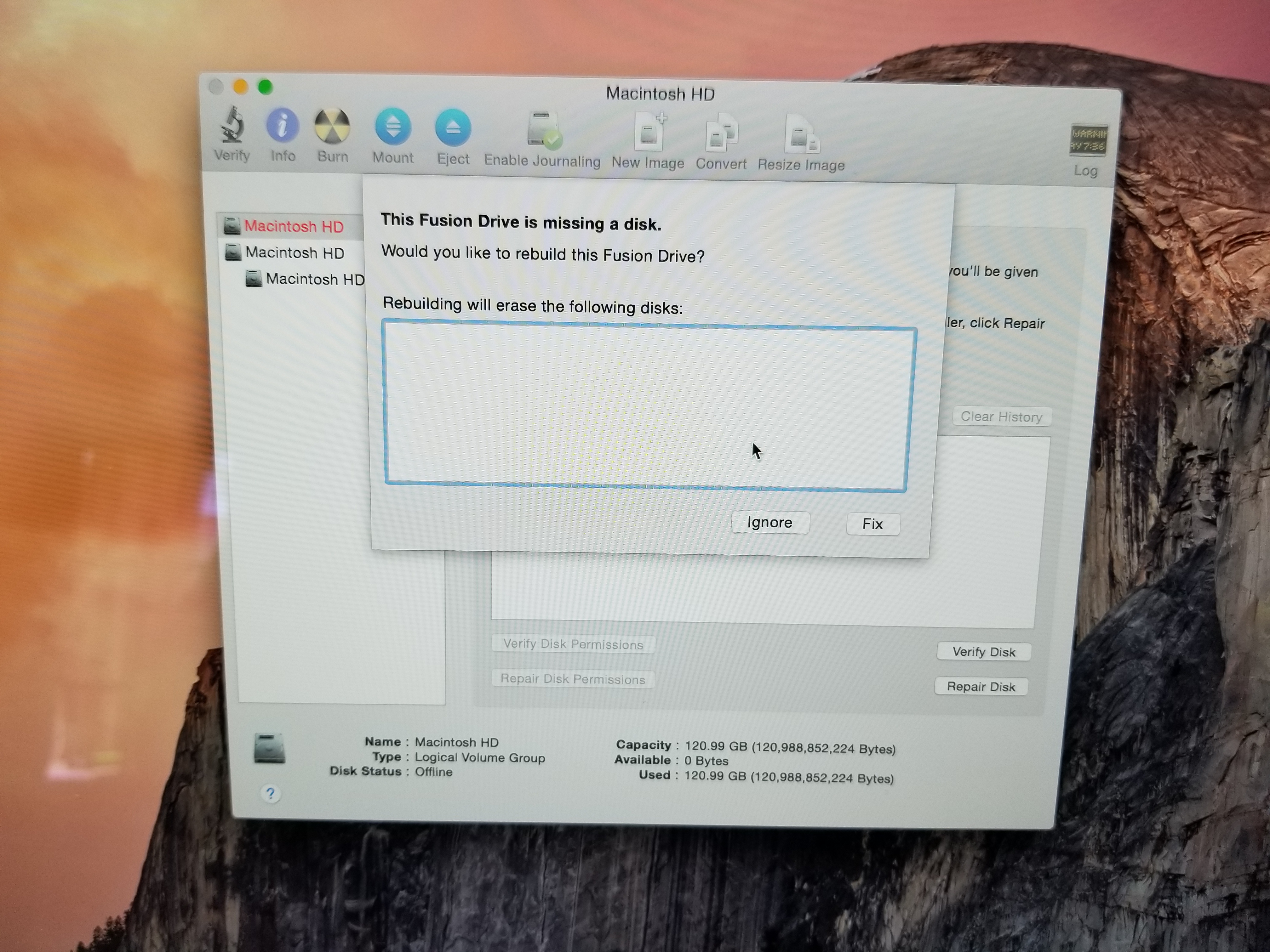

I was able to boot to internet recovery mode and was unable to get either drive to format. Now i have replaced the hdd with a working unit, and have reinstalled mac os on it, it is running ok but i am having an issue in disk utility it shows this? i am thinking the ssd is dead. I go to fix, and nothing happens it just returns to main screen of DU
[doublepost=1564177373][/doublepost]
If the iMac from 2014 uses the same sad as the early 2015 MacBook Pro I have a 128GB drive that I am not using after I purchased a 512GB ssd off eBay $20 plus shipping and it’s yours. PM if you’re interested.

Another option is OWC has a adapter that allows you to use m.2 ssd drives in the Apple ssd slot. I believe the adapter is $11 and then you can use whatever off the shelf m.2 ssd you want.
can you share a link to that adapter?


Attachments

  • 20190726_143706.jpg
    7.3 MB · Views: 30
  • 20190726_143659.jpg
    6.8 MB · Views: 33
Last edited:
Comment

EnderBeta

macrumors 6502a
Aug 5, 2016
559
520
this is what i figured, but where can i get that ssd component of the fusion drive? is it a standard form factor? to directly replace what came with this imac?
[doublepost=1564177215][/doublepost]


I was able to boot to internet recovery mode and was unable to get either drive to format. Now i have replaced the hdd with a working unit, and have reinstalled mac os on it, it is running ok but i am having an issue in disk utility it shows this? i am thinking the ssd is dead. I go to fix, and nothing happens it just returns to main screen of DU
[doublepost=1564177373][/doublepost]
can you share a link to that adapter?
I found a review of the adapter at https://www.anandtech.com/show/14382/the-owc-aura-pro-x2-ssd-review-nvme-for-older-macs

And the product page

https://www.owcdigital.com/products/aura-pro-x2
