Over the past few years, Thunderbolt 3 docks have become nearly ubiquitous, with a variety of different docks offering varying sets of ports in a few different body styles. Similar docks, albeit with more limited capabilities, exist for connecting over USB-C to machines that lack the more powerful Thunderbolt 3 standard, even in some cases including the iPad Pro.

Since the introduction of Thunderbolt 3 docks, users have typically had to choose either a Thunderbolt 3 or a USB-C dock to provide additional connectivity for their devices. Thunderbolt 3 docks offer more capabilities, but they lacked backward compatibility with machines that only offer USB-C.

A new generation of docks has started hitting the market, however, offering both Thunderbolt 3 and USB-C support for compatibility with a wider range of devices. I've had some time to test out CalDigit's recently launched USB-C Pro Dock, which does exactly that.


Using both a 2016 15-inch MacBook Pro with Thunderbolt 3, a 2015 MacBook with USB-C, and an 11-inch iPad Pro, I've tested the capabilities of CalDigit's dock and come away impressed with the versatility and performance that come at a rather reasonable price compared to similar docks from other manufacturers.

I'll start by noting that I've long been a fan of CalDigit, and the company's TS3 Plus Thunderbolt 3 dock has been my favorite for everyday use with my MacBook Pro among all of the many Thunderbolt 3 docks I've tested. It offers the perfect set of ports for my needs, 85-watt charging to fully support my 15-inch MacBook Pro, and a compact form factor that sits nicely under one of my external displays.

CalDigit's TS3 Plus (left) and USB-C Pro Dock (right)

Given my experience with the TS3 Plus and some of CalDigit's other products, I was excited to test out the new USB-C Pro Dock, and for the most part it lived up to my expectations.

Front ports: USB-A, USB-C, SD card, audio in/out

The USB-C Pro Dock has a horizontal design more typical of Thunderbolt 3 docks, as opposed to the TS3 Plus. I prefer the design of the TS3 Plus, but the USB-C Pro Dock design is certainly suitable and allows the dock to sit unobtrusively on a desk. It comes in a Space Gray aluminum that closely matches Apple's notebooks of that color, with some finning on the sides to potentially assist with heat dissipation and black plastic on the front and back.

Rear ports: Ethernet, 2x USB-A, upstream Thunderbolt 3, 2x DisplayPort, power adapter

The dock weighs just under a pound and measures in at about 8.5 inches wide, an inch high, and a little over three inches deep. It's powered by a fairly large external power brick as is typical of these docks, although the brick included with this dock is a bit flatter than some others I've seen and most users should be able to tuck it away on or behind a desk.

Power Output

The USB-C Pro Dock is able to provide 85 watts of power over either Thunderbolt 3 or USB-C, providing full power a 15-inch MacBook Pro or any other Mac notebooks you might use it alongside, with the exception of the brand-new 16-inch MacBook Pro that ships with a 96-watt power adapter. Dock manufacturers are still working out the best way to support this new higher-wattage MacBook Pro, but for most users, even 85 watts will be plenty to keep that 16-inch MacBook Pro fully powered up.

To eke out a bit more power, CalDigit has an upcoming firmware update for the USB-C Pro Dock (and the TS3 Plus) that will bump charging to 87 watts, and CalDigit tells me most users won't have any problems charging their 16-inch MacBook Pros at either 85 or 87 watts. For those pushing their machines to the limit on heavy CPU/GPU usage for extended periods of time, CalDigit recommends those users charge their machines with Apple's power brick to ensure they're getting the full 96 watts.

Displays

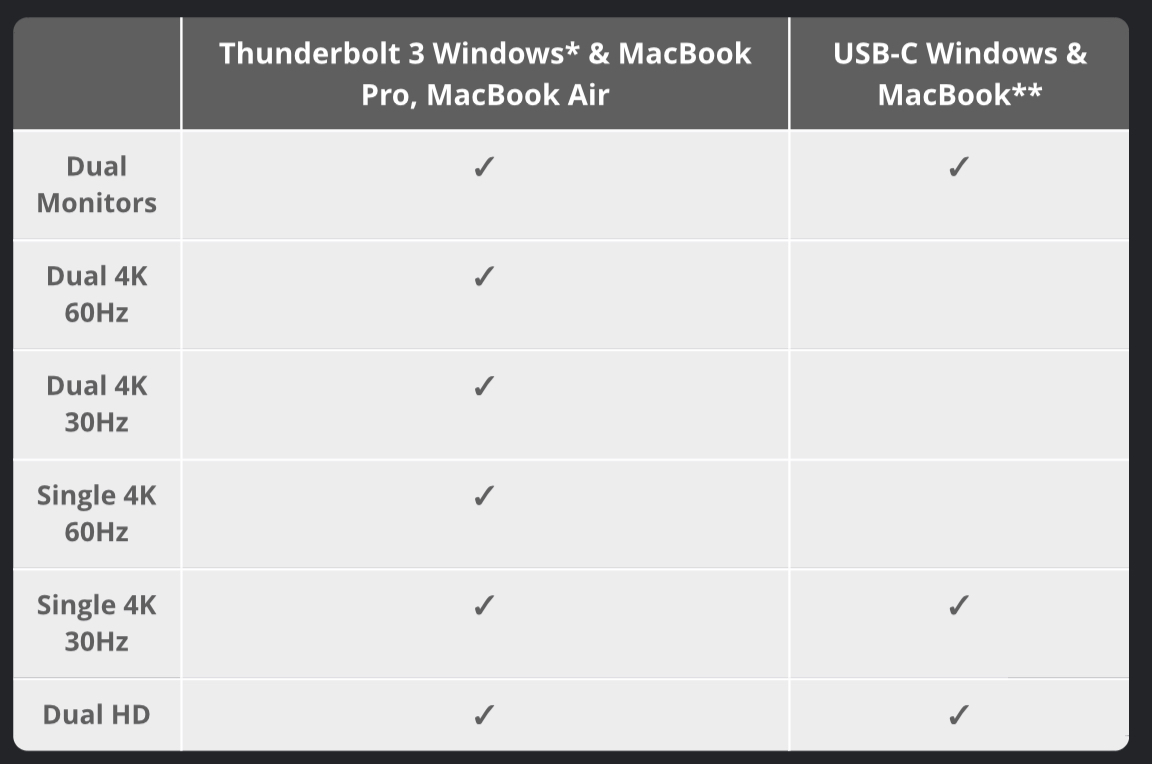

When it comes to display compatibility, the USB-C Pro Dock includes a pair of DisplayPort 1.2 connectors, and active adapters can be used to convert to other standards like HDMI. When connected to a Thunderbolt 3-equipped Mac like a MacBook Pro or recent MacBook Air, the USB-C Pro Dock is able to drive dual 4K monitors at up to 60Hz, offering great expansion capabilities for turning your notebook into a workhorse desktop machine.

Things are little more limited when you're connecting the dock to a MacBook over USB-C, as the slower connection maxes out at supporting a single 4K display at 30Hz or dual HD displays, although those dual displays are unfortunately limited to mirrored mode rather than allowing for a full extended desktop.

The lack of a downstream Thunderbolt 3 port means I likely won't be using this as my everyday dock, as I currently use a pair of LG UltraFine 5K displays, one connected through my TS3 Plus dock and one directly to my computer. I certainly could route both 5K displays directly to the MacBook Pro and use the dock separately for its other functions, but that increases the number of cables connected to my computer from two to three and so it's overall less convenient, particularly when I've already got a TS3 Plus serving my needs.

But for someone maxing out with one or two 4K displays, particularly DisplayPort ones where you won't need any adapters, the USB-C Pro Dock should work out just fine. In fact, CalDigit intentionally opted to sacrifice the downstream Thunderbolt 3 port in order to include two DisplayPort 1.2 ports, since most people end up using the Thunderbolt port to add another display anyway.

USB Connectivity

One of the other primary purposes of a computer dock is to provide additional USB ports for connecting a variety of accessories to your computer all through a single cable. The USB-C Pro Dock includes three 5 Gbps USB-A ports (one on the front and two on the back), as well as one data-only 10 Gbps USB-C port on the front of the dock.

Read/write speeds for CalDigit Tuff external SSD connected to front 10 Gbps USB-C and a 2016 MacBook Pro

Connecting a fast CalDigit Tuff external SSD to that 10 Gbps front USB-C port and to my MacBook Pro, I found solid speeds of 475 MB/s write and 500 MB/s read, which is typical for this drive over a 10 Gbps connection. Using the same setup but connected to a 2015 MacBook over USB-C, I saw speeds dip slightly to 411 MB/s write and 415 MB/s read, but that's still solid performance.

The front-facing USB-A port on the USB-C Pro Dock supports standalone charging, so you can charge your iPhone, Apple Watch, or other devices via the dock even when your notebook isn't connected or turned on. CalDigit also provides a driver to increase the power available over USB to allow the dock to support Apple's SuperDrive.

SD, Ethernet, and Audio

Moving beyond displays and USB, the USB-C Pro Dock includes three additional features to increase the capabilities of a connected computer. One is a Gigabit Ethernet port to give you a speedy and reliable wired data connection, and the other is a UHS-II SD 4.0 card reader to make it easy to quickly transfer photos and files from a standalone camera or other devices.

Finally, there is a 3.5mm combination analog audio in/out port on the front of the dock to support speakers, headphones or combined headphone/microphone headsets.

iPad Pro Support

While Thunderbolt and USB docks have traditionally been used to expand the capabilities of Macs, the adoption of USB-C on the iPad Pro has opened the door for Apple's tablets to take advantage of USB-C docks as well, and CalDigit's USB-C Pro Dock does the job here as well.

iPad Pro connected to external display and SSD via USB-C Pro Dock

With a single cable connecting your iPad Pro to the dock, you can open support for an external display running at up to 4K and 60Hz, USB-connected drives, SD cards, ethernet, and audio in/out. The dock also lets you use external accessories like keyboards and mice, and it allows for fast charging of your iPad Pro.

Backward Compatibility

For those users with older computers, the USB-C Pro Dock can be used with Thunderbolt 1 and 2 ports with appropriate adapters, although capabilities are more limited due to the lower bandwidth and you won't be able to charge your device, for example.

You can even get some limited dock functionality out of the USB-C Pro Dock when connecting to a machine that supports only USB-A, provided you have a USB-C to USB-A adapter available. You won't be able to drive any displays or charge your computer over that connection, but you'll at least be able to take advantage of the additional USB ports, SD card reader, Gigabit Ethernet port, and audio capabilities.

Wrap-up

Overall, CalDigit's USB-C Pro Dock strikes a great balance of performance and versatility, giving you the ability to connect to a range of devices to expand your connectivity options. If you want the flexibility to connect to a Mac and an iPad with the same dock, or if you've got both Thunderbolt 3 and USB-C Macs around the house, this dock is definitely worth taking a look at.

If you're all in on Thunderbolt 3, make sure you take a look to see if this dock's capabilities will be sufficient for your needs. If you're using a Thunderbolt 3 external display, for example, you won't be able to connect it through this dock.

On the flip side, if you don't need the full capabilities offered by Thunderbolt 3, there are smaller and cheaper USB-C-only hubs out there that might do the trick for you, although many of those are bus-powered from the computer itself and require passthrough charging with your existing adapter.

With 85 watts of charging power on CalDigit's USB-C Pro Dock, nearly every portable Mac can be charged at maximum speed, with the exception of the brand-new 16-inch MacBook Pro, but even on that machine most users shouldn't run into any problems keeping up with power demands.

While many full-featured Thunderbolt 3 docks are priced at $300 more, CalDigit's USB-C Pro Dock undercuts that price point significantly, currently coming in at just $210 on Amazon and in CalDigit's online store. A 0.7-meter cable that works with both Thunderbolt 3 and USB-C connections is included.

Note: CalDigit provided MacRumors with a USB-C Pro Dock for the purpose of this review. No other compensation was received. MacRumors is an affiliate partner with Amazon. When you click a link and make a purchase, we may receive a small payment, which helps us keep the site running.

Article Link: Review: CalDigit's USB-C Pro Dock Adds Ports to Your Thunderbolt 3 or USB-C Mac, or Even an iPad Pro

Last edited:

EugW

macrumors 604
Jun 18, 2017
7,543
4,873
With the iPad Pro with this dock, can it provide simultaneous 4K 60Hz and USB 3? Or is it limited to USB 2 speeds in this setup?


Quu

macrumors 68030
Apr 2, 2007
2,869
4,447
I have had this dock for about two weeks now. Using it with my 16" MacBook Pro. Works great, no issues whatsoever. Plug it in, works every time. I have connected a 1Gb Ethernet connection to it a 4K display and am using it to charge my laptop. All works perfectly.


brushlee

macrumors member
Oct 4, 2017
42
17
Irvine, CA
I have had this dock for about two weeks now. Using it with my 16" MacBook Pro. Works great, no issues whatsoever. Plug it in, works every time. I have connected a 1Gb Ethernet connection to it a 4K display and am using it to charge my laptop. All works perfectly.
Can I have 2 displays via USB-C ? I mean NOT mirrored, rather 2 independent screen content?


Ifti

macrumors 68020
Dec 14, 2010
2,332
466
UK
Have been using this for a while and had no issues, although I may swap it for a TB3 Dock instead since my main uses are external drives rather then displays.



m0nkeyb0y

macrumors member
Jun 16, 2009
94
61
My recent experience, fwiw.
Just purchased a 16" MBP, connected it in clamshell to a new CalDigit USB-C Pro Dock, which had 2 monitors, ethernet, and some external drives plugged into it. Had a few hiccups, bu generally worked great. At least, for 3 days. Then, mid-work, it just quit. No power or connection to the MBP. It still had power itself, because my external DVD-burner could power off it. Tried different USB-C cables, everything.

CalDigit is replacing it, so, that's good.
I hope it's an anomaly.


dysamoria

macrumors 6502a
Dec 8, 2011
885
465
I’ve noticed there don’t seem to be any USB-C hubs on the market, just docks.


residentpro

macrumors newbie
Dec 12, 2019
1
1
With the iPad Pro with this dock, can it provide simultaneous 4K 60Hz and USB 3? Or is it limited to USB 2 speeds in this setup?
No you cannot because the iPad Pro has a bandwidth limitation of 10Gbs. Therefore, not enough to support dual 4K at 60hrz.
- - Post merged: - -

I’ve noticed there don’t seem to be any USB-C hubs on the market, just docks.
USB-C hubs are limited to the power of your BUS. 15 watts isn't enough to deliver power to support display and all the ports on the hub. For a product to be certified by Thunderbolt 3 all the ports on the dock must work contemporaneously. However, a hub is not a Thunderbolt 3 device and does not have this requirement. If you do get a hub, then be careful about using more than a few ports. Without the right amount of power you may suffer data loss, or much worse.

  • Like
Reactions: markaceto

dysamoria

macrumors 6502a
Dec 8, 2011
885
465
No you cannot because the iPad Pro has a bandwidth limitation of 10Gbs. Therefore, not enough to support dual 4K at 60hrz.
- - Post merged: - -


USB-C hubs are limited to the power of your BUS. 15 watts isn't enough to deliver power to support display and all the ports on the hub. For a product to be certified by Thunderbolt 3 all the ports on the dock must work contemporaneously. However, a hub is not a Thunderbolt 3 device and does not have this requirement. If you do get a hub, then be careful about using more than a few ports. Without the right amount of power you may suffer data loss, or much worse.
But I just pointed out: there don’t seem to be any USB-C hubs. Are you saying that USB-C isn’t going to have hubs?


markaceto

macrumors 6502
Jun 8, 2017
284
401
So this would be a much better option than their mini dock which is trash (in spite of the NVRAM and SMC voodoo they claim will fix the issues).


Pbwj

macrumors newbie
Oct 12, 2018
11
0
Whats the difference between this and the TS3 Plus? Which would you recommend?


Krevnik

macrumors 68040
Sep 8, 2003
3,376
700
Whats the difference between this and the TS3 Plus? Which would you recommend?
This:
  • Is Cheaper
  • Supports USB-C hosts (iPad Pro, 12" MacBook)
  • Lacks Second TB3 Port for chaining
  • Lacks rear USB-C port
  • Has two DisplayPort ports


jayducharme

macrumors 68040
Jun 22, 2006
3,422
2,979
The thick of it
I have the Plus and I really like it. I was thinking about the Pro, but I wanted more input options. I would have assumed a device named "Pro" would have more features, not less.


theluggage

macrumors 601
Jul 29, 2011
4,254
2,980
With the iPad Pro with this dock, can it provide simultaneous 4K 60Hz and USB 3? Or is it limited to USB 2 speeds in this setup?
Physically impossible with DisplayPort 1.2 - 4K@60Hz on DP 1.2 uses all 4 high-speed data lanes in USB-C leaving none for USB 3. On top of that, many USB-C docks don't support 4k@60Hz - full stop - and Caldigit's own chart says that this one doesn't.

Theoretically possible if computer, hub and display all support DisplayPort 1.4 but in most cases that's three strikes...

Can I have 2 displays via USB-C ? I mean NOT mirrored, rather 2 independent screen content?
(a) Not sure the iPad Pro supports 2 external displays at all
(b) @Krevnik left an important footnote off the chart - Macs don't support 2 independent displays over one DisplayPort connection - you just get mirroring - so really unlikely that the iPad supports it (Thunderbolt 3 provides 2 "virtual" DisplayPort connections)


giggles

macrumors 6502
Dec 15, 2012
488
342
Someone should make a full list of these new “universal” tb3+usb-C accessories...so far I’ve heard about this dock and the Lacie Rugged SSD Pro..


Krevnik

macrumors 68040
Sep 8, 2003
3,376
700
@Krevnik left an important footnote off the chart - Macs don't support 2 independent displays over one DisplayPort connection - you just get mirroring - so really unlikely that the iPad supports it (Thunderbolt 3 provides 2 "virtual" DisplayPort connections)
Fair that I left off the footnote that Apple’s MST support doesn’t really exist (beyond driving a 5K/6K display).

That said, with this dock, it’s not going to work at all over USB-C, no matter how the port is wired up on the iPad.

Is there a technological reason this dock uses DisplayPort 1.2 instead of 1.4?
It depends, but if they rely on a TB chipset to split out the DisplayPort lanes, then it’s probably down to the chipset they included. Earlier chipsets would be cheaper by now, but only support 1.2.

But what will work depends on: GPU in host, TB chipset in host, TB chipset in dock. All need to support 1.4 for it to work.

One way to see how recent things are is look at the 6K XDR display compatibility list. That list is how to get 1.4 over TB3, and so the list of devices that would support a 1.4 dock fully would be very short.

They could have used a chipset with 1.4 support, but it would be more expensive for limited benefit.

Last edited:

theluggage

macrumors 601
Jul 29, 2011
4,254
2,980
Fair that I left off the footnote that Apple’s MST support doesn’t really exist (beyond driving a 5K/6K display).
That said, with this dock, it’s not going to work at all over USB-C, no matter how the port is wired up on the iPad.
Technically, USB-C/DisplayPort 1.2 alt mode can do dual standard res displays (bear in mind that's 1/4 the bandwidth of 4k) - but only on computers with full MST support. The chart you posted confirms that for PCs.

It depends, but if they rely on a TB chipset to split out the DisplayPort lanes, then it’s probably down to the chipset they included. Earlier chipsets would be cheaper by now, but only support 1.2
Earlier TB3 chipsets didn't have the USB-C fallback mode that this new dock presumably exploits - that and DP 1.4 support were added at the same time... so its a mystery. However, reality does seem to be that this is 1.2 only and Caldigit presumably know what they are doing...

Could be that there just isn't enough DP1.4 support by computers and displays to make it worthwhile to go the extra mile. No Intel iGPUs support it and all the Macs with AMD GPUs have Thunderbolt - and with TB3 there's no huge advantage to DP1.4 until you go 6/8K, HDR, 120Hz etc. which haven't really taken off on Mac yet (I don't think customers who can afford Apple XDR displays to go with their $1k stands are the target market for this dock...)

...back in the PC world, if you do have an 8k/HDR/120Hz display you plug it into one or more of the full-size DP 1.4 sockets attached directly to the GPU...


maccan

macrumors newbie
Feb 22, 2019
17
11
Does anybody knows if the old Apple Cinema Display (2010) with MiniDisplay connector (no thunderbold) works with this dock?
Would like to connect it to the new Mac Pro 2019.


Krevnik

macrumors 68040
Sep 8, 2003
3,376
700
Technically, USB-C/DisplayPort 1.2 alt mode can do dual standard res displays (bear in mind that's 1/4 the bandwidth of 4k) - but only on computers with full MST support. The chart you posted confirms that for PCs.
Yes, I was already aware of this. But my point is that Apple only supports MST in the sense of what’s required to funnel both 1.2/1.4 connections in a TB3 bus to a single port for the 5K/6K displays.

Could be that there just isn't enough DP1.4 support by computers and displays to make it worthwhile to go the extra mile. No Intel iGPUs support it and all the Macs with AMD GPUs have Thunderbolt - and with TB3 there's no huge advantage to DP1.4 until you go 6/8K, HDR, 120Hz etc. which haven't really taken off on Mac yet (I don't think customers who can afford Apple XDR displays to go with their $1k stands are the target market for this dock...)
1.4 can’t even handle the 6K XDR without a second connection. But it could handle a 5K display without resorting to dual 1.2 connections currently used for the 5K LG. So either you could enable more 5K displays per computer, *or* make it feasible to start offering 5K displays over DisplayPort instead of TB3 for eGPU users.


theluggage

macrumors 601
Jul 29, 2011
4,254
2,980
1.4 can’t even handle the 6K XDR without a second connection.
DisplayPort 1.4 with lossless compression can potentially handle 8K @ 60Hz, so I think that's more a case of the XDR only actually implementing DP 1.3... Bottom line is that 1.3/1.4 adoption has been glacially slow and 2.0 was late (the bandwidth hasn't changed since 2014) - probably through a combination of industry inertial and infighting alongside the demand for higher-res display formats not being as high as the industry would like...

But it could handle a 5K display without resorting to dual 1.2 connections currently used for the 5K LG. So either you could enable more 5K displays per computer, *or* make it feasible to start offering 5K displays over DisplayPort instead of TB3 for eGPU users.
Last time I looked, the 5k (2880p) display market consisted of:
* the iMac built-in display
* the LG/Apple ultrafine (which is pretty obviously a once-planned Apple TB Display 5k that Apple dumped when they saw the bill for making a nice case).
* one solitary third-party, DP1.4 option: https://iiyama.com/gb_en/products/prolite-xb2779qqs-s1/

...so, basically, there is only one (1) 5k display on the market that could use DP1.4. Bottom line: there's no interest in 5k outside the Mac market - and the few PC users driving 5k/6k/8k displays are happily hooking them up direct to GPUs with DP or HDMI outputs - USB-C or Thunderbolt just add expense and complication with zero practical benefit.

Sorry, but as video interfaces, USB-C and Thunderbolt are pointless outside a little niche of "docking" mobile devices to multifunction display/hubs - and the more display resolutions (and hence bandwidth) increase the less point there is in trying to bundle them on the same cable as i/o.


Krevnik

macrumors 68040
Sep 8, 2003
3,376
700
DisplayPort 1.4 with lossless compression can potentially handle 8K @ 60Hz, so I think that's more a case of the XDR only actually implementing DP 1.3... Bottom line is that 1.3/1.4 adoption has been glacially slow and 2.0 was late (the bandwidth hasn't changed since 2014) - probably through a combination of industry inertial and infighting alongside the demand for higher-res display formats not being as high as the industry would like...
“Visually lossless” isn’t “lossless”. DSC is lossy because the bitrate is capped and has to be in order to ensure frame rate over a fixed bandwidth.

You don’t ship something like an XDR content creation display on DSC. Hence the two stream requirement.

Last time I looked, the 5k (2880p) display market consisted of:
* the iMac built-in display
* the LG/Apple ultrafine (which is pretty obviously a once-planned Apple TB Display 5k that Apple dumped when they saw the bill for making a nice case).
* one solitary third-party, DP1.4 option: https://iiyama.com/gb_en/products/prolite-xb2779qqs-s1/
You’re missing my point. My point is that DP 1.4 means you could offer more models like the iiyama which are eGPU friendly for folks on hardware like the Mac Mini. Instead of forcing Specific eGPUs like the Blackmagic be used to hook up a 5K display.

And of course, there won’t be much demand outside the market that can take advantage of the resolution without making it a giant pain in the ass. The old Dell 5K using two DP1.2 cables didn’t even work right in Windows half the time.

...so, basically, there is only one (1) 5k display on the market that could use DP1.4. Bottom line: there's no interest in 5k outside the Mac market - and the few PC users driving 5k/6k/8k displays are happily hooking them up direct to GPUs with DP or HDMI outputs - USB-C or Thunderbolt just add expense and complication with zero practical benefit.

Sorry, but as video interfaces, USB-C and Thunderbolt are pointless outside a little niche of "docking" mobile devices to multifunction display/hubs - and the more display resolutions (and hence bandwidth) increase the less point there is in trying to bundle them on the same cable as i/o.
This isn’t even something I’m arguing? What fresh strawman is this?
