Review: Kingston's Nucleum USB-C Hub Adds Much-Needed Ports to Your MacBook or MacBook Pro

Discussion in 'Mac Blog Discussion' started by MacRumors, Jun 12, 2018.

  1. MacRumors macrumors bot

    MacRumors

    Joined:
    Apr 12, 2001
    #1
    [​IMG]


    With Apple's decision to embrace USB-C on all of its modern Macs, the company has created a need for USB-C docks so that we can continue to use all of our non-USB C peripherals as we wait for the rest of the tech industry to catch up.

    Kingston's Nucleum USB Type-C Hub is designed to meet that need, offering a selection of useful ports for MacBook, MacBook Pro, and iMac owners who still need to use the USB-A, HDMI, SD, and microSD ports that are no longer available on recent machines.

    [​IMG]

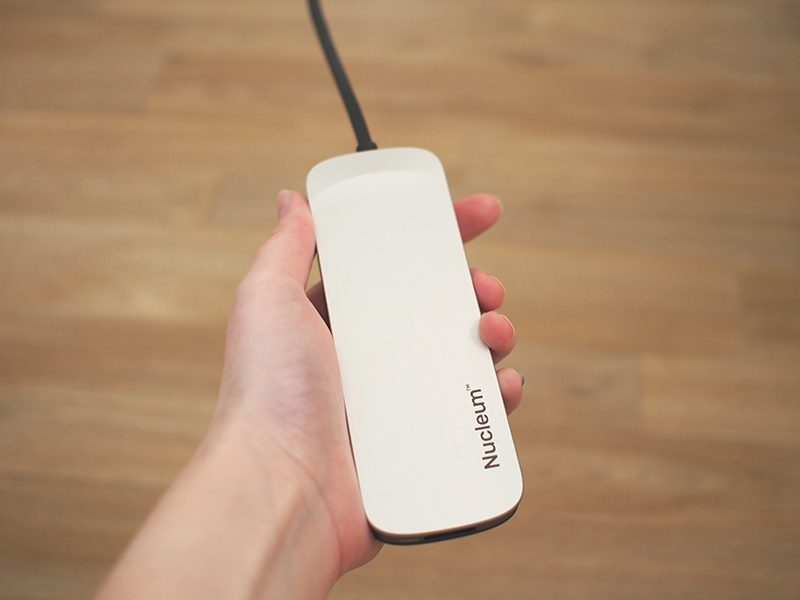

    The Nucleum USB-C Hub, made from a silver Aluminum to match Apple devices, is small enough that it can be tucked into a purse or a bag, or, in a pinch, a pocket. It's narrower and shorter than an iPhone X, but a bit thicker, with a short built-in USB-C cord provided.

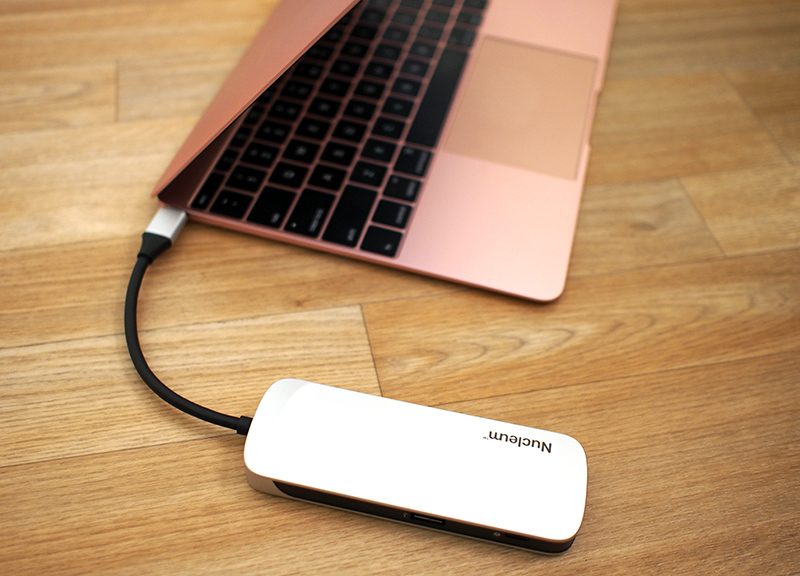

    It's a bit larger than palm-sized, but it's still not going to take up much room during travel or when it's in use on a desk. There's a "Nucleum" logo on the top of the device, while the back features Kingston branding and necessary regulatory labels.

    [​IMG]

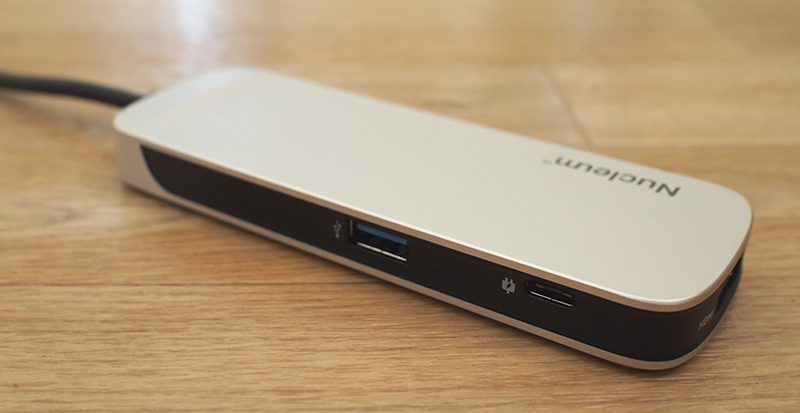

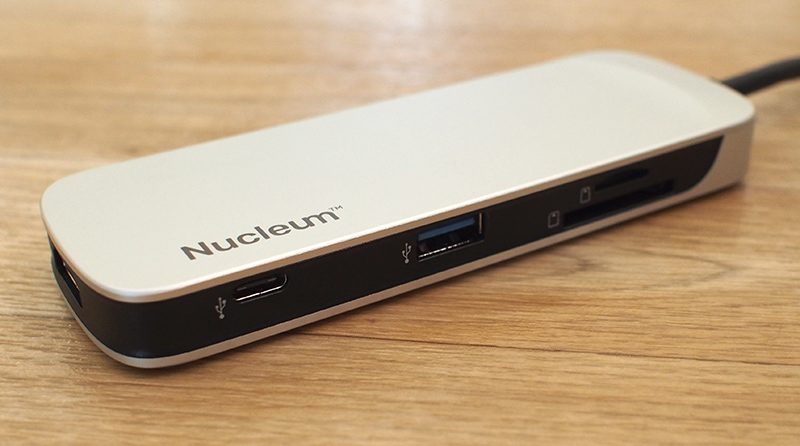

    The left side of the dock features a USB-A port and a USB-C power delivery port so you can charge a MacBook or MacBook Pro while the hub is plugged in, and on the right side, there's another USB-C port for USB-C accessories, a single USB-A port, a microSD card slot, and an SD card slot. At one end, there's the aforementioned power cord, while the other end houses an HDMI port.

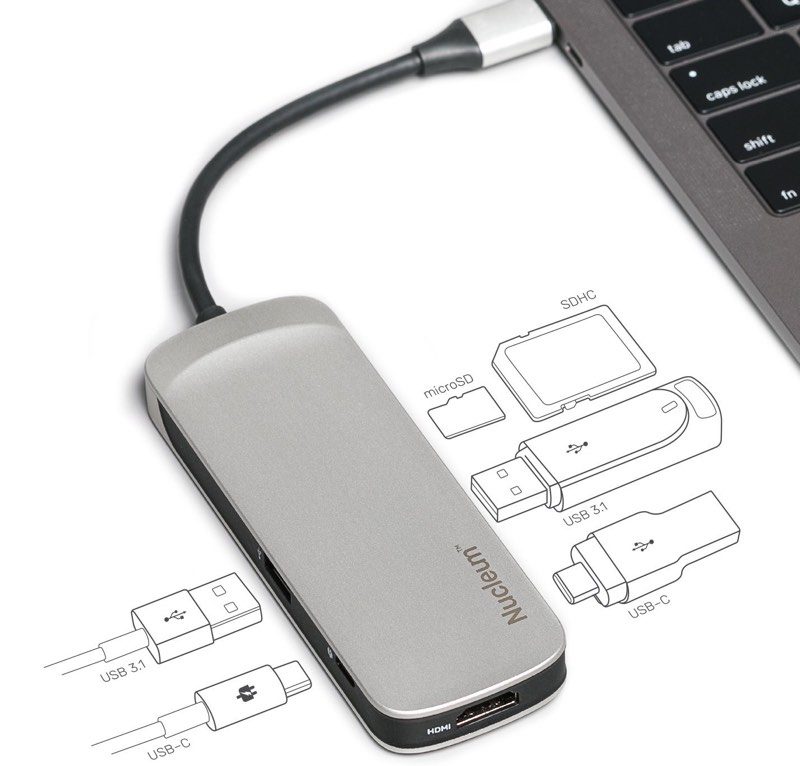

    All in all, there are a total of seven ports available on the hub, which is not too bad for a device of this size. I don't often need more than two USB-A ports at a time, so the two-port setup worked for me, and it's nice to have access to both microSD and SD card slots for camera accessories.

    [​IMG]

    This port arrangement is standard for many of the USB-C hubs that you'll find on sites like Amazon, but I've found that many of those hubs don't offer multiple USB-C ports. An extra USB-C port is surprisingly handy for my MacBook in particular (which has a single USB-C port) because I've found myself with more USB-C accessories as I transition from USB-A to USB-C.

    If you have primarily USB-A accessories, you may find that the Kingston hub does not offer a sufficient number of USB-A ports. Competing (and more affordable) hubs on Amazon typically offer 3 to 4 USB-A ports, but again, Kingston has a nicer variety of ports available. Most dual USB-C hubs seem to have higher price tags.

    [​IMG]

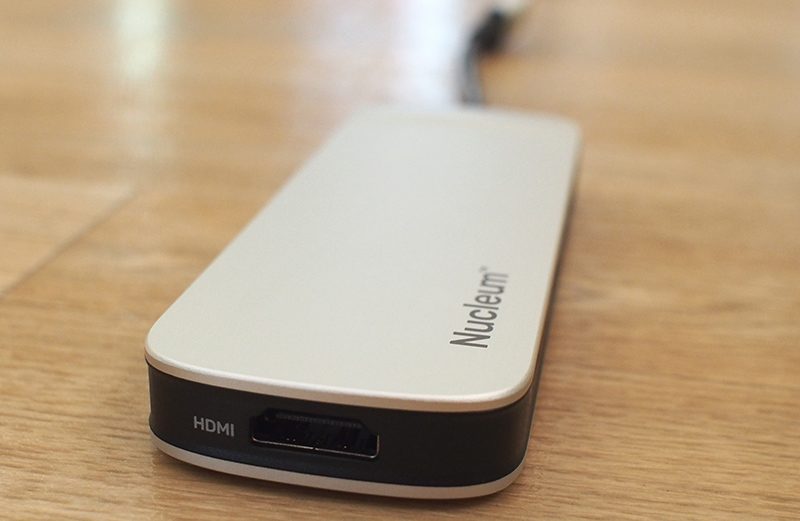

    You can use all of the hub's ports at once if so desired, and when testing multiple accessories plugged in at once, I ran into no problems. The HDMI port supports a 4K monitor (or a 1080p monitor), while passthrough charging functionality means your attached iPhones will charge up while plugged into the hub. Kingston says the Nucleum offers 5V/1.5A, which is best suited to iPhones and similar accessories. iPads will charge, but slowly.

    When using the power delivery USB-C port with your USB-C cable and power adapter for charging purposes, the hub is able to deliver up to 60W of power. That is sufficient for charging the 12-inch MacBook (29W) or the 13-inch MacBook Pro (61W) but it falls a bit short of the full capacity of the 15-inch MacBook Pro (87W).

    [​IMG]

    Still, 60W is enough to keep a 15-inch MacBook Pro topped up provided you're not doing something that's super battery intensive like rendering video or playing a graphics-heavy game. During my workday, the 60W provided by the hub was enough to keep my 15-inch MacBook Pro at 100 percent using apps like Safari, Mail, Slack, Photoshop, Pixelmator, Chrome, Tweetbot, and more all at once.

    I did notice that when I unplugged my USB-C power adapter from the Nucleum or when I plugged it in, that it would cause the hub to shut off for a second. That means that any hard drives or other accessories I have attached temporarily disconnect, so you're going to want to be careful not to plug it into a power source or unplug it during file transfers.

    As a side note, the Nucleum does not need to be plugged in to a power source other than the host computer for it to function. Using the passthrough charging feature is optional.

    Transfer speeds were at what I'd expect for a USB-A device plugged into a USB-C hub. With a traditional Seagate Backup Plus hard drive, for example, it took about 20 seconds to transfer over 3GB of data. Speeds were a bit slower when I was utilizing all of the ports on the hub, but not unreasonably so. As a note, you can only connect USB-C and USB-A hard drives to the hub. If you have a Thunderbolt 3 drive, like I do, it is not compatible because the Nucleum does not support Thunderbolt 3.

    [​IMG]

    Moving files from an SD card and a microSD card was also relatively speedy, with it taking about 25 seconds to copy over 1GB worth of photos from an SD card to my computer, and a little under a minute to copy them back from the MacBook Pro to the card. As someone with several cameras and a drone, having access to both microSD and SD card slots is invaluable.

    Bottom Line

    With Apple's focus on USB-C and its decision to remove all legacy ports, the company has created a thriving third-party hub market, and it can be difficult to narrow down what's good from what's just mediocre.

    Kingston's Nucleum is in the former category, providing the ports you're most likely to need in your day to day life in a slim, portable hub from a trusted manufacturer. Kingston's hub is more expensive than some options you'll find on Amazon, but reliability is often worth the extra money.


    I appreciated the compact size of the Nucleum, which makes it ideal for travel, and the variety of ports that it provides was perfect for me. It offers all of the ports that I need on a daily basis (primarily USB-C, USB-A, and an SD card slot), and everything worked as expected with no surprises.

    I do wish that it perhaps had one more USB-A port for people who still need to use several USB-A accessories, but I have no complaints about an extra USB-C port. I don't need dual USB-C ports on my MacBook Pro, but for my 12-inch MacBook, dual ports is a valuable addition. While I used this with Macs, it's also going to be compatible with Windows-based machines.

    The one major thing to be aware of with the Nucleum that it disconnects when connected to or disconnected from a power source. It's not a huge deal, but if you purchase this hub, make sure not to change its power settings during file transfers.

    How to Buy

    The Nucleum USB Type-C Hub can be purchased from the Kingston website or from Amazon.com for $80.

    Note: Kingston provided MacRumors with a Nucleum USB-C Hub for the purpose of this review. No other compensation was received.

    Article Link: Review: Kingston's Nucleum USB-C Hub Adds Much-Needed Ports to Your MacBook or MacBook Pro

  2. IcyTexx macrumors member

    IcyTexx

    Joined:
    Feb 6, 2010
    Location:
    Croatia
    #2
    Why do all those docks need to be so big and clunky? Not to mention they don’t really play along nicely with Apple’s design language.

  3. Quu macrumors 68030

    Quu

    Joined:
    Apr 2, 2007
    #3
    Just think in a few years they may be able to build a computer that has all these ports built in! - What a world that'd be.

  4. dingle19 macrumors member

    Joined:
    Jul 28, 2016
    Location:
    San Diego, CA
  5. Khedron macrumors regular

    Joined:
    Sep 27, 2013
    #5
    $80 less profit per Mac for Apple who bravely didn't pass on the cost of not including these features

  6. dcmbrown macrumors newbie

    Joined:
    Jan 7, 2009
    Location:
    Saskatoon, Saskatchewan
    #6
    Good job Kingston. You have successfully copied Satechi and other products already on the market for $20 more than their price with identical look and features. (though Satechi has one with an ethernet port too)

  7. DonutHands macrumors regular

    DonutHands

    Joined:
    Dec 20, 2011
    Location:
    Los Angeles
  8. eroslws macrumors 6502

    Joined:
    Aug 18, 2011
  9. soupcan macrumors 6502a

    soupcan

    Joined:
    Nov 21, 2014
    Location:
    Netherlands
    #9
    Sooooooo, if the ports are much needed why are we buying laptops who lack every single usable port on them? Is it because of the Apple logo on the back of it? Because that's dumb.

  10. mschmalenbach macrumors member

    Joined:
    Jul 22, 2008
    #10
    Hmmm. Satechi’s $60 hub has just 2 USB-A ports, and a 4K HDMI port. Their hub that is on a par with the Kingston hub described in this article is the same price or $10 more...

    I have had the Kingston hub for about 3 months now - very happy with it.

    And it has Ethernet.

  11. manu chao macrumors 603

    Joined:
    Jul 30, 2003
    #11
    If you don't use it for charging the laptop, it is (among other things) a four-port USB hub. Last I checked, USB hubs were quite common already before the 2016 MBPs. In fact, if you didn't shell out for Firewire or TB devices, most Mac laptops only had two or at most three USB ports.

  12. WinstonRumfoord macrumors 6502

    Joined:
    Mar 27, 2014
    #12
    That would take quite a bit of courage, no?

  13. fairuz, Jun 12, 2018
    Last edited: Jun 12, 2018

    fairuz macrumors 68000

    fairuz

    Joined:
    Aug 27, 2017
    Location:
    San Jose and Berkeley, CA
    #13
    No ethernet and no HDMI, bleh
    Once again with the Apple laptops, it's hard to plug into the TV to stream a video, one of the most basic uses for a laptop. The best time was the 3 or 4 years of just having a _normal_ video port with the rMBP.
    --- Post Merged, Jun 12, 2018 ---
    The logo on the back isn't even as cool as it used to be. The lit-up white Apple logo was great.

  14. Piporuno macrumors newbie

    Joined:
    Feb 13, 2010
    Location:
    Aliso Viejo
    #14
    Lol USB Type A, HDMI, SD Card Reader, and Ethernet ports are all legacy now?

    I’ll give you FireWire and the 3.5 mm jack but the others? Really?

  15. WinstonRumfoord macrumors 6502

    Joined:
    Mar 27, 2014
    #15
    Every pair of headphones I own begs to differ as to their 3.5mm jack's being prematurely relegated to the dustbin.

  16. Piporuno macrumors newbie

    Joined:
    Feb 13, 2010
    Location:
    Aliso Viejo
    #16
    Ok, I’ll give you FireWire then. :)

    I use hdmi, Ethernet, and the card reader every day. I thought these were standards but I guess Macrumors thinks these are “legacy” tech.

    Next remove the screen and the keyboard. You can’t get any more legacy than an old keyboard, that keyboard tech is from the 1800s, so much legacy. It’s time for some courage Apple

  17. PickUrPoison, Jun 12, 2018
    Last edited: Jun 13, 2018

    PickUrPoison macrumors 68020

    Joined:
    Sep 12, 2017
    Location:
    Sunnyvale, CA
    #17
    I think you’d be surprised at the number of users who use zero ports when the machine is being used out and about.

    The dock stays at the office and/or home, with all of the attendent cables (for monitors, printer, mouse/keyboard, Ethernet, usb drive(s), etc.) remaining plugged in to their respective ports. One cable to plug into your Mac and your done.

    That’s the way a lot of people who actually own these Macs use them. It’s rather convenient. Thin, light and reasonably powerful on-the-go, and a ton of bandwidth to connect to any needed peripherals.

  18. BenTrovato macrumors 68030

    BenTrovato

    Joined:
    Jun 29, 2012
    Location:
    Canada
    #18
    It wasn’t Apple’s finest move by going full USB-C and requiring 99% of the people to buy a hub. Yes I know there is always that one person who is full cloud and doesn’t need any ports. The majority of those needing ports didn’t make sense. But that’s Apple, sometimes they nail it - on this one, way off.

    The saddest part is that they boosted the usb hub segment in a big way. A ten fold increase in all that plastic for millions more USB hubs that in a few years will be in a landfill. Stay tuned for the iPhone launch in September when they open the keynote with a 5 minute presentation on how much more “green” Apple is :rolleyes:

  19. radiology macrumors 6502

    radiology

    Joined:
    Feb 11, 2014
    Location:
    Westlake, OH
    #19
    I don’t know about other people, but I can tell you about me. An OS more reliable than the OS offered by the competition is the main reason why I still buy Apple Laptops. Numbers and types of ports are also important, but not as important. Megasafe is probably also more imprortant than ports, and I was really said to see Apple get rid of it.

  20. manu chao, Jun 12, 2018
    Last edited: Jun 12, 2018

    manu chao macrumors 603

    Joined:
    Jul 30, 2003
    #20
    If Apple is designing for people that are full could and don't need any ports, why do their MBPs ship with four ports?
    --- Post Merged, Jun 12, 2018 ---
    Legacy means that the (vast) majority of its peak users isn't using it anymore, but use something else for the same purpose.
    • There is no denying that Ethernet usage has continuously dropped since almost the first appearance of Airport and is being replaced by WiFi. The disputed aspect would be the term 'vast'.
    • Standalone camera sales have peaked several years ago and have declined quite dramatically in a way that pretty much rules out that it is mainly due only to longer buying cycles.
    • HDMI usage is probably the most stable of those three, though I have no idea how the ratio of DP vs HDMI usage has developed.

  21. blackrabbit1000 macrumors newbie

    blackrabbit1000

    Joined:
    Oct 3, 2016
    Location:
    Oregon
    #21
    HooToo USB-C dock matches really well actually.
    --- Post Merged, Jun 12, 2018 ---
    Weird thing is, none of these work with the super drive for that occasional need for a CD or DVD. Only the official Apple USB-C to USB dongle will work with that little beast.


    Attached Files:

  22. PickUrPoison, Jun 12, 2018
    Last edited: Jun 12, 2018

    PickUrPoison macrumors 68020

    Joined:
    Sep 12, 2017
    Location:
    Sunnyvale, CA
    #22
    I’d probably describe the ports as “older” rather than “legacy”. And not all the other ports were removed; the headphone jack remains on all Macs.

    I do appreciate the author making the distinction between the connector type (USB-C) and the protocols the hub supports. As noted, this is not a Thunderbolt 3 hub. It only supports USB 3.1 Gen 1 (5Gb/s), which is typical for this price point.

  23. Smith288 macrumors 65816

    Smith288

    Joined:
    Feb 26, 2008
    #23
    Not sure why I would go with this when I bought a $30 adapter that is perfectly designed both in color and in size that I got from amazon.

  24. mcdj macrumors G3

    mcdj

    Joined:
    Jul 10, 2007
    Location:
    NYC
    #24
    Yeah 80 bones is pretty steep for something that’s been available for years for $30 (Satechi).

  25. cBraunDesign macrumors member

    cBraunDesign

    Joined:
    Jun 29, 2010
    #25
    Once again, confirmation that the 2015 MacBook Pro is the best computer Apple has ever made.
