RX 560 not working in 10.12.5

Discussion in 'Mac Pro' started by burnthefires, May 26, 2017.

  1. burnthefires macrumors member

    May 26, 2017

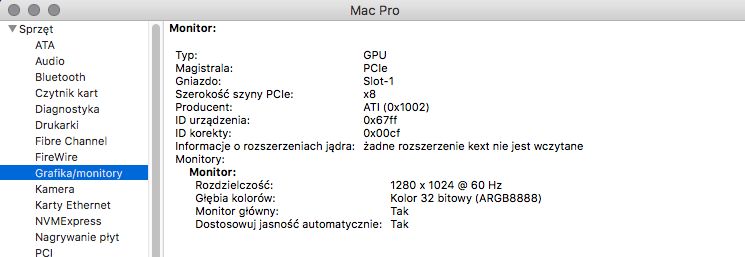

    I just bought an RX 560 from Sapphire being certain it would work OOTB with my 5,1 and.... it doesn't at all. Even though the PCIid is 67FF the kext won't load - no display via DVI or DP and the graphics section looks like on the screenshot below. Any ideas?

    Attached Files:

  2. SolidCake macrumors member


    May 20, 2016
    I recommend you follow this guid by theitsage. Sadly AMD's latest cards aren't natively (OOTB) supported by macOS.
  3. burnthefires, May 26, 2017
    Last edited: May 26, 2017

    burnthefires thread starter macrumors member

    May 26, 2017
    Yeah i was aware of that before the purchase but thought it just applies to 470/480 and 570/580. Someone even on this forum said 560 has the same id as 460 which worked OOTB and i blindly followed that. But as it appears rx 560 is 0x67FF not 0x67EF which led me to simply switching the PCI id's in AMD9510Controller.kext. But i still wonder why doesn't the AMDRadeonX4100.kext take over since 0x67FF is there already and should work?
  4. pigsyn, May 28, 2017
    Last edited: May 28, 2017

    pigsyn macrumors member


    Aug 14, 2015
