RX 580 vs R9 280X on Mac Pro 4.1/5.1

turluttu

macrumors member
Original poster
Mar 4, 2018
37
6
Moscow
Hi everyone!

I would like to share test results from two video cards. Connected display resolution 2K.

And so we look at the results:

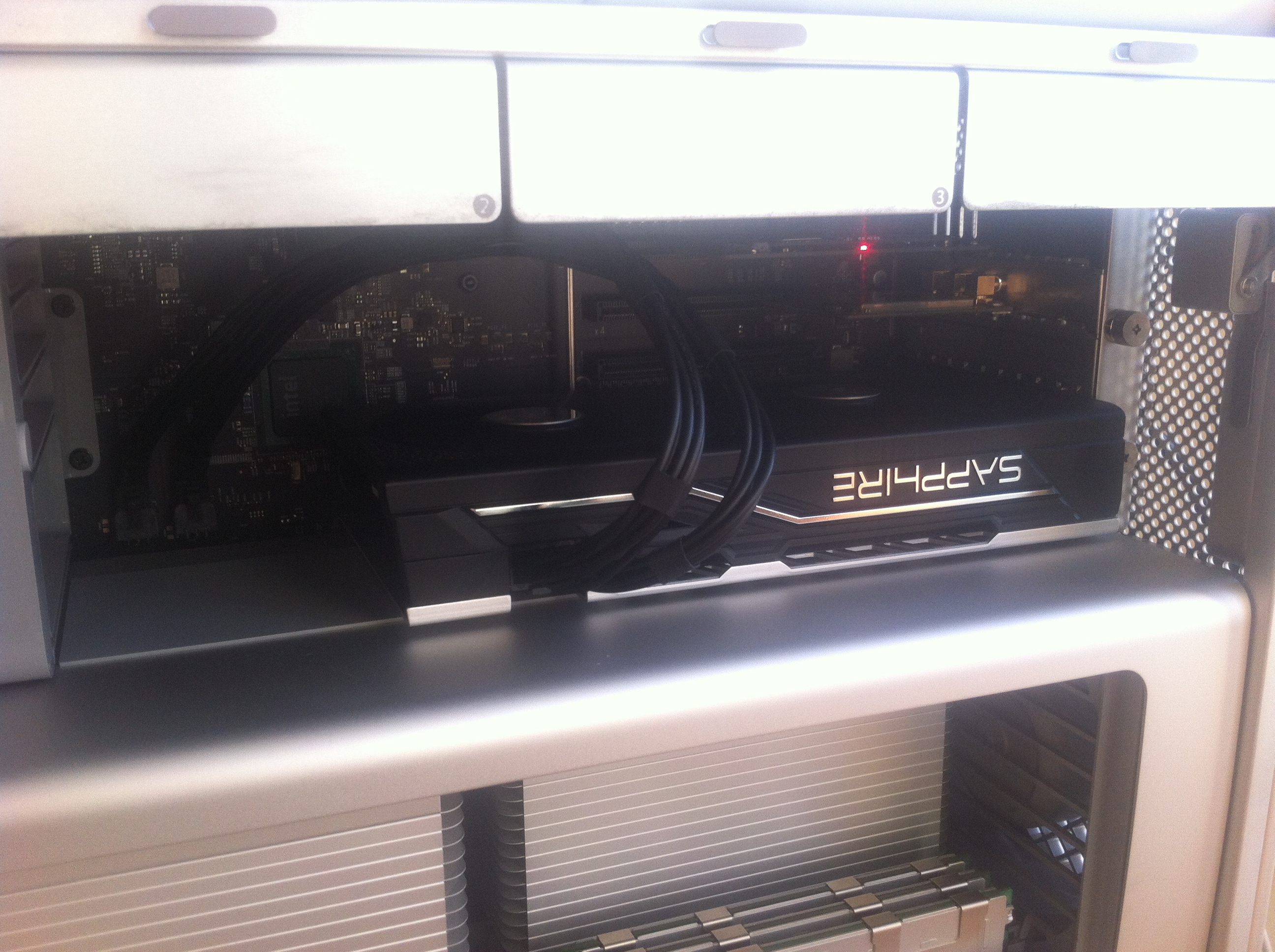

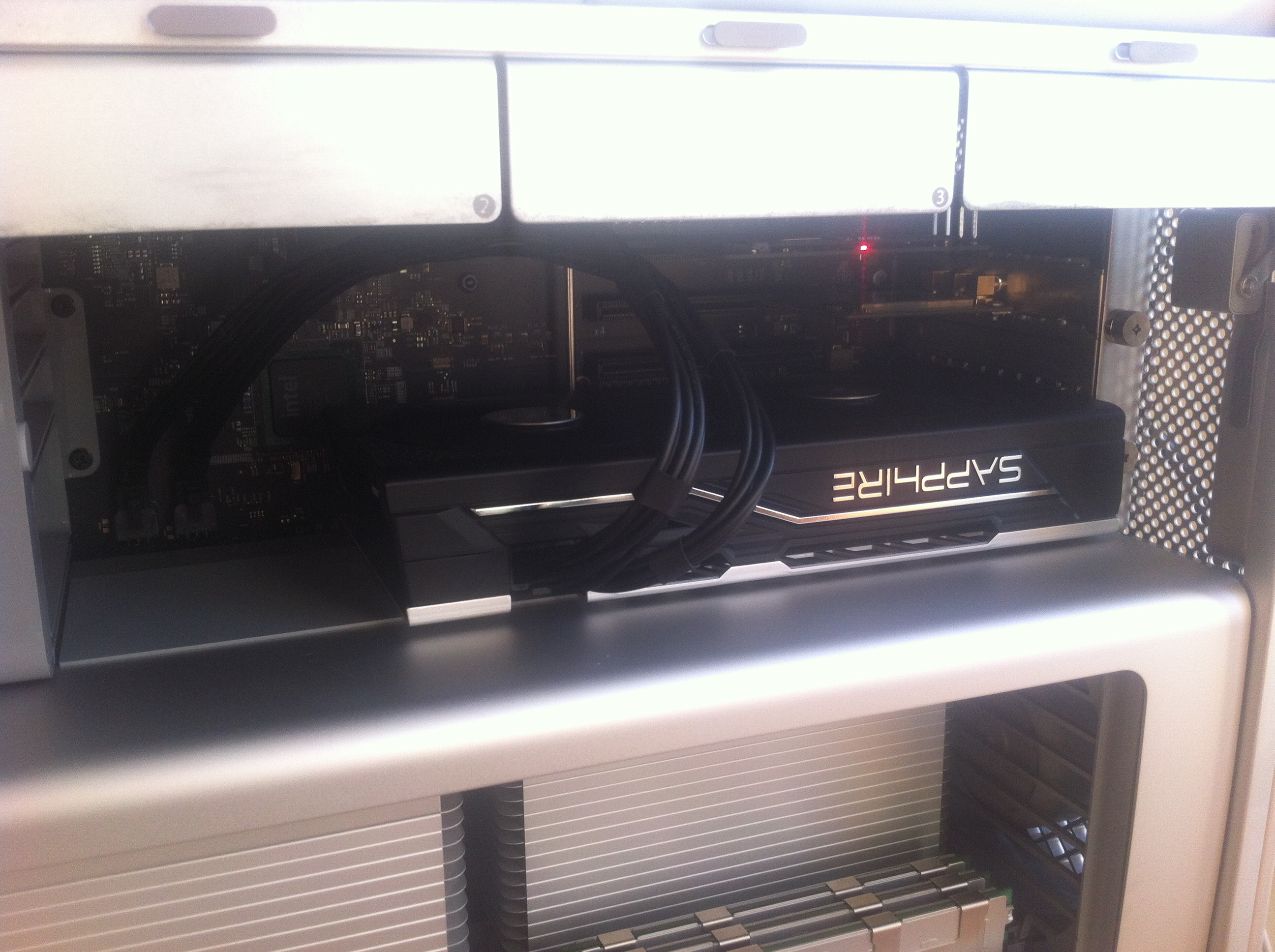

  1. Sapphire Radeon RX 580 Pulse 8 GB

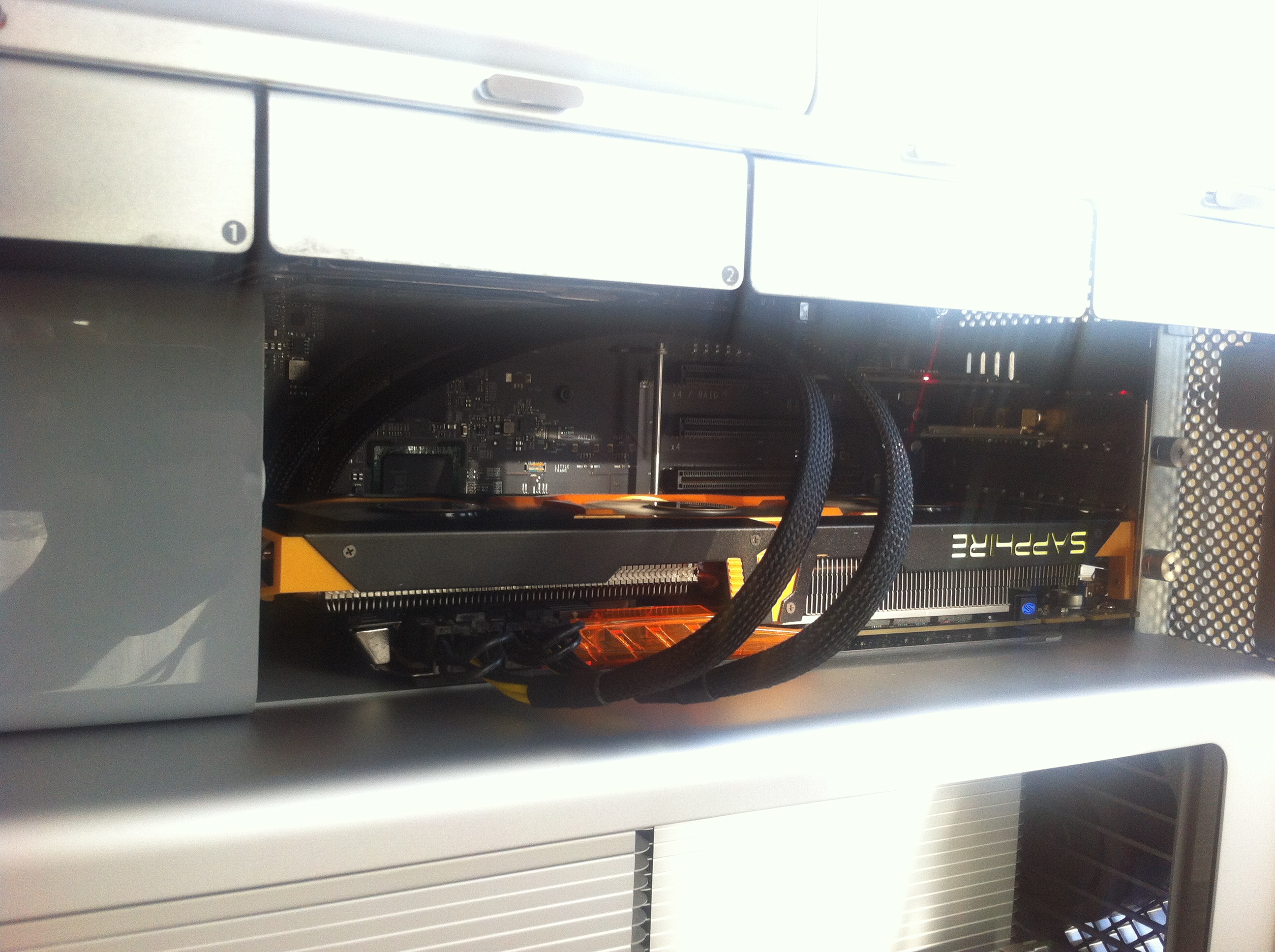

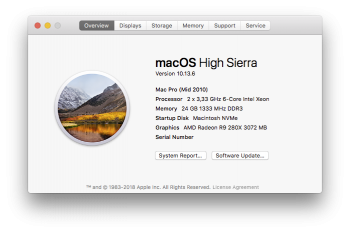

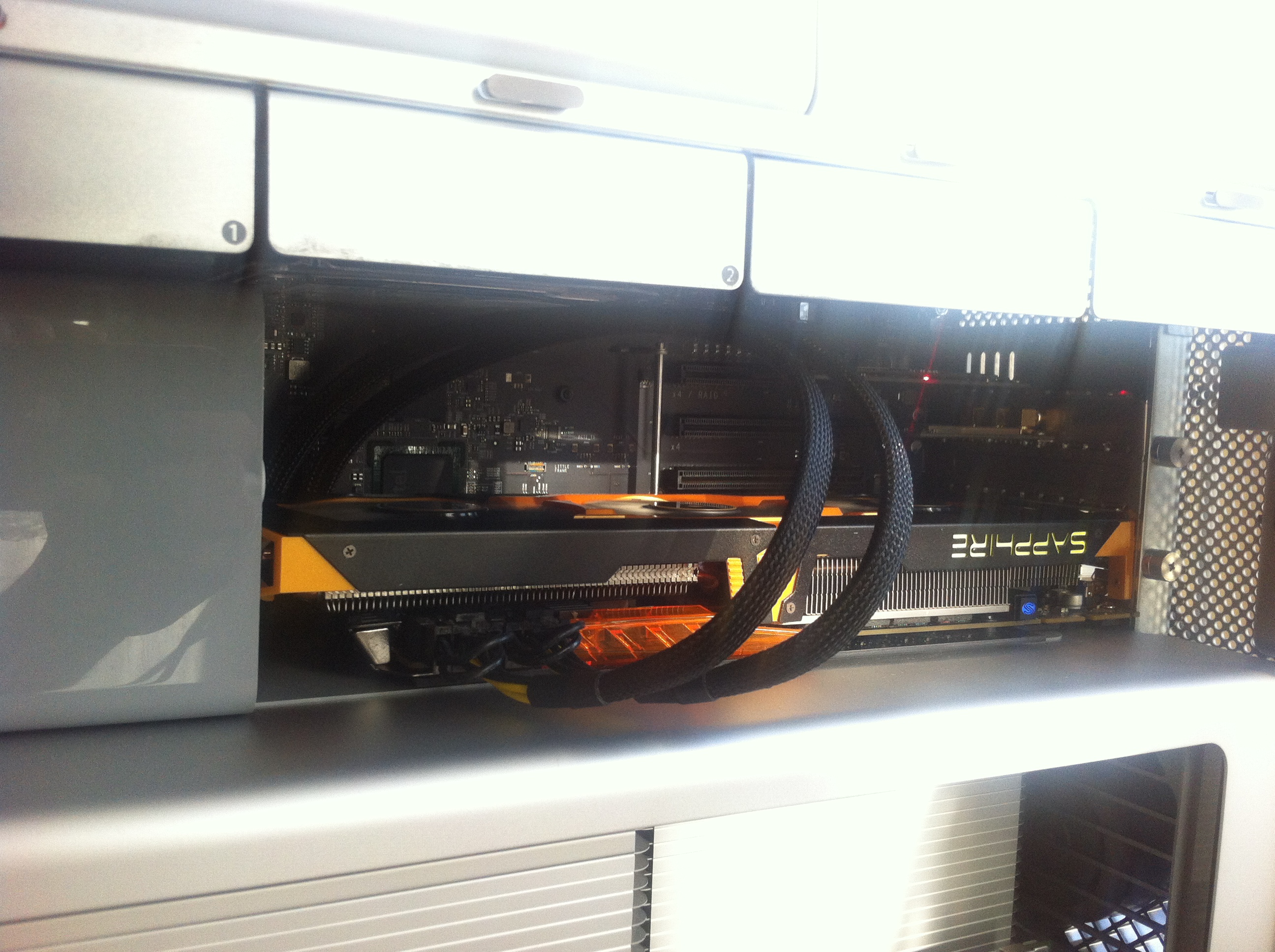

  2. Sapphire Radeon R9 280X Toxic 3 GB

Screen Shot 2018-10-12 at 16.02.22.png Screen Shot 2018-10-12 at 15.39.35.png

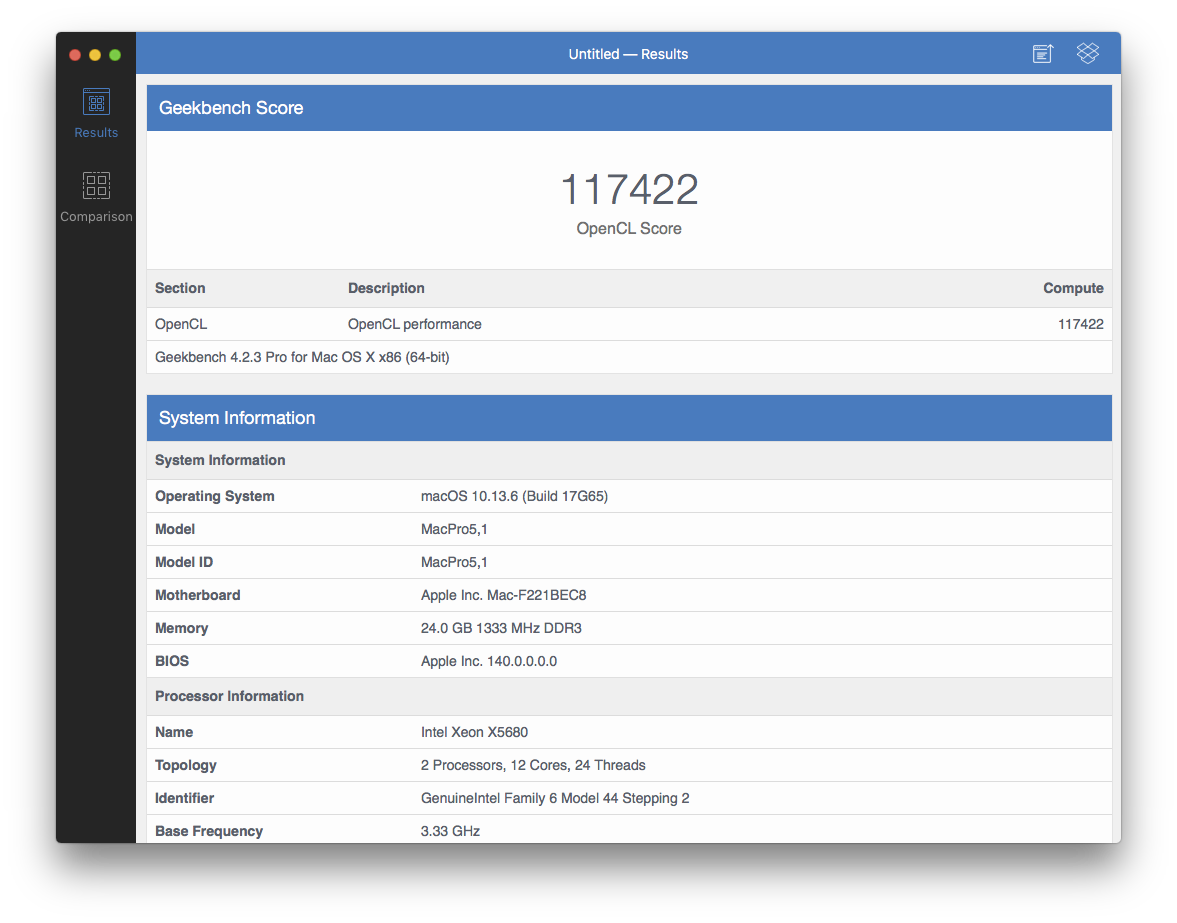

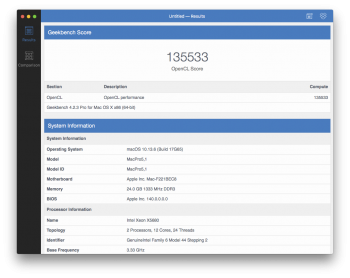

Geekbench v4.2.3
Screen Shot 2018-10-12 at 16.04.25.png Screen Shot 2018-10-12 at 15.37.11.png
Screen Shot 2018-10-12 at 16.05.34.png Screen Shot 2018-10-12 at 15.38.34.png

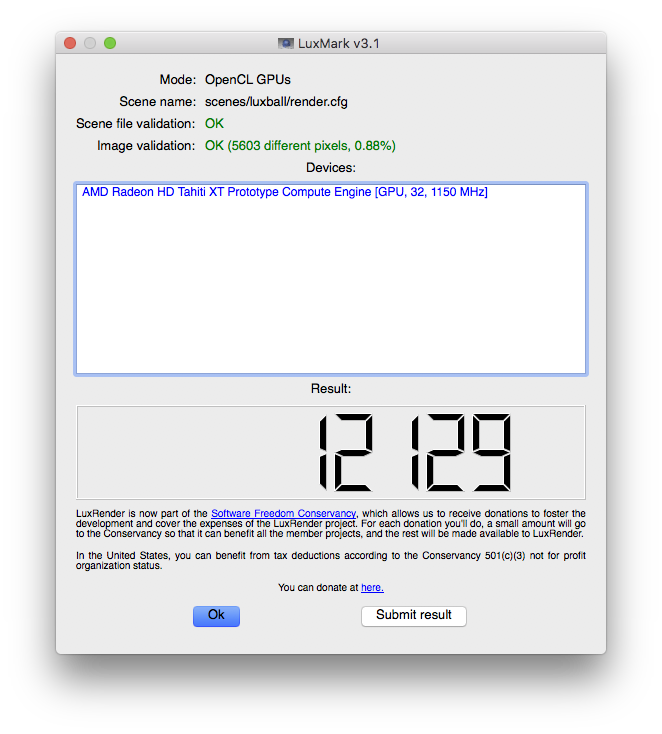

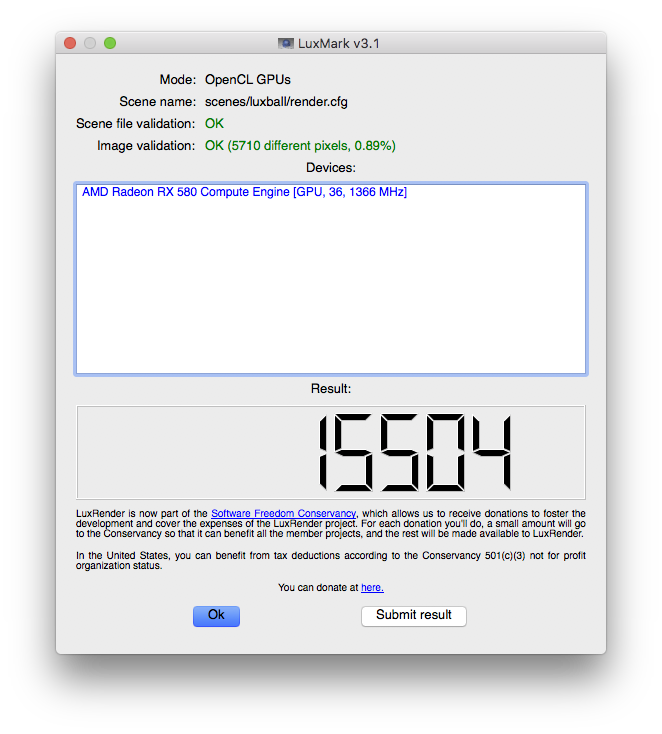

LuxMark v3.1
Screen Shot 2018-10-12 at 16.10.21.png Screen Shot 2018-10-12 at 15.42.30.png

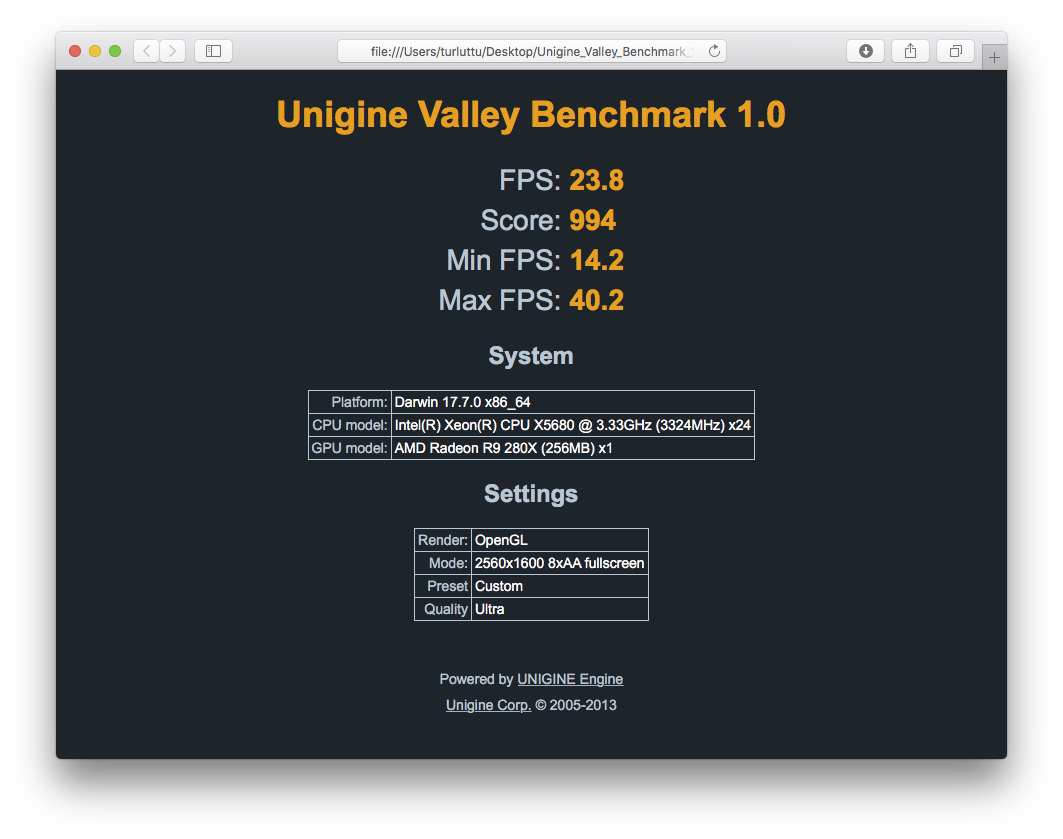

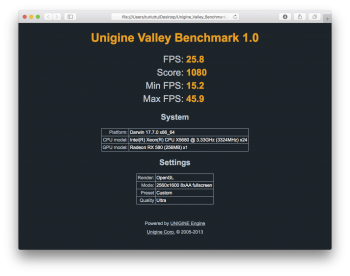

Unigine Valley Benchmark v1.0
Screen Shot 2018-10-12 at 16.34.15.png Screen Shot 2018-10-12 at 16.45.23.png
Final Cut Pro X v10.4.3
BruceX Test - 5K - Apple ProRes 422


11 Sec
and
22 Sec

I think R9 280X is still a good card with support for EFI firmware, don't you think?
You can also offer another application to test the video card, but not Cinebench.








orph

macrumors 68000
Dec 12, 2005
1,884
391
UK
the gap gets bigger with the memory timings updated, id like to see a comparison in resolve 15 but im not shore how to best do it :oops:
i did some playing in windows and saw over 6GB vram used in one of my projects, just simple 4K with some color corrections and a few re timed shots and stabilization but no fancy stuff
export times seem vary GPU dependent to,


Attachments

  • Like
Reactions: turluttu

turluttu

macrumors member
Original poster
Mar 4, 2018
37
6
Moscow
the gap gets bigger with the memory timings updated, id like to see a comparison in resolve 15 but im not shore how to best do it :oops:
i did some playing in windows and saw over 6GB vram used in one of my projects, just simple 4K with some color corrections and a few re timed shots and stabilization but no fancy stuff
export times seem vary GPU dependent to,
Did your test show more, did you touch the values in the BIOS of the card?


orph

macrumors 68000
Dec 12, 2005
1,884
391
UK

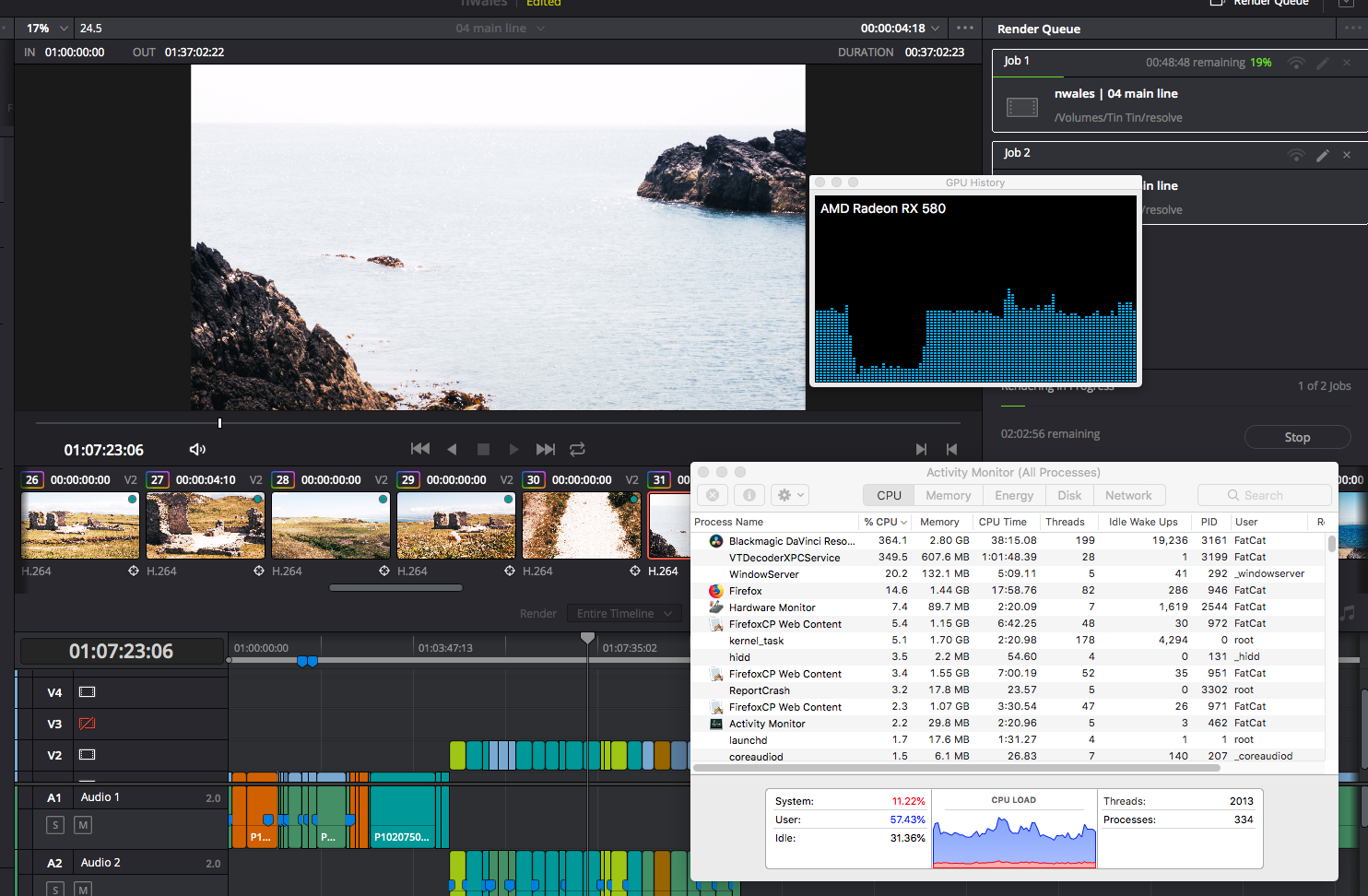

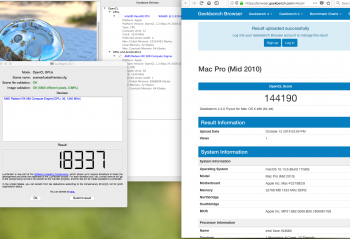

after some looking on google i think my CPU is to slow to max out the gpu when exporting and/or my source files being h264 may be holding back my speeds in resolve 15. ill try different source files later to see if there's any gains in speed/gpu utilization.
Screen Shot 2018-10-12 at 4.44.49 pm.png

saw this topic, https://egpu.io/forums/pro-applicat...c-pro-18-core-with-amd-vega-frontier-edition/
the gpu is being maxed out with an new imac which has a much much stronger CPU.
i can still max out the gpu in timeline by layering gpu effects but it's not something i do in real life so feels tad silly

yep bios, just a slight down clock and the auto mem timings tweak (uber 3.1 i think)
https://forums.macrumors.com/threads/sapphire-pulse-rx580-8gb-vbios-study.2133607/
but warning bios flash may brake/brick things, my card was used with a mining bios on it so i had to flash.

  • Like
Reactions: Lxixboss

h9826790

macrumors G5
Apr 3, 2014
14,139
6,771
Hong Kong
the gap gets bigger with the memory timings updated, id like to see a comparison in resolve 15 but im not shore how to best do it :oops:
i did some playing in windows and saw over 6GB vram used in one of my projects, just simple 4K with some color corrections and a few re timed shots and stabilization but no fancy stuff
export times seem vary GPU dependent to,
And the gap will be huge if make both card draw the same power.

The 280X looks like comparable to the RX580 because they draw much more power.

  • Like
Reactions: orph
