RX580 & GT120 & Mojave = stuck in boot

Discussion in 'Mac Pro' started by Macschrauber, Oct 27, 2018.

  1. Macschrauber macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #1
    a buddy has a GT120 for boot screen and a RX580 in a CMP and the System hangs during the boot process. Safe Boot worked and fiddling with the kexts worked once.

    Has someone more knowledge about getting those two together ? GT120 is just for the boot screen. So it wont hurt if there is no driver loaded when the System is up and running.

  2. Pressure macrumors 68040

    Pressure

    Joined:
    May 30, 2006
    Location:
    Denmark
  3. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
  4. tpivette89 macrumors 6502

    tpivette89

    Joined:
    Jan 1, 2018
    Location:
    Newark, DE
    #4
    You're no longer in High Sierra. In Mojave, the GT120 will not allow you to fully boot when paired with another graphics card.

    I tried running a 7970 + GT120 for boot screens and had the same issue as you. Removing the GT120 cleared everything up.

  5. HiroThreading macrumors member

    HiroThreading

    Joined:
    May 1, 2017
    #5
    Get rid of the GT120. It should then boot fine.

  6. PianoPro macrumors regular

    Joined:
    Sep 4, 2018
    #6
    At this point I'm convinced that Mojave will NOT boot if there is any combination of a GT120 or HD5770 AND a Metal capable video card installed. There have only been 3rd hand rumors about it working, never verified to me from anyone that actually has it working. And it hasn't worked for me.

    I think the rumors came from verified reports that Mojave will boot with ONLY a GT120 or ONLY a HD5770 (but then runs dog-slow unaccelerated video), without a metal card installed. It seems strange that works but not with a metal card added.

  7. MisterBiro macrumors member

    Joined:
    Jun 27, 2015
    Location:
    Orange, CA
    #7
    I can confirm that my machine also won't boot with an RX580 and the GT120 installed.

  8. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #8
    We tried also a stock HD2600 with same results. Guess the place to fiddle is the driver for the RX580.

    So confirmed NOT working with RX580 is:

    GT120, HD2600, HD5770

    Pulling the second EFI Card is not the solution when wanting a boot screen with a RX580 :)
    --- Post Merged, Oct 28, 2018 ---
    And btw, the HD2600 works acceptable when injecting the old drivers with DosDudes Tool. At least enough for a usefull screen for mails, palettes, and alike.

  9. PianoPro macrumors regular

    Joined:
    Sep 4, 2018
    #9
    I don't think this has anything to do specifically with the RX-580, so can anything be accomplished with its driver?

    I don't believe Mojave will boot when any Metal video card is installed with any Mac EFI non-metal video card. No other combinations using a metal card that is not an RX580 or RX560 have been reported to work with one of the EFI non-metal video cards either.

    I suspect it won't boot with any Metal card AND any non-metal card installed together. It seems to me Apple would want to prohibit that combination knowing it won't work well because there is no driver for the non-metal card. I'm just surprised it boots with only a non-metal card.

  10. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #10
    I have two other 4.1/5.1, one with a R9 and one with a GTX680. I can test them both with adding a GT120 and HD2600 next week (am off those boxes the next 10 days).

    Worth a try but those GPUs both have flashed EFI firmware.

  11. MarkC426 macrumors 6502a

    Joined:
    May 14, 2008
    Location:
    UK
  12. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #12
    if you have ever run into a problem when using Single User Mode or Verbose Mode is helpful for finding the cause you want the boot screen badly.

    I feel helpless when I am at a box without bootscreen when troubleshooting. Ok, it's because I fiddle a lot with hardware and tickle old boxes with new unsupported systems. I also mess my boxes with linux installations. So the boot picker is a must for me.

  13. zipgs macrumors newbie

    Joined:
    Oct 21, 2018
    #13
    As several others have said, if you need the bootscreen, put the GT120 back in and remove the RX580, they don't work together.

  14. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #14
    Someone told that installing Mojave on a unsupported machine does not work. So we dont do that. Wait, we did.

    Fiddling on combining low end EFI and none EFI GPUs for bootscreen makes perfect sense. Even when people say it wont work there is a chance to get it running if fiddle on the right settings or drivers.

  15. Macschrauber thread starter macrumors 6502

    Macschrauber

    Joined:
    Dec 27, 2015
    Location:
    Germany
    #15

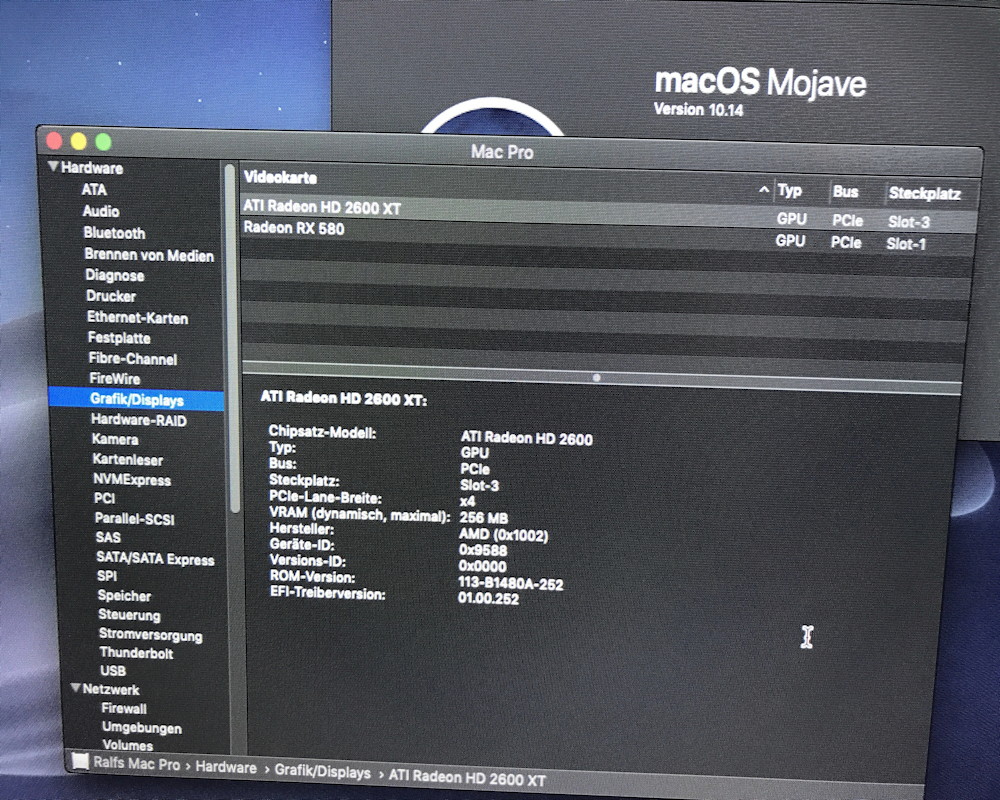

    this was with metal deactivated:

    next idea is to load the (metal) driver when Mojave is up and running


  16. chrfr macrumors 604

    Joined:
    Jul 11, 2009
    #16
    I'd definitely prefer to "fiddle" by swapping the graphics cards when troubleshooting is necessary than to have the operating system in an unsupported state.
