Sapphire nitro+ rx580 pcie slot #2

AAGSmac

macrumors newbie
Original poster
Nov 13, 2018
23
3
Canada
Good day! After so much of debating between Mac mini or bringing back my 2012 3.06 I've decided to resurrect my beloved tower. Now I bought a sapphire pulse based on apple suggestion for compatibility but need to return it since it's having issues intermittent signal. Is the Sapphire Nitro+ be a problem for accessibility of PCIE slot #2? I heard it's thicker than the pulse and I need to put a USB 3.1 gen card in the futire for the slot#2. Slot 3 & 4 is occupied already. Thanks for any input you guys could share with this inquiry.


cdf

macrumors 6502
Jul 27, 2012
359
215
Good day! After so much of debating between Mac mini or bringing back my 2012 3.06 I've decided to resurrect my beloved tower. Now I bought a sapphire pulse based on apple suggestion for compatibility but need to return it since it's having issues intermittent signal. Is the Sapphire Nitro+ be a problem for accessibility of PCIE slot #2? I heard it's thicker than the pulse and I need to put a USB 3.1 gen card in the futire for the slot#2. Slot 3 & 4 is occupied already. Thanks for any input you guys could share with this inquiry.
I have the Pulse, so I can't really say first-hand. But according to the footage towards the end of this video, accessing slot 2 may still be possible.

Last edited:

AAGSmac

macrumors newbie
Original poster
Nov 13, 2018
23
3
Canada
I have the Pulse, so I can't really say first-hand. But according to the footage towards the end of this video, accessing slot 2 may still be possible.
Thank you for your answering my inquiry. I am thinking of switching to nitro plus Bec it's 30 dollars cheaper than the pulse here in Canada. From the video it looks like the slot#2 can be access but I wonder how much room between two cards


h9826790

macrumors G5
Apr 3, 2014
12,768
5,579
Hong Kong
Good day! After so much of debating between Mac mini or bringing back my 2012 3.06 I've decided to resurrect my beloved tower. Now I bought a sapphire pulse based on apple suggestion for compatibility but need to return it since it's having issues intermittent signal. Is the Sapphire Nitro+ be a problem for accessibility of PCIE slot #2? I heard it's thicker than the pulse and I need to put a USB 3.1 gen card in the futire for the slot#2. Slot 3 & 4 is occupied already. Thanks for any input you guys could share with this inquiry.
No, Nitro+ is a 2.2 slots wide card, you better expect slot 2 will be completely blocked.


AAGSmac

macrumors newbie
Original poster
Nov 13, 2018
23
3
Canada

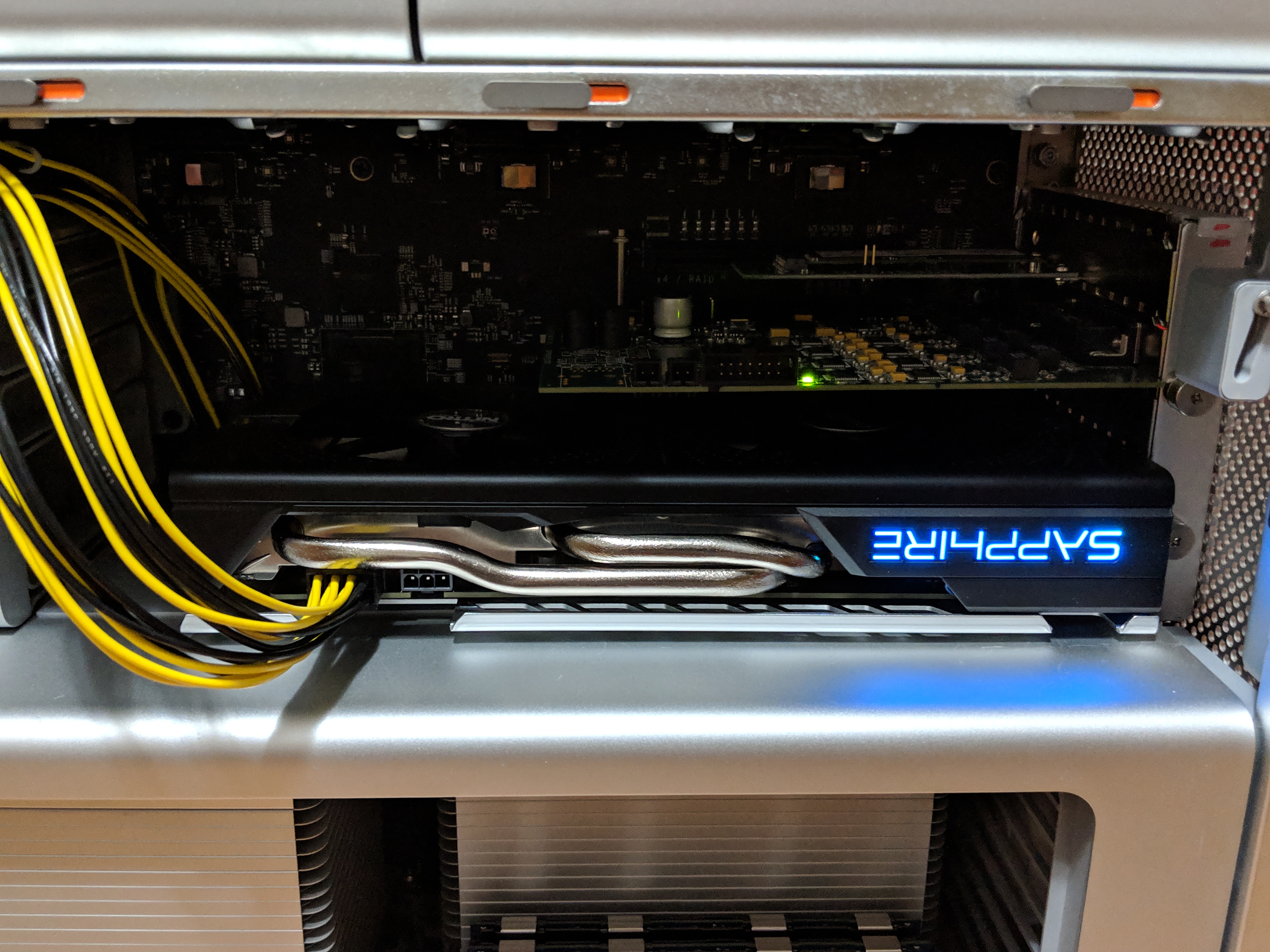

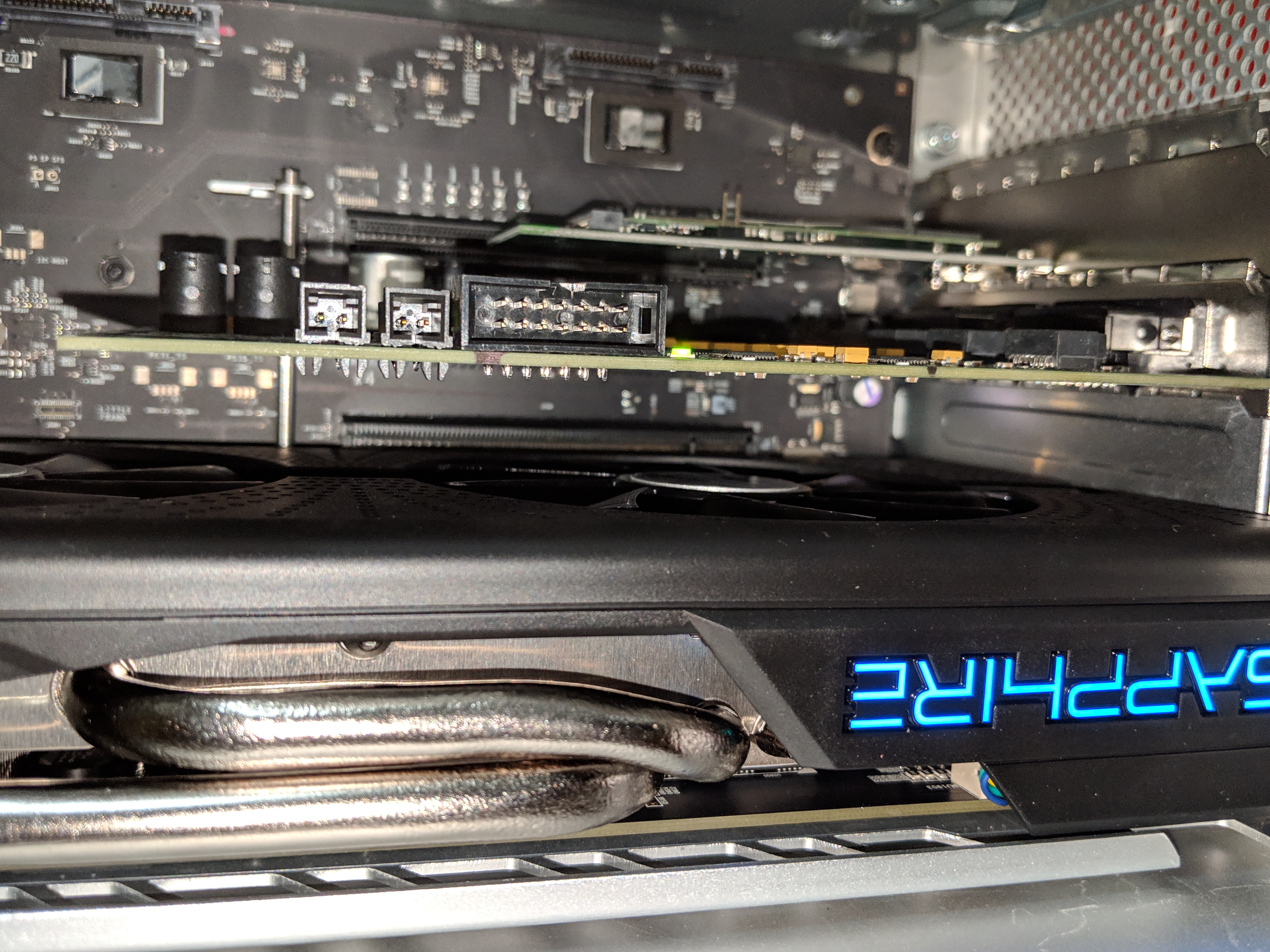

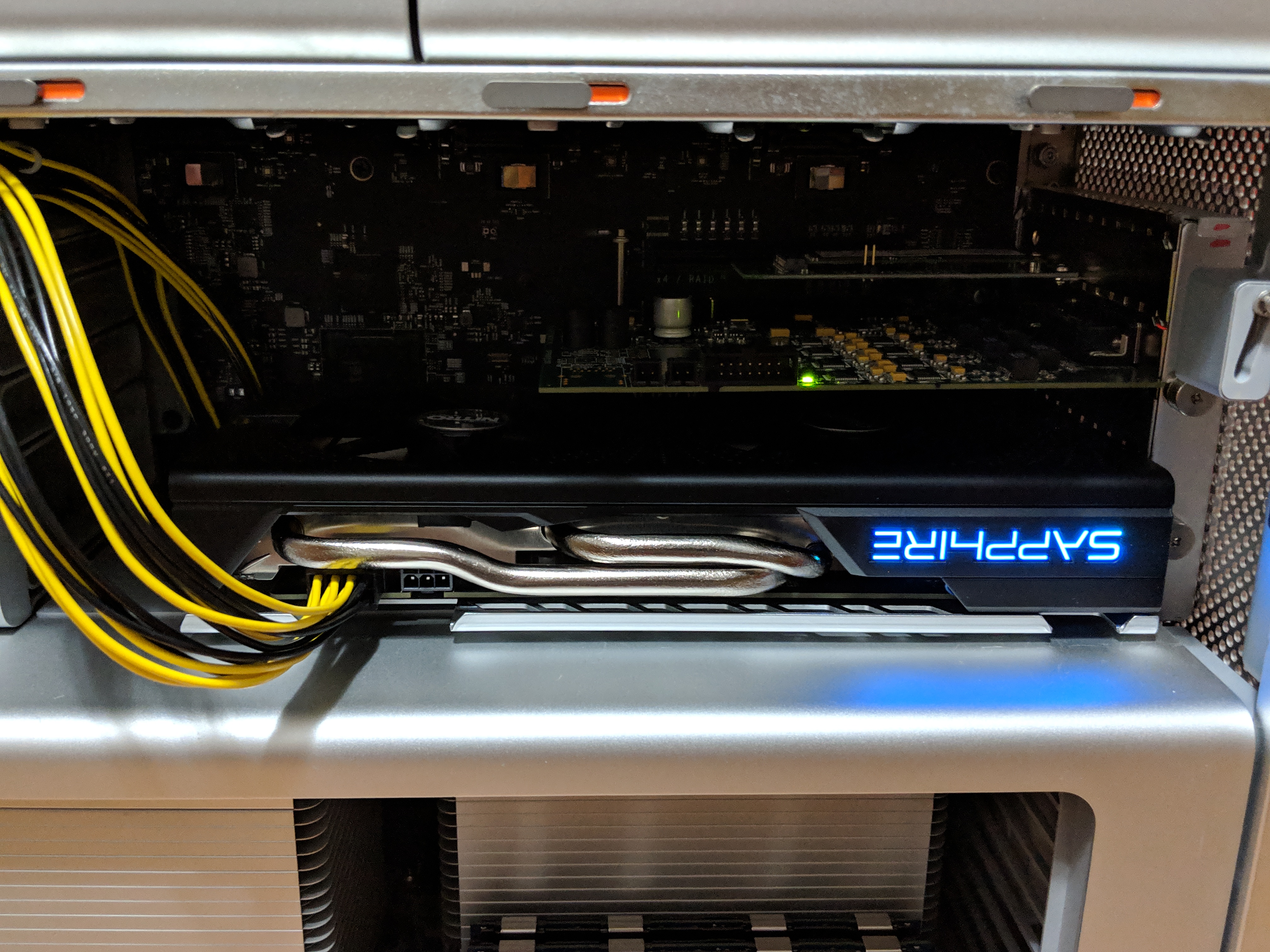

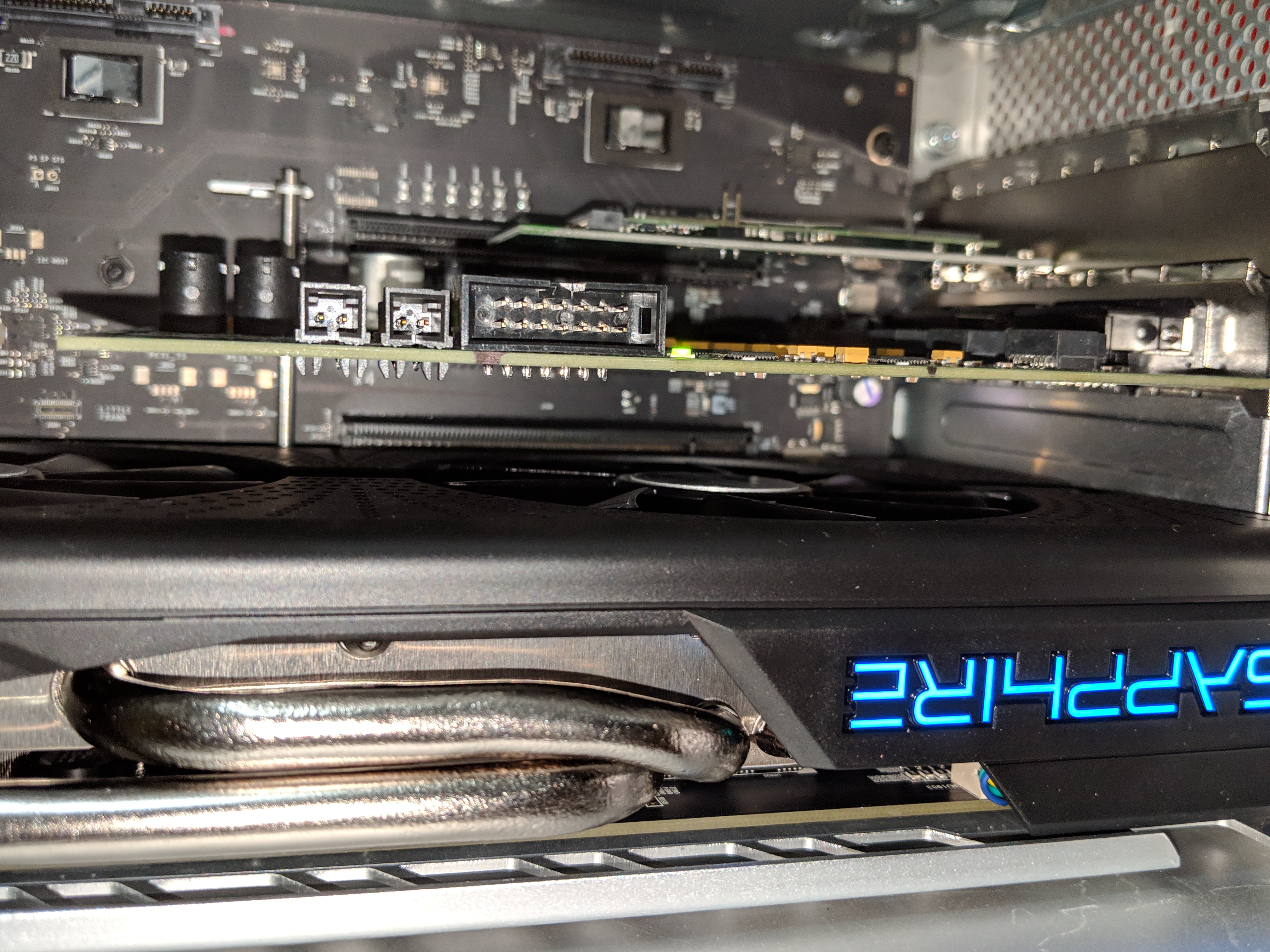

I have finally decided to go with the Nitro+ and unfortunately I have to sacrifice slot #2. So to everybody who is going to install a Sapphire Nitro+, Special Edition or a Limited Edition it will make PCIE slot #2 unaccessible.


Attachments

rawweb

macrumors 6502a
Aug 7, 2015
867
583
I have finally decided to go with the Nitro+ and unfortunately I have to sacrifice slot #2. So to everybody who is going to install a Sapphire Nitro+, Special Edition or a Limited Edition it will make PCIE slot #2 unaccessible.
I have the same trouble with my ASUS Strix RX 580...very frustrating. I also have a GTX 1080 but can't currently use it because of the Mojave driver delay. I'm also experimenting with using a Thunderbolt 3 Titan Ridge card, and Nvidia's drivers don't currently support driving my LG Ultrafine 5k like the RX 580 does. I wish I could get my x16 Slot 2 back!

Best of luck to you on resurecting the beast, @AAGSmac!


crjackson2134

macrumors 601
Mar 6, 2013
4,486
1,618
Charlotte, NC
Put the 580 in slot 2, and your smallest card in slot4. This will give back your other x16 slot.

Consider that Slot 1 and Slot 2 have 16 dedicated and independent lanes. Slots 3/4 share the same 4 lanes and bandwidth through use of a switch.

By configuring the way I do as above, you lose no lanes or bandwidth. Yes, you lose the use of a SHARED bandwidth SLOT ONLY. You will retain full bandwidth in this manner.

You will have to make a sacrifice somewhere, so let it be a shared slot 3. Hopefully that card isn’t so wide that it will inhibit the use of slot 4 with a small card. I don’t have this card to test, so I suppose it could be so wide that it also blocks Slots 4, but I would hope not.

Last edited:
  • Like
Reactions: rawweb

AAGSmac

macrumors newbie
Original poster
Nov 13, 2018
23
3
Canada
There you go a smart solution. I hope they will have a Thunderbolt 3 card that we can use and get a PCIe expansion module
I have the same trouble with my ASUS Strix RX 580...very frustrating. I also have a GTX 1080 but can't currently use it because of the Mojave driver delay. I'm also experimenting with using a Thunderbolt 3 Titan Ridge card, and Nvidia's drivers don't currently support driving my LG Ultrafine 5k like the RX 580 does. I wish I could get my x16 Slot 2 back!

Best of luck to you on resurecting the beast, @AAGSmac!
Thank you
