Sawtooth upgrade info needed

[Zeke D]

With all this talk of sawtooths, would I be able to put my dual 533 or single 733 in my sawtooth? will those CPUs even run at 100Mhz FSB? how worried do I have to be with cooling? The dual 533 and the 733 are both Digital Audio, so they have the fan assembly to exhaust out of the case. If I use the heat sink anyway, the exhaust will go into the case. How do I determine if my Sawtooth is Uni N Chipset
of 7 or more?



[archtopshop]

With all this talk of sawtooths, would I be able to put my dual 533 or single 733 in my sawtooth? will those CPUs even run at 100Mhz FSB? how worried do I have to be with cooling? The dual 533 and the 733 are both Digital Audio, so they have the fan assembly to exhaust out of the case. If I use the heat sink anyway, the exhaust will go into the case. How do I determine if my Sawtooth is Uni N Chipset
of 7 or more?

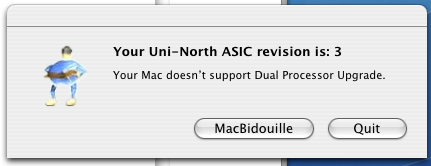

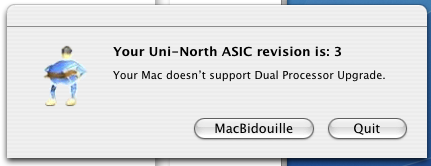

Here's a link to an app which will check the uni-n version of your Sawtooth.

https://www.dropbox.com/sh/pwvdvxfaxzt89bd/EjZ7P9AVlW



[Zeke D]

Thanks for the link, I will need to put the sawtooth back togethrt to check it out.



[666sheep]

You can put 533 DP or 733 single in your Sawtooth but it would require some modifications of CPU multipliers. With default settings of CPU daughtercards 533 would run @400 MHz, 733@550 MHz.
You can combine that with bus overclocking (100@120 MHz).

More info: http://power-mac-g4.com/g4digitalaudioclockup.html
http://www.xlr8yourmac.com/systems/Dual_533_overclock/dual_g4_533_overclocking.html
http://www.xlr8yourmac.com/G4ZONE/sawtooth/SawtoothCPUdesign.html



[archtopshop]

Thanks for the link, I will need to put the sawtooth back togethrt to check it out.

You're welcome. Good luck with the project.



[Zeke D]

You're welcome. Good luck with the project.

I decided there wouldn't be much of an advantage over just running the 733mhz DA. I guess I was just curious since several regulars just love their sawtooths.



[666sheep]

You could get one more RAM slot and about 100-160 MHz of CPU frequency with overclocking the bus to 120 MHz.
It would be a nice Sawtooth with 2GB RAM, decent graphics card and overclocked DA CPU.



[Zeke D]

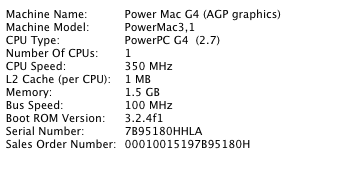

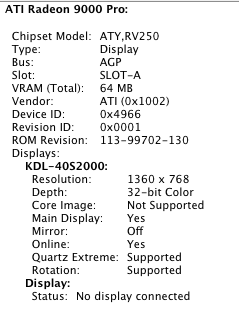

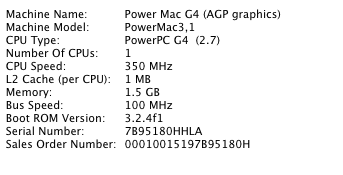

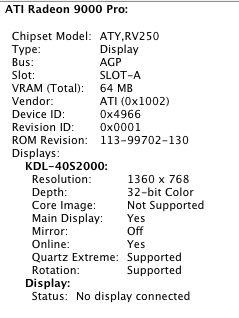

Here's what I have so far. Each of my DA733Mhz had a single 512MB stick in them, I swapped them for a pair of 256, and stuck the three dimms in the sawtooth. Laying around I have a DP533 and a SP733 out of a DA. I couldn't get the Radeon 9800 in there, cause the card physically wouldn't fit.
