Server Fanatics! Admins / IT workers

Discussion in 'Community Discussion' started by waloshin, Jul 5, 2009.

  1. waloshin macrumors 68040

    waloshin

    Joined:
    Oct 9, 2008
    #1

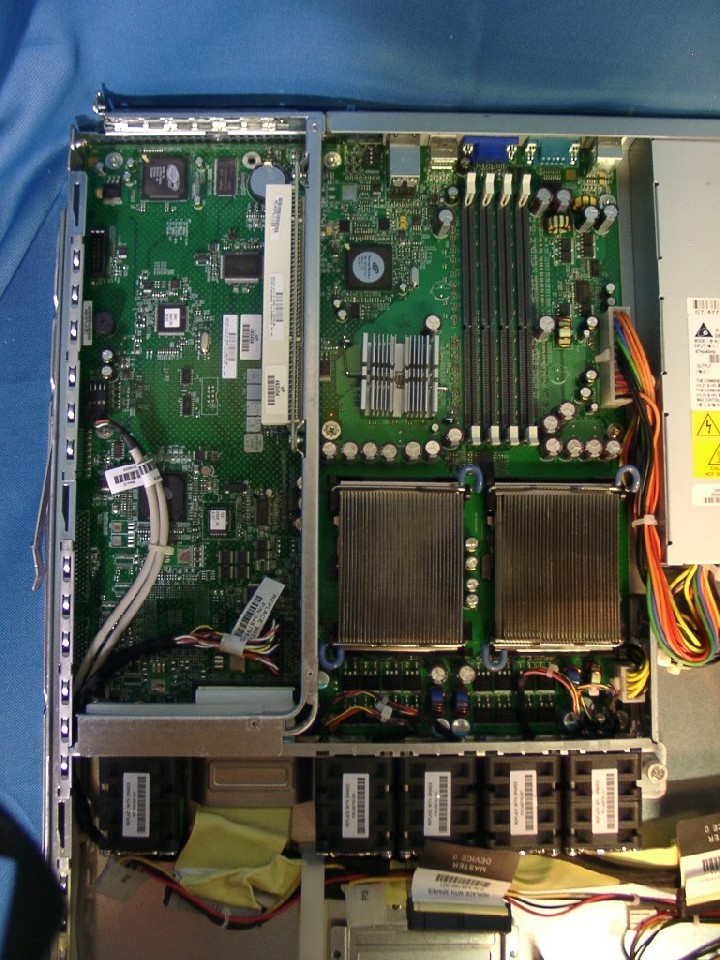

    What is this white slot on the left hand side, by the battery ? Its an hp proliant dl 140 generation 1.

    [​IMG]

  2. jknight8907 macrumors 6502a

    jknight8907

    Joined:
    Jun 14, 2004
    Location:
    Hudson Valley NY
    #2
    It's for the flux capacitor.





    I have no clue...

  3. waloshin thread starter macrumors 68040

    waloshin

    Joined:
    Oct 9, 2008
    #3
    Good guess.

  4. steve2112 macrumors 68040

    steve2112

    Joined:
    Feb 20, 2009
    Location:
    East of Lyra, Northwest of Pegasus
    #4
    I'm not familiar with the ProLiant 140, but I have worked on a lot of the 3 series servers. It looks like a PCI expansion slot mounted on riser board. You would use it to put stuff like a RAID card, extra NIC, etc. You probably have some holes or a punch out in the back of the server to put the back of the card through.

  5. steviem macrumors 68020

    steviem

    Joined:
    May 26, 2006
    Location:
    New York, Baby!
  6. Heilage macrumors 68030

    Heilage

    Joined:
    May 1, 2009
    #6
    My guess would be, due to the length of the slot, PCI-Express x16 or PCI-X64.

  7. oxfan macrumors member

    Joined:
    Dec 5, 2008
    #7
    That server is too old to have PCI Express, I'd say it's a 64bit PCI slot.

  8. Heilage macrumors 68030

    Heilage

    Joined:
    May 1, 2009
    #9
    I was spot on then. :)

    I don't know a great deal about servers, so I couldn't have known how old it was anyway.

  9. toolbox macrumors 68020

    toolbox

    Joined:
    Oct 6, 2007
    Location:
    Australia (WA)
  10. waloshin thread starter macrumors 68040

    waloshin

    Joined:
    Oct 9, 2008
    #11
    Thanks everybody!

    I was wondering as it is Pci-x at 133mhz = 1Gb/s, could I buy a sata 2, Pci-x card and use it without loosing performance? And if so would it be recognized by the bios?

  11. Heilage macrumors 68030

    Heilage

    Joined:
    May 1, 2009
    #12
    I suppose you could. If you can find a controller. As it is the only slot (as I can see) it doesn't share the bus with anything else, thus the real life speed should be pretty decent, if you can find a decent card.

  12. waloshin thread starter macrumors 68040

    waloshin

    Joined:
    Oct 9, 2008
    #13
    So 2 western digital green drives, probably would use 90mb/s*2 = 180mb/s which wouldn't come close to 1000mb/s of the pci-x bus speed?

  13. Heilage macrumors 68030

    Heilage

    Joined:
    May 1, 2009
    #14
    Yes, that should be just fine. Theoretically, at least. I can't speak for real life speeds, as I haven't tried a setup like that.

  14. oxfan macrumors member

    Joined:
    Dec 5, 2008
    #15
    PCI-X was used for SCSI cards and fiber cards before PCI Express replaced it, I doubt you would find a PCI-X SATA card but PCI-X slots accept standard PCI cards so you could install a standard PCI SATA card into it.

  15. waloshin thread starter macrumors 68040

    waloshin

    Joined:
    Oct 9, 2008
    #16
    [​IMG]

    SuperMicro 8 Port SATA PCI-X NAS RAID Card AOC-SAT2-MV8

  16. adamerr macrumors 6502a

    adamerr

    Joined:
    Jun 7, 2008
    #17
    Can somebody point out where the battery is please.
    I'm lost.
    :eek:

  17. Zombie Acorn macrumors 65816

    Zombie Acorn

    Joined:
    Feb 2, 2009
    Location:
    Toronto, Ontario
    #18
    look at the top of the white card slot we are talking about. Shiny circular disc... oooo... aaahhhh...

  18. TK2K macrumors 6502

    TK2K

    Joined:
    Jun 4, 2006
    #19
    CMOS battery, not power backup battery :p
