SHES here now what? monitor connection help.
- Thread starter frankbuddas
- Start date
- Sort by reaction score
MY new macpro just arrived!!! Im a bit confused on the monitor input. I have the radeon hd 5870 it has two mini dv ports and a digital? I need to grab some monitors but how do Iconnect the mini dvs to hd tv? theres no mini dv on my HD tvs? HELP

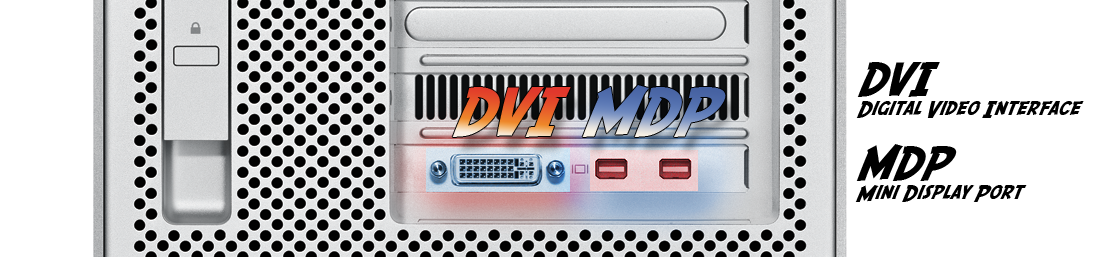

The Mac Pro has two Mini DisplayPort and one DVI plug on its graphic card.
Look here: How to: Connect a MacBook, MacBook Air, or MacBook Pro to a TV

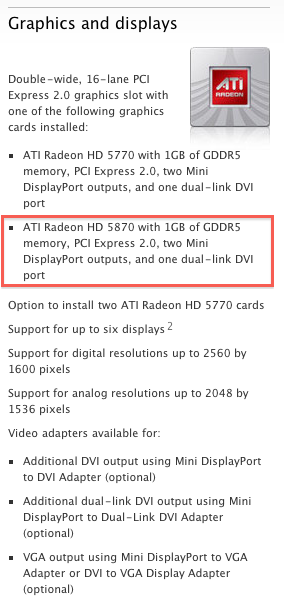

from http://www.apple.com/macpro/specs.html
Look here: How to: Connect a MacBook, MacBook Air, or MacBook Pro to a TV
It's a mini display port, not a mini dvi port.
http://www.google.com/search?client...splayport+to+hdmi&spell=1&fp=ab5cdb1806fef4aa
Tons of options for adapters to HDMI, DVI, etc. Apple sells some at their stores too.
You can also get a DVI to HDMI adapter for the larger port if you want.
http://www.google.com/search?client...splayport+to+hdmi&spell=1&fp=ab5cdb1806fef4aa
Tons of options for adapters to HDMI, DVI, etc. Apple sells some at their stores too.
You can also get a DVI to HDMI adapter for the larger port if you want.
Thanks guys. So I need to buy a minidv to hdmi adaptor to user my two 46 inch 1080p tvs? Can I set up 3 monitors with this card? I want the best possible quality.
There's another thread about monitors with the graphics card you've got further down the list.
Apparently in order to use three DVI monitors you have to use two Mini Displayport to Dual Link DVI adapters instead of just Mini Displayport to DVI adapters. The reason has something to do with the internals of the card and how running three monitors works.
I don't remember the specifics, but you should read through that and see if anyone has tried this using HDMI adapters... It may not apply to your case. But if it is, you may have to buy some slightly more expensive adapters to make it work.
Apparently in order to use three DVI monitors you have to use two Mini Displayport to Dual Link DVI adapters instead of just Mini Displayport to DVI adapters. The reason has something to do with the internals of the card and how running three monitors works.
I don't remember the specifics, but you should read through that and see if anyone has tried this using HDMI adapters... It may not apply to your case. But if it is, you may have to buy some slightly more expensive adapters to make it work.
This is what I was talking about.
https://forums.macrumors.com/threads/997873/
http://support.apple.com/kb/HT4279?viewlocale=en_US
https://forums.macrumors.com/threads/997873/
http://support.apple.com/kb/HT4279?viewlocale=en_US
Bingo: http://support.apple.com/kb/TS3477
That would lead me to believe that you can either run two HDMI monitors, or one HDMI monitor and two other monitors. It doesn't sound like two HDMI and one other or three HDMI will work.
The low-end adapters are only like 5 bucks though, so if you have the monitors available it wouldn't hurt to try it.
That would lead me to believe that you can either run two HDMI monitors, or one HDMI monitor and two other monitors. It doesn't sound like two HDMI and one other or three HDMI will work.
The low-end adapters are only like 5 bucks though, so if you have the monitors available it wouldn't hurt to try it.
I need to get ahold of some adapters. I at least want to connect them to my two 46 inch samsung HD TVS SO i need some sort of mini display to HDMI or somthing hopefully best buy will have something.
a) I doubt Best Buy would have that adaptor.
b) Never buy cables from Best Buy. Ever. Worst place to buy cables from. They will totally overcharge you.
c) The Apple store would be a far better place to look. I know I've picked up DVI-HDMI cables there, for very reasonable prices.
Yeah, just don't ever expect a physical Best Buy to stock anything that's in their web site, learned that the hard way, wound up buying the MDP -> HDMI from Monoprice.
http://www.monoprice.com/products/p...=10428&cs_id=1042802&p_id=5311&seq=1&format=2
$7 bucks, works fine.
When I spent $20 at the Apple Store, I got an actual cable that plugged directly from my machine into the TV.
Notice what that's missing? The cable part.
Good luck finding a cheap HDMI cable at Best Buy.
Thanks guys. So I need to buy a minidv to hdmi adaptor to user my two 46 inch 1080p tvs? Can I set up 3 monitors with this card? I want the best possible quality.
No, you need to buy a Mini DisplayPort to HDMI adaptor.
