Show us your network

[mvkVirtual]

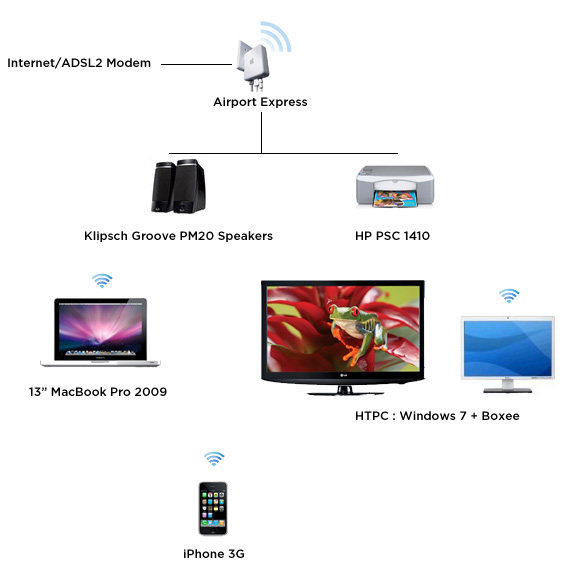

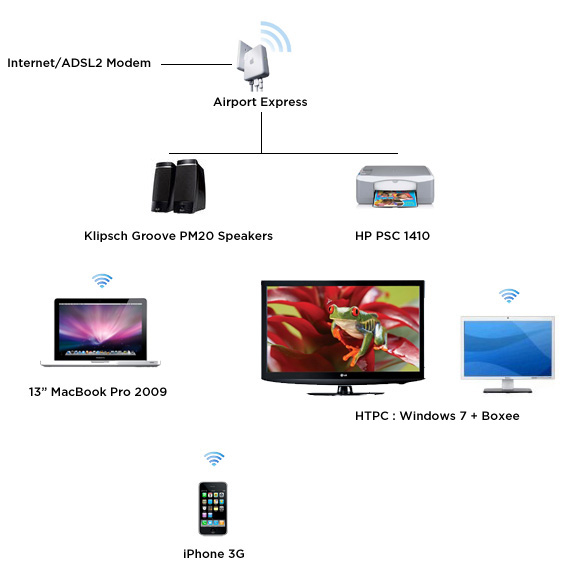

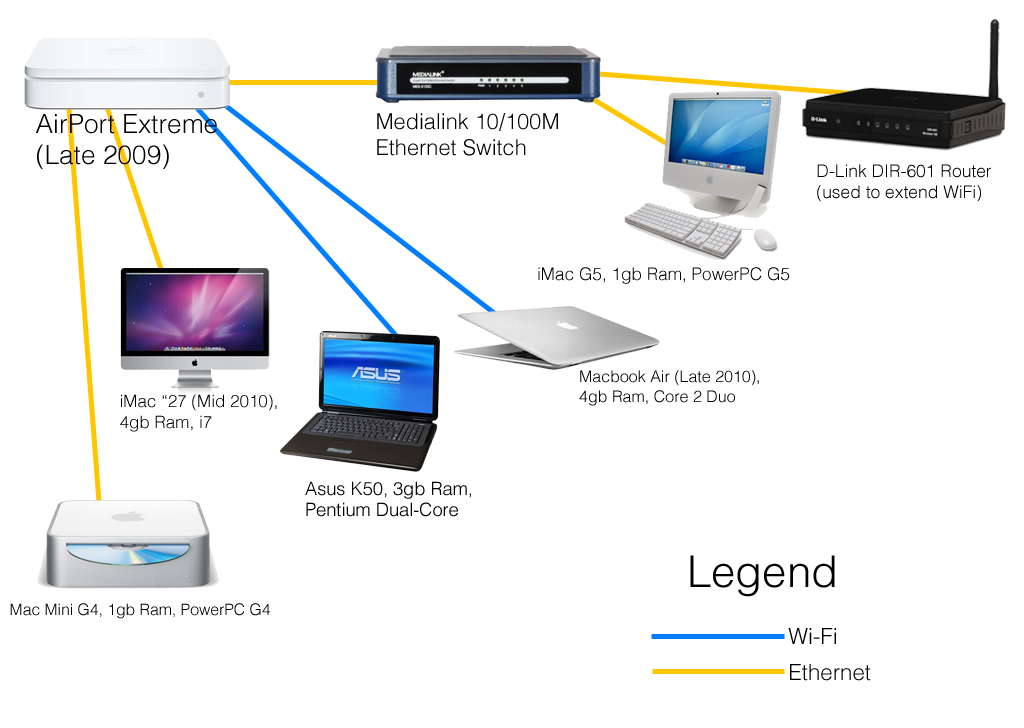

Pretty basic home network but the graphic was kinda fun to make. Will probably upgrade to an Airport Extreme sometime soon.

That's a really nice collection you have there. Do you mind briefly outlining what each is used for ? Thanks 😀



[Funkatronic]

...



[innominato5090]

mine

all the airports and the time capsule participate at the same network ( the time capsule and the 'g' express extend the signal)

edit: some real pics as well ~ the white box with the wireless logo is a DIY and it contains my router and the 'n' AEBS)



[Cliff3]

Visio still pretty much rules for IT-related diagramming..



[^^ CoolMacLover]

TEH INTERNETZ

Connected to my iMac via USB internet stick thingy.

Via airport, internet goes to: MBP, ipod touch and iphone.

Easy 🙂



[Perrumpo]

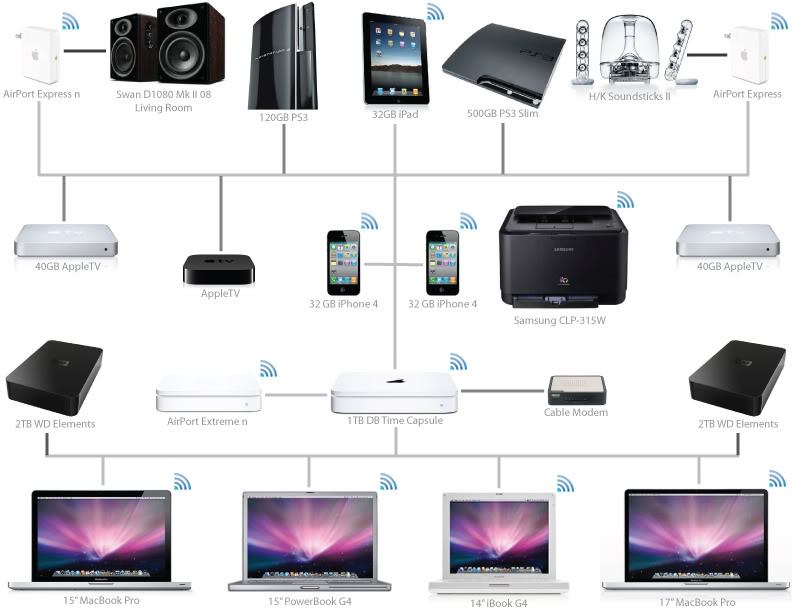

Here's how it is currently:

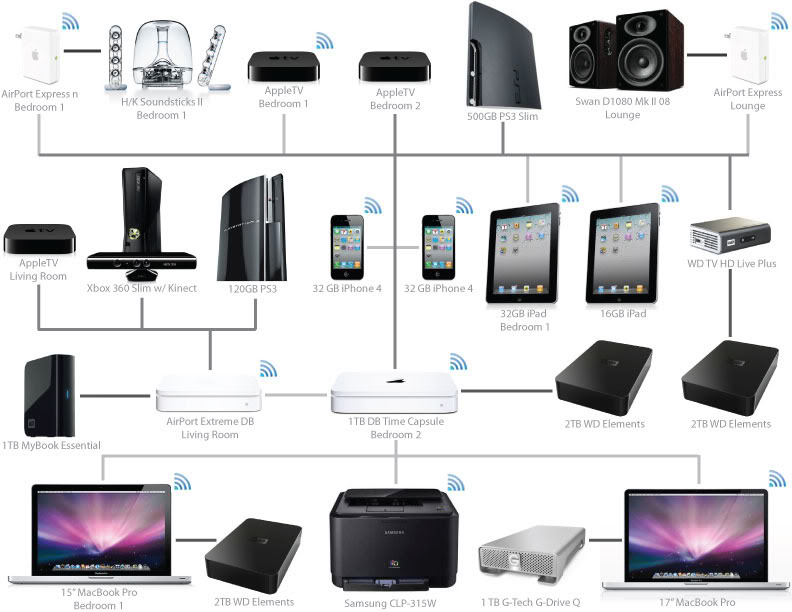

And here's how it will be after I move next month with my brother:



[Zaap]

^ sweet setup!



[WallpaperPerson]

There are no Macs because I don't have the money to get a mac but I may get one on eBay.

I have since gotten several and I'm cooler now cuz now I have macs 😀



[4JNA]

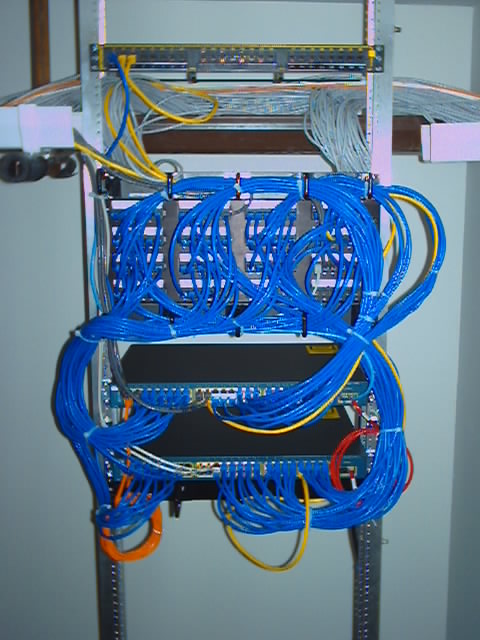

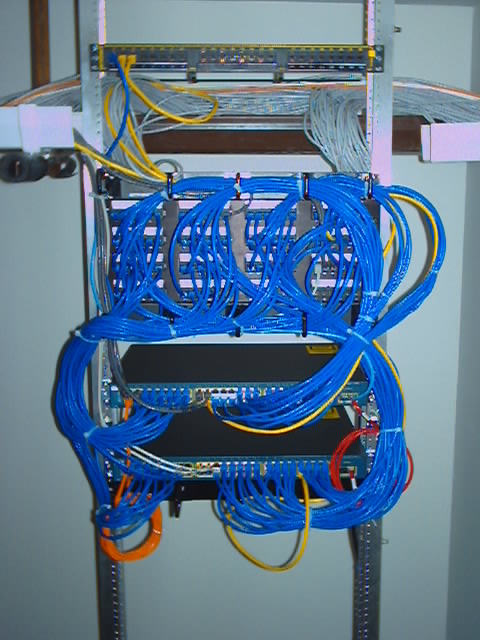

zip tie overload.

one of the last ones i did. fun.



[Svend]

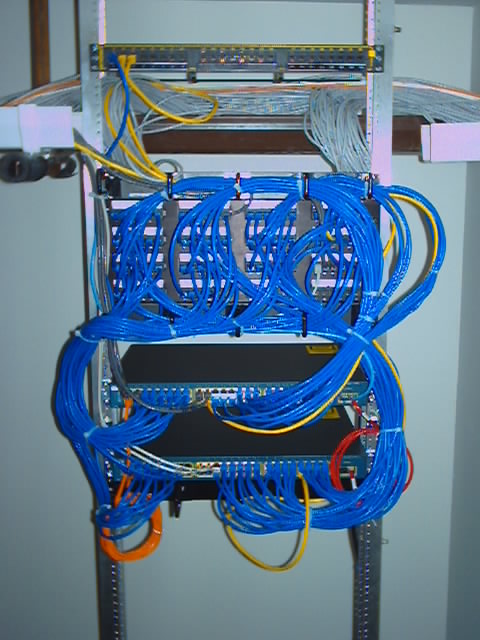

one of the last ones i did. fun.

View attachment 271872

Yeah. It's not just the chip, it has a PCI bus. But you knew that.



[Perrumpo]

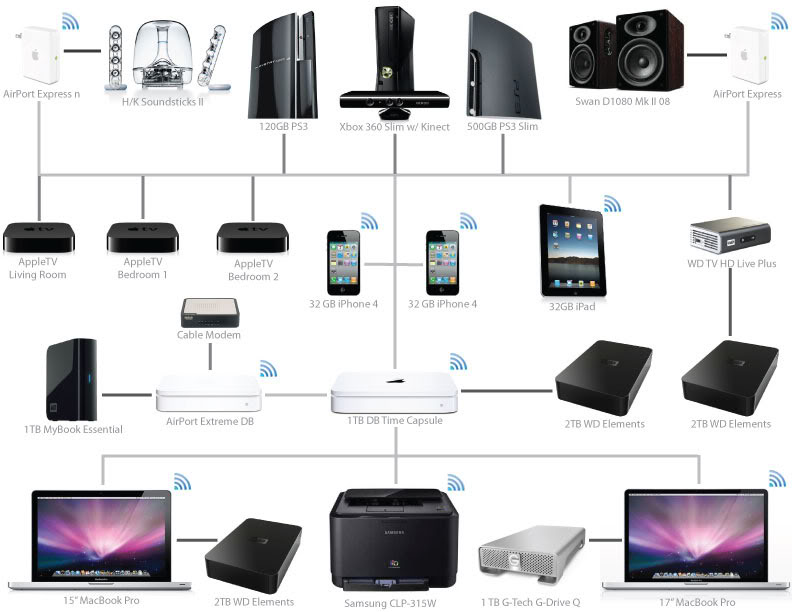

Updated pic. Took the old Macs off there to make room on the diagram.

Everything connected to the TC that's not labeled with a room is in Bedroom 2 (my room).
Everything connected to the AEBS is in the living room.

Light grey = wireless
Medium grey = ethernet
Dark grey = others



[flipster]

Time for a new router, haha.



[richiathton07]

Actually we did very little PC games. Some, sure, but not much. My roommate and I had the most machines - 8 between the two of us, including two laptops - were only very nerds who had tons of projects. I was a computer science student, who was electrical engineering. I always had my Linux file server, another computer running Windows that has worked bitch like downloading files or playing movies, while I did the actual work on the host computer, etc, and my roommate uses a similar settings to experiment with new things or distribute computational load.



[sim667]

I cant be bothered to make a diagram, but ill explain

20 Mb cable broadband -------> VMDG280 Modem ---------> D-Link DIR-615 (DDWRT firmware).

Coaxial -------> VMDG280 Modem
Samsung V+ HD box (3110, but this a virgin media branded one)

Ethernet + Homeplugs-------> DIR-615
2008 Mac pro

Ethernet -------> DIR-615
Sony Blu-ray player (cant remember which one)
Xbox 360 elite

Wifi-------> DIR-615
iPhone 4G 32GB
16 GB iPad (wifi only)
G4 17inch Powerbook.

All the portable items can connect to my router from outside my home network using a PTPP VPN. I've also got access for 5 freinds computers to the same VPN so we can pass files around easily.



[fhall1]

Updated pic. Took the old Macs off there to make room on the diagram.

Light grey = wireless
Medium grey = ethernet
Dark grey = others

What tool did you use to make those diagrams? They're really nice.



[0098386]

A bit of an update to my previous one (page 1 or 2?).



[Perrumpo]

What tool did you use to make those diagrams? They're really nice.

Thanks. I used Adobe Illustrator.



[Applepi]

My modest home network.



[phishindsn]

I'll play.



[toolbox]

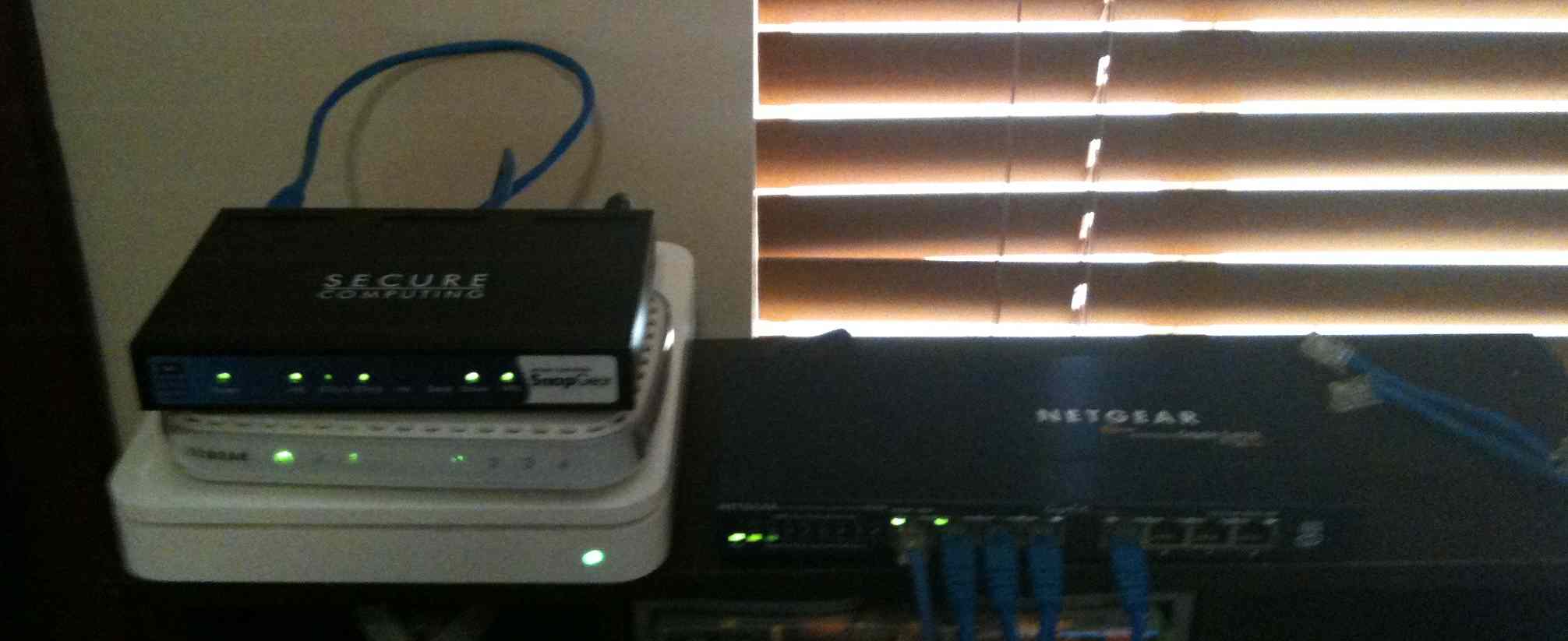

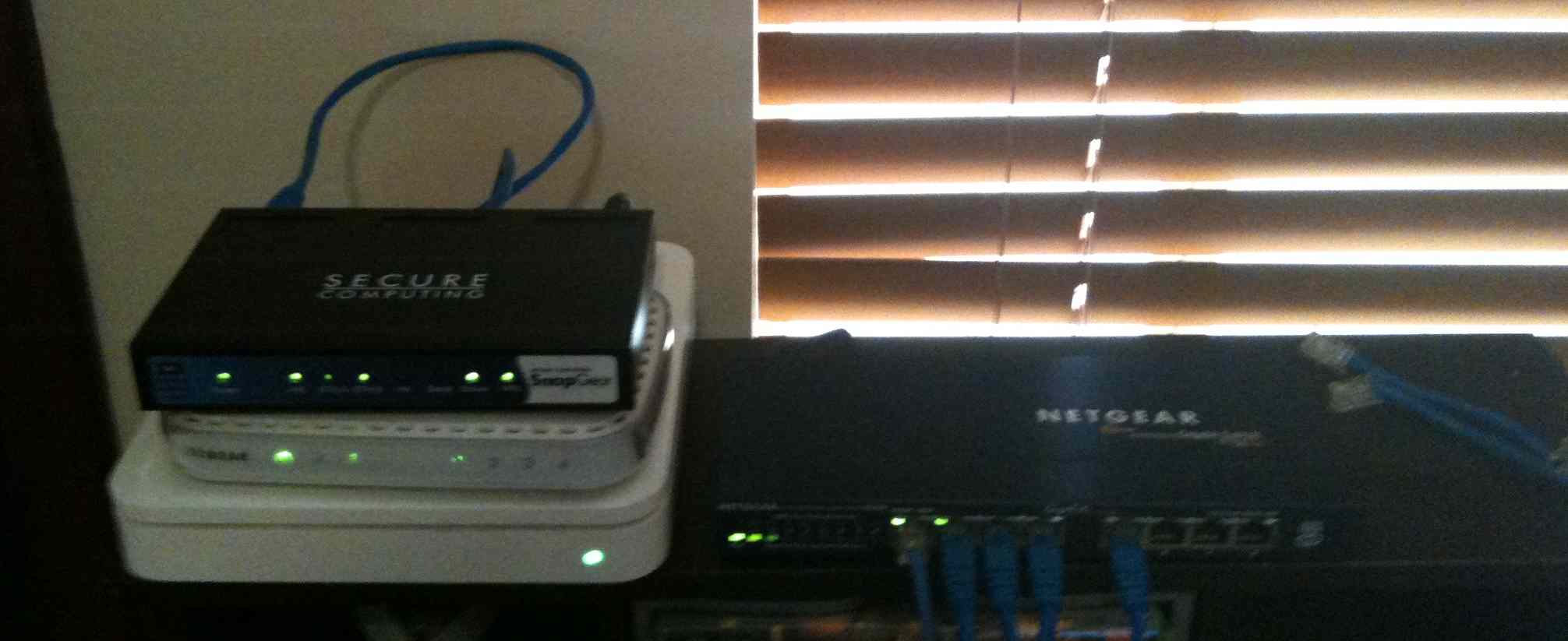

Here is my setup, updated actually. No longer running FreeBSD here The items here

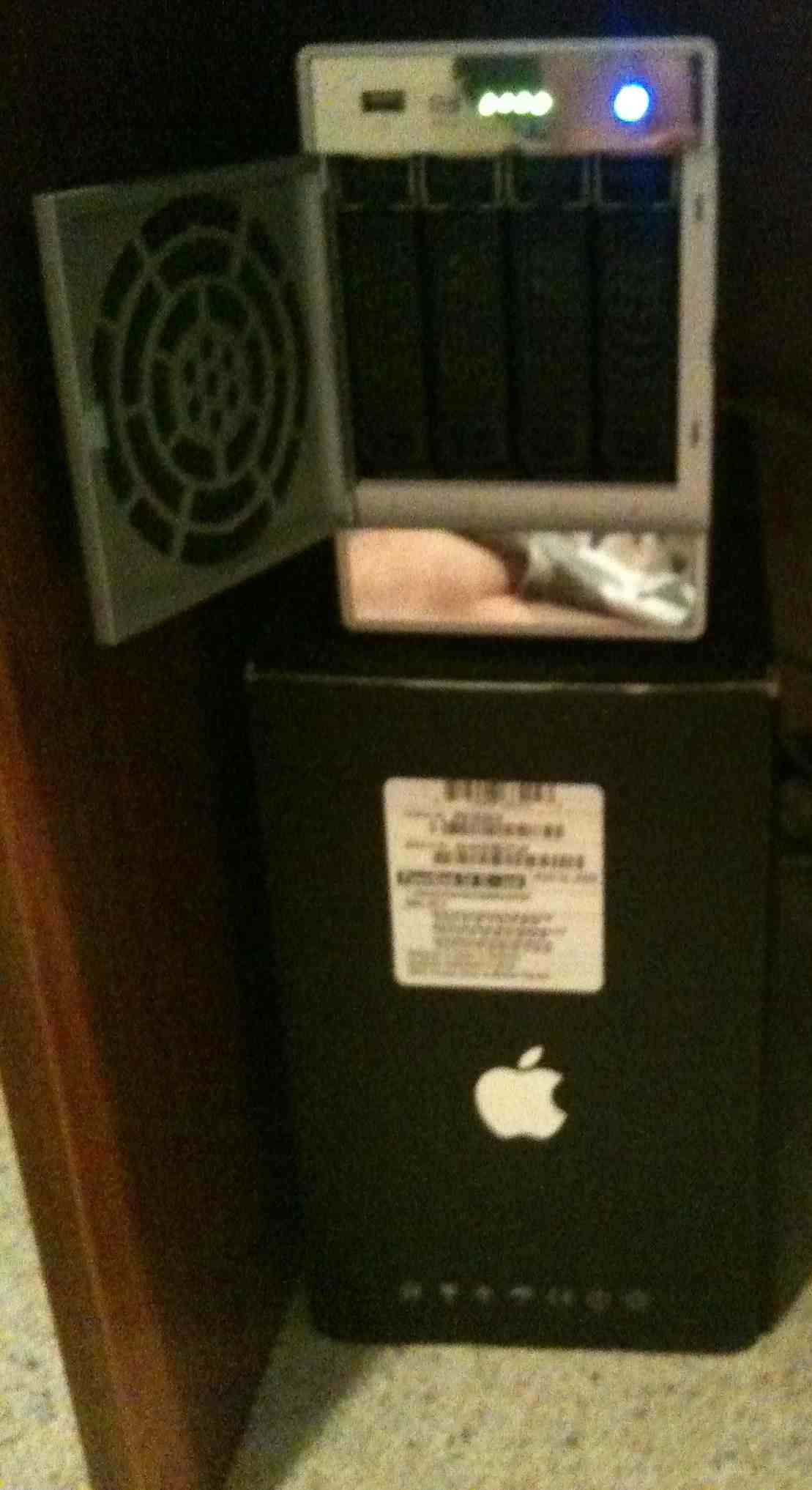

1. Time Capsule - First Generation. This had the defect with the Power supply and failing capactiors. Sadly i had modded it prior to this problem being announced. Currently now it is only used as a Wireless Access point

2. Netgear DG834, currently in a Modem only mode.

3. Snap Gear SG560. Handles my firewalling, port fording, VPNS and IPSEC tunnel to my work place.

4. Net Gear Prosafe Gigabit switch.

5. My Ready NAS NV+, currently has 4 1 TB drives configured as a RAID 5 array. The Nas is used to house my 1 TB + itunes library and offsite backups from my work place



[Matthew9559]

Used gliffy.com, had to improvise with no image for an iPad on the site.



[Perrumpo]

you have wireless sound sticks 2 ?..the chart is alittle confusing

Sorry I never saw this. They're only wireless via the AirPort Express for AirTunes.



[random47]

Here is my network.
I still cant decide whether to get an 11" air or 13" base pro.



[kppolich]

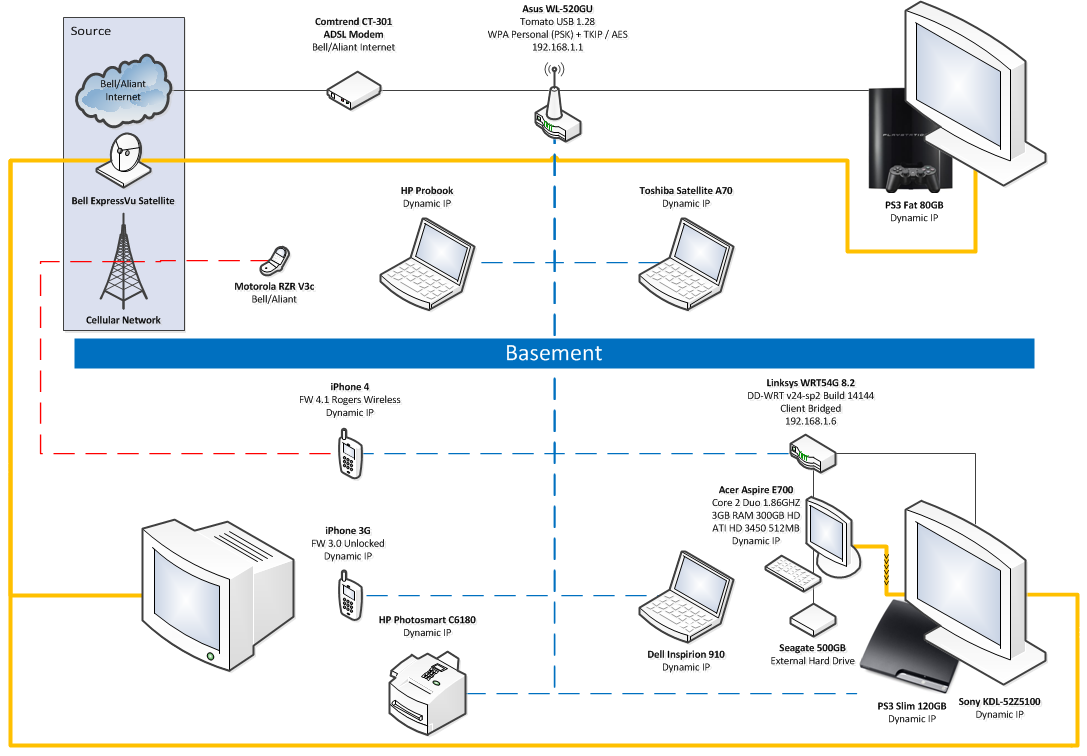

[JP3G]

Black: Wired
Blue: Wireless
Red: Cellular
Yellow: Video
