MP 1,1-5,1 Sonnet PCIe card x1 in PCI info instead x2?

Koka016

macrumors member
Original poster
Aug 30, 2020
69
1
Serbia
Hi All Rumors

I almost forgotten my Sonnet PCIe sata card adapter ..

But When I installed it today I have slightly better results with A400 Kingstone than on internal SATA 2 conection?

I remember before 2 or 3 years that speed was around 400 to 450 MB/sec then I recognise this is x1 line PCIe connected ?

What can I do ? here is on picture 2 one guy from ebay is listing yhe same card and his card is x2 in PCIe info?

Any suggestion will be welcome?


Attachments

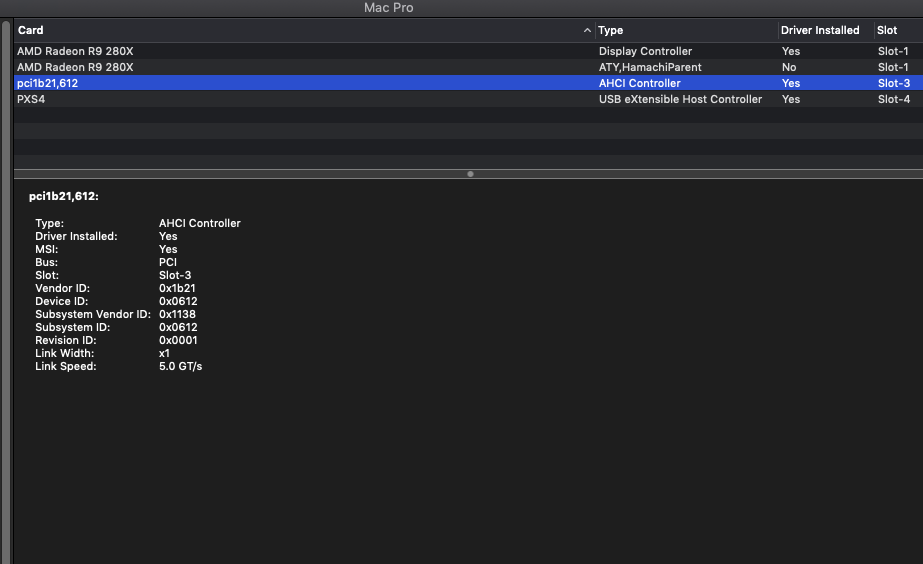

  • Screen Shot 2021-01-13 at 9.27.54 PM.png
    Screen Shot 2021-01-13 at 9.27.54 PM.png
    57.8 KB · Views: 24

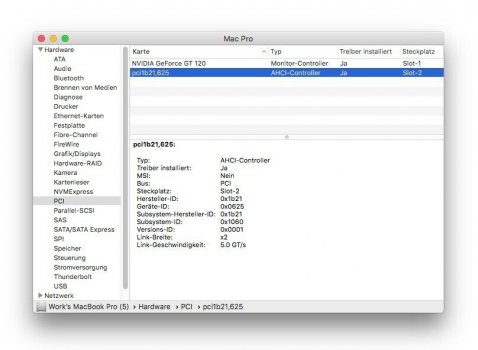

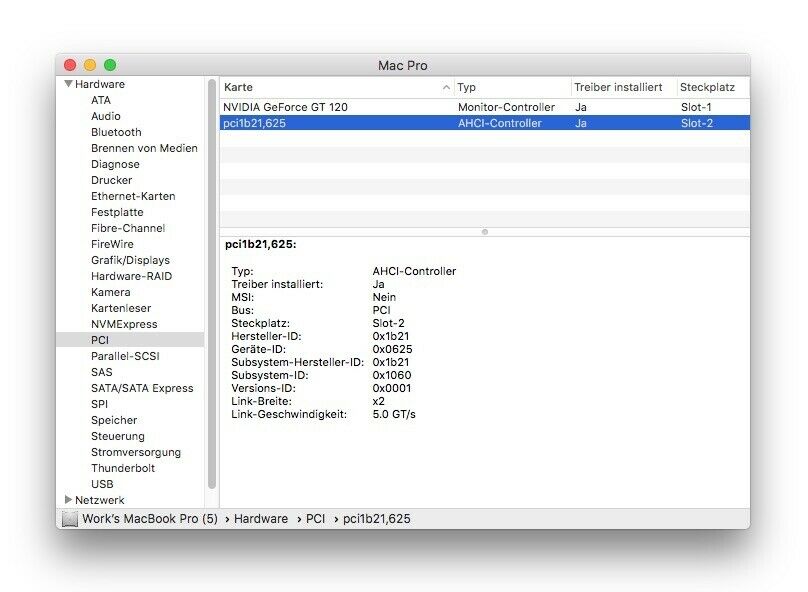

  • s-l1600.jpg
    46.1 KB · Views: 19

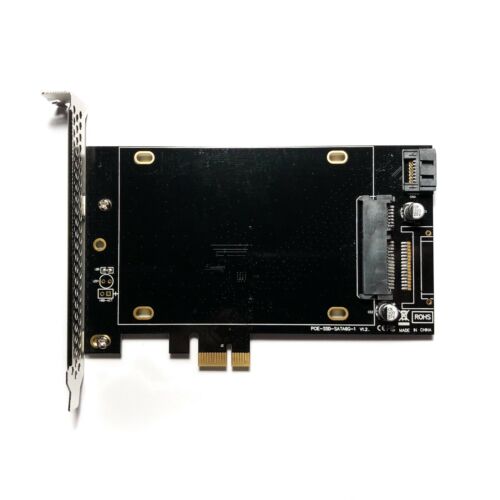

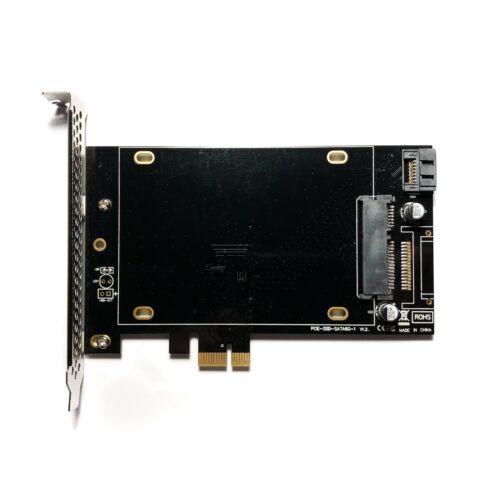

  • s-l500.jpg
    16.6 KB · Views: 22

zedex

macrumors regular
Oct 21, 2018
188
74
Perth, WA
This is not a Sonnet Tempo SSD (PCIe 2.0 x2), Sonnet Tempo SSD Pro (PCIe 2.0 x2), Sonnet Tempo SSD Pro Plus (PCIe 2.0 x4)..

It is possible you have an early revision Sonnet SATA SSD HBA but I can't be sure. I can say that the HBA pictured is clearly PCIe 2.0 x1 (physically) due to the width of the 'goldfingers' on the PCIe host board adapter.

Comment

joevt

macrumors 68030
Jun 21, 2012
2,510
1,101
pci1b21,621 is an ASMedia 1062 which supports up to two lanes but you show only an x1 connection.

pci1b21,625 is also from ASMedia but I'm not sure which chip it is. Can you get a closeup picture of the chip?

The picture of the PCIe card shows an x1 connector. I don't see a chip on that card though. Does it not have a PCIe SATA controller? Is it using the PCIe slot only for power? Are you expected to connect it via the SATA data connector?

An x2 card probably has an x4 connector.

Note that the x4 slots in a MacPro3,1 do not support x2 - that's not a problem for MacPro4,1 and later though.

Comment

Koka016

macrumors member
Original poster
Aug 30, 2020
69
1
Serbia
Hi thanks for replays.

There are no Chip on this card and yes this card uses power from PCIe slot.

Maybe this is problem ?

I already have MSI R9 280X in this Mac and also USB 3.0 card powered via PCIe slot?

Last time I used this card there was GT120 Graphic card.

Comment

tsialex

macrumors G3
Jun 13, 2016
8,575
9,137
Hi thanks for replays.

There are no Chip on this card and yes this card uses power from PCIe slot.

Maybe this is problem ?

I already have MSI R9 280X in this Mac and also USB 3.0 card powered via PCIe slot?

Last time I used this card there was GT120 Graphic card.
This don't make sense, if the card itself don't have a SATA controller on the PCB, it uses the PCIe slot just for power and you need to connect a SATA cable between the card and one of the Mac Pro SATA ports.

Comment

joevt

macrumors 68030
Jun 21, 2012
2,510
1,101
Show us the ASMedia chips. More pictures with better explanations.

Comment

natjonesart

macrumors member
Jan 22, 2017
84
25
Canada
This looks more like the "Debroglie" cards from china, I have one from several years ago.

Comment

joevt

macrumors 68030
Jun 21, 2012
2,510
1,101
This looks more like the "Debroglie" cards from china, I have one from several years ago.
That has lots of chips on the backside. Maybe one of them is an ASMedia 106x chip. Which one though? Need close-ups.
