Spring-type sound on bottom casing?

Discussion in 'MacBook Pro' started by shadow82x, Nov 25, 2016.

  1. shadow82x macrumors 6502

    Joined:
    Jul 11, 2012
    #1

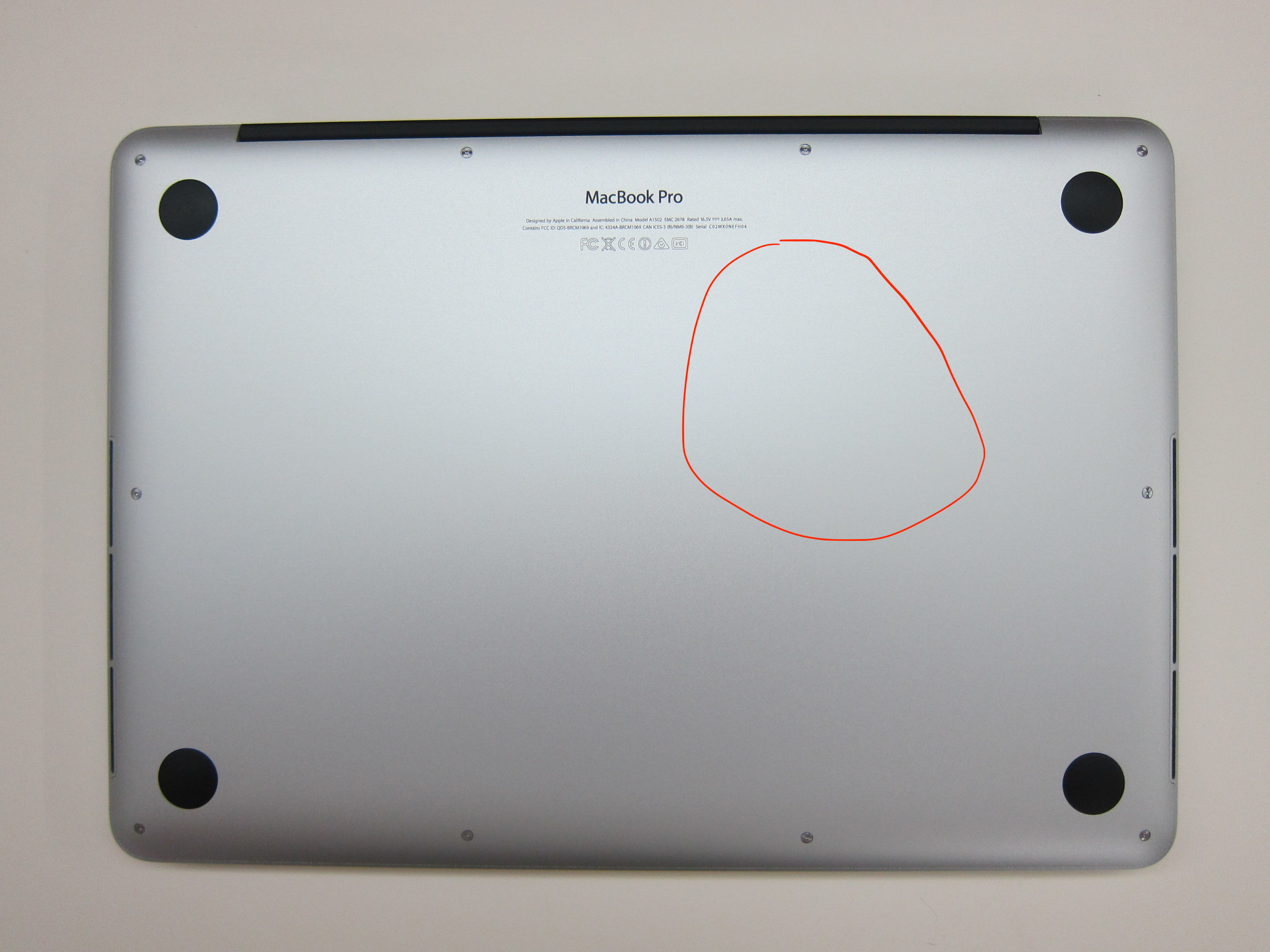

    For all tMBP 15" owners, do you hear a spring-type noise if you apply slight pressure to the following area on the bottom casing?

    (The old MacBook Pro bottom showed for reference)

    I do, it sounds like an un-greased creaky spring going up and down if I press on it.


    Attached Files:

  2. Pootmatoot macrumors 6502a

    Joined:
    Nov 17, 2014
    #2
    That's either the casing over your RAM or the heatsink.

    [​IMG]

  3. shadow82x thread starter macrumors 6502

    Joined:
    Jul 11, 2012
    #3
    Is it normal? (Ie does it occur on every TMBP in that location?)

  4. shadow82x thread starter macrumors 6502

    Joined:
    Jul 11, 2012
    #4
    I actually just noticed this occurs all around the back plate. I'm assuming slight creaking/clicking is normal under pressure.

  5. James.K.Polk macrumors 6502a

    Joined:
    Aug 31, 2015
    #5
    Happens to me for sure. Doesn't mean it's a good thing, but I haven't had any issues at all with my computer.

  6. Pootmatoot macrumors 6502a

    Joined:
    Nov 17, 2014
    #6
    On previous MBPs, you can develop a squeak if the tension on the screws is off on the back plate.

  7. shadow82x thread starter macrumors 6502

    Joined:
    Jul 11, 2012
    #7
    I'm pretty sure I had this on my old MBP but I can't verify since I sold it lol. It's just annoying to hear in a quiet room.

  8. FAWKZ macrumors newbie

    FAWKZ

    Joined:
    Nov 17, 2017
    #8
    Hey man, I have a 2017 Tb MBP with the same creaky spring sound on the bottom case. Did you ever get it checked out at the apple store, or find more information on it? Let me know. Thanks in advance!

  9. mcpryon2 macrumors 6502

    mcpryon2

    Joined:
    Dec 12, 2008
    #9
    There are two clips holding the case on around that location (bilaterally), and there are two more at the edges. You need a suction cup to get them off if you don't have the elaborate device made by Apple for removing the bottom case. Basically it's held on by being seated into a series of clips along the side with the groove and then it comes down on the other clips to secure it even with no screws in the bottom.

    If you have a pentalobe bit you can loosen, or take out, the screws and it might loosen the tension and stop the noise. Don't worry, the bottom case is definitely not going to come off if you take the screws out. But, that said, it's not something to worry about. I noticed it, but when I started taken them apart I realized it's just the mechanism that holds the bottom case on.

  10. MacInTO macrumors 65816

    MacInTO

    Joined:
    Apr 25, 2005
    Location:
    Canada, eh!
    #10

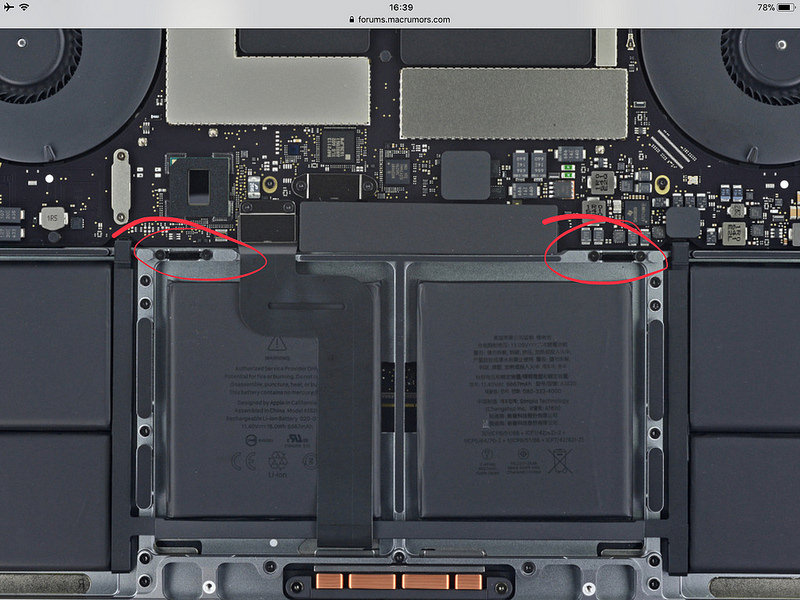

    There are two clips in the center that are especially important because the bottom case is so big. The two clips secure the center of the bottom panel from flopping around. The clips are glued to the bottom panel and clip into the locations circled. If the clips become loose or break, it can cause movement.

    [​IMG]

  11. FAWKZ macrumors newbie

    FAWKZ

    Joined:
    Nov 17, 2017
    #11
    Thanks for the detailed response, that certainly puts my mind at ease. However I'm curious if adjusting or removing the screws would void my warranty or anything.. Not sure it's worth doing myself.

    That being said, I don't really want to have to make a Genius Bar appt just to re-adjust the bottom plate.

    I guess there is still a possibility that the clips have broken and need to be replaced too. Although it doesn't REALLY affect me, it's still a little annoying for it to make any sounds when being picked up, or moved.

    I've tried to re-attach the clips by lightly pressing the bottom case (with a cloth as buffer), with no luck so far.

    Thanks again for the reply though, I'm glad to know that it's likely not something too serious.

  12. MacInTO macrumors 65816

    MacInTO

    Joined:
    Apr 25, 2005
    Location:
    Canada, eh!
    #12
    If you have the tools, I think that removing the bottom panel wouldn't void your warranty if Apple did not know you opened the case.

    In my experience with the bottom cover is that the clips snap into place and hold the bottom panel in place pretty firmly. Firm enough to hold it in place without any screws and won't move. If the clips aren't secured, the bottom panel won't sit flat and the screws would not be able to be attached. This was with the 2012 and earlier cMBPs. Might be different with 2015 models and later. The 2012 to 2014 Retina models used magnets.

    On the image you provided, it looks like the slot is held in place with two screws each. If they are loose, that could also contribute to the problem.

    Then again, I could be wrong and it could be something totally different! :eek:
