Spudger

Discussion in 'MacBook Pro' started by ShoG, Jan 9, 2012.

Most Liked Posts
  1. ShoG, Jan 9, 2012

    ShoG macrumors member

    Joined:
    Dec 6, 2011
    #1
    Is the spudger from http://www.ifixit.com/Tools/Spudger/IF145-002 also good for using it to de-static-ify yourself with, like those bracelet grounding kits. If I were to hold this while replacing my RAM would it be safe?

    It says in the description that it is an antistatic tool. Does that mean that as a tool it will not shock components or that is is also like one of those bracelets?

    TIA

    share
    + Quote Reply
  2. balamw, Jan 9, 2012

    balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #2
    If you don't have an ESD wrist strap the best course of action is to simply hold the chassis with your other hand while performing the operation. The spudger is not a good substitute. It just means that it itself will not hold a charge that can zap your electronics.

    B

    share
    + Quote Reply
  3. TheIguana, Jan 9, 2012
    Last edited: Jan 10, 2012

    TheIguana macrumors 6502a

    TheIguana

    Joined:
    Sep 26, 2004
    Location:
    Canada
    #3
    It's a chunk of nylon, at best it will act as an insulator, thus it won't do anything to dissipate built up charge.

    share
    + Quote Reply
  4. ShoG, Jan 9, 2012

    ShoG thread starter macrumors member

    Joined:
    Dec 6, 2011
    #4
    Thanks guys ill hold the bottom pan while I do the upgrade.

    share
    + Quote Reply
  5. squeakr, Jan 9, 2012

    squeakr macrumors 68000

    squeakr

    Joined:
    Apr 22, 2010
    #5
    Unless your terminology is throwing me off, the bottom pan (which I am interpreting as the bottom panel that gets removed to replace the RAM) is not a good grounding point. You need to hold onto something that will allow the charge to be drawn off and dissipated. The pan just sitting there will not work for a ground.

    share
    + Quote Reply
  6. balamw, Jan 9, 2012

    balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #6
    Correct. You want to touch the part of the chassis where the RAM is so that you are at its potential. That is better than nothing if you have no path to ground.

    B

    share
    + Quote Reply
  7. ShoG, Jan 9, 2012

    ShoG thread starter macrumors member

    Joined:
    Dec 6, 2011
    #7
    Ive been reading some helpful stuff here and some youtube videos. One video said apple suggests touching the optical drive before doing anything inside, will this be the same? Or must I touch the clips that the RAM comes out of. Can you give me something that I can touch for sure inside, I have never upgraded RAM ever and want to be certain.

    Would making sure I touch metal objects and get zapped be the first thing I do after removing the bottom panel, and is that alone enough? Its not like Im going to be doing a jig while swapping the RAM

    The most common things I have found are to de-static myself, don't touch the gold connectors, disconnect the battery connector on the logic board. Also are there snaps on the bottom panel of the 2011 17'' model, some videos had the snaps and some didn't. The video on OWC for late 2011 MBP is the video I will be following but they don't show what to do to discharge static electricity.

    ----------

    I have a titanium lacrosse stick, if I hold that like a cane, will that also work. I hear titanium is not a good conductor of electricity though.

    share
    + Quote Reply
  8. balamw, Jan 9, 2012

    balamw Moderator

    balamw

    Staff Member

    Joined:
    Aug 16, 2005
    Location:
    New England
    #8
    The metal case for the optical drive is part of the chassis, so yes. It's a big target so go for it.

    B

    share
    + Quote Reply
  9. squeakr, Jan 9, 2012

    squeakr macrumors 68000

    squeakr

    Joined:
    Apr 22, 2010
    #9
    The chassis should be sufficient. It is great to error on the side of caution, but it is not really that critical. I upgraded mine in the car in the parking lot twice (once to 8 GB after I got it, and then to 16 GB a few months later when the new position required more RAM, i did this out of impatience and because I wanted to make sure that the RAM was good before leaving for a long drive home). I have upgraded and built several computers over the years and was a technician in the semi-conductor industry for over 14 years. It is not as critical as it seems. Just take the back off touch the chassis, remove the old RAM and replace with the new RAM. Test and replace the back. Viola you are done.

    share
    + Quote Reply
  10. ShoG, Jan 9, 2012

    ShoG thread starter macrumors member

    Joined:
    Dec 6, 2011
    #10
    Great I feel way better about this now. Thanks for your help guys.

    share
    + Quote Reply
  11. maflynn, Jan 10, 2012

    maflynn Moderator

    maflynn

    Staff Member

    Joined:
    May 3, 2009
    Location:
    Boston
    #11

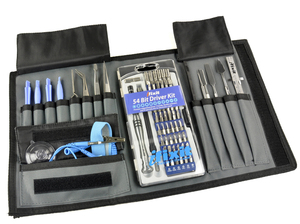

    Attached Files:

    share
    + Quote Reply
