MP 1,1-5,1 SSD on Drive Sled?

[LookToWindward]

Hi,

What adaptor are people using to attach their SSDs to a Drive Sled? Can I use it on both 3,1 and 5,1 Sleds?

Thanks a lot
Dave



[sfalatko]

I used a replacement sled from Other World Computing (US based) in my cMP5,1 -

https://eshop.macsales.com/item/OWC/MMP35T25/



[LookToWindward]

I think that one will only work with 5,1 not 3,1 plus its mega expensive to import (I'm in the EU/Spain)



[arw]

You could use your existing sled(s) and buy a 3,5" to 2,5" adapter:

ORICO Adaptador para Discos Duros de 2,5'' a 3,5'', Marco de Soporte de Montaje Convertidor de Disco Interno para SATA SSD HDD de 2,5 Pulgadas de 7 9.5 12mm (1125SS)

ORICO 2.5 to 3.5 inch Hard Drive Caddy (1125SS)

www.amazon.es

I don't know which commercial platforms are common in Spain but there should be even cheaper options without a PCB.

edit:
For a quick fix, in the 4,1 and 5,1 you can simply plug the SSD into one of the two optical bay SATA connectors without any sleds or mounting.

And if know someone with a 3D printer:

Adaptador SSD Mac Pro 3.1

He reforzado el modelo por pratty y colacristian, porque pensé que la fuerza involucrada en poner la cosa dentro y fuera debe destruirlo. He construido e instalado el adaptador, funciona como estaba previsto. Gracias chicos por vuestro trabajo.

cults3d.com



[avro707]

I used a replacement sled from Other World Computing (US based) in my cMP5,1 -

https://eshop.macsales.com/item/OWC/MMP35T25/

This is the best one for 5,1, it’s the one I use. It’s simple and works.

For 3,1 I’m not so sure - maybe the conversion sled above?



[mattspace]

Hi,

What adaptor are people using to attach their SSDs to a Drive Sled? Can I use it on both 3,1 and 5,1 Sleds?

Thanks a lot
Dave

These are the ones I use for adapting any 2.5" SSD

NewerTech® : Storage : AdaptaDrive

NewerTech AdaptaDrive let's you experience the Solid State Drive speed advantage or reuse an existing notebook hard drive in a 3.5in drive bay.

www.newertech.com

I've used them on sleds, multibay JBOD enclosures etc.



[StuAff]

OWC have a European operation in Belgium (a faulty USB enclosure of mine should be with them now) and numerous dealers over here, including Spain https://www.owc.com/support/eu/



[LookToWindward]

Ok, I'll take a look. One thing I thought maybe I could butcher an old HDD (I have loads). Take everything out from the steal case and put the SSD inside it somehow. Anyone else tried this?



[LookToWindward]

I had a look, the links are broken on most of the European resellers and I can't see find drives sleds on any of the ones that work. i've sent them an email, hopefully they will get back to me with somewhere I can buy them from at a reasonable cost.

For what they are they are mega expensive too, $15 to $25, shipping $64 + 21% Tax, comes out at around $100. That 95 Euros for a sled mount! The SSD only cost me 35 Euros! Crazy!



[LookToWindward]

I'm going to see if I can get something 3D printed locally or maybe go to a metal ship and see if they can do anything.....



[mattspace]

I'm going to see if I can get something 3D printed locally or maybe go to a metal ship and see if they can do anything.....

is that really going to be cheaper or easier than just getting a ready-made solution, that has the PCB to adapt the pins, power connectors etc?

For what they are they are mega expensive too, $15 to $25, shipping $64 + 21% Tax, comes out at around $100. That 95 Euros for a sled mount! The SSD only cost me 35 Euros! Crazy!

Perhaps sign up to Amazon Prime for 1 month (it's ~AU$9/month here), then buy them through Amazon, and use the free international shipping Prime members get.



[LookToWindward]

is that really going to be cheaper or easier than just getting a ready-made solution, that has the PCB to adapt the pins, power connectors etc?



Perhaps sign up to Amazon Prime for 1 month (it's ~AU$9/month here), then buy them through Amazon, and use the free international shipping Prime members get.

I have no idea how much it will cost, I guess I'll find out. Amazon Prime might be an option,,,,,



[Dayo]

What adaptor are people using to attach their SSDs to a Drive Sled? Can I use it on both 3,1 and 5,1 Sleds?

Strange as it may sound, you can simply push an SSD into an MP31 SATA port and it will hold. A little dollop of bluetack would make this even more so. One of my SSD has been like this, without the help of bluetack even, for ages without issue.

That is just because I have been too lazy to screw one of these, of which I have two spare lying around, to the regular sled:

NewerTech AdaptaDrive 2.5 to 3.5-inch Drive Converter

Fits all 3.5-inch SATA drive bays, including desktops, enclosures, or backplane trays as found in the Mac Pro. Fully SATA 3.0 Revision (6Gb/s) compliant.

eshop.macsales.com



[LookToWindward]

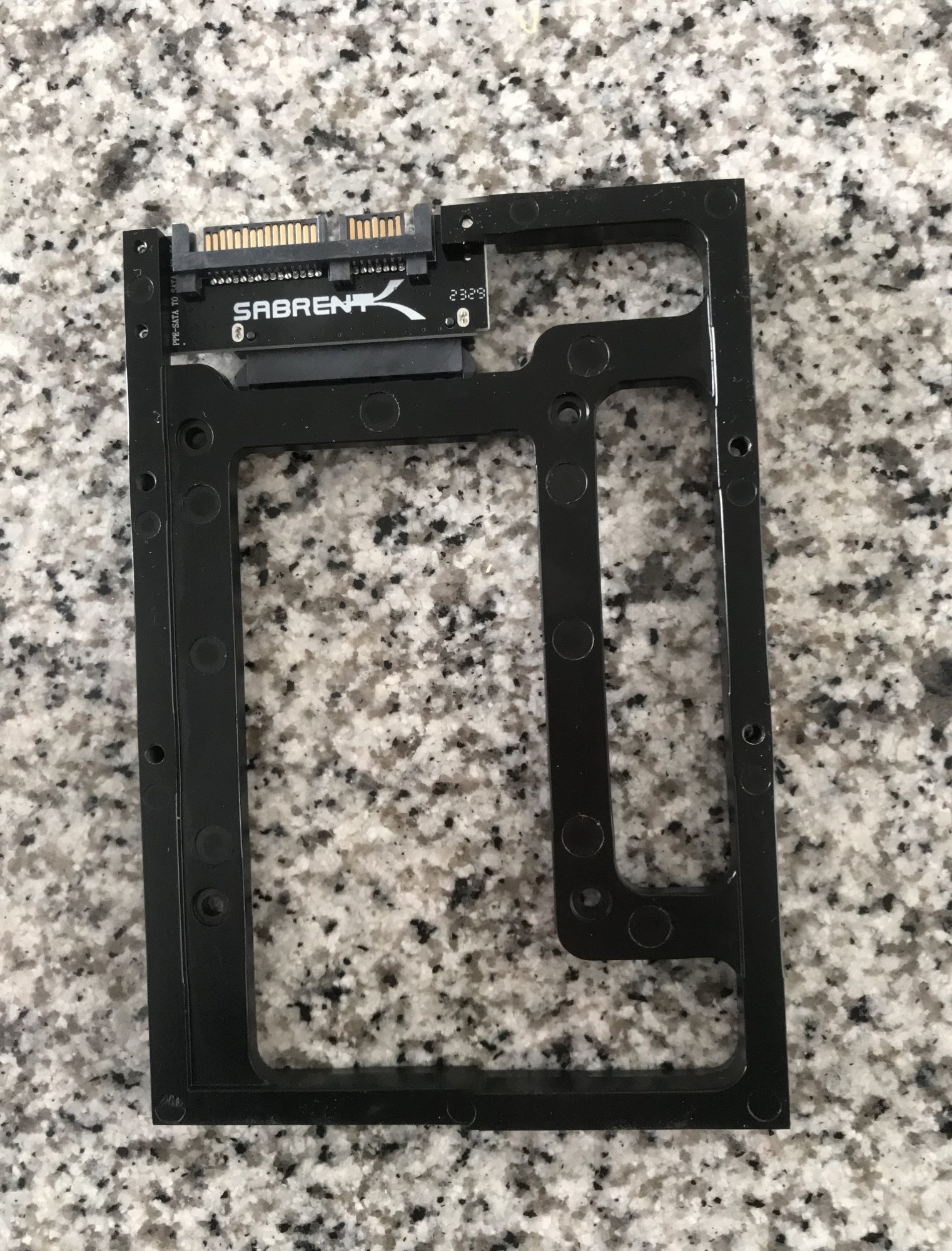

Yes, I've found it on Europe, for 26 Euros a pop! Considering the SSD itself was only 31 you have got to wonder what is going on in the world! I actually found a Sabrent adaptor similar in a box of disk related things. I'm wondering if this would work in the same way?



[LookToWindward]

Yes, I've wondered if I could just leave it hanging, I've found the Sabrent version on Amazon, for 13 Euros, it says on the box that it is compatible with the Mac Pro, so it looks hopeful!



[LookToWindward]

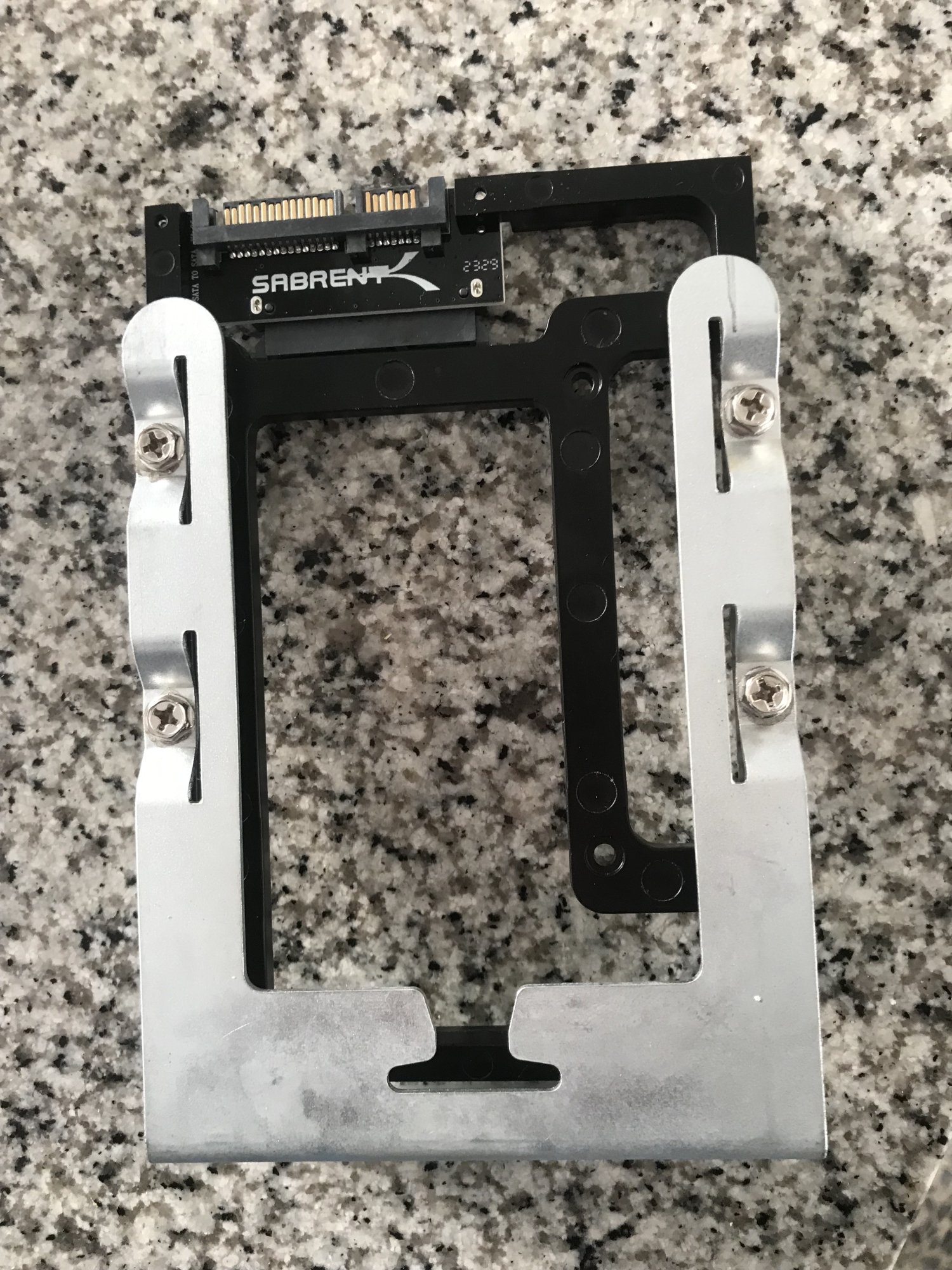

Seems to fit ok, I have to go out now, I'll try it when I get back!



[LookToWindward]

It works!

I'm going to buy a couple more of those adaptors, best option for people in Europe.

Thanks a lot for your help!



[arw]

Great to hear the Sabrent adapter works as desired!

edit: While the ORICO adapter from Amazon.es in post #4 is only 10€, I just noticed the material is ABS.
So despite its look, it doesn't function as a heatsink - on the contrary.
And due to its larger footprint, it probably hinders the airflow in the Mac Pro slightly more than the Sabrent adapter.
