SSD vs. HDD Performance

Discussion in 'PowerPC Macs' started by Altemose, Dec 25, 2014.

  1. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #1
    Merry Christmas!

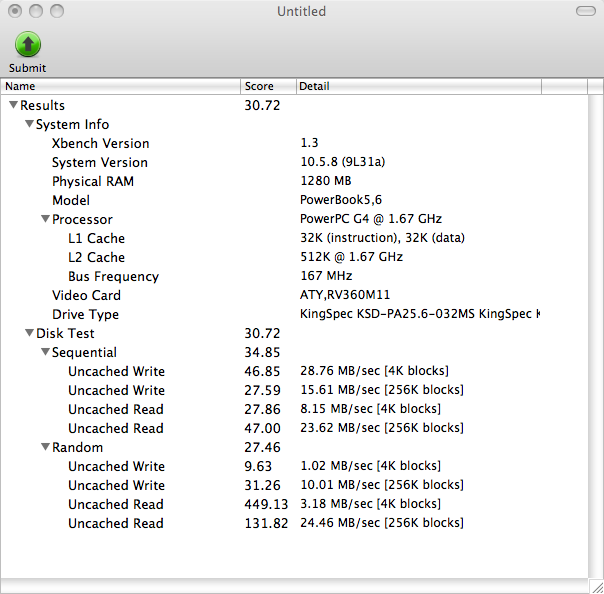

    For Christmas, I was given a PATA SSD by KingSpec that I promptly installed into my PowerBook G4. Do these results look right compared to a stock 5,400 RPM hard drive? Some things feel faster and some feel slower and it is hard to tell. I used Xbench and a fresh install of Leopard from my retail disk for the test. Thank you and Merry Christmas!


    Attached Files:

  2. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #2
    Those speeds appear to be slightly slower than what is expected of a SSD in a Powerbook G4.

  3. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #3
    Are they faster than a 5,400 RPM hard drive. Unfortunately the drive was going out in here so I did not think it would be fair to put the SSD vs. a dying hard drive. It is a KingSpec so I was not expecting breakneck performance but I just want to be sure the money was well spent. Boot up is about 50 second power button to full menu bar.

  4. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #4
    Some of those speeds are faster, others like the sequential are slower.

  5. 556fmjoe macrumors 65816

    Joined:
    Apr 19, 2014
    #5
  6. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #6

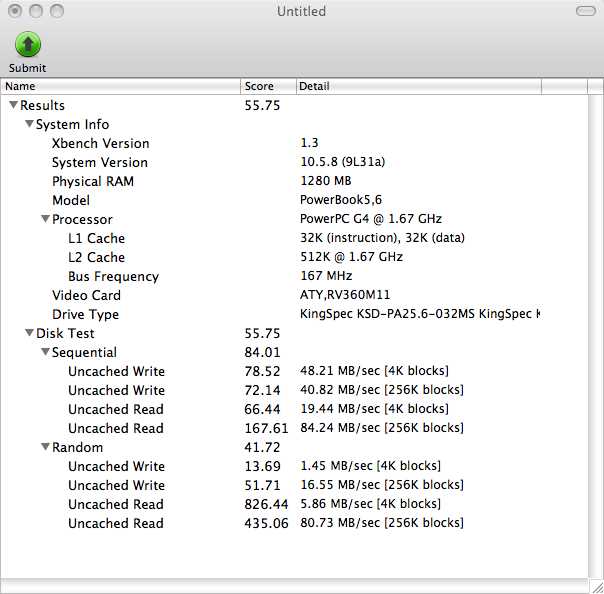

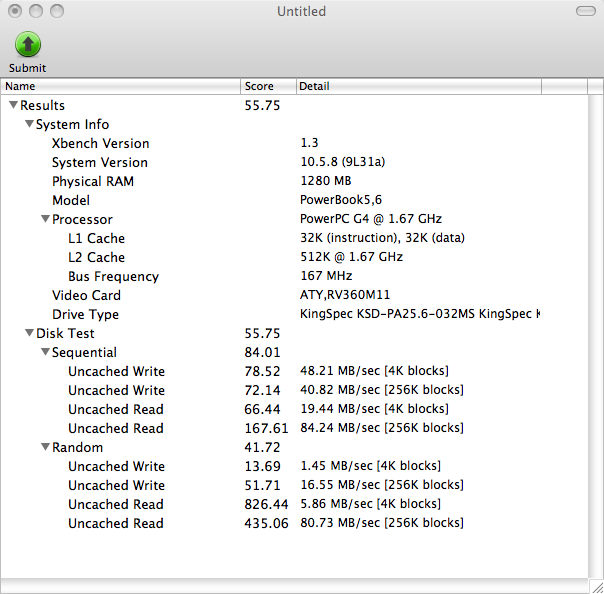

    I just reran the test and the results surprised me. This is after a fresh reboot. Do these look to be in line with real world numbers? I have learned that speeds and specifications need to be taken with a grain of salt and the wise word of the members here is the best information.


    Attached Files:

  7. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #7
    Those numbers look better, slightly slower on the writes than I'd expect. But they are inline with that SSD's marketed speeds.

  8. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #8
    I understand that it is not the best SSD but it feels decent! Could you by chance post results from a PowerBook with a regular 5,400 RPM drive using Xbench if you even have one with a regular drive?

  9. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
  10. Dronecatcher macrumors 68000

    Dronecatcher

    Joined:
    Jun 17, 2014
    Location:
    Lincolnshire, UK
    #10
    Did you disable Spotlight before running the first benchmark? That might have impeded the first run and then by the second benchmark had finished it's indexing.

  11. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #11

    PowerBook G4 1.67 GHz Single Layer SuperDrive with 1.25 GB of RAM and the 32 GB KingSpec SSD.


    Spotlight was not indexing during any of the tests. All programs were closed as well.

  12. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #12
    I'll be able to benchmark a drive in a few hours or tomorrow.

  13. weckart macrumors 68040

    Joined:
    Nov 7, 2004
    #13

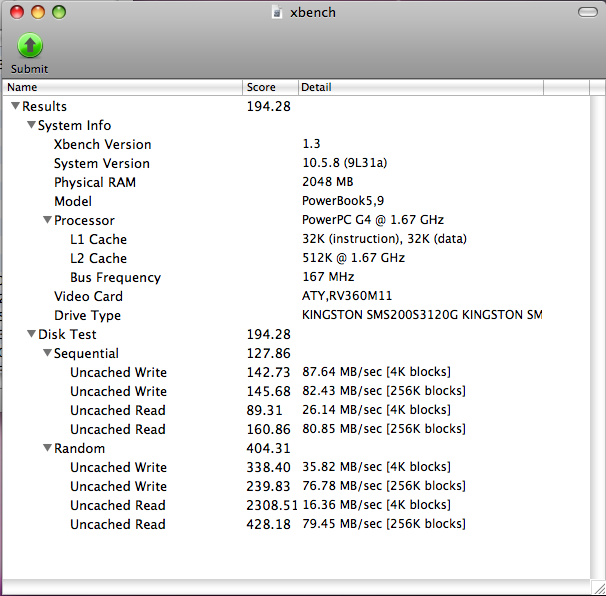

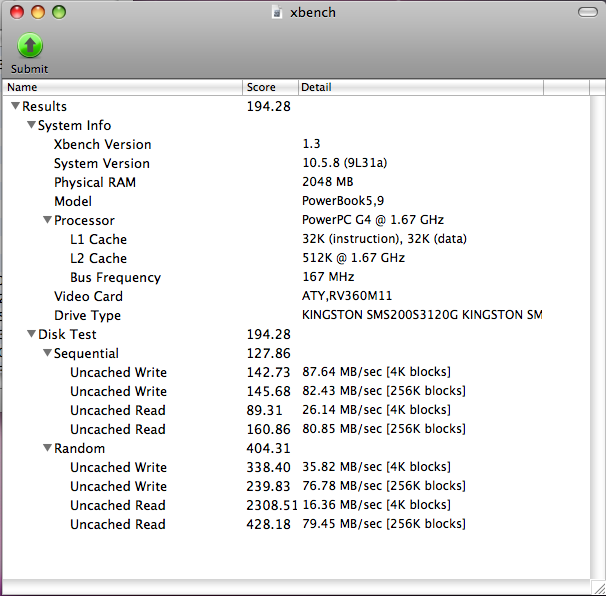

    Taken on my A1139 with a 120GB mSATA inside. I have read that PATA SSDs fare badly by comparison and many (OWC) are rumoured to be CFs inside PATA adapters rather than genuine SSDs.


    Attached Files:

  14. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #14

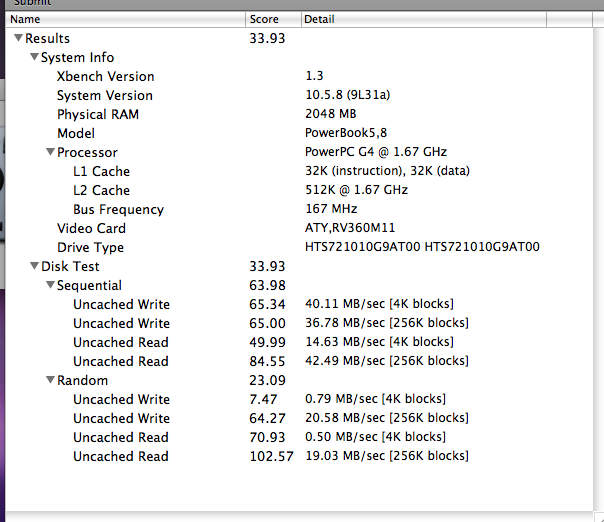

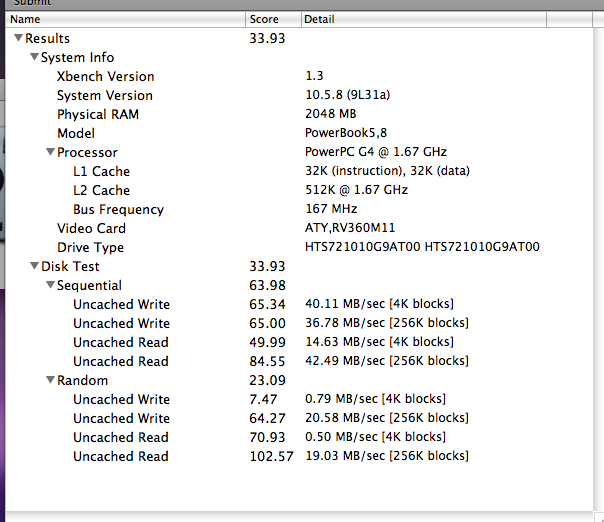

    FWIW, here's my A1138 with a 7200rpm platter drive


    Attached Files:

  15. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #15
    So in summary it is not too much faster than a good 7200 RPM drive and does not hold a candle to weckart's mSATA drive. I am content with it but the initial readings were ridiculously low.

  16. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #16

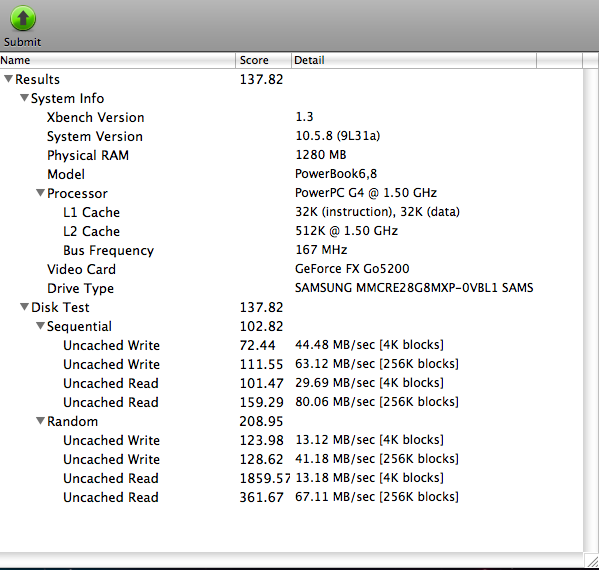

    While we're at it, here's the mSATA SSD in my 12" Powerbook


    Attached Files:

  17. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #17
    I am happy with it but I think I will stick to mSATA or 7200 RPM drives from now on.

  18. PowerMac G4 MDD macrumors 68000

    PowerMac G4 MDD

    Joined:
    Jul 13, 2014
    Location:
    At the intersection of Conch and Coral.
    #18
    Whoops---looks like you already did a test! Ignore that part in my last post where I suggested that you do one.

  19. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #19
    mSATA with an adapter is the best way to go. Not only do you get newer technologies with the SSD part, they can be much cheaper and larger in capacity.

  20. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #20
    I'm pretty seriously considering putting an mSATA drive in my DLSD. The 7200rpm drive is not bad performance wise, but is loud and a big drain on the battery.

  21. Altemose thread starter macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #21
    In the upper end machines I will go for a mSATA SSD but for low end machines these KingSpec drives are fine!
