start up failure - Trickle Power Only

Discussion in 'Mac Pro' started by trin1, Jul 12, 2013.

  1. trin1 macrumors newbie

    Joined:
    Jul 12, 2013
    #1
    MacPro a1186 won't power up. when pressing the serv_diag botton, i only get one yellow light (indicating trickle power). the final diagnosis from the service source manual (sections are included below) is less clear to me. if i only get trickle power to the logic board, and the power connections check out, is it the power supply or logic board failure? could it be something else?



    Power Supply Verification
    To power on, the computer’s logic board requires “trickle” power. If the system fails to power on, first reset the SMC as described in this chapter. If the computer still doesn’t power on, follow the procedure outlined below to determine whether the issue is related to the power supply.
    Verify trickle power
    Diagnostic LED 2 indicates the presence of trickle power required by the logic board to begin the startup process.
    LED 2 should be yellow when the DIAG_ LED button is pressed, indicating that trickle voltage is present.
    Verify Power Supply Is Providing Power
    Diagnostic LED 8 indicates that the main power is OK and within regulation.
    Plug in AC power cord, and press the power-on button on the front panel.
    LED 8 should be green when the DIAG_ LED button is pressed, indicating that the main power is OK and within regulation.
    If diagnostic LED 5 and LED 6 are both solidly illuminated at power up, improperly seated power supply cables could be one cause of this behavior. Check all power supply cable connections to ensure they are properly seated.



    Startup Failures

    Power-on LED does not illuminate when power button is pressed, fans do not spin, and there is no boot tone or video

    Verify power outlet is good. 1.
    Check that diagnostic LED 2 is on when the power cord is connected.2.
    Replace power cord. 3.
    Check that diagnostic LED 2 is on when the power cord is connected.4.
    Reset the logic board. Refer to “5. Resetting the Logic Board” in this chapter.
    Verify power supply cables are fully connected. 6.
    Mac Pro (Early 2008) Troubleshooting — Symptom Charts 165
    Verify that processors are properly seated. Check diagnostic LED 3 and/or LED 4. 7.
    Verify that processors’ mounting clamps are properly tightened. 8.
    Test whether the front panel board or power button is at fault. Remove the installed front 9. panel board and test with a known-good front panel board.
    Replace front panel board. 10.
    Replace power button. 11.
    Replace power supply. 12.
    Replace logic board.

  2. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #2
    Remove any and all cards, RAM and drives.

    Remove power cable and hold power button down for 10 seconds.

    Try with various RAM sticks to see if you can get further then add things back one at a time to see when it stops working.

    If still dead after this, it is PS or logicboard or maybe the power button.

  3. trin1 thread starter macrumors newbie

    Joined:
    Jul 12, 2013
    #3
    thanks macvidcards, but if only the yellow diagnostic led is showing, shouldn't we ba able to narrow it down further than that?

  4. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #4
    I'm just passing on 3 things I have seen block boot. Dead or dying GPU, locked up HDD, and bad RAM.

    By physically removing them and resetting SMC, you eliminate them as cause

  5. 666sheep, Jul 12, 2013
    Last edited: Jul 13, 2013

    666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #5
    You should get LED 8 light when pressing diag button. Looks more like PSU than logic board fault. If PSU doesn't provide enough voltage to power CPUs, graphics card, all you'd get would be trickle LED.
    Check voltages on molex connector in optical bay, it'll help you confirm if it's the PSU.

  6. trin1 thread starter macrumors newbie

    Joined:
    Jul 12, 2013
    #6

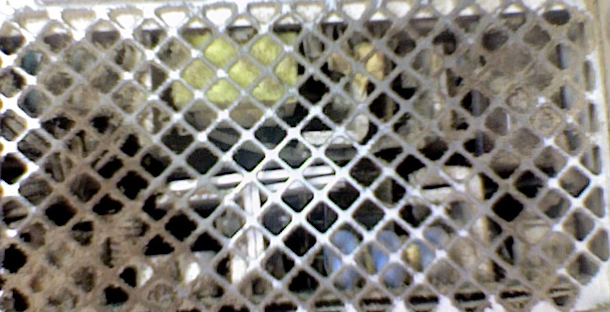

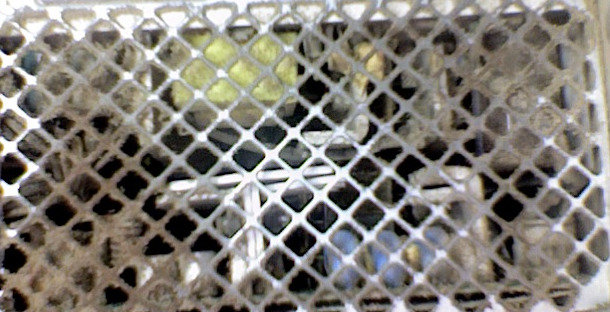

    filthy psu

    thank you, 666sheep! big help. i'm wondering if this mess might be a contributing factor? any word on how to test the molex (what voltage is correct? where to put the probes?) would help too.


    Attached Files:

  7. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
  8. exampasson macrumors newbie

    Joined:
    Jul 14, 2013
    #8
    yes.By physically removing them and resetting SMC, you eliminate them as cause [​IMG]
