Strange display resolution problem

Discussion in 'Mac Accessories' started by lukefinch, Mar 5, 2010.

  1. lukefinch macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #1
    I need some help.

    I am currently running my 2.13GHz non-unibody MacBook at a the native resolution of 1280 x 800 however i want to use it on an external display at a higher resolution.

    Here's the problem though, when i connect my macbook to a TV through the VGA port, the display becomes stretched and the resolution isn't very high. I was wondering how i could get the resolution to increase at all. FYI im trying a 26" LG LCD TV, a 32" LG LCD TV and a 22" Technika LCD TV.

    Thanks for any help!

  2. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #2

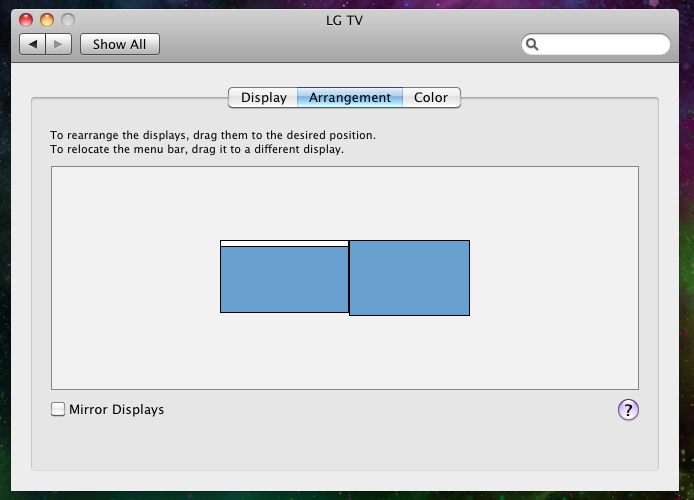

    Have you checked System Preferences > Displays > Arrangement?
    [​IMG]

    Is Mirror Display un-checked?
    [​IMG]

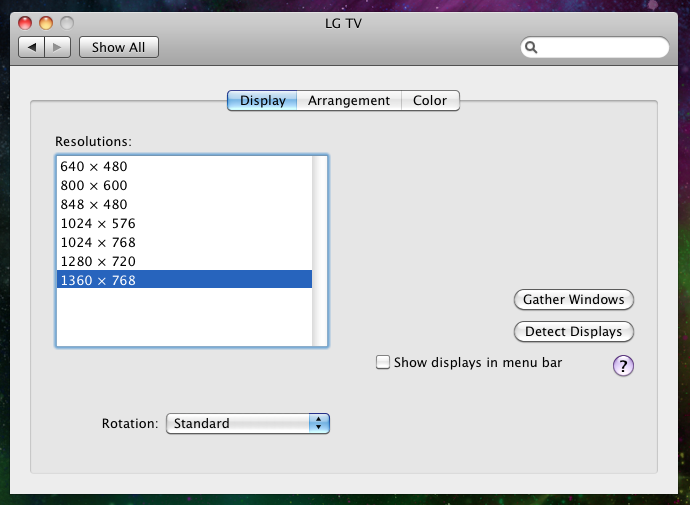

    Have you checked the resolution for the external display in System Preferences > Displays?
    There should be a resolution window on the second external display, if mirroring is un-checked.
    [​IMG]

  3. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #3
    Yeah, it is unchecked and i want the dock and menu bar on the external disply

    Yeah, i have checked that but the display resolution doesn't go anywhere near as high as yours.

    Im going to try it on my 32" Samsung LCD TV now, ill post screenshots in a minute to show you what the resolutions are etc.

  4. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #4

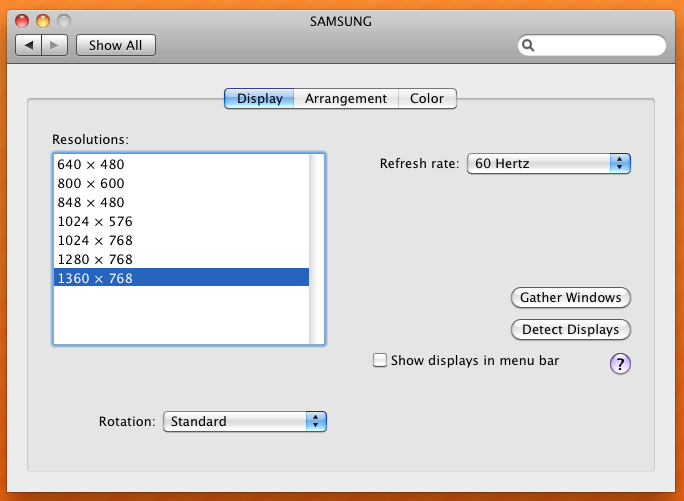

    Here is what i get when i connect it to my 32" LCD TV in my bedroom


    Attached Files:

  5. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #5

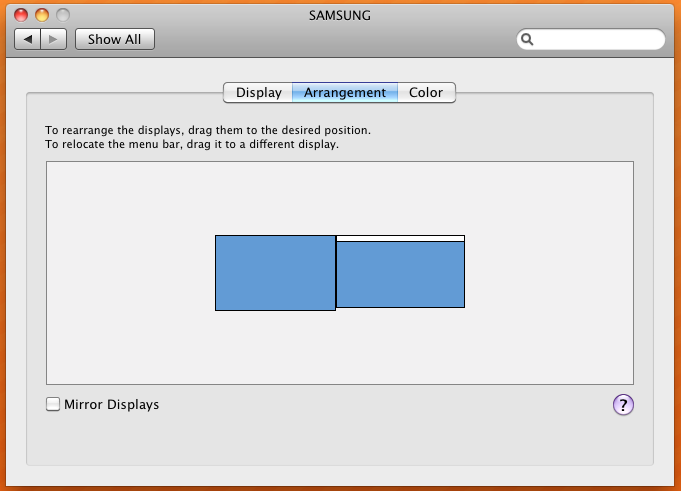

    Do that by dragging the menu bar in the Arrangement tab from one display to the other.
    [​IMG]

    The images I used are from the internet. I don't have a monitor with that kind of resolution.

    A TV will only get you the maximum native resolution of 1920 x 1080 if it is an HD TV.
    There are other resolutions, but they are smaller.

    As a TV is not made to display fine text coming from a computer, it is normal that the image is kinda blurred, especially with bigger TVs.



    [​IMG]

    [​IMG]

    That resolution sounds about right.

    There is nothing you can do about it, no higher resolution is available.

  6. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #6
    And here is what i get when i connect it to a 26" HD LCD TV


    Attached Files:

  7. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #7
    [​IMG]

    That sounds right, many HD TVs don't offer 1920 x 1080 as a resolution. And as I wrote before, nothing can be done about it.

  8. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #8
    Does that sound strange to anyone else. Isn't a HD TV HD because it has a 1920 x 1080 resolution?

    In that case, how would you recommend getting a higher resolution on a display. Would i have to buy a proper computer monitor?

  9. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #9

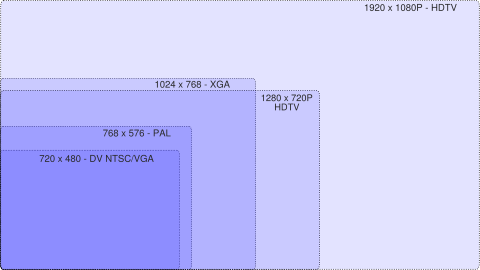

    HD is a very confusing term, thus many resolutions are available, like 1280 x 720, 1440 x 1080, 1920 x 1080 and 1360 x 768 and some other.

    To view content from a computer on an external monitor, that is not video or some kind of visualization, it is best to use a dedicated computer monitor. Many cheap ones can be had for 100€ and less, and of course more.

  10. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #10
  11. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #11
    The link you gave does not really work, I get:

    Our apologies...

    The page you requested cannot be displayed.

    Suggested Action(s)
    If you typed in the address, make sure the spelling is correct
    If you clicked on a link, the page or file you are looking for has been moved, retired or is no longer available. Please use the navigation on the left-hand side of this page to browse by category.
    If you know the exact product you are looking for, you can also use the search feature located on the left-hand side of this page.


    You have to make sure the monitor supports the resolution you want, many 19" to 22/24" have a native resolution of 1920 x 1080/1200, so that should work.

    The MB you have does support that external resolution.

  12. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #12
  13. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #13
    If your TV only supports 720p, then you don't get 1920x1080. 1920x1080 is 1080p resolution. What you're seeing in your display settings are those of a 720p television.

  14. lukefinch thread starter macrumors 6502

    lukefinch

    Joined:
    May 6, 2009
    Location:
    South Yorkshire, England
    #14
    Yeah, i can understand that for my 32" Samsung TV but the 26" LG is definatley HD

  15. spinnerlys Guest

    spinnerlys

    Joined:
    Sep 7, 2008
    Location:
    forlod bygningen
    #15
  16. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #16
    720p is considered HD.
