Strange dots on the MBP 2010 17" screen

Discussion in 'MacBook Pro' started by hajime, Sep 29, 2017.

  1. hajime macrumors 603

    Joined:
    Jul 23, 2007
    #1

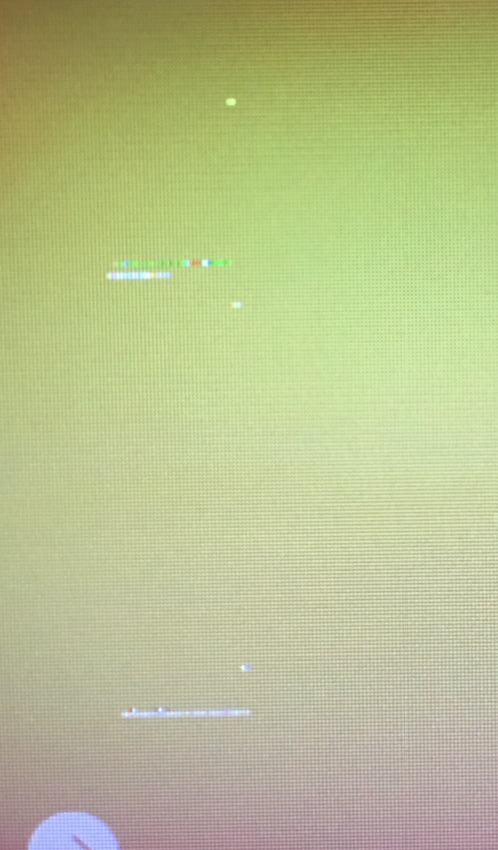

    Hello, when I woke up the MBP this morning, I noticed some dots near the middle of the screen. After I logged in, they disappeared.

    Such appearances of strange dots have happened a few times over the year but not too often. The location varies. About 1.5 month ago, they showed up on the dock. What are they? Is it a software glitch?


  2. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
  3. hajime thread starter macrumors 603

    Joined:
    Jul 23, 2007
    #3
    Not I am aware off. For today's case, I put it to sleep mode and woke it up few hours later. Then, those dots showed up.

    As I recall, they happen randomly at any time.

  4. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #4
    The Macbook has the nVidia 330gt gpu? Is it possibly due to a failed c9560 capacitor?

  5. hajime thread starter macrumors 603

    Joined:
    Jul 23, 2007
    #5
    Yes that GPU. Not sure if it is due to a failed capacitor. If so, is this bad? What will happen next?

  6. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #6
    I'm not sure if it is a failed capacitor.

    To test for a capacitor problem, run the Cinebench r15 OpenGL test. If the Macbook passes, it's probably not due to a capacitor issue.

  7. hajime thread starter macrumors 603

    Joined:
    Jul 23, 2007
    #7
  8. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #8
    It should not make it worse. I ran it a few times on my mid-2010 15". It's the test that confirmed I had a failed capacitor.

    The capacitor is a known issueand was also the reason apple had an extended warranty program to deal with the problem. Unfortunately, the warranty program is over.

  9. hajime thread starter macrumors 603

    Joined:
    Jul 23, 2007
    #9
    I ran the test: 15.53 fps (Ranked 7) for OpenGL and 192cb (Ranked 8) for CPU test. Did not see any fail or error message.
    I am using OS X 10.12.6.

  10. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #10
    That's great so it doesn't appear to be related to the nVidia gpu. Unfortunately, troubleshooting the issue becomes more difficult because it could be a ram or hard drive too.

  11. hajime thread starter macrumors 603

    Joined:
    Jul 23, 2007
    #11
    How likely this is a sign that the computer will fail sooner or later within the next few months?

  12. Audit13 macrumors 601

    Audit13

    Joined:
    Apr 19, 2017
    Location:
    Toronto, Ontario, Canada
    #12
    Not really sure that anything is our will fail.

    Is it possible to run the Macbook with only 1 stick of ram or use different ram sticks?
