Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.

Discussion in 'Mac Pro' started by Ph.D., Apr 27, 2015.

  1. Ph.D., Apr 27, 2015
    Last edited: Apr 27, 2015

    Ph.D. macrumors 6502

    Joined:
    Jul 8, 2014
    #1
    Hello all,

    I have an Apricorn Velocity Duo x2 loaded with two 1 GB Samsung 850 Evos in a RAID 0 configuration, mounted in Slot 1 in a 3,1 (one of the two faster slots). They were formatted while in the Duo via Disk Utility.

    The speeds seem a little disappointing. Black magic reports about 660 read and write scores. I would have thought it would be around 800 or more.

    But worse, the subjective responsiveness is unremarkable or even quite poor. Loading a program seems reasonably fast, but when I open a folder containing a very large number of files (photos, etc.), the delay is enormous. It's very significantly slower than 2 older, slower SSD's that I have mounted in normal drive bays. It's so slow that I'd half expect even a hard disk to be faster.

    Something feels wrong, no? Any ideas?

    Thanks.

  2. dmylrea macrumors 68020

    dmylrea

    Joined:
    Sep 27, 2005
    #2
    Do you mean Slot 1, the first slot (lowest towards the bottom)?

    Did you try a different slot?

  3. Ph.D., Apr 27, 2015
    Last edited: Apr 27, 2015

    Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #3
    Sorry, yes, Slot 1, the lowest and closest to the memory slots (edited).

    I swapped it to Slot 2, with no change in performance per Black Magic disk speed test.

    Slot 3 or 4, by the way, results in drastically reduced performance, down to the level of a hard disk (150). This was somewhat surprising, since I believe the Duo is a 2-lane card, and those slots are 4 lanes.

  4. m4v3r1ck, Apr 27, 2015
    Last edited: Apr 27, 2015

    m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #4
    Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.



    Hi Ph.D,

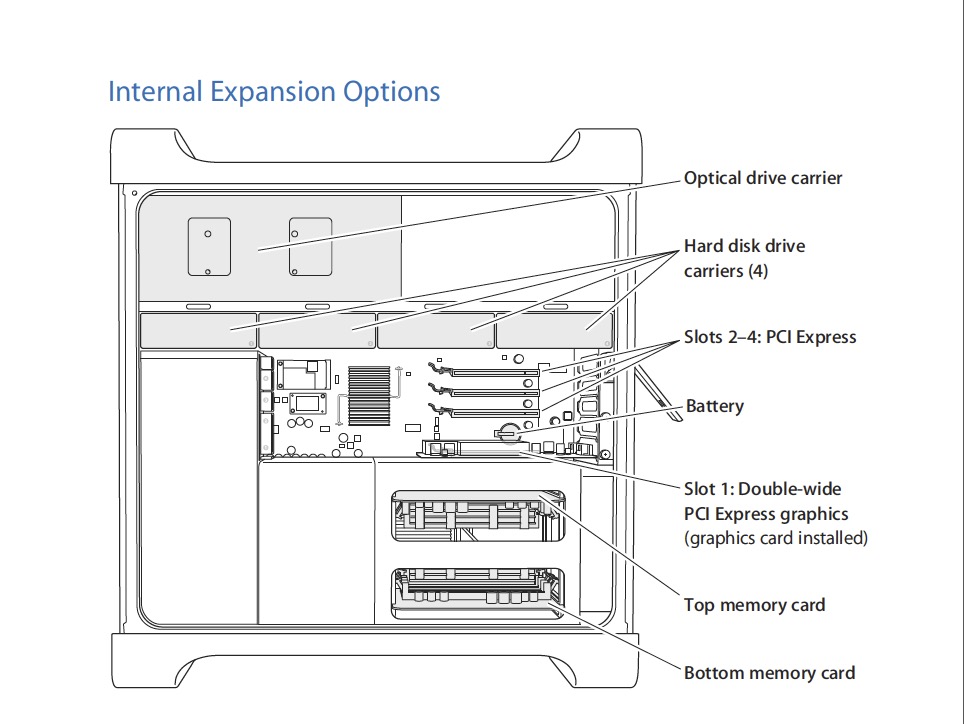

    No, the slots of the PCIe's are numbered the other way round. So slot #1 is the one closest to the memory trays.



    [​IMG]



    Perhaps you could try and BM the SSD's in the SATA2 HDD bays first, to check their r/w readings are similar when inserted. The readings you should get on a RAID0 on the DUO in slot#1 or #2 is indeed around 750-800.



    1. How long ago did you install the DUO and SSD's and what was your install/restore scheme? Perhaps there's a proces e.g. like Spotlight Indexing havely using resources.


    2. What are the other components occupying your PCIe slots? Please share your config, remember slot#1 is the one closest to the memory trays.



    Cheers

  5. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #5
    Thanks for the response.

    Sorry, as you say, it's closest to the memory slots. (Perhaps I was thinking of my old PPC tower when I wrote that.)

    Anyway, I've indeed tried both slots 1 and 2, with the same result, while a try in Slots 3 and 4 were much slower. I still do wonder why the difference is so much given that the Duo is only a 2-lane device.

    The Duo and the 850's are only a few weeks old. The speed was the same when first installed. I've checked it many times under various conditions and it's always the same.

    The only other device in the PCI slots is an MSI R9 280X, unflashed, but with the R17 resistor removed for 5 Gb/s operation. Perhaps I'll put my Apple 5770 back in it and try it then.

    Thanks again.

  6. m4v3r1ck, Apr 27, 2015
    Last edited: Apr 27, 2015

    m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #6
    Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.

    Thanks for your feedback, perhaps before changing GPU, try the AJA Systems disk speed tester for your current setup?

    Cheers

  7. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #7
    Aja reports approximately the same results (slightly slower, actually, depending on the file size).

    Thanks.

  8. crjackson2134, Apr 27, 2015
    Last edited: Apr 27, 2015

    crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #8
    Not sure if Trim is able to work on a Raid system, but it sounds like you need to test Trim your drives next .

  9. m4v3r1ck, Apr 27, 2015
    Last edited: Apr 27, 2015

    m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #9
    Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.


    Never benched without TRIM, so I'm very curious myself if that will make the difference.

    EDIT: I have 840 EVO's with the latest firmware and performance update tool.

    Cheers

  10. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #10
    It's something to try...

  11. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #11
    Update: No change when I swapped the 280x for a genuine Apple 5770.

    (Trim is turned on under Mavericks using Trim Enabler. But anyway, the disks are only half full since new and trim would not do much if anything under this circumstance.)

  12. m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #12

    It sure is! ;-)

  13. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #13
    Another update:

    Turning Trim Enabler off also made no difference.

    Maverick: How did you prepare your disks for the Duo?

  14. m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #14

    1. Installed the 2 SSD's on the DUO
    2. Placed the DUO in slot#2 (then MP 3.1)
    3. Used Disk Utility (shown as externals) to format to RAID0
    4. Clean installed OSX 10.9.5
    5. Used Migration Assistant to migrate users/apps/settings etc.

    Worked like a clock for me!

    Cheers

  15. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #15
    I would test each SSD, installed one at a time in a standard configuration. For example only one SSD, freshly formatted/Trimmed and installed physically on the DUO at a time. Perhaps one drive isn't working properly and dragging the other one down the rabbit hole.

    ----------

    What is your stripe setting?

  16. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #16
    Hi Maverick,

    OK, I did the same except I didn't do a clean install, I cloned from my pre-existing OSX 10.9.5 Raid 0 disk array (in normal drive bays). This sort of thing has always worked well for me in the past, and I'm not sure how I'd consider that a likely culprit (it would be a pain to redo it at this point, too).

    Can you confirm that in your 3,1 you were getting ~800 on BM?

    Thanks.

  17. m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #17


    I would suggest testing each SSD in the SATA2 HDD/SSD bays, therefore ruling out the DUO and test only the SSD's!

    Have to check that for you, using iPhone atm and sipping a beer... ;-)

    ----------


    I got around ~700-710 on MP 3.1 OSX 10.9.5, will post screens later as I'm having trouble posting DropBox pics using TapaTalk! ;-)

  18. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #18
    Maverick,

    If so, perhaps ~670 is not unreasonable after all. That would only be a ~5-7% difference, which would be slightly disappointing but not outrageous. The 850's do use a radically-different technology than the 840's (a 3-D version of an older node). Still...

    Thanks.

  19. hfg macrumors 68040

    hfg

    Joined:
    Dec 1, 2006
    Location:
    Cedar Rapids, IA. USA
    #19
    When I first received my Velocity DUO x2, I was intending to boot Windows and OS X from it. However, before I did I ran some RAID-0 tests against my Tempo Pro which I was currently using as a RAID-0 boot device.

    The issue I was concerned about was that the Velocity DUO x2 was only a 2 lane card, whereas the Tempo Pro was a 4 lane card.

    I used the exact same pair of Crucial m4 512GB SSDs, in the same slot, in the same 5,1 Mac Pro to run the tests. As you can see, there was a significant read speed difference between the cards when running RAID-0. (Note: it is normal for the M4 generation SSDs to have slower Write speeds than Read speeds).

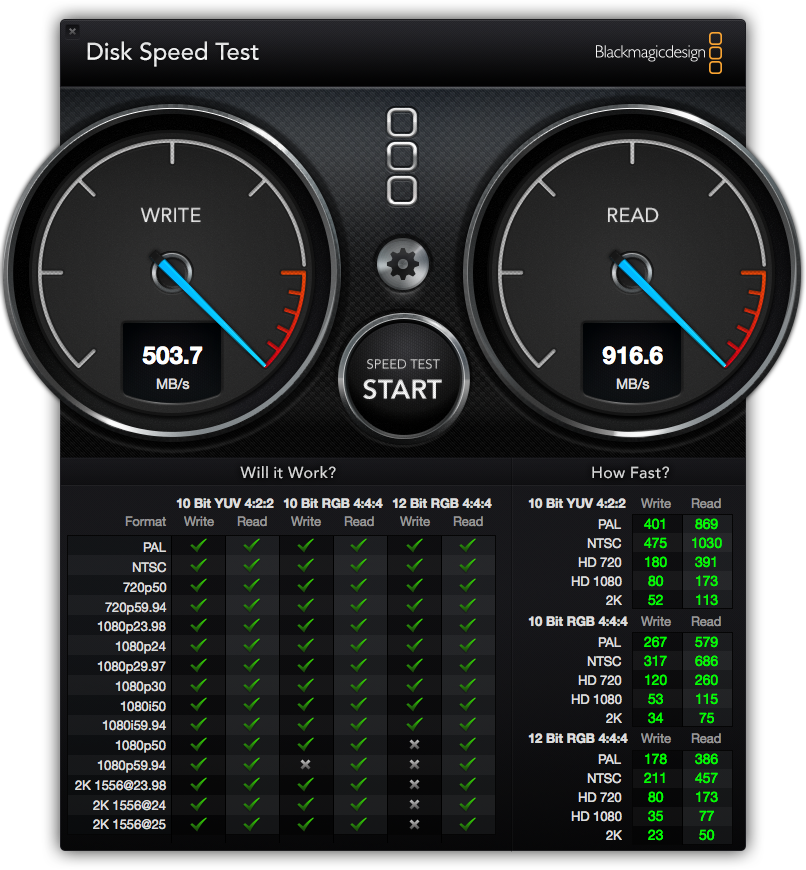

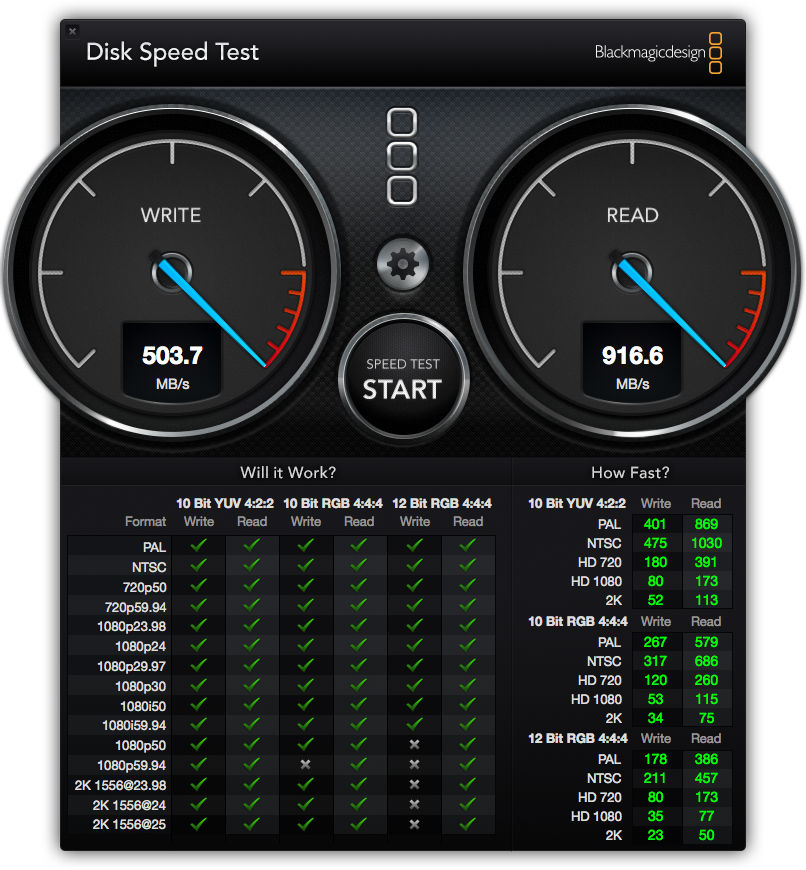

    Here are the BlackMagic test results:

    Velocity DUO x2 --------- Tempo Pro (both in RAID-0)

    .


    Attached Files:

  20. m4v3r1ck, Apr 27, 2015
    Last edited: Apr 27, 2015

    m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #20
    Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.

    @Ph,D

    Do you perhaps have a bootable backup of your OSX, so you can bench the DUO RAID0 from it?

    Cheers

    ----------


    Your write speeds on the DUO seems not right in resemblance to my benches ~ 700. Your read speeds do differ very much on the Tempo!

    Cheers

  21. hfg macrumors 68040

    hfg

    Joined:
    Dec 1, 2006
    Location:
    Cedar Rapids, IA. USA
    #21
    The Crucial M4 series does have slow write speeds which I see on every benchmark I run, so I am used to it. They are very reliable however, which is why I continue to use them. :cool:

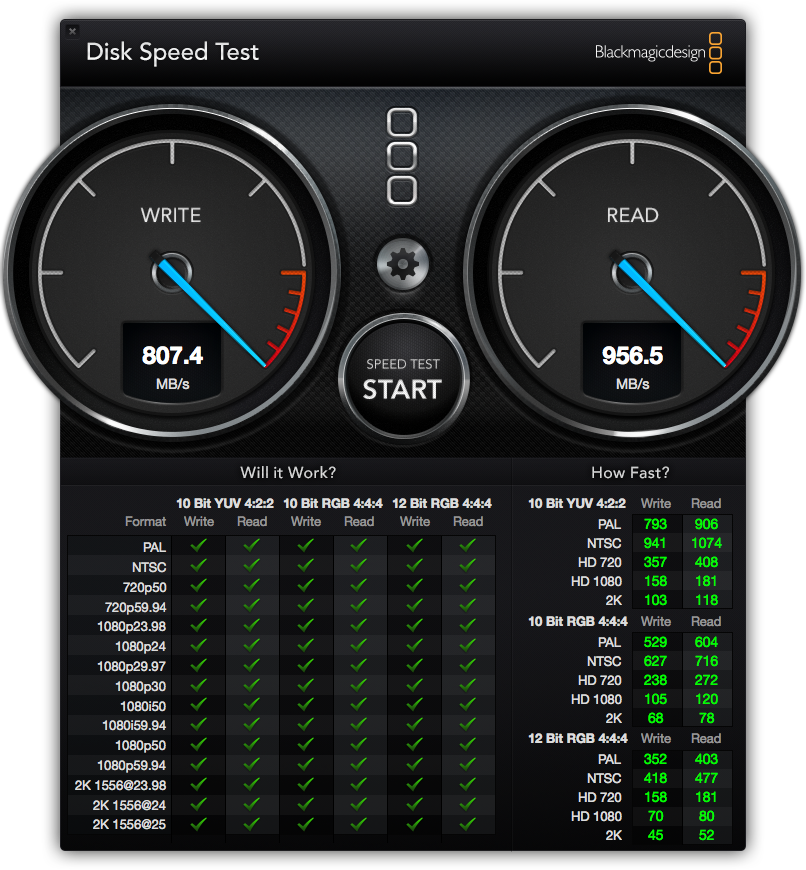

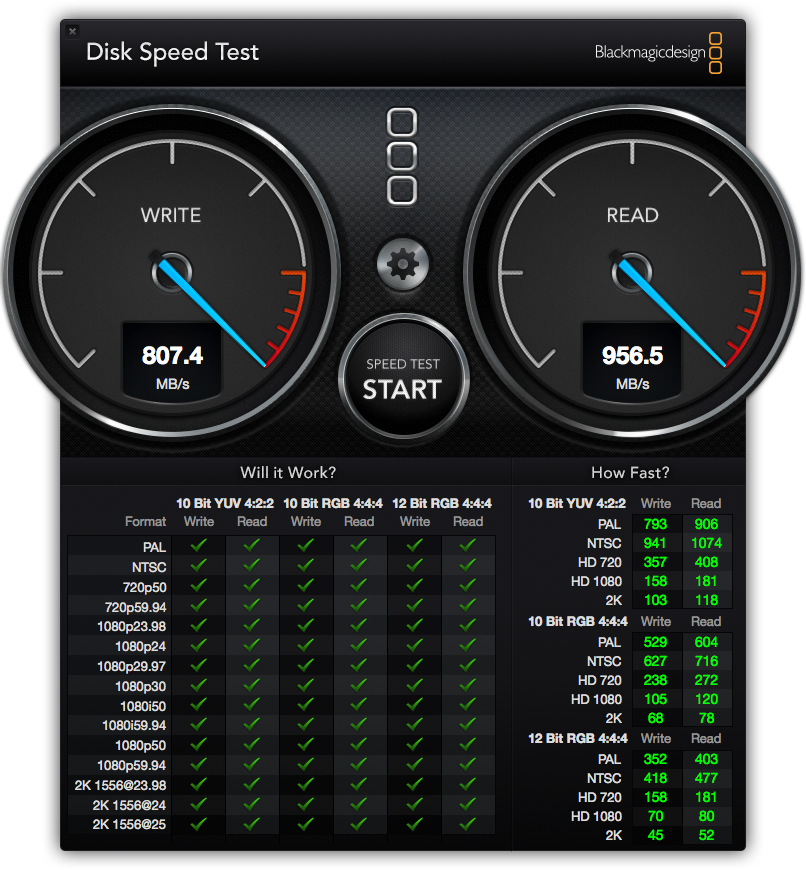

    I also have used Samsung 840 Pro SSDs which are much more balanced with write/read speeds. Here is a test with a pair of 840 Pro 256GB SSDs on the Tempo Pro card ... much better writes! :)

    .


    Attached Files:

  22. phairphan macrumors 6502a

    phairphan

    Joined:
    Sep 21, 2005
    Location:
    Reject Beach
    #22
    Slots 3 and 4 are four-lane slots, but they're four-lane PCIe 1.0 slots. Even thought the Duo is a two-lane PCIe device, when you plug it into Slot 3 or 4, it uses two lanes, but two PCIe 1.0 lanes. In effect, the card is running at half-bandwidth compared to it being in Slot 1 or 2.

    As for the speed, I recall seeing speeds ~700 for an 840 Evo RAID 0 set in the primary Duo thread around here somewhere. I believe m4v3r1ck will be able to comment, as s/he started and contributed greatly to that thread.


  23. Ph.D. thread starter macrumors 6502

    Joined:
    Jul 8, 2014
    #23
    Yes, booting from a separate disk did not change the Duo's speed.

    Thanks.



    ----------

    Yes, I suspected as much about slots 3 and 4 (1.0 vs. 2), but lacked confirmation.

    I'm beginning to think that my speeds are all that should be expected from this combination.

    Thanks.



  24. m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #24
    Reliablity is the core! I agree 100%




    Great numbers, that's what we want to achive upgrading our cMP! Thanks for sharing your info's!

    Cheers

  25. m4v3r1ck, Apr 27, 2015
    Last edited: Apr 27, 2015

    m4v3r1ck macrumors 68020

    m4v3r1ck

    Joined:
    Nov 2, 2011
    Location:
    The Netherlands
    #25
    Strangely slow Velocity Duo X2 plus RAID 0 Samsung 850 Evos.

    I used slot #2 in my MP 3.1, but still got better r/w speeds as OP.




    I'm a he and thanks for your compliment about the DUO thread, being just an end-user and not a tecnician. It was great fun but also a giant leap to throw around PCIe cards in my MP 3.1 and testing different setups. ;-)

    Indeed I tested the DUO with ~ 700 r/w speeds then. In my cMP 5,1 the speeds don't differ that much, but still happy with this rock-solid solution.

    Cheers
