stubborn Home Sharing - iOS problem...

Discussion in 'Apple TV and Home Theater' started by whyrichard, Dec 26, 2013.

  1. whyrichard macrumors 68000

    Aug 15, 2002

    My Apple TV2 is no longer able to home share with my Mac Pro '09. I can't actually tap into my Mac Pro's itunes library from ANY ios device...

    this started in the past few months and the the main thing that has changed is Mavericks and ios 7.

    How do i go about diagnosing this and fixing it!?!? There are many others having problems:

    but i have no luck getting any ios device, specifically my Apple tv2, to work with home sharing at all with my Mac Pro!

    My network is a new airport express. Everything is on the same network. Everything is wireless. Everything is up to date with software.

    I CAN access my mac pro through home sharing from my macbook air with no problem...

    and I CAN access my macbook air's itunes library from other ios devices...

    ... any suggestions?


  2. waw74 macrumors 68040

    May 27, 2008
    Tried turning home sharing off and on on the Mac Pro?

    Quit iTunes, and relaunch while holding down the option key. Create a new library. Try setting that up, and importing a couple songs to see it if works, maybe your library got corrupted.
    (Your old library will remain unchanged, you may need to do the option trick again to reflect it when you restart)
  3. whyrichard thread starter macrumors 68000

    Aug 15, 2002
    thanks, I tried that but it didn't work.
    And previously i did try to log out of my itunes account, turn off home sharing, restart, etc...

    anything else i can try?
    i have a feeling it has something to do with my mac pro's wifi... or sharing setup, which i had done my best to reset but it still does not work...

  4. priitv8 macrumors 68040

    Jan 13, 2011
    Home Sharing actually has nothing to do with sharing on your computer (unless you use it to create a Wi-Fi hotspot or ad-hoc network).
    There are 2 vital things for HS to work:
    - Bonjour service broadcast
    - HS authentication against iTunes Store.
    If you can't even see your iTunes library from other iOS devices, it's the Bonjour at fault. Or networking in general.
    PS Have you checked this list?

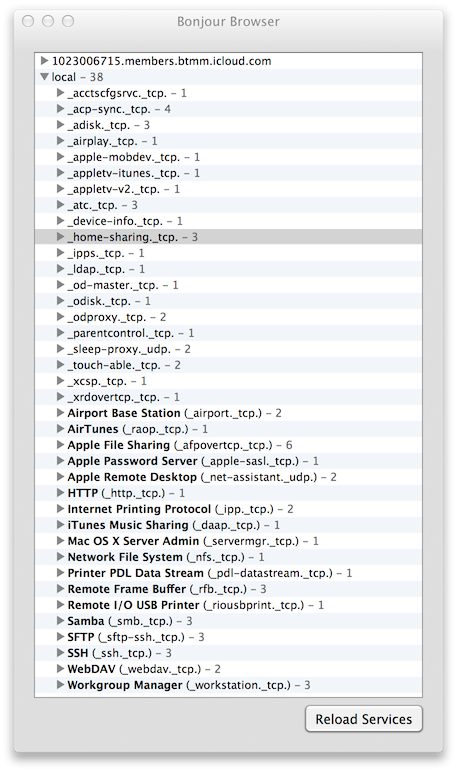

    PPS You can visualize Bonjour advertisements with a tool like Bonjour Browser. There are both Mac and iOS versions available:
  5. whyrichard thread starter macrumors 68000

    Aug 15, 2002

    I tried everything in that list from apple. no change.

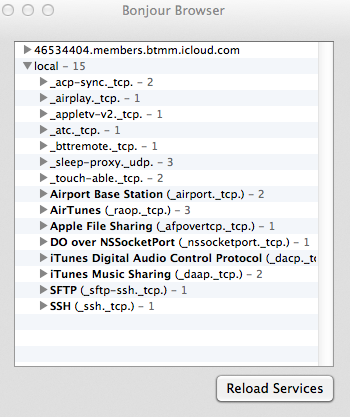

    i downloaded bonjour browser, and it comes up with this list... how does it look?

    Attached Files:

  6. priitv8 macrumors 68040

    Jan 13, 2011
    Looks like the very _home-sharing._tcp. is missing.
    Check your iTunes account status and HS settings.

    Attached Files:

  7. whyrichard thread starter macrumors 68000

    Aug 15, 2002
    i logged out of my itunes account and back in, and turned off home sharing, quit, etc, but this is what i get!

    how do i get this back?!?!

    YOU ARE FANTASTIC! I TRUELY APPRECIEATE YOUR HELP! This has been plaguing me for soooo long! it would be so great to finally fix it!

  8. priitv8 macrumors 68040

    Jan 13, 2011
    What IP addresses do you see, when you expand the following nodes?

    PS Does your iTunes library have a name assigned?
    PPS If you are confident on command line, what do you see when you issue the following commands:
    To see what instances of _home-sharing are registered / deregistered and when, run this command and observe on command line what happens when you run/quit iTunes and sign on/off to Home Sharing (in File menu):
    $dns-sd -B _home-sharing._tcp local.
    Browsing for _home-sharing._tcp.local.
    DATE: ---Sun 29 Dec 2013---
    19:54:45.607  ...STARTING...
    Timestamp     A/R    Flags  if Domain               Service Type         Instance Name
    19:59:10.243  Add        2   4 local.               _home-sharing._tcp.  [B]Priit’s Library[/B]
    20:03:29.922  Rmv        0   4 local.               _home-sharing._tcp.  Priit’s Library
    Now take the service instance name from the rightmost column and issue this command (if name has spaces, surround with quotes as in my example):
    $ dns-sd -L "Priit’s Library" _home-sharing._tcp local.
    Lookup Priit’s Library._home-sharing._tcp.local.
    DATE: ---Sun 29 Dec 2013---
    20:05:24.809  ...STARTING...
    20:05:24.810  Priit’s\032Library._home-sharing._tcp.local. can be reached at [B]Priits-MacBook-Pro.local.[/B]:3689 (interface 4)
     txtvers=1 dmv=131082 hQ=138 MID=0x97A9025304AE61A0 Version=196620 iTSh\ Version=196618 PrVs=65538 Machine\ Name=Priit’s\ Library OSsi=0x1F7 hG=00000000-1149-92d4-5602-3e5ed10949cc Database\ ID=F5D2283586F3C910 Machine\ ID=F0BA8E1A1306 hC=aeff9330-7cb5-45c1-b9c4-7d19a7d1c3ab
    Now take your computer's name from previous output and issue:
    $ dns-sd -G v4v6 Priits-MacBook-Pro.local.
    DATE: ---Sun 29 Dec 2013---
    20:11:55.889  ...STARTING...
    Timestamp     A/R Flags if Hostname                               Address                                      TTL
    20:11:55.890  Add     3  4 Priits-MacBook-Pro.local.              FE80:0000:0000:0000:2ACF:E9FF:FE13:EDF7%en0  120
    20:11:55.890  Add     2  4 Priits-MacBook-Pro.local.                                      120
    What results do you get?
  9. whyrichard thread starter macrumors 68000

    Aug 15, 2002

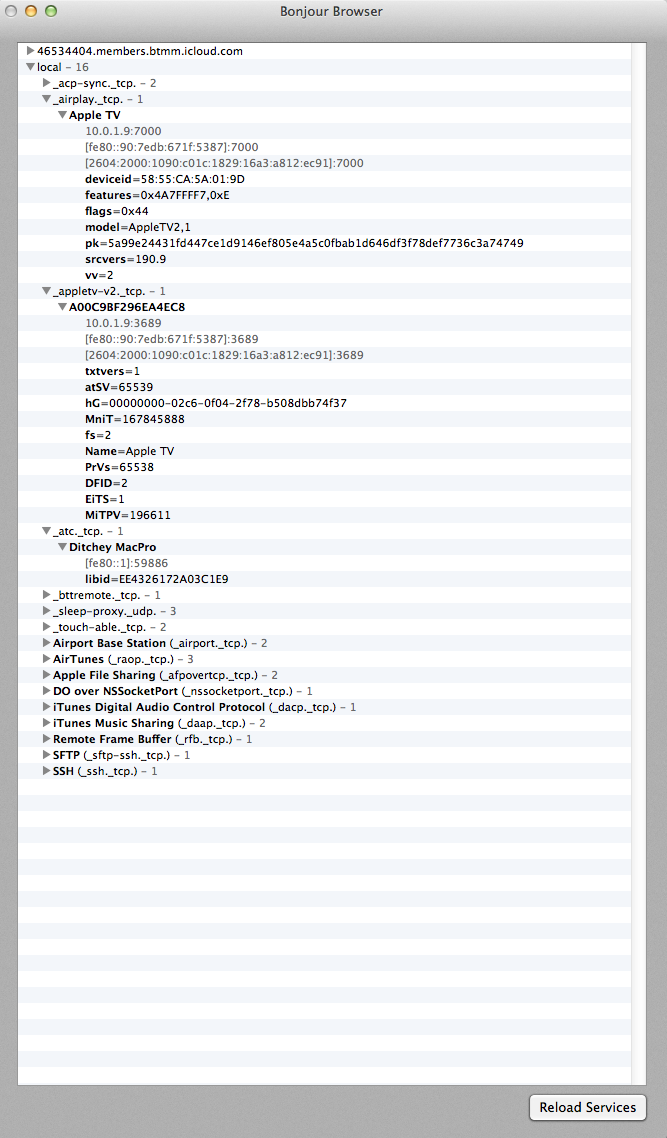

    These are the ip addresses from Bonjour Browser...

    I got to step 2 with the terminal...

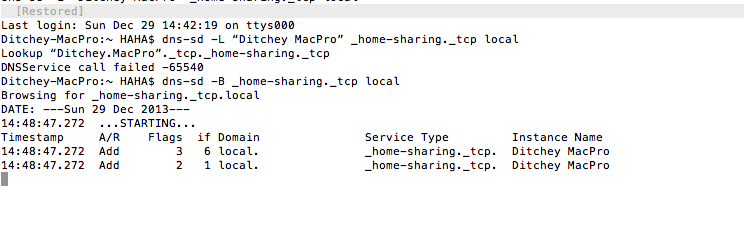

    The first command i put in was: dns-sd -B _home-sharing._tcp local
    and i get the attached results:

    but then the next command yields no results: dns-sd -L “Ditchey MacPro” _home-sharing._tcp local

    what am i doing wrong?

    thanks a million times again..


    Attached Files:

  10. priitv8, Dec 29, 2013
    Last edited: Dec 29, 2013

    priitv8 macrumors 68040

    Jan 13, 2011

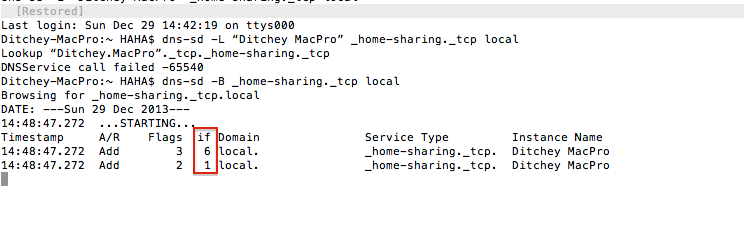

    I immediately see 2 problems (see pics):
    1) Your Mac Pro has only a IPv6 address and this is a loopback address ( in old IPv4 days)
    2) Your _home-sharing is registered on 2 different interfaces (#1 and #6). Do you have 2 network adapters simultaneously active?
    PS you can see, which interfaces the #1 and #6 are if you run the command in Terminal and count the interfaces (name starts in 1st column and ends with a colon):
    $ ifconfig -a
    lo0: flags=8049<UP,LOOPBACK,RUNNING,MULTICAST> mtu 16384
    	inet6 ::1 prefixlen 128
    	inet netmask 0xff000000
    	inet6 fe80::1%lo0 prefixlen 64 scopeid 0x1
    	nd6 options=1<PERFORMNUD>
    gif0: flags=8010<POINTOPOINT,MULTICAST> mtu 1280
    stf0: flags=0<> mtu 1280
    	ether 28:cf:e9:13:ed:f7
    	[B]inet6 fe80::2acf:e9ff:fe13:edf7%en0 prefixlen 64 scopeid 0x4
    	inet netmask 0xffffff00 broadcast[/B]
    	nd6 options=1<PERFORMNUD>
    	media: autoselect
    	status: active
    Now copy the first and 6th interface descriptions to here.
    For example, my Interface 4 that dns-sd reported, happens to be my active AirPort wireless adapter, the en0. I've highlighted the normal-looking IPv4 and IPv6 addresses.

    So basically, your Mac Pro is not on your local network with a valid, unique IP address.
    You should review your network adapter settings, perhaps using the assistant.

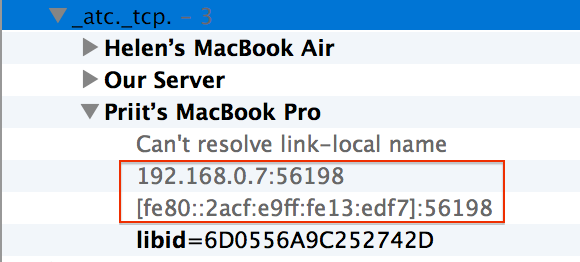

    For comparison, I've included a screenshot from my Shared iTunes Library service (_atc._tcp.).
    The most blatant case would be simply a failure of your network adapter card or wiring!

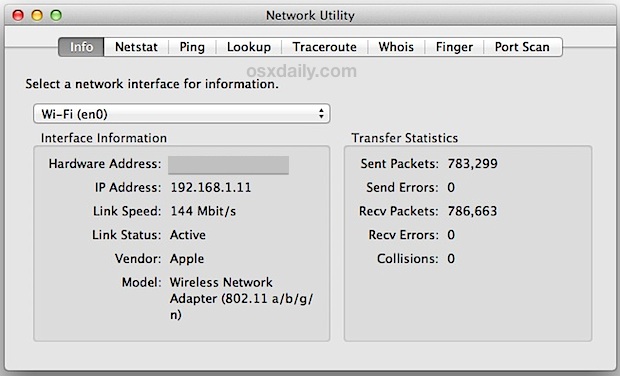

    I'd have a look at the Info tab in Network Utility first and see through the statii of all network interfaces:

    Attached Files:

  11. whyrichard thread starter macrumors 68000

    Aug 15, 2002
    priitv8... YOU ROCK.

    i was not able to figure out your instructions, but based on your keen observations i network preferences, and deleted everything but my wifi in the leftmost column... as well as renewing my dhcp license. set my ipv6 to automatic (i had turned it off using the terminal trying to fix this in the past)...


    thank you.

    my ipad, however, still cannot. but it can at least SEE the home share. when selecting the home share it just spins and spins.

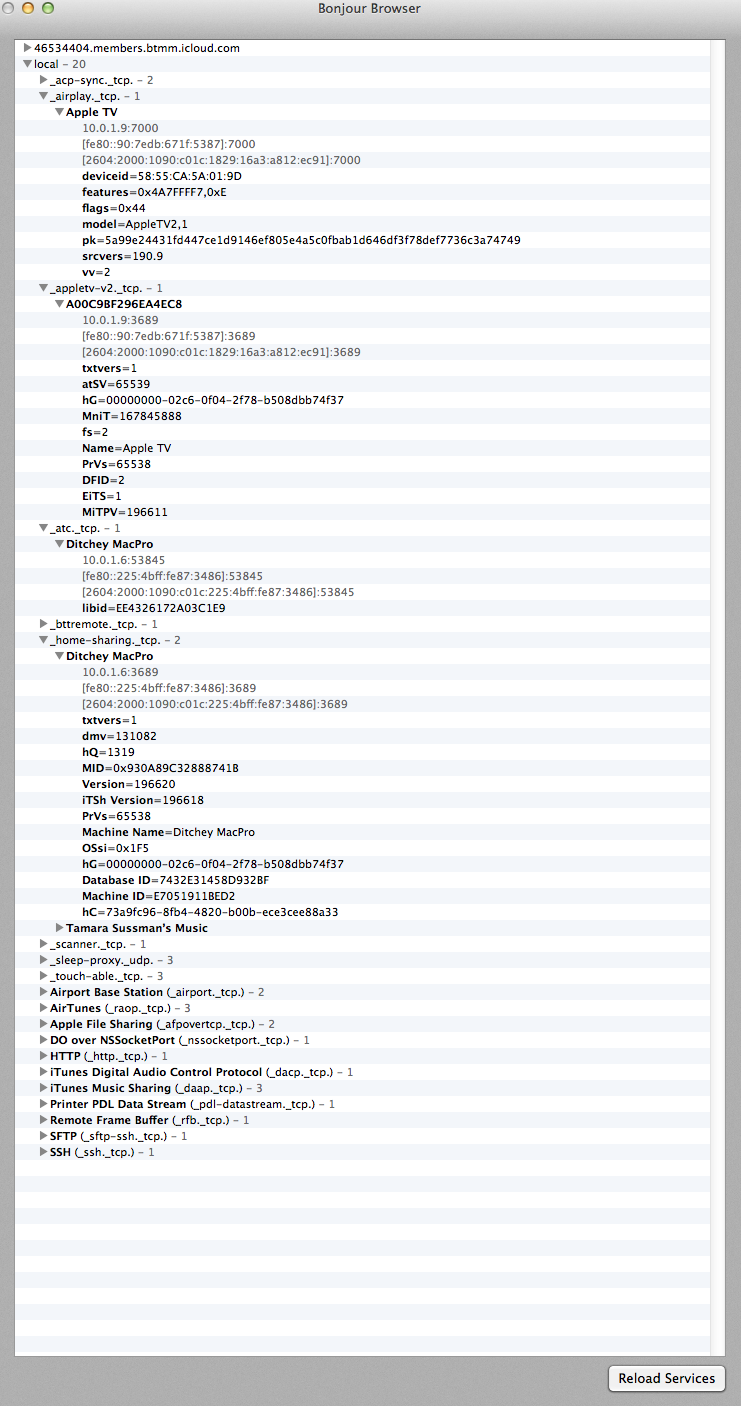

    attached is my current bonjour browser reading... do i still have the same problem? or is my ipad just a bit weak in the home sharing? (it is a first get ipad mini)

    thank you so much for your help so far, it is amazing to be able to use my apple tv again.


    Attached Files:

  12. priitv8 macrumors 68040

    Jan 13, 2011
    Glad to hear you can enjoy your media library again!
    Try to get a Bonjour Browser view directly from the iPad, using the iOS version of the program!
    PS how large is your library? I also see it spin prolonged times occasionally as it tries to buffer the library metadata (incl artwork) on the iOS device.
  13. whyrichard thread starter macrumors 68000

    Aug 15, 2002
    Below is the text from the ios version from my iphone (wife in ipad)... iPhone has same results...

    itunes library is large with music, but only have 30 or so videos...

    This is what I see when I tap on home sharing/Mac Pro:

    Ditchey MacPro._home-sharing._tcp.local.
    iTunes Home Sharing


    Database ID = 7432E31458D932BF
    dmv = 131082
    hC = 73a9fc96-8fb4-4820-b00b-ece3cee88a33
    hG = 00000000-02c6-0f04-2f78-b508dbb74f37
    hQ = 1322
    iTSh Version = 196618
    Machine ID = E7051911BED2
    Machine Name = Ditchey MacPro
    MID = 0x930A89C32888741B
    OSsi = 0x1F5
    PrVs = 65538
    txtvers = 1
    Version = 196620
  14. priitv8 macrumors 68040

    Jan 13, 2011
    That one looks normal.
    Does your Pro hold the library on internal drive(s) or needs it to connect to external or network drives for this?
    Are you sure you just hadn't temper to wait until the library gets cached by iOS?
    PS imho the iOS 7 version even shows a progress indicator while doing this.
