Tab Bar Greyed Out (Custom Images)

Discussion in 'iOS Programming' started by loon3y, Jun 2, 2015.

  1. loon3y macrumors 65816

    loon3y

    Joined:
    Oct 21, 2011
    #1
    Hey,

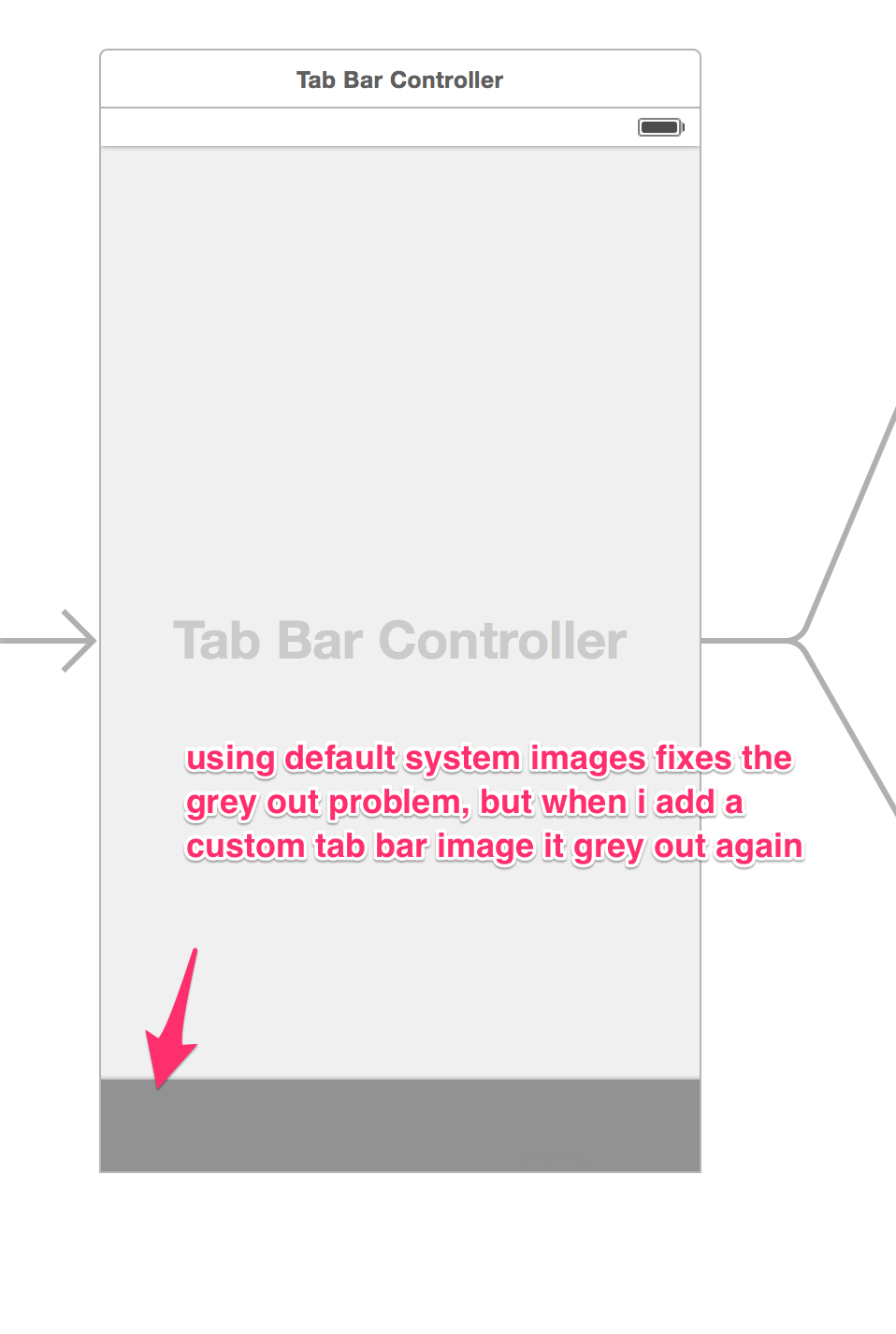

    I ran into this issue with the Tab Bar being greyed out in Xcode 6. I found a solution online but it seems like it only works using the default system images.


    Anyone know a solution to this problem?

    [​IMG]

  2. KoolStar macrumors demi-god

    KoolStar

    Joined:
    Oct 16, 2006
    Location:
    Kentucky
  3. loon3y thread starter macrumors 65816

    loon3y

    Joined:
    Oct 21, 2011
    #3
    6.3.2 (6D2105)

  4. KoolStar macrumors demi-god

    KoolStar

    Joined:
    Oct 16, 2006
    Location:
    Kentucky
    #4

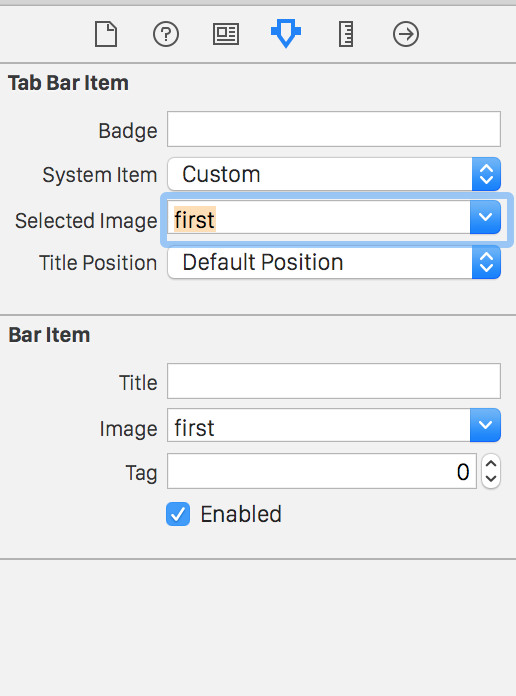

    It looks like you may be setting the Tab Bar Item Image which is the selected state and you need to set the Bar Image instead. In this case in IB its the second Bar Item in the inspector. I got the same blank square when I only specified the selected image.

    Screen Shot 2015-06-04 at 3.17.41 PM.png
