Teardown of 38mm Apple Watch Sport Reveals 205 mAh Battery, Taptic Engine

MacRumors

macrumors bot
Original poster
Apr 12, 2001
51,460
13,095



iFixit is currently in the process of tearing down a 38mm Apple Watch Sport after the device launched in Australia today. While it is still early in the teardown process, the team has found that disconnecting the display from the body can be a little difficult, similar to the troublesome Touch ID cable on the iPhone 5s.

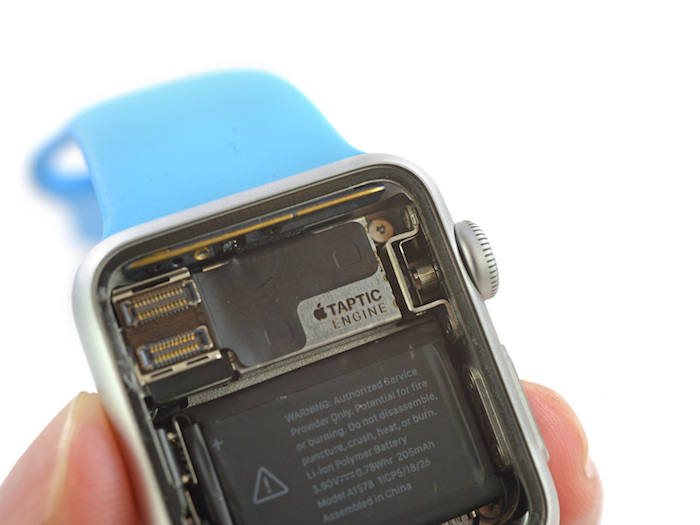

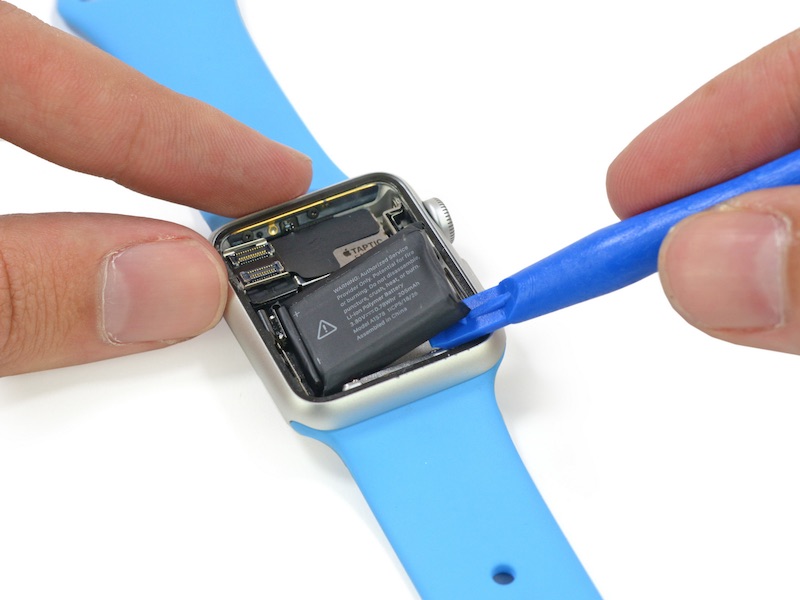

Behind the display, two of the most significant features of the Apple Watch are easily viewable in the Taptic Engine and Digital Crown. Also inside is the tiny 3.8V 205 mAh battery, which iFixit notes is "lightly adhered" and easy to remove. Apple has said the 42mm Apple Watch will generally have slightly longer battery life than the 38mm model, so we expect the larger Apple Watch will have a higher-capacity battery filling up the extra space inside the casing.

iFixit's teardown is still in progress and this post will be updated as additional discoveries are made. Of particular interest is the S1 chip that serves as the brains of the Apple Watch, but it may take some time to examine that part as Apple notes it is sealed in resin, aiding the water resistance of the Apple Watch.

Update 9:12 PM: The iFixit team notes that, on their way to the S1 chip, they've encountered the "tiniest tri-wing screws" they've ever seen, requiring them to modify their tools to proceed.

Update 9:41 PM: Due to the limited space inside the Apple Watch, iFixit has found that Apple has creatively wrapped the microphone ribbon cable between the inner and outer layers of the case.

Article Link: Teardown of 38mm Apple Watch Sport Reveals 205 mAh Battery, Taptic Engine


LillieDesigns

macrumors 6502
Oct 18, 2005
323
56
Los Angeles
Beyond the hype, the hate and everything else going on with this launch, I'm taking a second to marvel that in 2015 that is a hell of a computer on your wrist.

Comment

Dreamer2go

macrumors 6502a
Jun 23, 2007
661
258
This is engineering marvel... You can use a day of battery-life in this tiny battery, and people are complaining about battery life?

Comment

Nyy8

macrumors 6502a
Jun 12, 2011
513
133
New England
I think a Rechargeable Triple A Battery has 600 MAh, 200 is just 1/3 of that.

For it to last that a whole day of use? That's amazing.

Probably cost $.10 a year to charge

Comment

mrjr101

macrumors regular
Jul 29, 2013
103
10
This is engineering marvel... You can use a day of battery-life in this tiny battery, and people are complaining about battery life?

Ummm, my 1995 World Citizen watch radio shack battery is twice as small and it runs for 4 years at a time...

Comment

ksuyen

macrumors 6502a
Jun 26, 2012
772
141
Amazing feat of engineering! :eek: Kudos for Apple :cool:

----------

Ummm, my 1995 World Citizen watch radio shack battery is twice as small and it runs for 4 years at a time...

But... but... does it compute?


VS

Comment

Keirasplace

macrumors 601
Aug 6, 2014
4,059
1,278
Montreal
Ummm, my 1995 World Citizen watch radio shack battery is twice as small and it runs for 4 years at a time...

Right... And it does nothing but tell time (not even as precisely as this btw). Your point?
You have the power of non sequitur in your typing I see.

Comment

mrjr101

macrumors regular
Jul 29, 2013
103
10
Amazing feat of engineering! :eek: Kudos for Apple :cool:

----------



But... but... does it compute?
I don't think Apple Watch can handle "thousands" of applications in a day, hell, that's even stretching it for the iphone, but let me stick with just one app and piece of mind in my traditional watch for years to come.

Comment

Bill86404

macrumors newbie
Apr 23, 2015
1
0
Amazing feat of engineering! :eek: Kudos for Apple :cool:

----------



But... but... does it compute?


Image VS Image

Sorry but that's no computer on top. That's an S1W NUCLEAR CONTROL room prototype for the nautilus. I know this because I sat in the center chair controlling it when I qualified as engineer.
No computers there I promise.
