Teardown of Apple's 11.6-Inch MacBook Air Underway

MacRumors

macrumors bot
Original poster
Apr 12, 2001
50,424
11,812
https://www.macrumors.com/images/macrumorsthreadlogodarkd.png




iFixit has wasted no time in getting its hands on a new 11.6-inch MacBook Air and beginning to disassemble it to see what's inside. While the leaked prototype image offered an idea of what the innards would look like, iFixit will almost certainly find some additional tidbits of information.

Some notes of interest:

- The case is screwed shut with 5-point Security Torx screws, suggesting that Apple does not want consumers disassembling the machine.

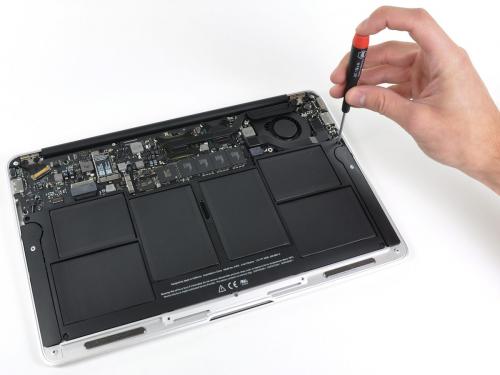

- The battery consists of six separate cells offering a total of 35 watt-hours of power.
- The machine's 64 GB of flash storage is composed of four 16 GB Toshiba chips together with a controller chip on a removable board.
- The new MacBook Air uses the same Broadcom Wi-Fi/Bluetooth chip as in the current MacBook Pro.

We'll update with additional information as the teardown progresses.

Article Link: Teardown of Apple's 11.6-Inch MacBook Air Underway


maxap

macrumors 6502
Sep 20, 2008
495
36
Hmmm... interesting... But sadly enough I wasn't that excited about those new machines considering their weak hardware and relatively high price...

Comment

applemike

macrumors 6502
Aug 6, 2008
480
0
I'm amazed that they only managed to get that much battery life out of the thing. Using that much space for batteries would have suggested to me at least 8 hours of usage on the battery. if not 10 or 12.

Comment

SPUY767

macrumors 68020
Jun 22, 2003
2,025
112
GA
I'm amazed that they only managed to get that much battery life out of the thing. Using that much space for batteries would have suggested to me at least 8 hours of usage on the battery. if not 10 or 12.

That's what you get when you don't use a whimped out processor like you'd find in a netbook.

Comment

tempusfugit

macrumors 65816
May 21, 2009
1,112
1
Chicago
I'm amazed that they only managed to get that much battery life out of the thing. Using that much space for batteries would have suggested to me at least 8 hours of usage on the battery. if not 10 or 12.

well if that's not scientific, i don't know what is. :rolleyes:


maybe with an intel atom processor....

Comment

paradox00

macrumors 65816
Sep 29, 2009
1,131
303
I'm amazed that they only managed to get that much battery life out of the thing. Using that much space for batteries would have suggested to me at least 8 hours of usage on the battery. if not 10 or 12.

You have to remember that the batteries can't be very deep though.

Comment

DrivinWest

macrumors regular
Jun 17, 2007
106
3
Republic of Texas
The machine's 64 GB of flash storage is composed of four 16 GB Toshiba chips together with a controller chip on a removable board.

This is of interest to me. The notion that it can be upgraded down the road is a big selling point.

Comment

hundleton1

macrumors 6502
Jul 29, 2008
266
6
Wales UK
was hoping for upgradable ram however not looking good, cant see why they bothered to tut the SSD on an separate board and fixed the ram as they offer factory upgrades of both ?

Comment

diddl14

macrumors 6502a
Aug 10, 2009
867
931

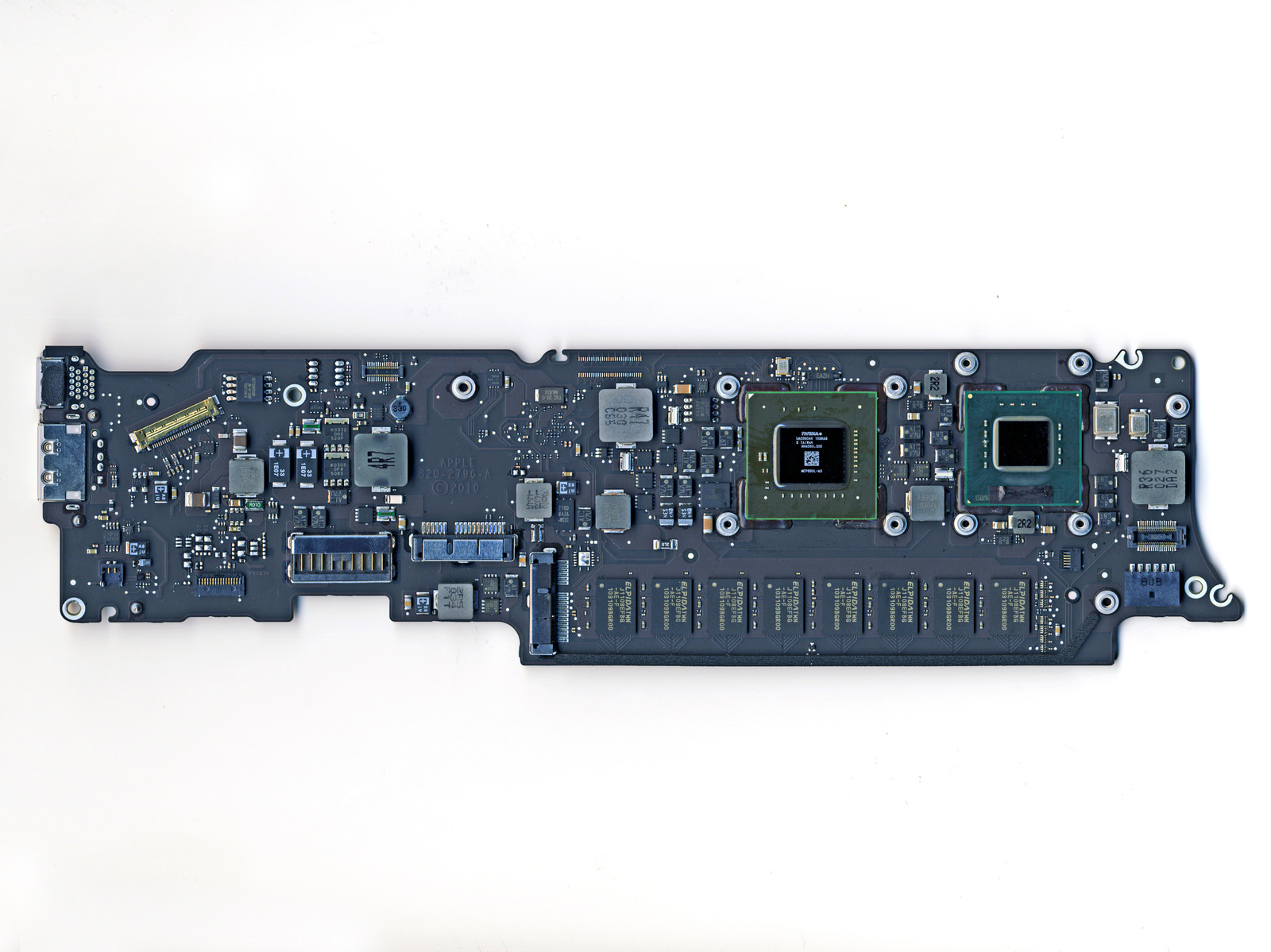

Check out the connector left from the RAM, looks like this is this trick for the in-store upgrade from 2to 4GB.

Comment

applemike

macrumors 6502
Aug 6, 2008
480
0
That's what you get when you don't use a whimped out processor like you'd find in a netbook.

well if that's not scientific, i don't know what is. :rolleyes:


maybe with an intel atom processor....

Very true, but still I'd expect that kind of battery life if they had managed to up the CPU to an i3, it's certainly what a lot of others where expecting. I know there are the heat issues, but still, I'd have thought apple, one of the greatest manufacturers of this age, would manage it.

I think im not the only one tired of seeing C2D as well

Comment

falconeight

Guest
Apr 6, 2010
1,866
1
I just got my air 11 in the mail and its pretty nice. Runs flawlessly and the keyboard is perfect.

Comment

Cloudane

macrumors 68000
Aug 6, 2007
1,609
197
Sweet Apple Acres
Wirelessly posted (Mozilla/5.0 (iPhone; U; CPU iPhone OS 4_1 like Mac OS X; en-us) AppleWebKit/532.9 (KHTML, like Gecko) Version/4.0.5 Mobile/8B117 Safari/6531.22.7)

I have security Torxes in my toolkit. An essential thing to have for anyone who likes opening/repairing things :)

lsvtecjohn3 said:
DrivinWest said:
This is of interest to me. The notion that it can be upgraded down the road is a big selling point.

Where did you hear that from? I thought you were not going to be able to upgrade.

Edit just saw it sad removable Board

yep. Not officially user upgradable (like many Apple things) but looks simple enough for a hacker type. If I'm not mistaken, the SSD looks like it's on mini-PCIe which is a standard fitting. Say hello to upgrades from Runcore :)

Comment

JeffDM

macrumors 6502a
Sep 16, 2006
709
9
- The case is screwed shut with 5-point Security Torx screws, suggesting that Apple does not want consumers disassembling the machine.

A security torx is six points with a pin in the center so it's hard to use a small flat head screwdriver or a non-security Torx bit. This doesn't have that pin.

Comment

applemike

macrumors 6502
Aug 6, 2008
480
0
A security torx is six points with a pin in the center so it's hard to use a small flat head screwdriver or a non-security Torx bit. This doesn't have that pin.

Can buy a cheap set of eBay if necessary, I have a half descent set, about £20 for every size you can think of. With these I can get into everything.

Comment

tirerim

macrumors regular
Aug 4, 2006
204
0
Had to look up "Security Torx" on Wikipedia. Stupidest thing ever...

Yup. And all it really means is that you have to go to some trouble to get the bits, which are expensive and useless for anything else -- it doesn't actually stop anyone from opening it.

Comment

NoShare1

macrumors newbie
Apr 21, 2010
7
0
A security torx is six points with a pin in the center so it's hard to use a small flat head screwdriver or a non-security Torx bit. This doesn't have that pin.
Even those Tamper Proof Torx bits and drivers can be bought anywhere, they're not Top Secret, so it shouldn't be too much of a big deal and a non-issue for anyone looking to take this apart even if they were there.

Comment

Shanpdx

macrumors 68020
Sep 24, 2008
2,473
298
Blazer town!
How fast is the Toshiba Controller

on these SSDs? Really have to see how fast these Flash Memory compared to the retail SSDs.

I wonder 13.3" MBA might use different Flash and Controller ...

Comment

tirerim

macrumors regular
Aug 4, 2006
204
0
A security torx is six points with a pin in the center so it's hard to use a small flat head screwdriver or a non-security Torx bit. This doesn't have that pin.

Ah, so those are Torx Plus, then. Still more annoying than the regular six point Torx, though.

They do also make a security version of Torx Plus, called Torx TX, to be extra obnoxious.
