Teardown of Mid-2012 MacBook Air Reveals Tweaked SSD Connector

MacRumors

macrumors bot
Original poster
Apr 12, 2001
47,517
9,355



The teardown experts at iFixit are currently in the process of taking apart the new 13-inch MacBook Air released yesterday, and while the machine appears to be only a minor update to the previous model, there are undoubtedly some changes that are worth noting.

The most notable change so far is with the solid-state storage. Apple has tweaked the connector design on the MacBook Air's integrated flash storage, making current replacement and upgrade modules from third parties incompatible with the latest models. Other World Computing has also noted this difference and indicated that they are working "full steam ahead" on launching new Aura Pro Express SSDs compatible with the 2012 MacBook Air. Apple announced at WWDC that it was using new 500 MBps SSDs in its MacBook Air, and the new connector design is likely to accommodate the faster data transfer capabilities.

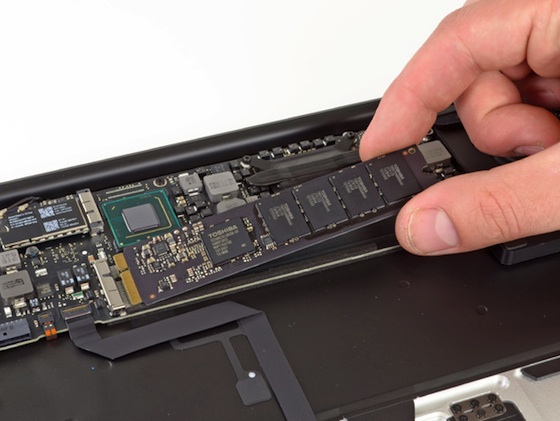

Toshiba SSD in Mid-2012 MacBook Air
Beyond the SSD, iFixit has found very few changes to the MacBook Air. The new models incorporate Apple's thinner Magsafe 2 standard that the company developed as it has sought to find ways to continue reducing the thickness of its notebooks. The new MacBook Air obviously also incorporates Intel's latest Ivy Bridge processors and new 1600 MHz RAM, as well as USB 3.0 support, but these upgrades have yielded very little in terms of changes to the machine's internal layout.

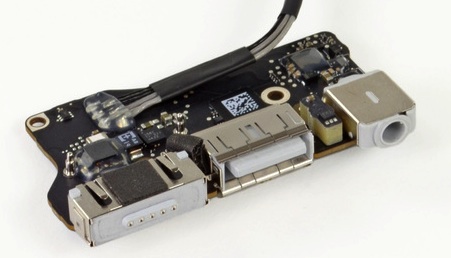

Left I/O board from Mid-2012 MacBook Air, with MagSafe 2 connector at left
iFixit's teardown is still underway, so there may yet be more news to come, and we will update this story with any additional discoveries of note.

Article Link: Teardown of Mid-2012 MacBook Air Reveals Tweaked SSD Connector


shurcooL

macrumors 6502a
Jan 24, 2011
921
70
I still don't get the advantages of the new MagSafe 2 port. It's a little thinner, but the original was not thicker than a USB port anyway, so how does making it slightly thinner help at all?

There are disadvantages, including it being wider, creating incompatibility, fall back to T-shaped connector for some reason...

I want to understand in what ways MagSafe 2 is better, anyone have some ideas?

Why would Apple change something unless it's significantly better; they're not known to change things without a good reason.
