Test results, Tempo SATA vs IDE/Sata bridge

Discussion in 'PowerPC Macs' started by jbarley, Oct 4, 2015.

  1. jbarley macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #1

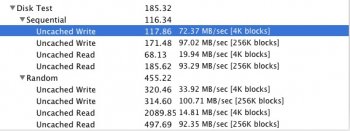

    Just purchased a Sonnet Tempo SATA card, here are the xBench results of the SATA card vs the existing IDE to SATA converter I was running, same SSD in each case.

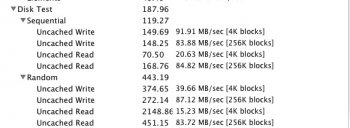

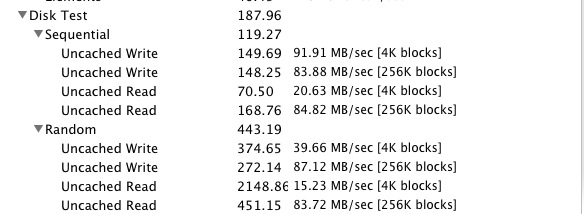

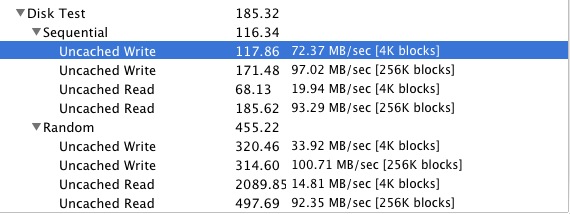

    First is my original IDE/SATA bridge card, and second is the Tempo SATA card.
    As you can see the results at least with an SSD do not justify the difference in cost, $3.95 for the bridge card and $80 for the Sonnet card.
    I would expect better results from a conventional HDD.
    I have to admit though, the SATA card allows for a much easier and cleaner installation and very likely better cooling airflow.

    MDD bridge card.JPG MDD-SATA.JPG

  2. for this macrumors regular

    Joined:
    Nov 18, 2014
    #2
    For me, the real benefit of a SATA card is not that it's faster than the existing ATA-100 bus.
    But to be able to install two 3.5" SATA drives in the front cage and get SATA bus speed
    instead of the ATA-66 bus there.

    I also think you can't use the bridges there, otherwise you won't be able to close the door fully.

  3. jbarley thread starter macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #3
    This has never been a problem for me, I gave up on 3.5" drives long ago over the smaller 2.5" drives and then moved on to SSD's.

  4. for this macrumors regular

    Joined:
    Nov 18, 2014
    #4
    That's why I specifically put the word 3.5" there. :)

  5. powermi macrumors regular

    Joined:
    Apr 6, 2013
    Location:
    Avila (Spain)
    #5
    The long term use will give you the real reliability test... It worth every penny.

  6. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #6
    Is there a limit on sata drives with that card? With 2.5" drives you could fit a dozen in there.

  7. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #7
    The Sonnet Tempo I have only has 2 SATA ports.
