Testing DTS and Atmos

Discussion in 'Apple TV and Home Theater' started by ZeRoLiMiT, Aug 5, 2016.

  1. ZeRoLiMiT macrumors 6502a

    ZeRoLiMiT

    Joined:
    Jun 6, 2010
    Location:
    Southern California
    #1
    I just got a Atmos receiver and have been looking for some good files to test it with. I found them and would like to share them with you guys. Don't have to much bandwith with mega so get what you can.

    Download (HERE)

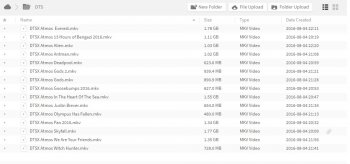

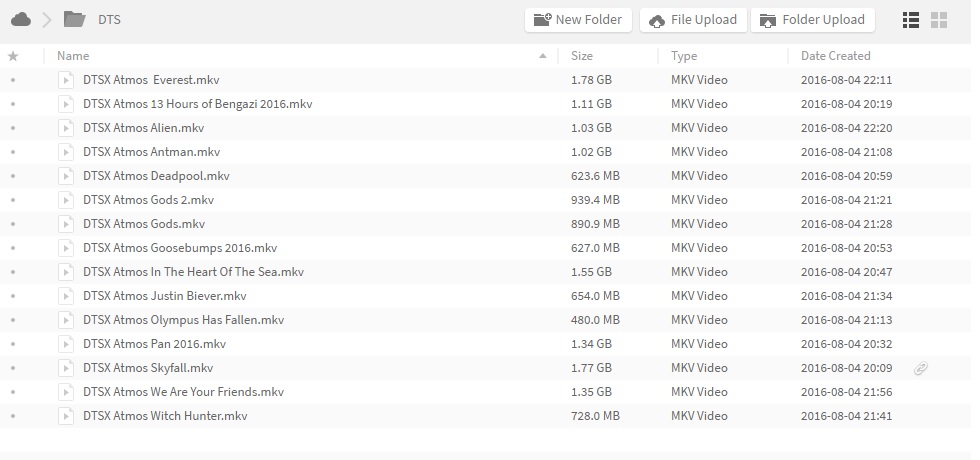

    Attached Files:

  2. satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #2
    How many speakers do you have with your new receiver? How are you connecting to your Apple TV?

    On my reciever I connect the TV optical output to my receiver this way I can get the optical out on TV to the optical in on my receiver! This way if I am watching live TV sports I can get the full sound!

  3. b0dyr0ck2006 macrumors newbie

    Joined:
    Oct 16, 2011
    #3
    I'll be amazed if you can get atmos passthrough out of the atv.

  4. ZeRoLiMiT thread starter macrumors 6502a

    ZeRoLiMiT

    Joined:
    Jun 6, 2010
    Location:
    Southern California
    #4
    Dont see atmos with Apple TV :(

    What do you guys recommend we can use to get Atmos out?
    --- Post Merged, Aug 7, 2016 ---

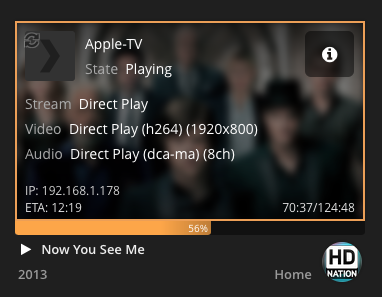

    This is the audio I get


    Attached Files:

  5. Lumpy05 macrumors member

    Joined:
    Mar 16, 2010
    Location:
    Bloomington, IN
    #5
    I have been able to get atmos out from PS3 from Bluray and VUDU. Apple TV is a no go right now don't know if it can be software upgraded to support.

  6. Mr. Zarniwoop, Aug 8, 2016
    Last edited: Aug 8, 2016

    Mr. Zarniwoop macrumors demi-god

    Mr. Zarniwoop

    Joined:
    Jun 9, 2005
    #6
    No current way to handle the encoded audio object metadata in Dolby Atmos/DTS-X in tvOS.

    That's because it's not currently possible to passthrough encoded 24-bit/7.1-channel audio with tvOS in 3rd party apps even though the latest Apple TV supports 24-bit/7.1-channel audio. (16-bit/5.1-channel is possible to passthrough over HDMI.)

    You might want to follow the discussions on the Infuse for tvOS forum. Their app supports Dolby TrueHD and DTS-HD MA at 48Khz 24-bit/7.1-channels by doing the audio processing in their app and then sending uncompressed lossless multi-channel LPCM over HDMI. Basically, the Infuse app on the Apple TV does the TrueHD/HD-MA decoding work instead of the Dolby/DTS receiver. The final audio is identical to the receiver doing the work as they have licensed both Dolby TrueHD and DTS HD-MA for their tvOS and iOS apps. More details here.

  7. tjwilliams25 macrumors 6502

    Joined:
    Aug 10, 2014
    Location:
    Montana
    #7
    Unfortunately, since the Apple TV doesn't have support for Dolby True HD or DTS HD Master Audio, neither Atmos or DTS X will work. It uses metadata in the streams to activate the extra channels and other nifty stuff. That's why legacy blu-ray players (that support bitstreaming, mind you) work with Atmos and DTS X.

  8. satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #8
    According to ApplevSupport document Apple TV Specs section:


  9. tjwilliams25 macrumors 6502

    Joined:
    Aug 10, 2014
    Location:
    Montana
    #9
    Dolby Digital Plus isn't the same thing as Dolby True HD. Digital Plus is a higher bitrate stream than regular Dolby Digital, but it's still lossy. True HD is a lossless stream, so it holds quite a bit more information than Plus does. The Apple TV doesn't support native Dolby True HD.

  10. satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #10
    Then contact Apple Feedback page and suggest the new Dolby True HD!

  11. tjwilliams25 macrumors 6502

    Joined:
    Aug 10, 2014
    Location:
    Montana
    #11
    I would absolutely love that, as I have an Atmos receiver myself, but I don't think it's going to happen any time soon. The streams for True HD and DTS X are much larger than Digital Plus, so it's not really ideal for streaming. We can hope, though! :)

  12. satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #12
    Yea then suggest it on the Apple Feedback page!

  13. kiranmk2 macrumors 6502a

    kiranmk2

    Joined:
    Oct 4, 2008
    #13
    VUDU now supports Dolby Atmos on some of their 4K streams, so there is precident for streaming with a higher audio quality that Dolby Digital.

  14. tjwilliams25 macrumors 6502

    Joined:
    Aug 10, 2014
    Location:
    Montana
    #14
    Yes, there definitely is, and it's made me consider getting a Roku 4. But all of these things are in their infancy right now, just like 1080p was (and still is for broadcast), so it will change as time goes on. As ISPs get better and bandwidth increases, I'm sure we'll see more providers using lossless codecs for streaming.

  15. satcomer macrumors 603

    satcomer

    Joined:
    Feb 19, 2008
    Location:
    The Finger Lakes Region
    #15
    To correct you over the Air is 1080i NOT 1080p! ;)

  16. Tech198 macrumors G4

    Joined:
    Mar 21, 2011
    Location:
    Australia, Perth
    #16
    who listens to this stuff. Good selection though

    I'd be recommending it to Apple as well. but i seriously doubt True HD will be in Apple's program of anything. when we arn't even there yet with the any of their other products.. Perhaps in a future version.

  17. tjwilliams25, Aug 15, 2016
    Last edited: Aug 15, 2016

    tjwilliams25 macrumors 6502

    Joined:
    Aug 10, 2014
    Location:
    Montana
    #18
    Exactly, that's why 1080p is still in its infancy for broadcast, as nearly all (or every) channel is still 1080i or 720p. I think we're going to see a jump from that straight to 4k because the new h.265 codec and HDCP 2.2 make it less bandwidth intensive and more secure than anything else we have going on right now. Of course, who knows really, as they've taken their sweet time with it all, and lost quite a few customers in the process.

    Also, I found out this weekend that Dolby Digital Plus is object-based, so it supports a form of Atmos. That means, if an app supports it and the Apple TV bitstreams the audio, we could totally have Atmos with our current hardware!
