The new, Mac Macro

Discussion in 'Mac mini' started by metatrox, Oct 24, 2013.

  1. metatrox, Oct 24, 2013
    Last edited: Oct 24, 2013

    metatrox macrumors member

    Joined:
    Jun 19, 2010
    #1
    ** Changed to Mac Nano **

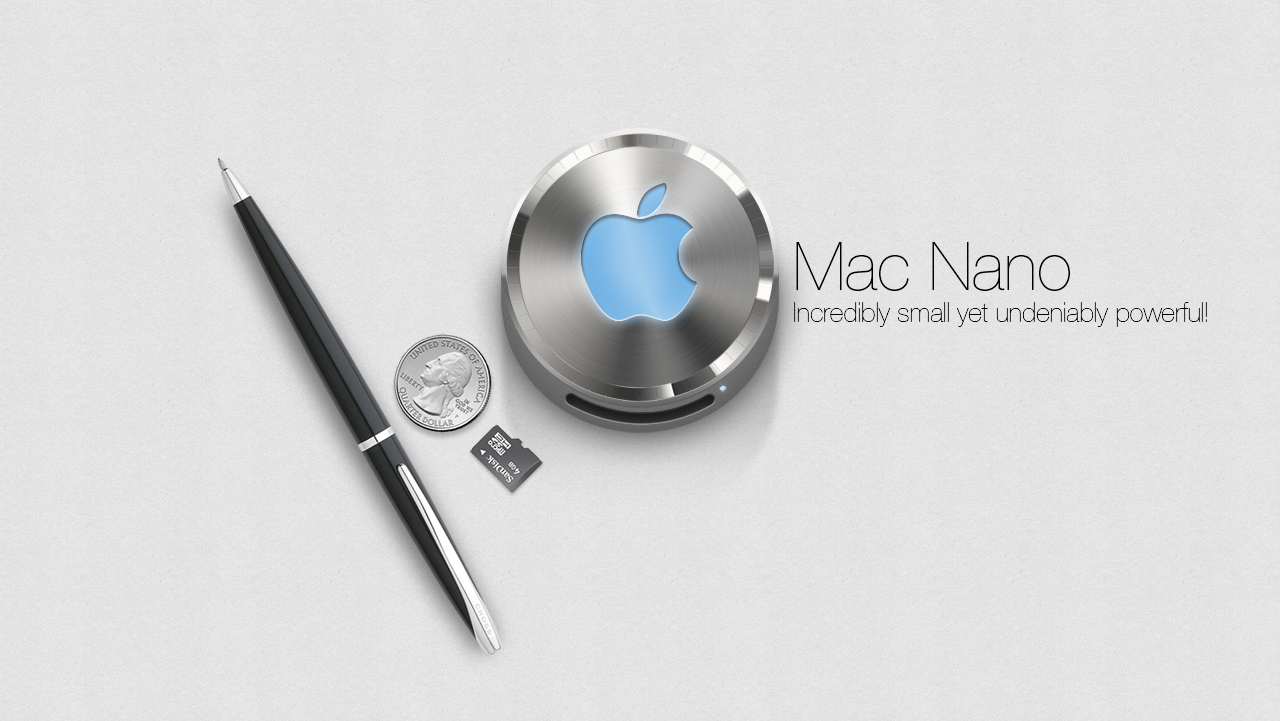

    LOL well I was bored and messing with some iPad wallpapers and ended up working this up. Just a fun little concept. Enjoy!

    Original
    [​IMG]
    Full Size Image

    Another Version
    [​IMG]
    Full Size Image

  2. Lesser Evets macrumors 68040

    Lesser Evets

    Joined:
    Jan 7, 2006
    #2
    I was looking at the teardown of the MacMini recently and thought "what a LOT of wasted space and uncompressed tech". In today's world the MacMini is actually about twice as large as it could be.

    There will probably be a redesign and reduction in size coming before 2016. When the SSDs become cheap, they can really tighten up that design to be a third as big by getting rid of all the space for drives. Then your design could emerge.

  3. sbk1799 macrumors newbie

    Joined:
    Jan 10, 2012
    #3
    Based on the redesign of the AirPort Extreme and Time Capsule (and new Mac Pro), I wouldn't be surprised if the next mini has a vertical form factor.

  4. NewbieCanada macrumors 68030

    Joined:
    Oct 9, 2007
    #4
    My Mac Mini gets plenty warm as it is. Not sure I'd want it more compact with less room for air to circulate.

    ----------

    You know macro means large, don't you?

  5. DarthMoops macrumors regular

    Joined:
    Aug 7, 2010
    Location:
    Baltimore MD
  6. ShaneBunting Suspended

    Joined:
    Aug 10, 2009
    Location:
    United Kingdom
    #6
    ..and 1x HDMI, and 1x Ethernet, SD Card Slot, 4x USB 3.0.. That's GOOD!

  7. metatrox thread starter macrumors member

    Joined:
    Jun 19, 2010
    #7
    LOL You never know huh? Things just keep getting smaller and smaller.

    Yeah was inspired by the Mac Pro and Time Capsule.

    Perhaps something similar to the Mac Pro cooling?
    LOl Thanks for the info! I don't know why I though Macro was small. Must have been thinking Micro. Updated image to Nano.


    I dont know about 4xUSB but I think the others could be possible.

  8. Luap macrumors 65816

    Luap

    Joined:
    Jul 5, 2004
    #9
    I don't know what teardown you were looking at, but having been inside my own Mini, I can assure you, there is little to no redundant space in there.
    You can get an extra HD in there, and maybe a couple of ants, and that is it.

  9. corvus32, Oct 24, 2013
    Last edited: Oct 24, 2013

    corvus32 macrumors 6502a

    Joined:
    Sep 4, 2009
    Location:
    USA
    #10
    The Intel NUC (D54250WYK) is roughly 4.5" x 4.5" x 1.5". It's that small because it uses flash storage and the same CPU that's in the Macbook Air (i5-4250U), which is perfect for an HTPC and everyday tasks. It's a great example of the direction Apple needs to go with the next Mini. It wouldn't necessarily have to have a fancy aluminum enclosure with chamfered edges. A quality plastic enclosure in an assortment of nice colors would be fine.

    People that want more compute power, for gaming or video encoding, but don't want to spring $3000 for a Mac Pro or $1500 for an all-in-one, Apple should provide them with a separate Mini (larger design, quad core i7's, BTO gpu's, etc). Even if they used all mobile components, like the same ones offered in the iMac's, that's fine.

    These two would fill a huge hole in Apple's product line that a single Mini just can't accomplish.

  10. animatedude macrumors 65816

    Joined:
    Feb 27, 2010
    #11
    can you redesign with Apple signature aluminum instead of what's shown in the picture which looks like stainless steel.....plus what's with the blue color?

    Dunkin Donuts?

  11. metatrox thread starter macrumors member

    Joined:
    Jun 19, 2010
    #12
    LOL!

    Things seem to be getting smaller and smaller...

    Yeah it would be nice to get a Mac Pro with different specs, more like Medium grade stuff.

    I changed up the aluminum top. I'm assuming thats what you were referring to. It was a circular brushed aluminum.
    I used the blue-ish color in reference to the macbook back logo. Too blue for sure but I liked it. I changed it to a standard black logo.

  12. CausticPuppy macrumors 65816

    Joined:
    May 1, 2012
    #13
    The next mini will be donut-shaped like Apple's new campus. :)

    It will stand on its side and blow air out like those Dyson bladeless fans.

  13. priyamsingh macrumors member

    Joined:
    Sep 19, 2013
    #14
    you shouldn't have put the exclamation mark. Apple would never do that. They'd just put a period at the end.

  14. mvmanolov macrumors 6502a

    Joined:
    Aug 27, 2013
    #15
    This makes sense. especially since they already have the "server" designation allowing them to have such a duality be more pronounced without disturbing the purchase/use drivers of their technology development....

    Now if someone with some actual pull could pitch this effectively to Tim... ?:D

  15. Lesser Evets macrumors 68040

    Lesser Evets

    Joined:
    Jan 7, 2006
    #16
    I'm looking inside MY MacMini right now. It's got an extra space for a drive, cowlings, a primitive fan design, and a motherboard which is SPACIOUS in terms of modern design.

    First, get a SSD nailed down to a board and reduce a huge amount of interior space. The computer might not be very customizable after this, but storage is moving external in the Pro, why not in the Mini?

    Second, eliminate all the luscious packaging and cowls and little plastic bits, double layer the circuit board with SSD and cut the entire unit down 50%.

    Third, make a slimmer, wider, pencil-thin horizontal fan based on the brush of a vacuum cleaner and have that push air across the entire structure. The whole fan should be about the size of a pencil.

    However, this doesn't even deal with the ability of reducing the entire architecture of the motherboard, which is completely possible. At this time, the Apple designers and engineers could easily compress the Mini into a half-sized box without a lot of effort. I've been in and out of mine for a year and it is nowhere near as claustrophobic as many other devices they are manufacturing.
