The ultimate Pro Display XDR info thread

adamwathan

macrumors newbie
Original poster
Feb 5, 2018
21
22
Cambridge, Ontario, Canada
Got my Pro Display XDR on Friday and thought it would be worthwhile to share some details/info I really wanted to know before receiving it but couldn't find until I could finally test myself.

How much glare does the Standard Glass really have?

I got the standard glass but in practice I don't see any glare at all when working head on. I'm coming from a 5K iMac to the Pro Display + 16" MBP, and I feel like this display actually has less glare than my iMac did, and I could only see glare on that display if I was really looking for it.

IMG_7423 copy.jpg

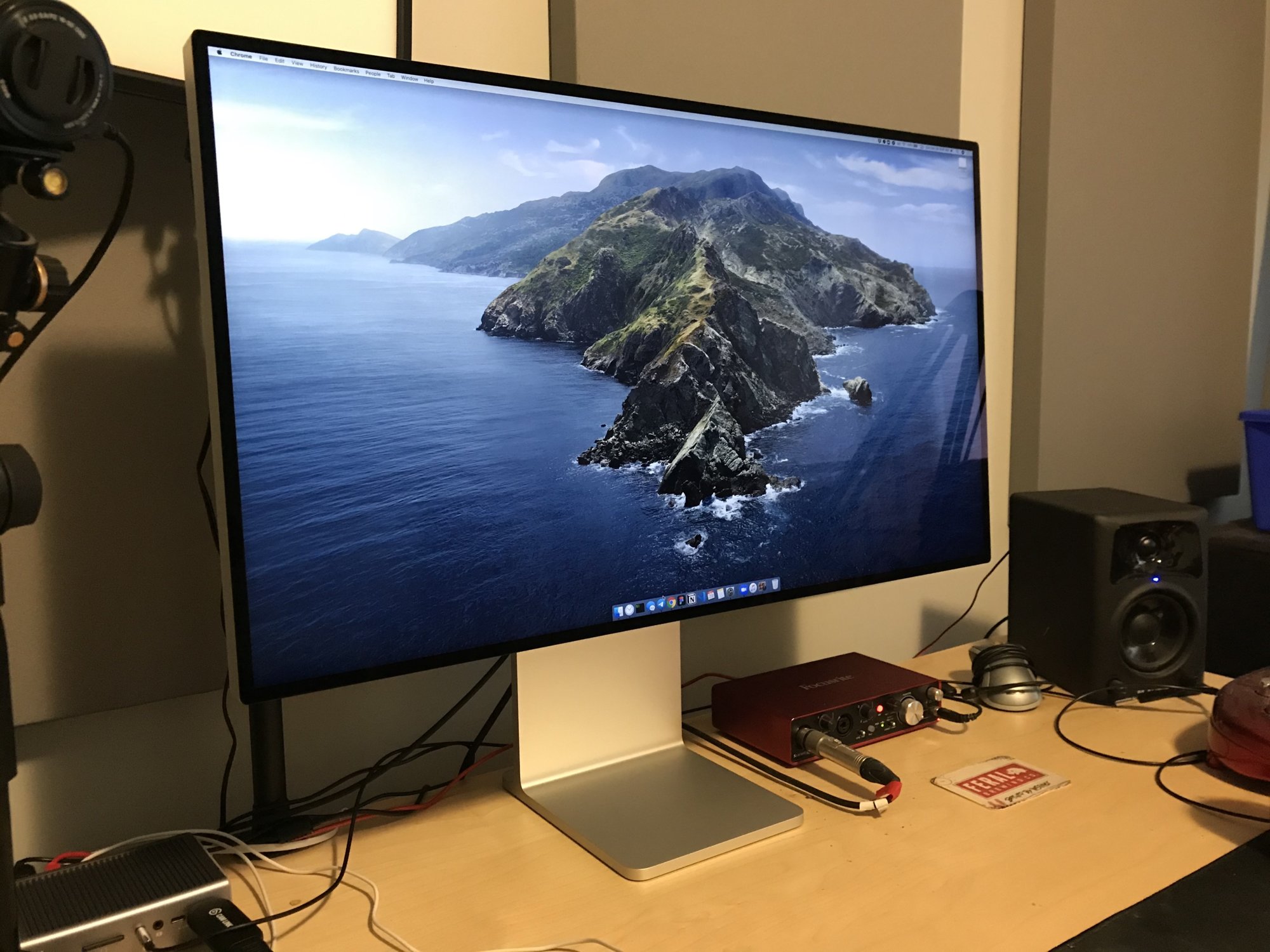

There is some glare in my room from side viewing angles, but again nothing when working head-on.

IMG_7422 copy.jpg


I don't have the ability to compare this to a nano version but I can say I don't regret getting the standard glass at all, looks fantastic.

What resolutions does the display support?

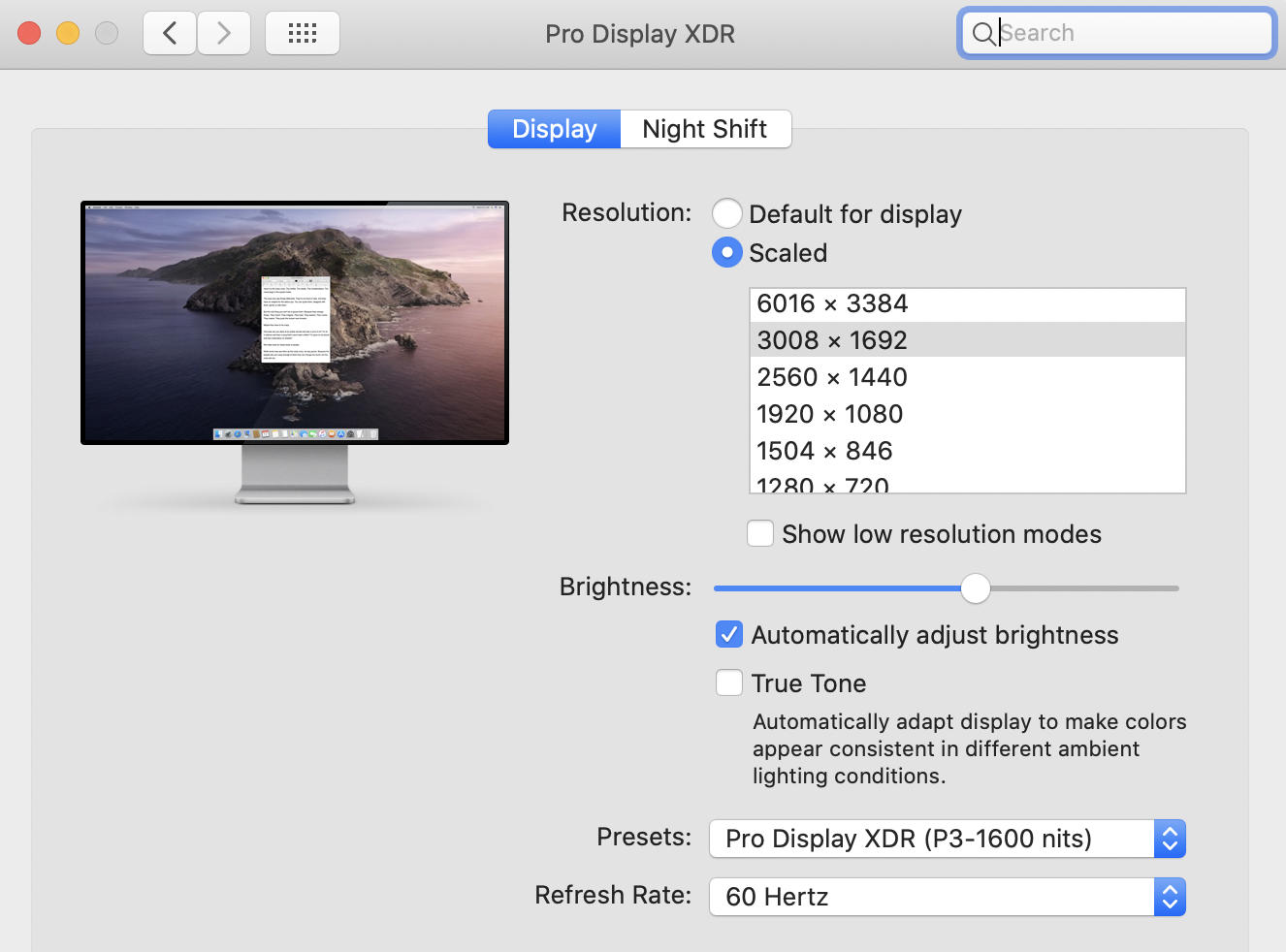

The Pro Display XDR supports the following resolutions:

  • 6016 x 3384
  • 3008 x 1692 (default)
  • 2560 x 1440
  • 1920 x 1080
  • 1504 x 846
  • 1280 x 720


One thing that is a little surprising is that there are no resolutions between 3008 and 6016. Normally Apple includes some "more space" style options that have a lower DPI than true Retina (for example the 5K iMac goes all the way up to 3200 x 1800 of workspace, which is more than you get with the Pro Display XDR).

This is totally fine for me as I was using the default 2560 x 1440 resolution on the 5K iMac anyways and value the true 2x resolution more than an increase in workspace, but surprising nonetheless.

The 6016 x 3384 option is basically useless for any real work and I'm surprised it's listed as a default option (I feel like I had to use third-party tools to do 5120 x 2880 on my iMac). Everything is just way to small of course.


Can the Pro Display XDR be used effectively as a dock for your other peripherals?

The Pro Display has three USB C ports on the back that Apple claims as being "for charging and syncing", which wasn't exactly a useful description to me. I was hoping I could connect things like my audio interface or Elgato Cam Link and potentially avoid the need for a dock like the CalDigit TS3.

I don't have any USB A to USB C adapters so I haven't been able to actually test this yet (will be able to tomorrow) but what I've learned scouring other threads/documents is that the USB C ports on the back of the Pro Display actually support USB 3.1 speeds when the display is connected to the 16" MBP, but not when the display is connected to the Mac Pro (they only support USB 2.0 speeds there).

My understanding is this has something to do with Display Stream Compression being used on the 16" MBP but not by the Mac Pro? If anyone knows more about this please share and I'll update this post 👍🏻

I bought a CalDigit TS3 anyways and am currently using that, with the Pro Display and the TS3 both connected directly to my 16" MBP, both on the same side. I worried this might not work as I've heard things claiming you can only get max bandwidth out of one port per side of the MBP.

I've got an audio interface and the Cam Link 4K connected to the TS3 though and have seen no issues, so I suspect it will continue to work fine.

I'm waiting on a handful of USB-C adapters to come in the mail tomorrow at which point I'll test connecting the Cam Link 4K and audio interface directly to the Pro Display to see if I'm capable of getting everything working through a single cable.

Update:

I've had my Cam Link 4K connected through the XDR for days now and had no issues at all.

I've also confirmed that the XDR will work connected to the TS3, with the TS3 being the only thing connected to my machine through a single cable. I still get full 6K this way and haven't run into any bandwidth issues. The only downside to this set up is that my MacBook Pro is only getting 85W charging from the TS3 instead of 96W from the XDR.


Things that caught me by surprise

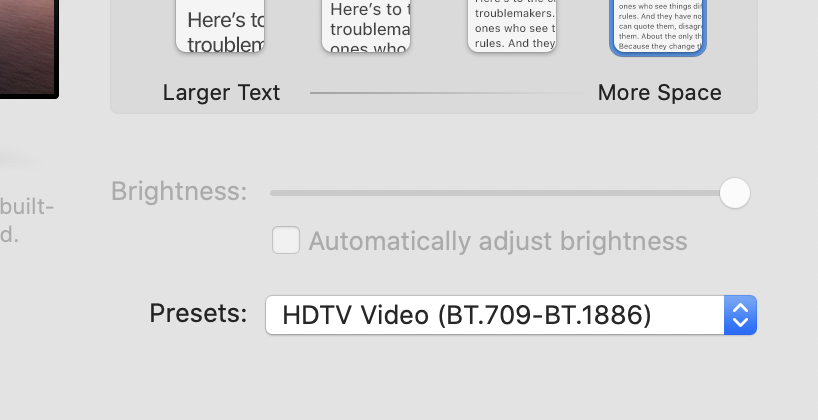

You can't adjust the brightness using any presets other than "Pro Display XDR" and "Apple Display"


This was a really weird surprise and I am very curious why this is the case, but if you use any of the reference modes other than the default "Pro Display XDR" mode or the "Apple Display" mode, the brightness control is disabled and can't be adjusted at all:



The brightness level forced on you is not very bright at all either, certainly too dark to comfortably work in my office. Maybe experts on this stuff can chime in and explain why this might be the case, or if this is "correct" for doing the type of work you'd use these modes for.

Personally I am a little bummed even the "Internet & Web" preset has no brightness adjustment, because that's the work I do and I was curious to try doing web design work in that mode.


You can't control brightness using the brightness keys on Apple keyboards

Maybe this isn't surprising to others but with my MacBook in clamshell mode, I was hoping the brightness keys on my external keyboard would control the brightness of the display but they don't, so I need to open the display preferences any time I want to change the brightness. If anyone knows of a work around for this that would be awesome.

You can adjust the brightness by holding ctrl when pressing the brightness keys, works great.


The Pro Display XDR requires 10.15.2 to work properly, but still "works" on earlier 10.15.x versions

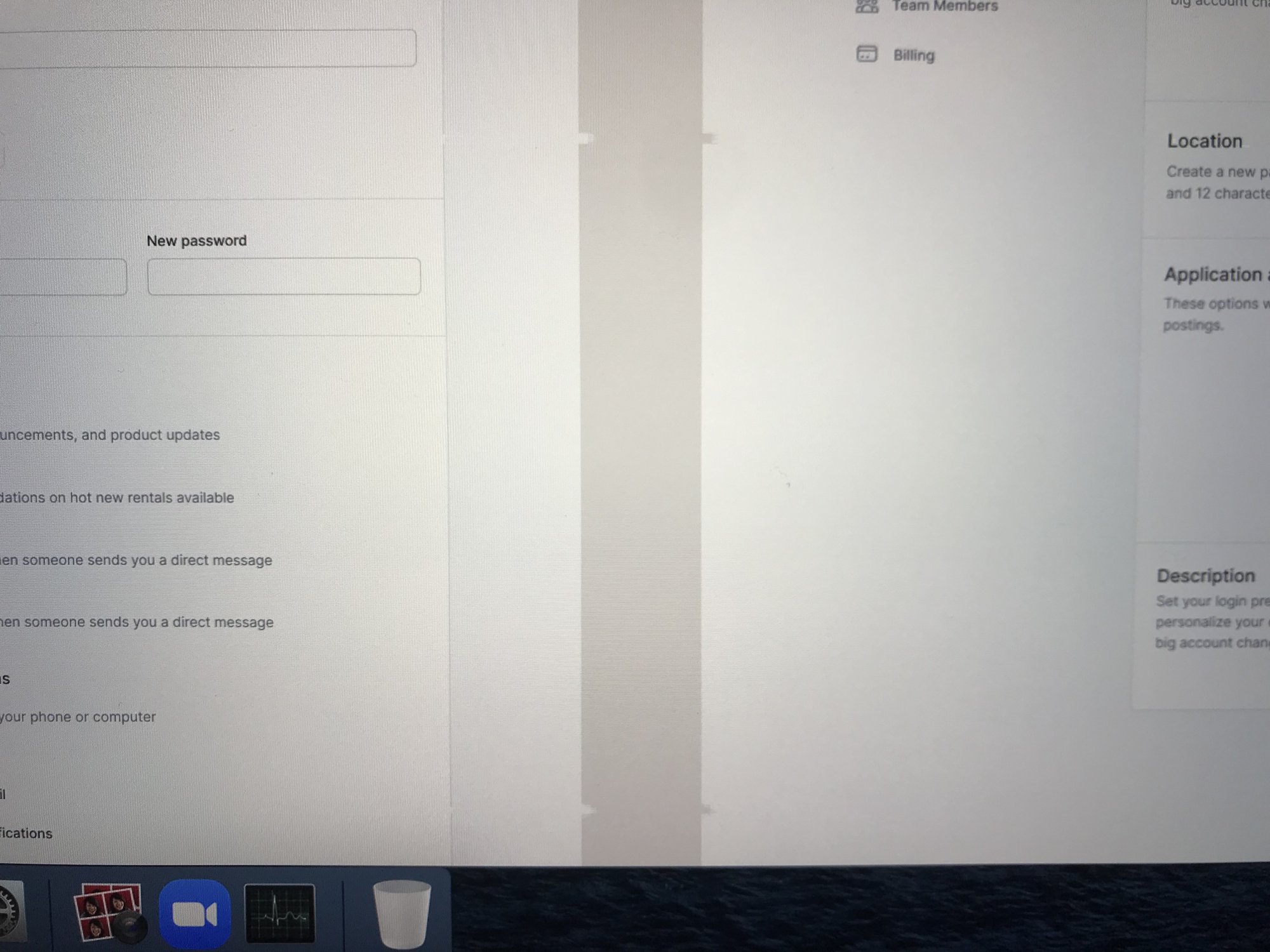

I was running 10.15.1 (I think) when I first connected the XDR display, and at first it seemed like everything was working fine but then I noticed all sorts of awful display artifacts along two full-width strips on the screen.

IMG_1279 copy.jpg


I was extremely nervous that my display was defective, but updating to 10.15.2 fixed it.


Other questions? Ask!

If anyone has any other questions or things they'd like me to test, let me know and happy to try and find out! It doesn't seem that there are a ton of these things being used in the wild yet (at least not by people active in online communities) so it's hard to find info. I'll do my best to make this thread the ultimate resource for people curious about this display 👍🏻

Last edited:

Philllllip

macrumors member
Nov 3, 2014
44
55
Congrats on your new display :) I hope to be buying soon also. Does the 16 inch MBP kick off with fans while powering the display or is it just silent?
- - Post merged: - -

Also would you say the display is noticeably better than the iMac 5k?


gerrard0804

macrumors regular
Sep 12, 2010
148
18
Did you compare the standard and nano-texture glasses side by side? just feel the standard is sharper and crystal clearer. The fonts shown on nano are a bit scattered because of the matte surface..


Philllllip

macrumors member
Nov 3, 2014
44
55
Thanks SOO much for the video :) However just when I decided glossy, looking at that the nano seems like a no brainer compared to the almost mirror on the left! Arghhhhh...


Fali1991

macrumors member
Oct 30, 2019
67
42

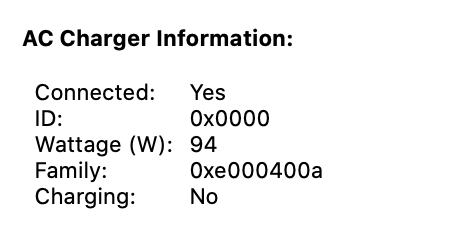

My apologies if you mentioned this already, but does it charge the MBP 16 perfectly even while exerting a lot of CPU power?


Aboo

macrumors 6502a
Jul 7, 2008
798
24
Thanks SOO much for the video :) However just when I decided glossy, looking at that the nano seems like a no brainer compared to the almost mirror on the left! Arghhhhh...
More info can often make decisions harder haha!

Having been in your exact position, I literally flew 1300 miles to check out these two displays in person, lol.

I ultimately decided on standard glass mainly because the text appears sharper and the colors more vivid. The reflections can be managed with appropriate positioning of the monitor and if you can control the lighting in your environment.


wa5655

macrumors member
Jun 12, 2010
57
3
Any of your owners know if it is possible to do hardware calibration on the display? Thanks!


MacBookPro.User

Cancelled
Apr 7, 2011
8
1
Hello,

Would someone be able to measure the dimensions and tell me the shipping weight for the Apple Pro Display XDR including the shipping box? I am thinking of purchasing one and would like to know if I can manage it and fit it in my car.

Thanks!


AdamSeen

macrumors regular
Jun 5, 2013
150
114
I don't have any USB A to USB C adapters so I haven't been able to actually test this yet (will be able to tomorrow) but what I've learned scouring other threads/documents is that the USB C ports on the back of the Pro Display actually support USB 3.1 speeds when the display is connected to the 16" MBP, but not when the display is connected to the Mac Pro (they only support USB 2.0 speeds there).

My understanding is this has something to do with Display Stream Compression being used on the 16" MBP but not by the Mac Pro? If anyone knows more about this please share and I'll update this post 👍🏻
It‘s down to the graphics card on the Mac Pro, whether the XDR display can support higher speeds. The 580, Vega and Vega Duo are older so doesn’t support DSC. Because of this it uses almost all the bandwidth over the cable. The w5700x supports DSC and should be able to get USB 3.1 speeds.

580, Vega, Vega Duo = USB 2
w5700x = USB 3

Edit: Updated with new info

Last edited:

straightMacin

macrumors member
Dec 6, 2019
42
32
Hello,

Would someone be able to measure the dimensions and tell me the shipping weight for the Apple Pro Display XDR including the shipping box? I am thinking of purchasing one and would like to know if I can manage it and fit it in my car.

Thanks!
Shipping Weight: 36.3 lbs (16.5 kg)

Outer Box Dimensions: 38 x 27 x 8.7 inches (97 x 69 x 22cm)

Inner Box Weight (without monitor): 12.3 lbs (5.6kg)

Inner Box Dimensions: 34 x 22 x 4.5 inches (86 x 56 x 11.5cm)


kid2010

macrumors regular
Sep 12, 2013
107
51
It‘s down to the graphics card on the Mac Pro, whether the XDR display can support higher speeds. The 580 is older so doesn’t support DSC. Because of this it uses almost all the bandwidth over the cable. Everything else supports DSC and can get USB 3.1 speeds.

580 = USB 2
Vega, w5700, Vega Duo = USB 3
I'm connecting the display to a Vega II, but the hub behind the display can only achieve USB 2.0 speed...


AdamSeen

macrumors regular
Jun 5, 2013
150
114
I'm connecting the display to a Vega II, but the hub behind the display can only achieve USB 2.0 speed...
I may be mistaken. I heard the info from accidental tech podcast. Looking at the XDR page, at the bottom it says For the 16-inch MacBook Pro, USB‑C ports have USB 3.1 Gen 1 data transfer speeds. I wonder what it could be. Some slightly newer thunderbolt controller perhaps?


Adult80HD

macrumors 6502
Nov 19, 2019
277
277
I have the nano version because I really hate reflections. If you are sitting *really* close to the display you can see the nano scattering makes the text slightly less sharp, but when you're at a normal working distance, that's not noticeable at all. Unlike one of the YouTube previews I saw, I don't see any significant darkening at the edges when I view it at an angle. Like @adamwathan I was surprised you couldn't adjust the brightness on any but two of the profiles; on a few of the profiles it makes no sense that you can't adjust the brightness IMO, and the default brightness in those profiles is a bit dim. I wonder if this is something that will be updated/changed later in software?

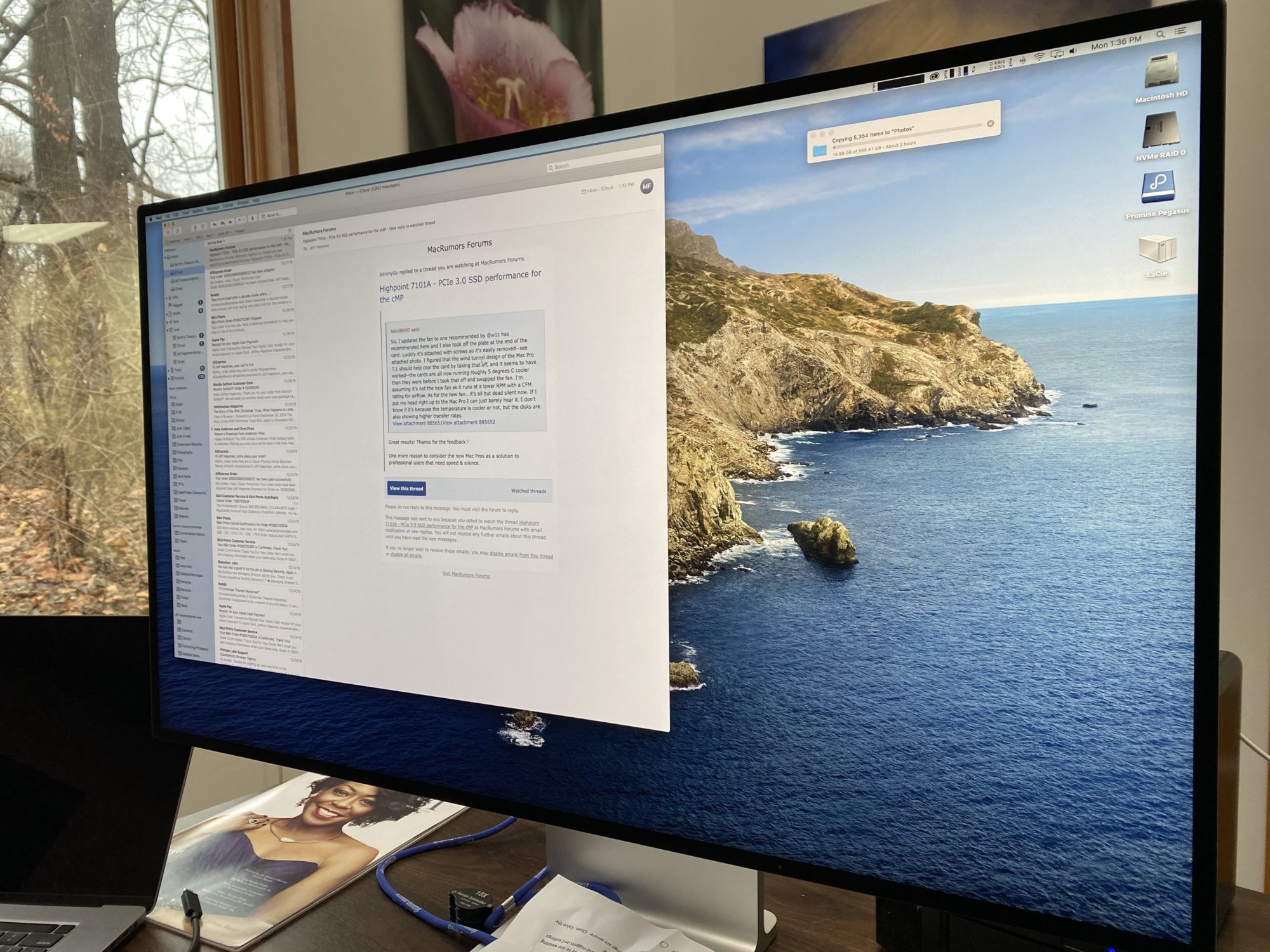

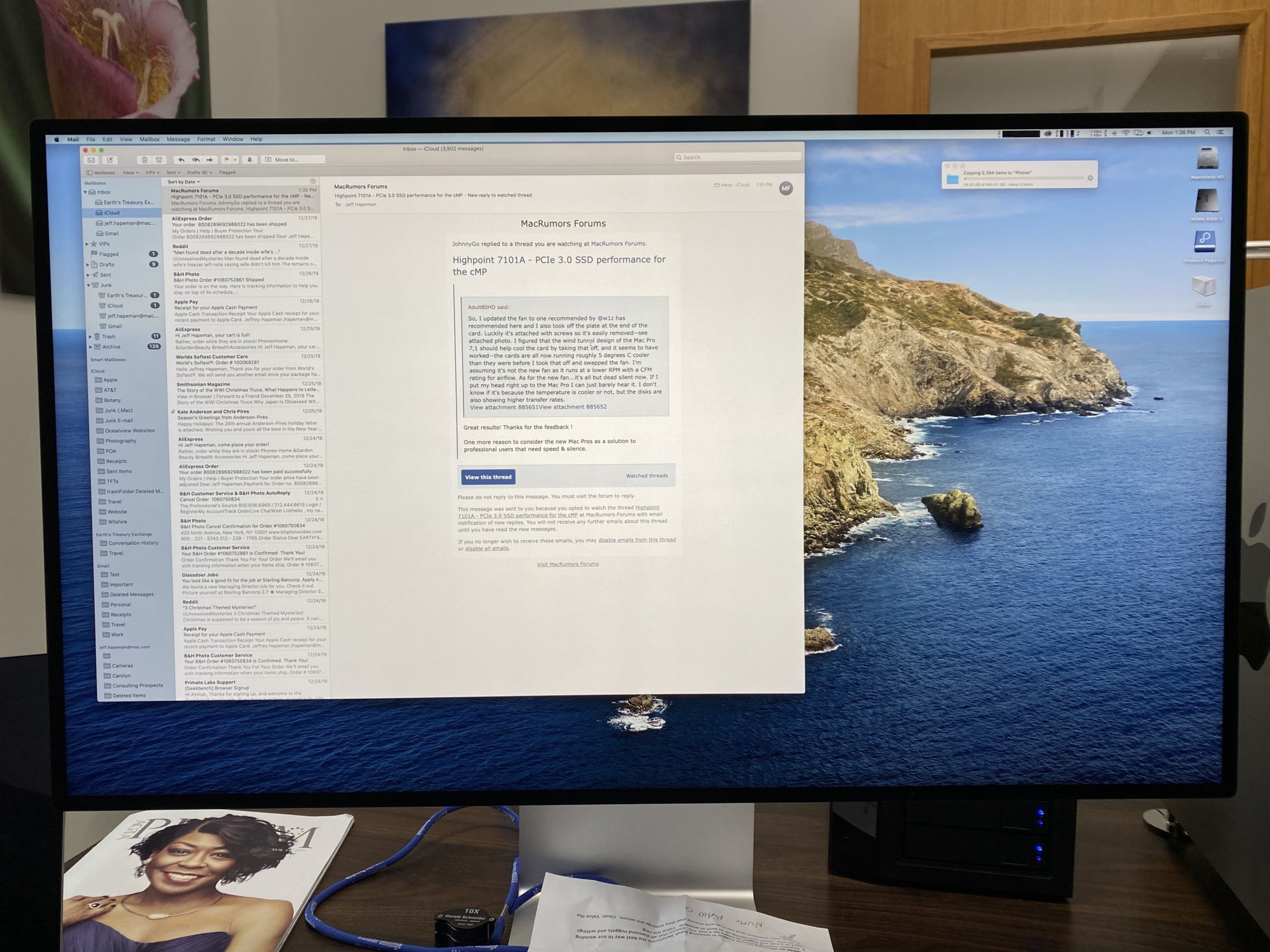

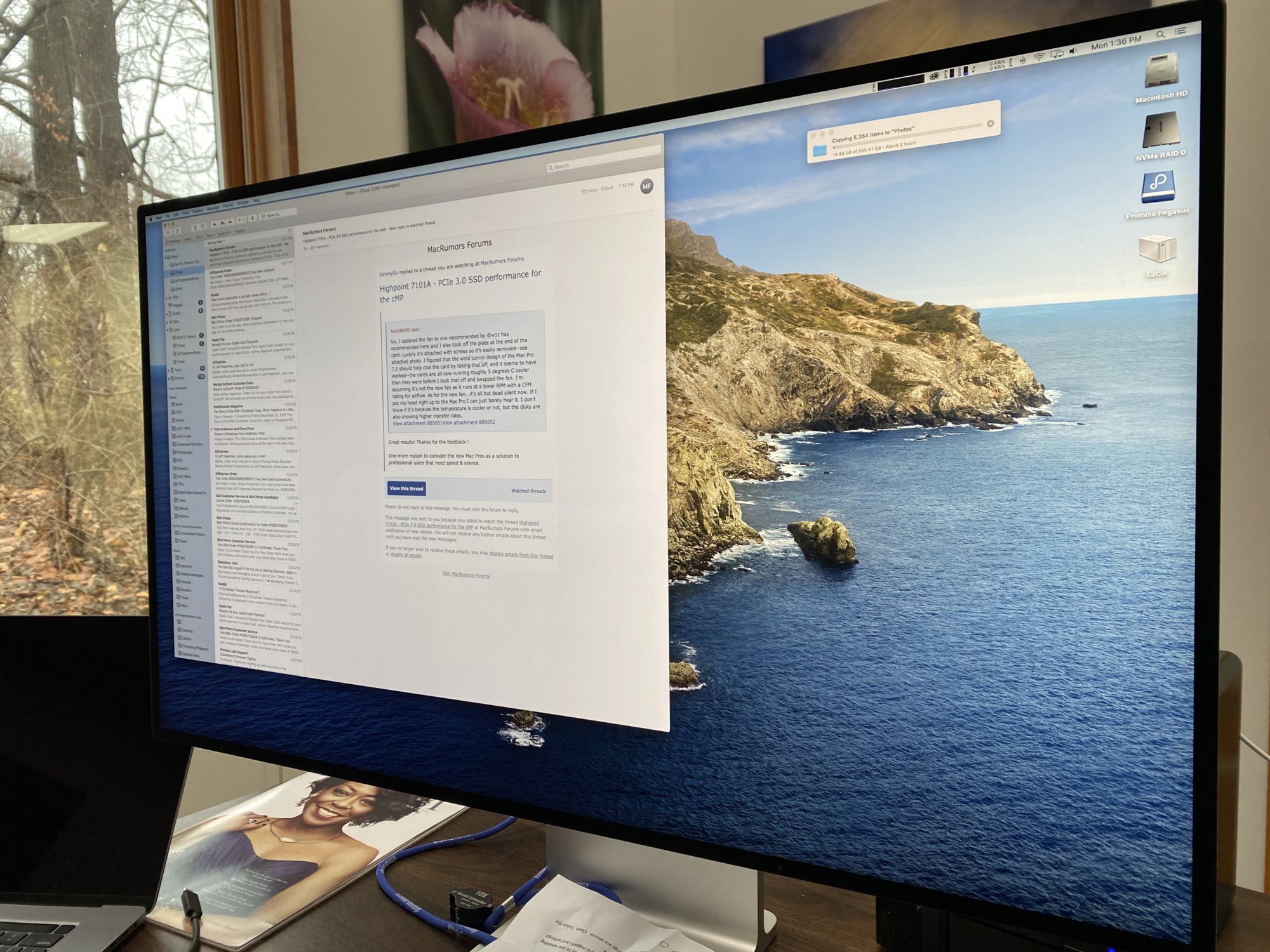

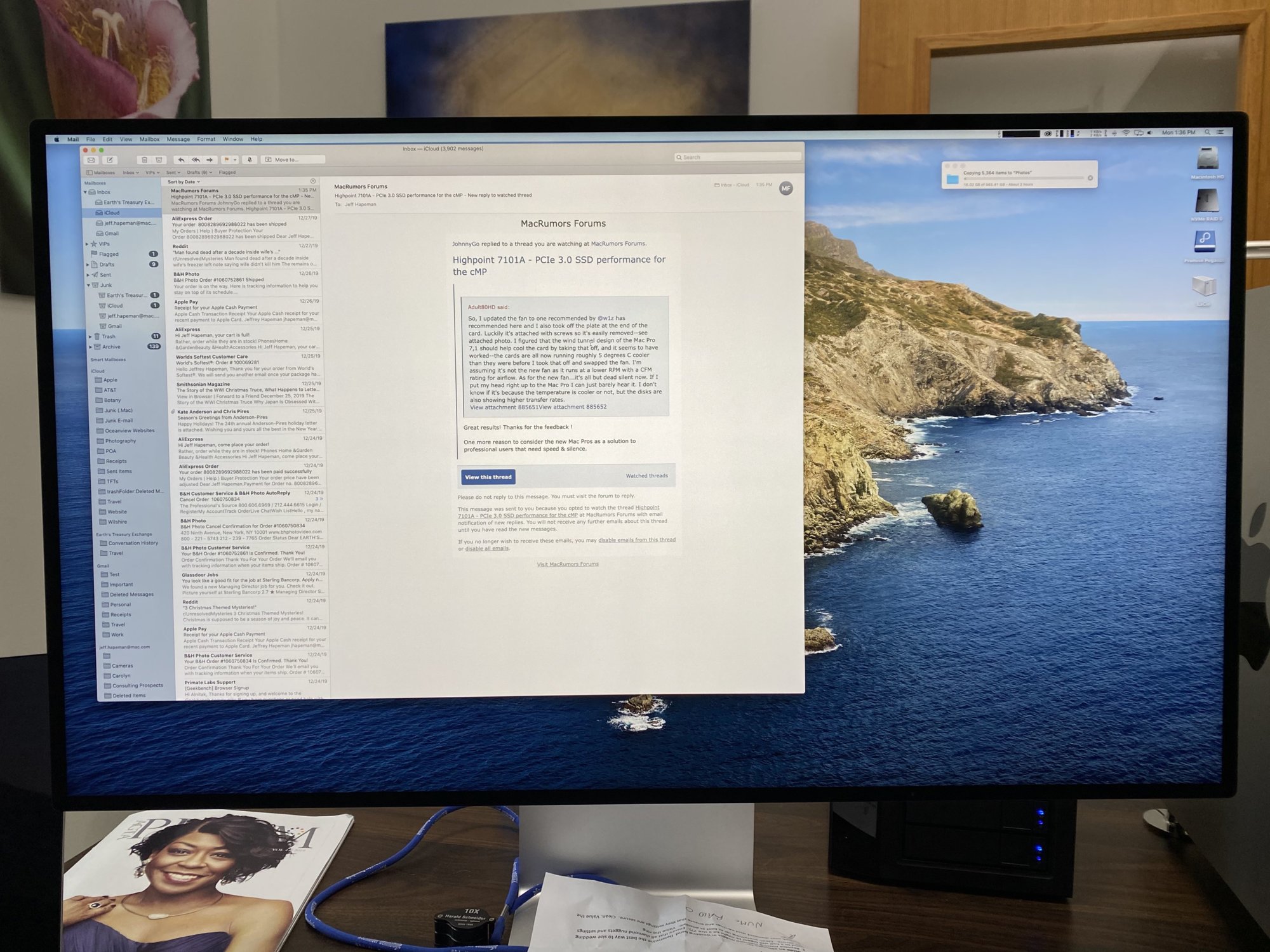

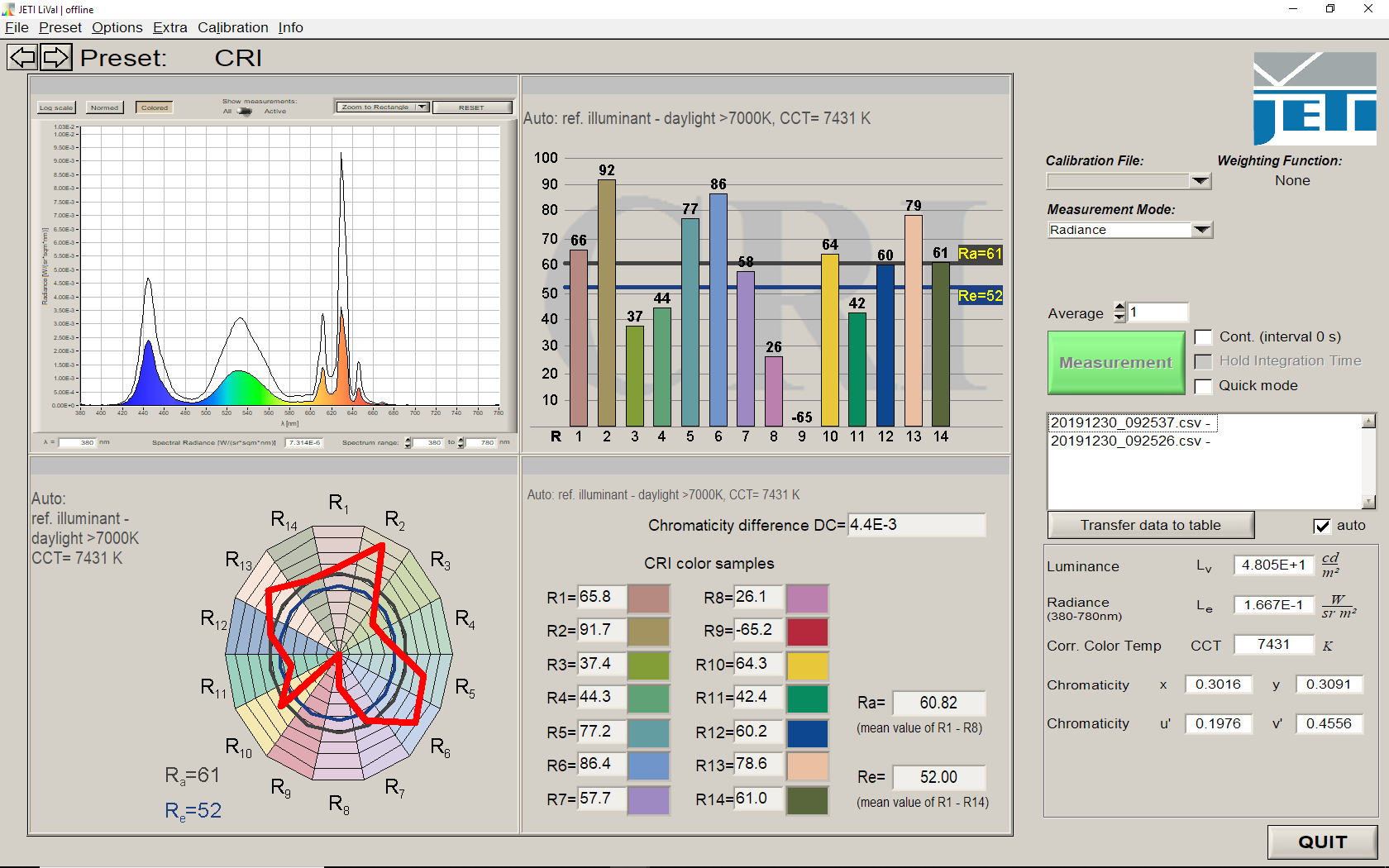

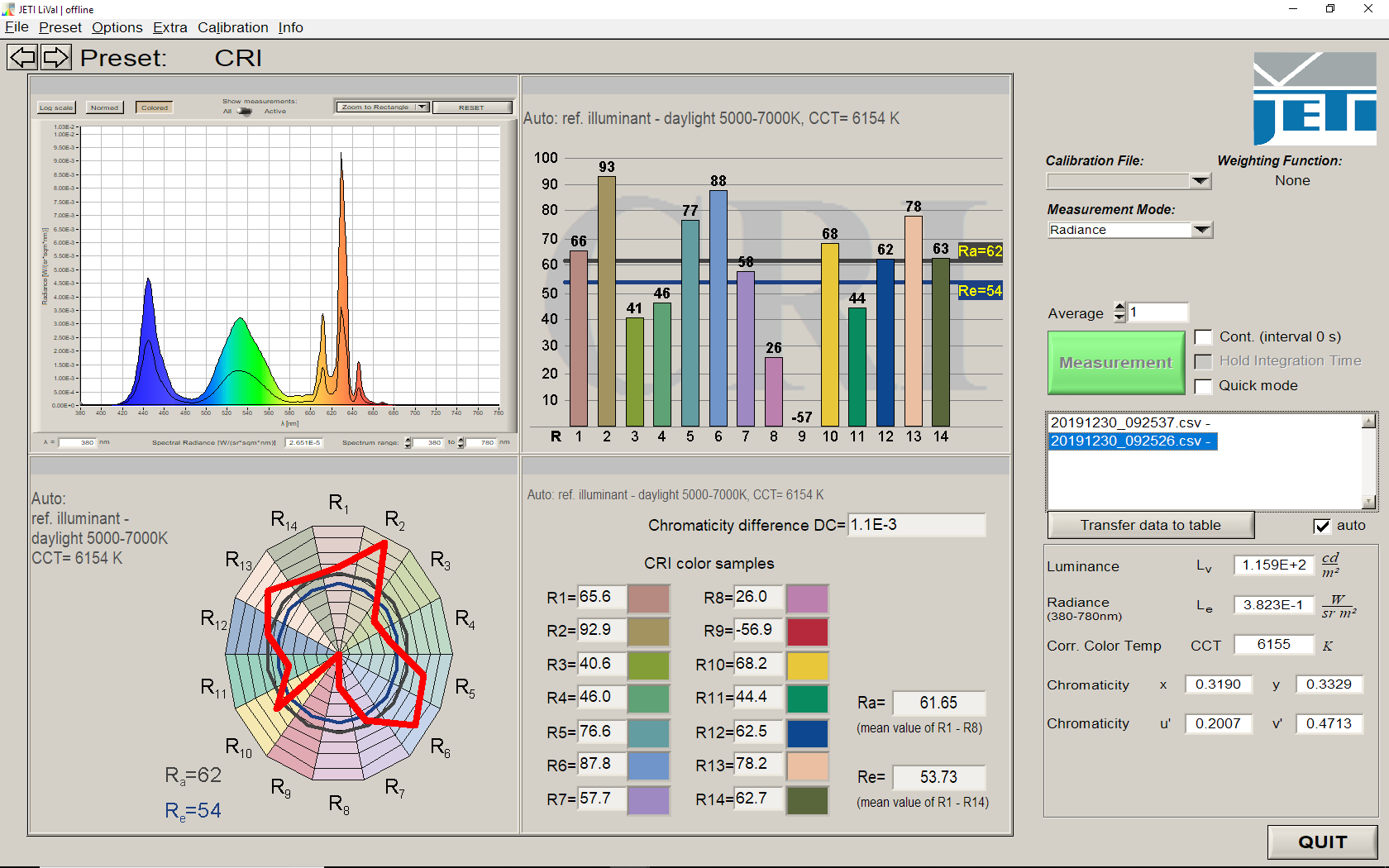

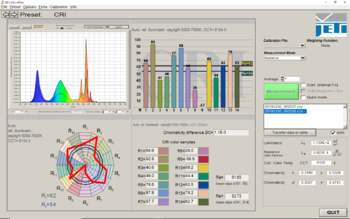

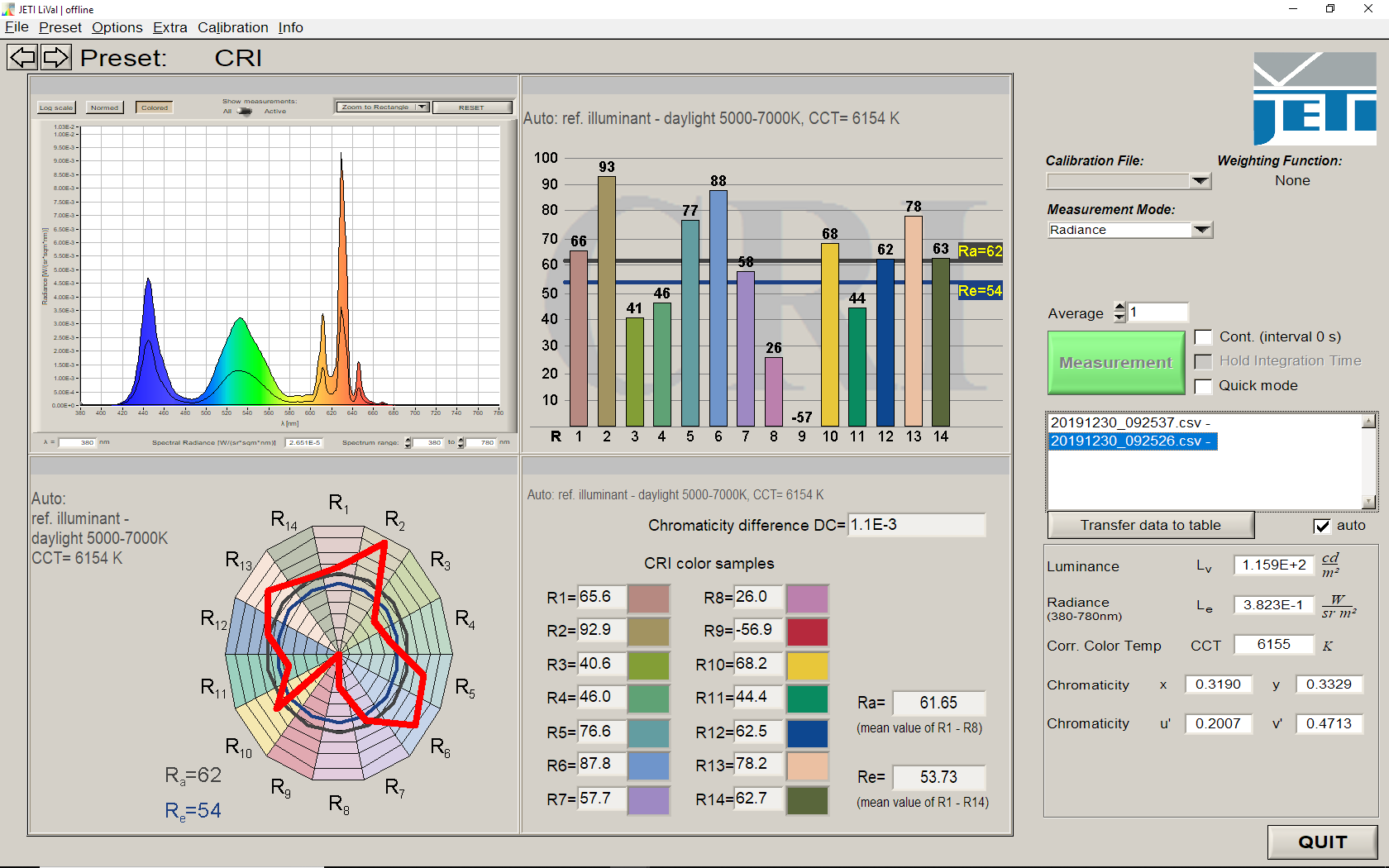

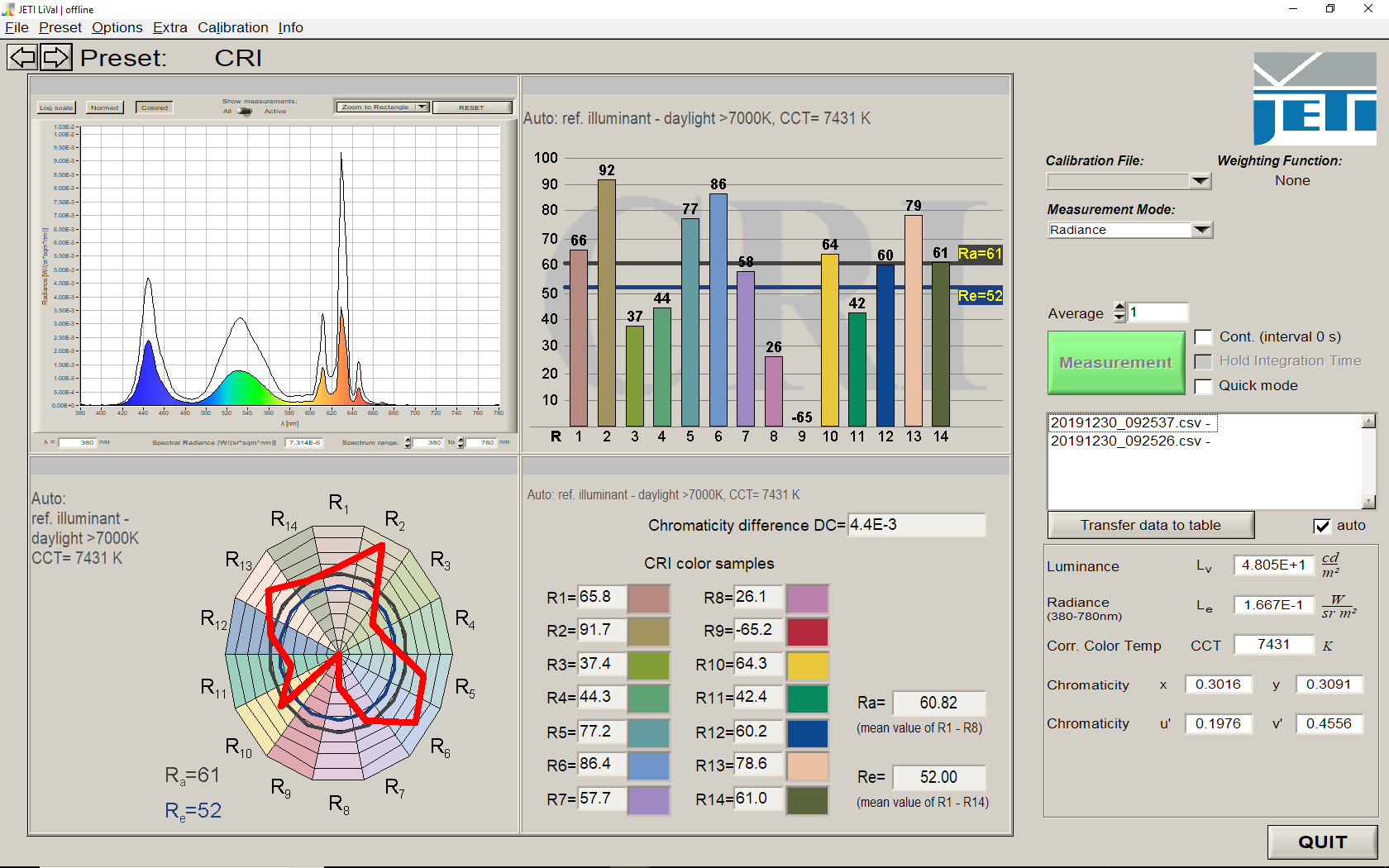

Photos are head on and at about a 45-degree angle. The brightness and uniformity is excellent even way off-axis.

IMG_0941.jpeg IMG_0942.jpeg

  • Like
Reactions: gugy

joevt

macrumors 6502a
Jun 21, 2012
800
395
There's a command at /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose which might be for the Apple Pro Display XDR.

I don't have an XDR display so it doesn't do anything for me
Code:
joevt@Joes-Mac-Pro ~ % /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose -h
/System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose: [hapf]
    -h                            get help
    -a                            get display diagnose data
    -p                            parse display diagnose file
    -f                            enable file IO
joevt@Joes-Mac-Pro ~ % /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose -a
joevt@Joes-Mac-Pro ~ % /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose -f
Created file for display diagnose logging -  /tmp/DisplayDiagnose_2019-12-30_17-38-52.txt
joevt@Joes-Mac-Pro ~ % /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/DisplayDiagnose -a
joevt@Joes-Mac-Pro ~ %


chfilm

macrumors 68030
Nov 15, 2012
2,773
1,523
Berlin
I'm connecting the display to a Vega II, but the hub behind the display can only achieve USB 2.0 speed...
As far as I know, the Vega II doesn’t have this Display stream compression- that’s why you can actually drive more XDR displays on a WX5700 than on a Vega II! Very disappointing.
Yet another reason I maybe should’ve waited for the WX5700...


AdamSeen

macrumors regular
Jun 5, 2013
150
114
It‘s down to the graphics card on the Mac Pro, whether the XDR display can support higher speeds. The 580, Vega and Vega Duo are older so doesn’t support DSC. Because of this it uses almost all the bandwidth over the cable. The w5700x supports DSC and should be able to get USB 3.1 speeds.

580, Vega, Vega Duo = USB 2
w5700x = USB 3

Edit: Updated with new info

As far as I know, the Vega II doesn’t have this Display stream compression- that’s why you can actually drive more XDR displays on a WX5700 than on a Vega II! Very disappointing.
Yet another reason I maybe should’ve waited for the WX5700...
Aha, I think that's also why it's USB 2.0 for those cards. I didn't realise those cards don't support DSC: https://www.apple.com/uk/mac-pro/specs/

Therefore, I'd expect the w5700x to support USB 3 speeds. We'll find out for sure, soon.
