This will make you cry, accident Mac Pro mid 2012

Discussion in 'Mac Pro' started by VillasManzanill, Mar 25, 2015.

  1. VillasManzanill, Mar 25, 2015
    Last edited: Mar 25, 2015

    VillasManzanill macrumors member

    Joined:
    Mar 7, 2012
    #1

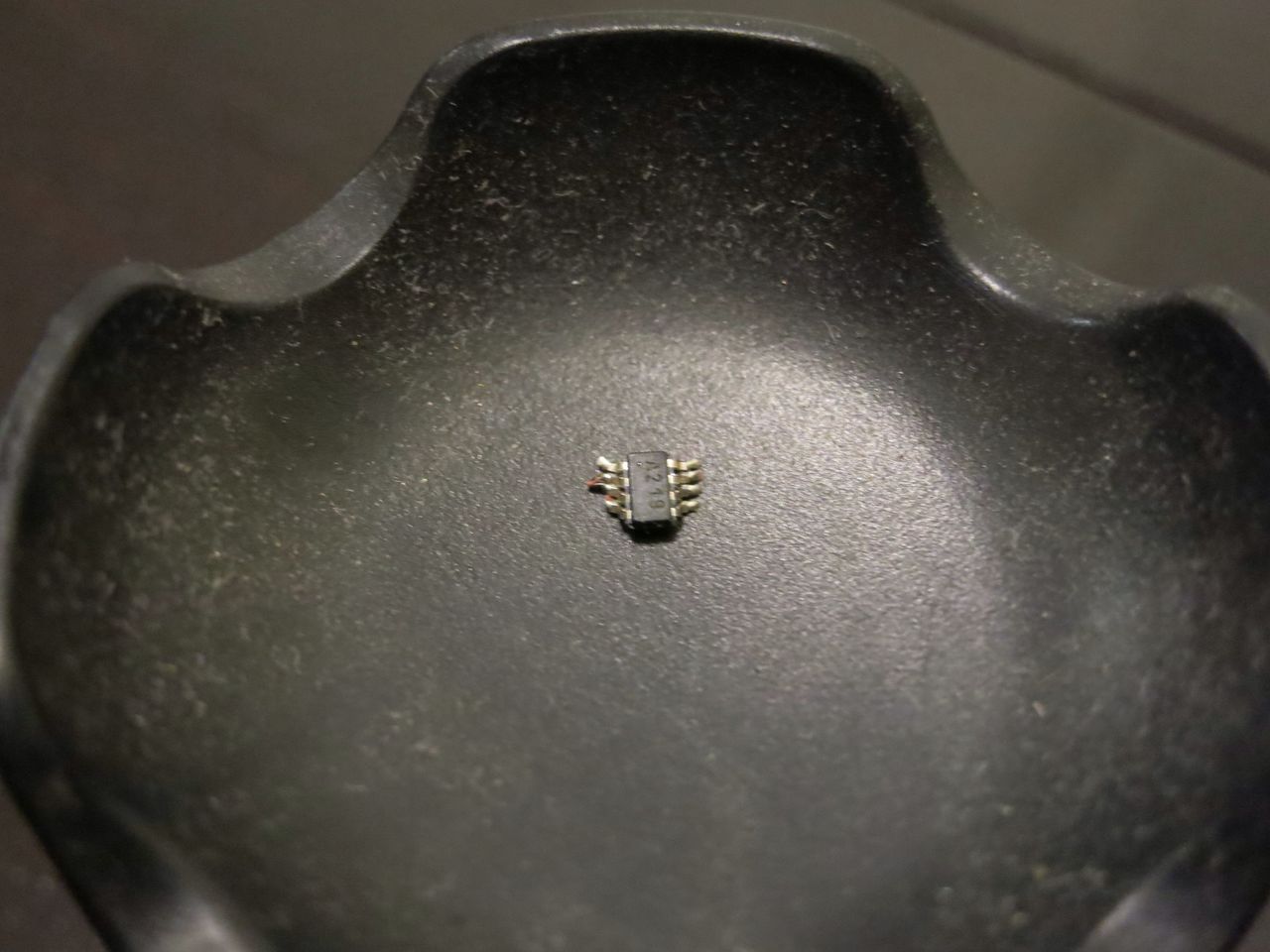

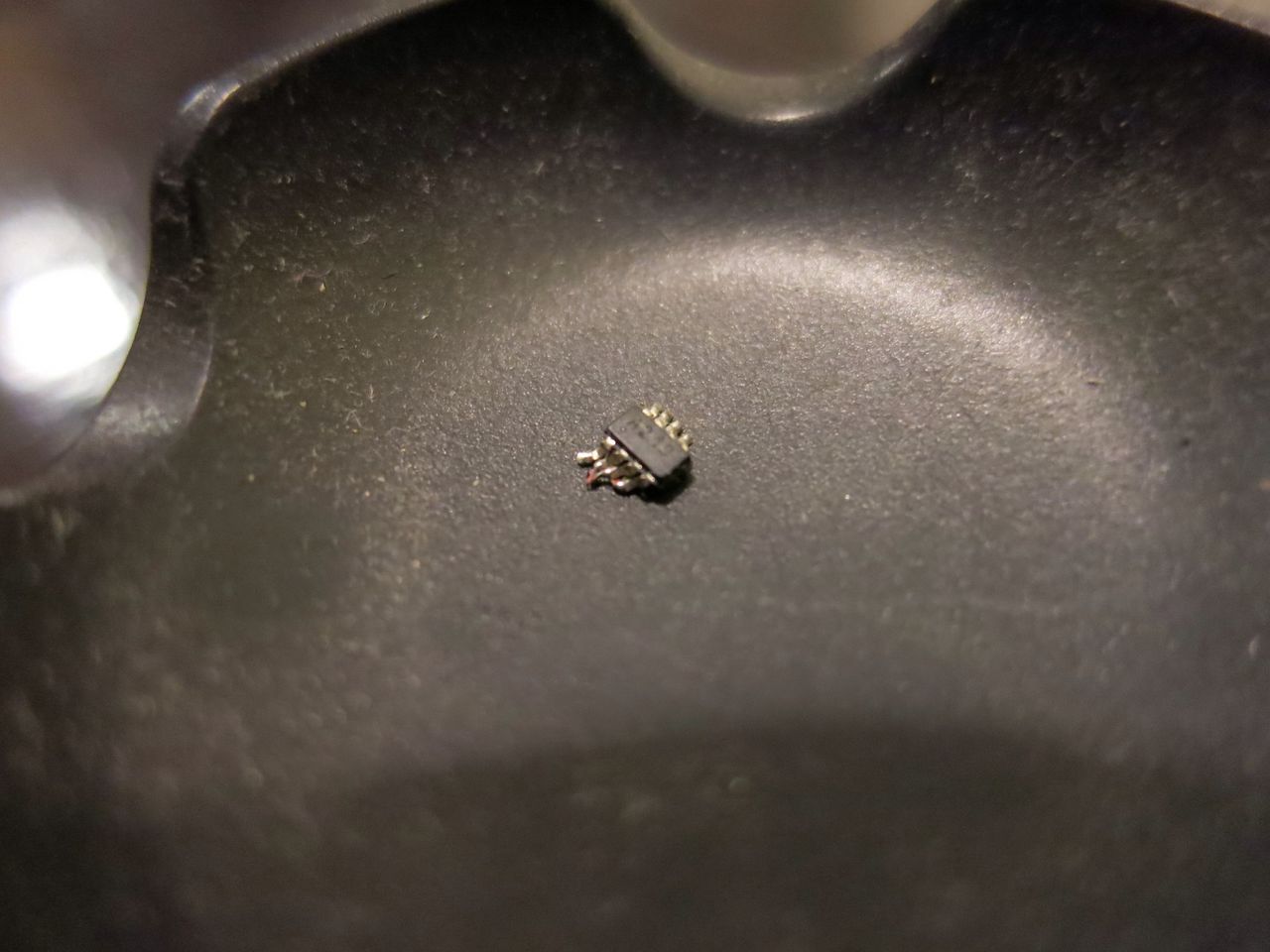

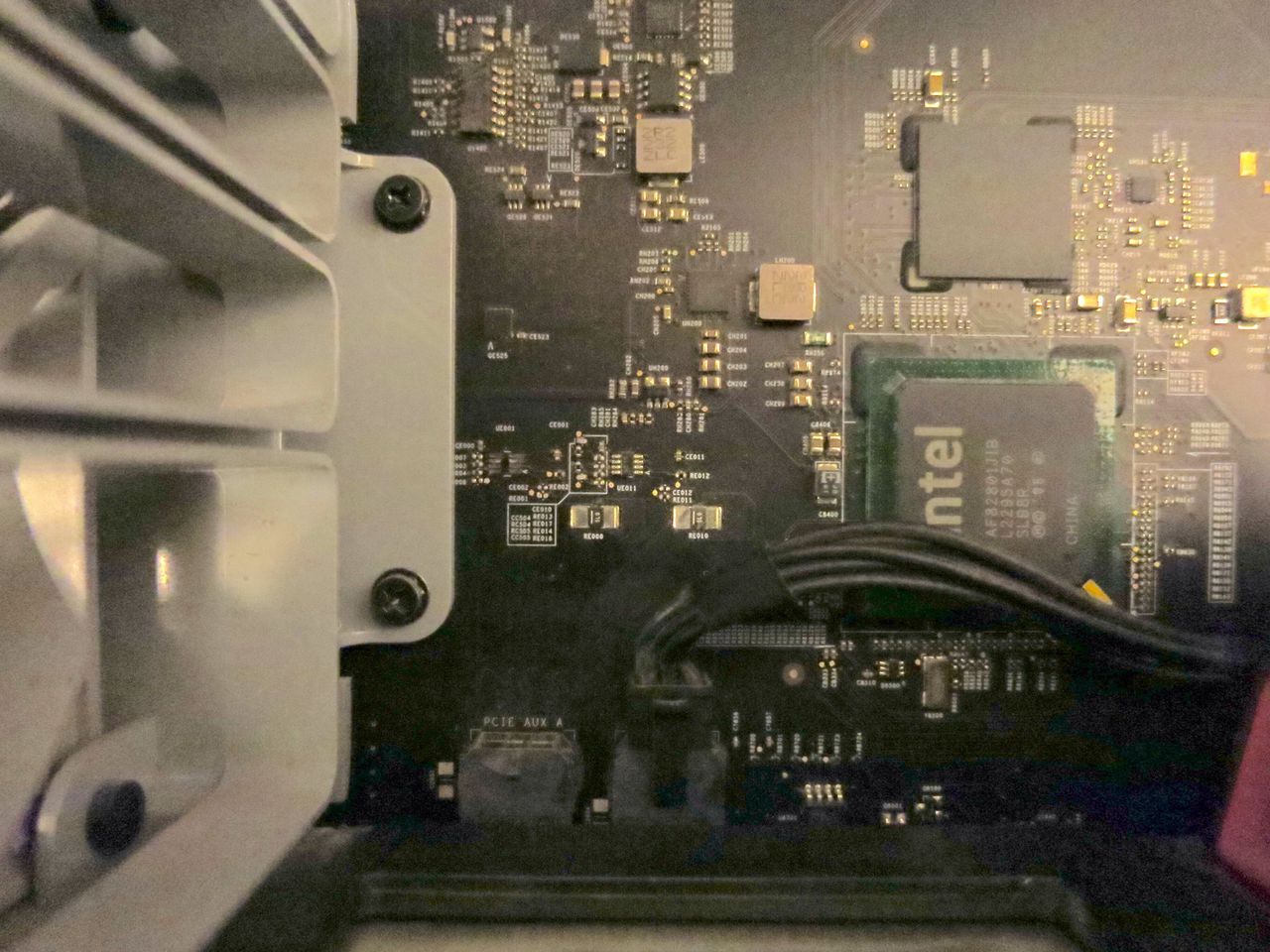

    I was trying to unplug the pcie gpu cable from the back plane and It was kinda stuck (I didn't press hard enough the release tab) so when I was able to actually pull it out a little chip (VE001) that it's immediately above the plug just flew out of my back plane.

    I tough for sure my Mac will not turn on or that once it turns on it will start smoking, to my surspire it did turn on and runs like normal

    So I'm wondering what should I do
    Just let it be
    Or try to glue it back (soldering it)

    Or what you guys think

    What's that little chip for?
    I have a dmg image of the asd for my mid 2012 but it seems that it's missing the Efi dmg image so I can't boot to diagnose my Mac. Do you have a copy?

    I'm planning to install a second gpu r9 280x
    So I wonder if I should stop that?

    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  2. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #2
    It's a voltage controller.
    MP will run normally as long as you won't connect power cable to 1st connector. If you'll do that, computer won't start. So ask yourself if it needs to be fitted back into place or not ;)

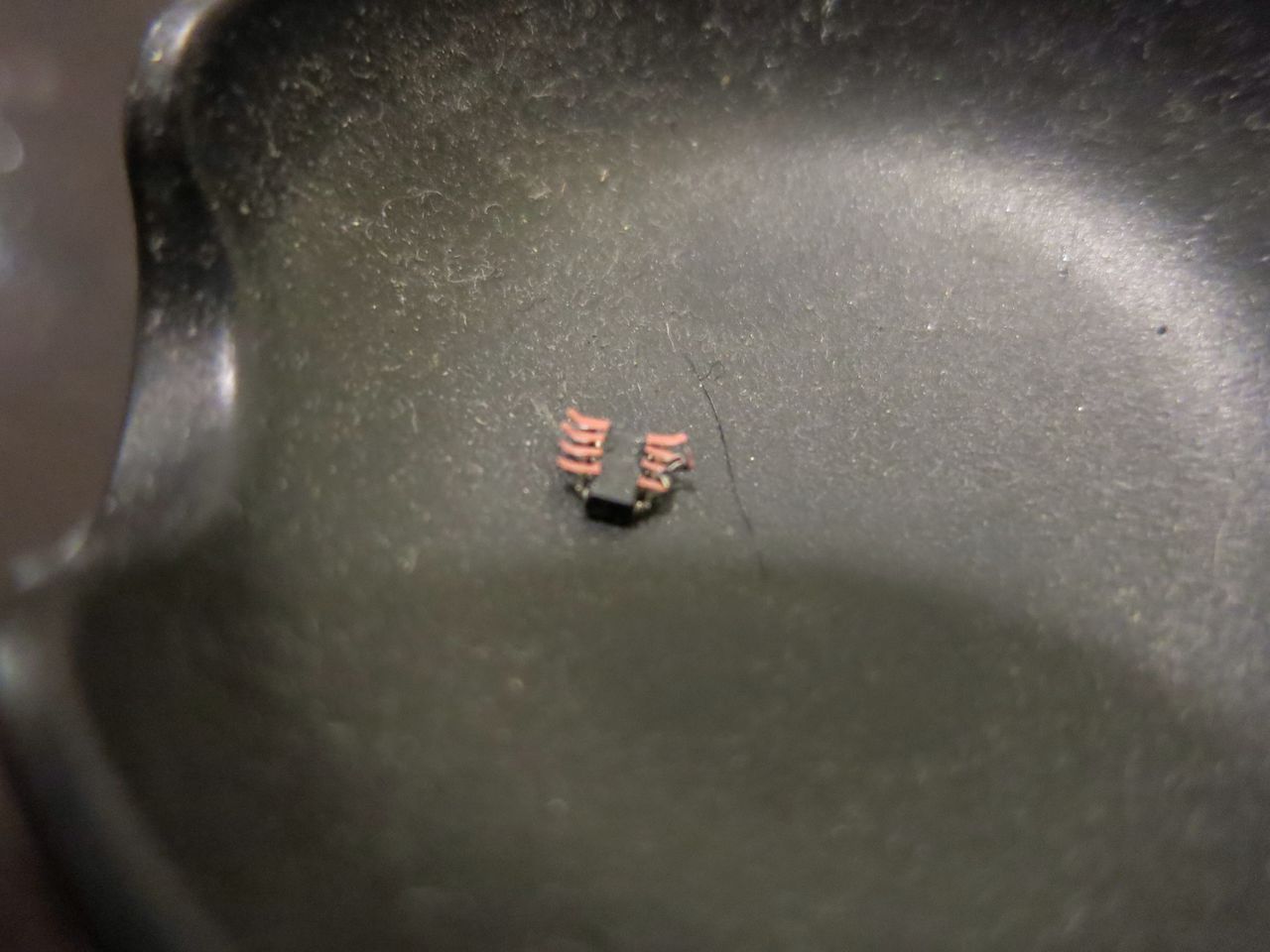

    BTW, you broke solder pads off of the board.

  3. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #3
    I had the wire plugged in the first port and It worked fine I moved it to the second one to take the picture

  4. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #4
    But was it connected to the card? One which I bought damaged in a such way, didn't want to start when GPU was feeded from the connector with missing regulator.

  5. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #5
    Very hard to fix. As long as part of trace can be located it may be possible. Sometimes they stop on top level and a little rivet looking spot takes the connection to a lower layer of PCB, if there is no metal to connect to then it is not fixable.

    Probably easier to get a 2nd PSU for GPUs that fits in optical bay.

  6. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #6
    666sheep we need your mod for the psu so I'm able to plug it directly pleasseeeee

    So far it's working
    Hope that when I plug the r9280x nothing happens

  7. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #7
    You guys shouldn't keep bugging him.

    He has literally told you everything you need to know, bust out a voltmeter, soldering gun and some heat shrink tubing and be done with it. It isn't brain surgery.

  8. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #8
    does any one know if thats correct that the chip its a voltage controller?

  9. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #9
    you can answer this yourself

    google the part number on it

  10. dmylrea macrumors 68000

    dmylrea

    Joined:
    Sep 27, 2005
    #10
    I suppose you don't realize there are people in the world that don't have the knowledge you have yourself? Most people have no clue how to properly use a soldering IRON (a gun would be too much heat) or attempt such a repair.

    Changing the oil in my car isn't brain surgery either, but I choose to take it somewhere to have it done instead of investing in the tools to do it myself.

    Give the guy a break!

  11. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #11
    you are missing what i was referring too

    several people have been asking sheep666 to write a guide to do a PSU mod

    he has made it clear that once you open it up you will either know how to do it easily or it is beyond you

    THAT is what I was referring too.

    I don't think 99.9% of the world should or could attempt to fix that SOIC-8 chip

    I am only well versed in that repair as a result of replacing a few thousand EEPROM chips which are identical. I have lifted a few traces in my time and know that repair is NOT for a beginner at all

    sorry if you were not aware of actual conversation

    my point on PSU mod is that if you are capable of doing it, it will be obvious and no "how to" is needed, if you aren't capable, a how to won't help

  12. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #12
    Im pretty sure that if there is a how to do it with pictures a lot of people will be able to do it. Including myself.

    in fact i think it will be very good for macvidcards to do the guid since you need people to have more juice for the video cards. thats only my opinion tho. hope no one gets offended.

    ----------

    By the way, i found someone in a big city near me that can do the soldering (rework) of my mac pro chip for 10 USD hope it works ill report back when i get it done

    http://reparacion-mantenimiento.mer...mac-macbook-pro-air-retina-tarjeta-logica-_JM

    http://tarjetasmadre.com.mx/inicio/...-macbook-pro-white-air-todos-los-modelos.html

  13. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
  14. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #14
    in mexico some things are dirt cheap
    some others not so much

  15. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #15
    Do they know you've pulled up all 8 pads?

    Not trifling work.
