Time Machine Question

LarryJoe33

macrumors 68000
Original poster
Jul 17, 2017
1,843
604
Boston
I am new to Time Machine. I have never used it as I use CCC to image my system and have liked the boot feature Time Machine doesn't have. However, I have read articles that say both processes have their pluses and minuses. I would like to try Time Machine.

I have an external drive that only has my most recent CCC backup. I have space on this drive for Time Machine. Can I have both on the same drive? Can I put Time Machine backup in a Folder instead of the root and would it work to restore if I did this?


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,177
9,860
California
Can I put Time Machine backup in a Folder instead of the root and would it work to restore if I did this?
You don't want to do that because CCC will overwrite it. Just add a second partition to the external drive and use one partition for CCC and the other for TM.

Although this will work just fine, it is not as good as having a separate drive for each since if the one drive fails you have lost both your backups.

  • Like
Reactions: Gav2k

LarryJoe33

macrumors 68000
Original poster
Jul 17, 2017
1,843
604
Boston
You don't want to do that because CCC will overwrite it. Just add a second partition to the external drive and use one partition for CCC and the other for TM.

Although this will work just fine, it is not as good as having a separate drive for each since if the one drive fails you have lost both your backups.
Thank you. Makes sense. Problem is a use a 256gb thumb drive and I don’t think I can partition it?

  • Like
Reactions: Weaselboy

Crash0veride

macrumors regular
Oct 10, 2016
179
89
Cincinnati
Sure... you can partition a thumb drive just like any other drive. This link shows you how.
Not always true, just FYI. Sometimes on thumb drives you can't re-partition an already partitioned drive. I've noticed it on ones I formatted that are missing an EFI partition. You might be able to fix this with terminal, I haven't had luck. I had this problem the other day trying to create a "clover" FAT32 partition to a thumb missing an EFI, but I couldn't add any partitions or resize in disk utility.


Weaselboy

Moderator
Staff member
Jan 23, 2005
30,177
9,860
California
Not always true, just FYI. Sometimes on thumb drives you can't re-partition an already partitioned drive. I've noticed it on ones I formatted that are missing an EFI partition. You might be able to fix this with terminal, I haven't had luck. I had this problem the other day trying to create a "clover" FAT32 partition to a thumb missing an EFI, but I couldn't add any partitions or resize in disk utility.
You cannot resize a FAT32 partition in Disk Utility, but you can resize a HFS+ partition and that is what I am assuming OP is using.


Crash0veride

macrumors regular
Oct 10, 2016
179
89
Cincinnati
You cannot resize a FAT32 partition in Disk Utility, but you can resize a HFS+ partition and that is what I am assuming OP is using.
I was resizing, adding to a HFS+, I just happened to be trying to make room for a FAT32 to add. I couldn't hit the partition button at all in Disk Utility, to add any partition - FAT32 or otherwise.

Edit:
I didn’t see an option to partition it with disk Utility. That would be ideal, having a CCC and TM partitions.
Does diskutil list show an EFI partition for the thumb or no? Just curious for my own partition understanding.

Last edited:

LarryJoe33

macrumors 68000
Original poster
Jul 17, 2017
1,843
604
Boston
I was resizing, adding to a HFS+, I just happened to be trying to make room for a FAT32 to add. I couldn't hit the partition button at all in Disk Utility, to add any partition - FAT32 or otherwise.

Edit:

Does diskutil list show an EFI partition for the thumb or no? Just curious for my own partition understanding.

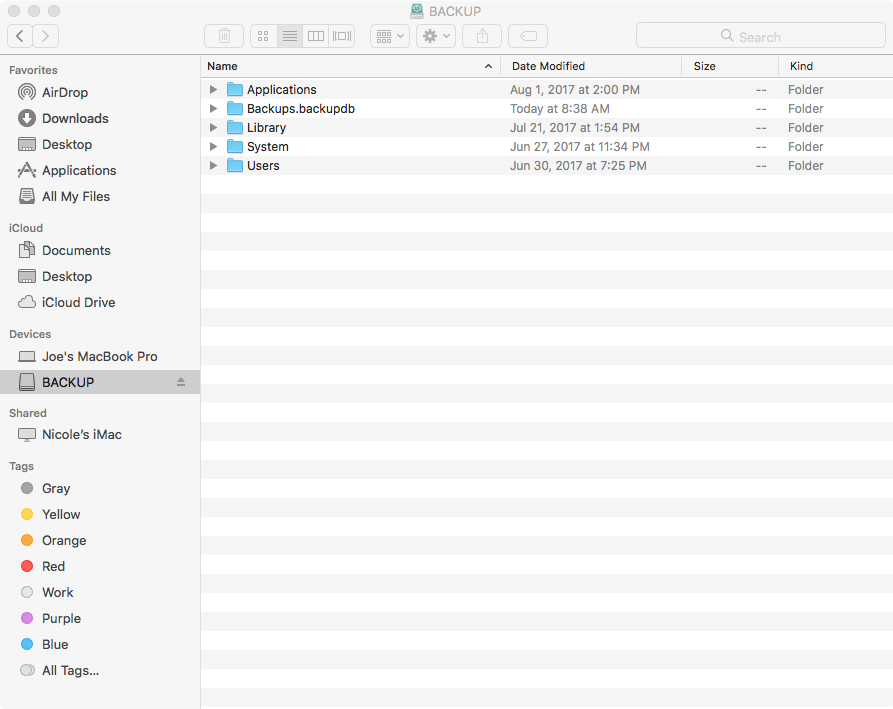

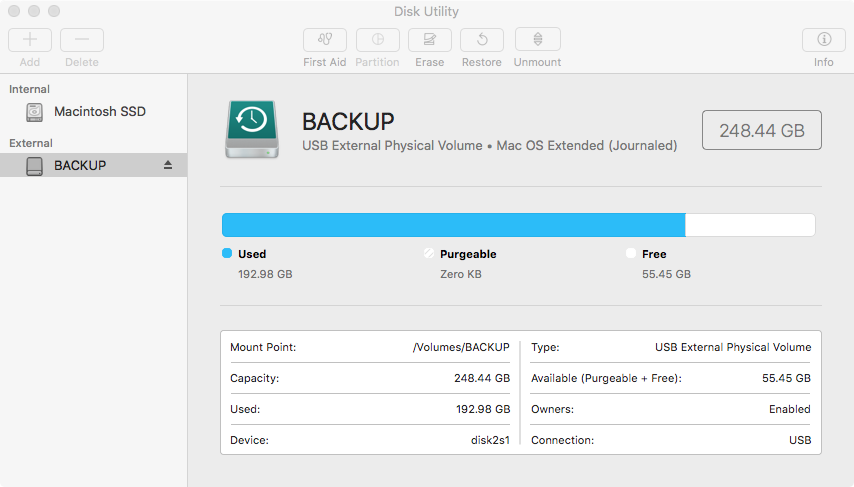

I did two straight backups to the flash drive without creating partitions (started them before posting this). I am guessing the backup folder below is TM (today) and the other four folders are CCC (yesterday). Hope this helps.

Finder Flash.png
USB Flash.png


Crash0veride

macrumors regular
Oct 10, 2016
179
89
Cincinnati
I did two straight backups to the flash drive without creating partitions (started them before posting this). I am guessing the backup folder below is TM (today) and the other four folders are CCC (yesterday). Hope this helps.
I actually just saw the terminal read out in your other APFS/HDD posts too. I think you can't resize it because you CCCed a partition over the whole disk, not a partition. I had the problem when I used the terminal createinstallmedia command to make a usb stick over the whole disk and not a partition. It seems to correlate to a lack of EFI, as your terminal read out didn't have one either, but that may be coincidence.

Also I've used time machine from a disk with other files. Time machine works, but if you tried to CCC it back it would waste a bunch of time copying your time machine files too.


LarryJoe33

macrumors 68000
Original poster
Jul 17, 2017
1,843
604
Boston
Funny I was just about to post that all seems fine with one partition and CCC/TM sharing it but I had a feeling a restore from CCC would copy everything, essentially double. I see the need for two partitions but you are correct, I can't do it now. Can I reformat and do this?
[doublepost=1501799329][/doublepost]I erased it and it does not appear I can partition it. Grayed out. Sucks, I had a CCC and a TM backup on it which took about 6 hours combined, but no big deal, I love playing around. Wish I could partition it.


Crash0veride

macrumors regular
Oct 10, 2016
179
89
Cincinnati
I erased it and it does not appear I can partition it. Grayed out. Sucks, I had a CCC and a TM backup on it which took about 6 hours combined, but no big deal, I love playing around. Wish I could partition it.
I had that problem but you can use terminal to fix this:
diskutil partitionDisk /dev/diskX GPT JHFS+ New 0b

replace X in the command with the disk number of the flash drive found in the "diskutil list" command. I pulled that command from this article when I fixed mine: http://www.theinstructional.com/guides/disk-management-from-the-command-line-part-2 . I used some variant of it. I think I either didn't use or used something other than "0b."'

you may have to use: "sudo umount /dev/diskX" first or unmount it in disk utility.

Then try partitioning it/resizing it. I would definitely split the drive before using CCC.


LarryJoe33

macrumors 68000
Original poster
Jul 17, 2017
1,843
604
Boston
I had that problem but you can use terminal to fix this:
diskutil partitionDisk /dev/diskX GPT JHFS+ New 0b

replace X in the command with the disk number of the flash drive found in the "diskutil list" command. I pulled that command from this article when I fixed mine: http://www.theinstructional.com/guides/disk-management-from-the-command-line-part-2 . I used some variant of it. I think I either didn't use or used something other than "0b."'

you may have to use: "sudo umount /dev/diskX" first or unmount it in disk utility.

Then try partitioning it/resizing it. I would definitely split the drive before using CCC.

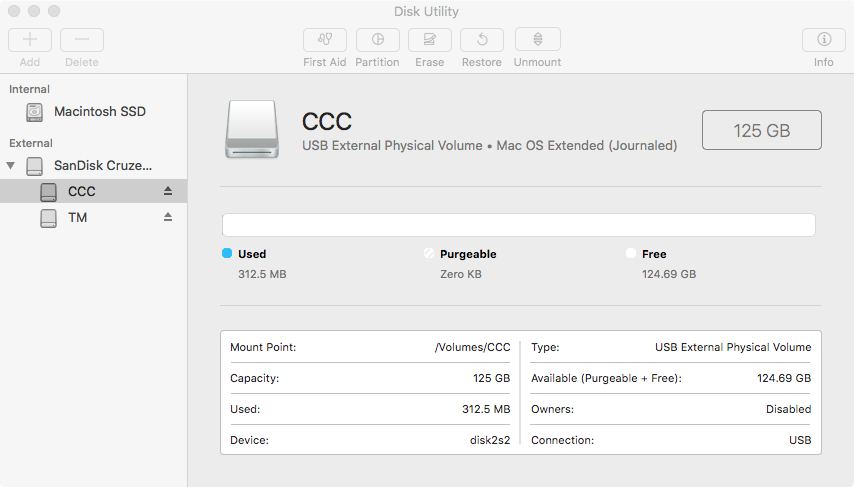

You are the man! Thank you. It worked:

Two Partitions.png

  • Like
Reactions: Crash0veride
