Tips installing Lion on SSD?

Discussion in 'Mac Pro' started by kirkbross, Jul 20, 2011.

  1. kirkbross macrumors 6502a

    kirkbross

    Joined:
    Mar 6, 2007
    Location:
    Los Angeles
    #1
    I just bought a 120GB Vertex 2 and am downloading Lion now. Two questions:

    1. Can I put the SSD in my early 2008 Mac Pro as a 5th drive -- connect it to one of the two extra SATA ports on the mobo AND get a SATA power connector off the main rail? (I have some molex>SATA converters I think).

    2. Any tips for preparing an SSD for Lion?

  2. TA031 macrumors newbie

    Joined:
    Jul 19, 2011
  3. smchan macrumors member

    Joined:
    Jul 22, 2008
    #3
    I'm trying to do a fresh install of Lion on a SSD RAID0. It appears it's not going to work. Lion is hanging on the "checking disks" dialog.

    A little googling suggests SSD RAID is not supported - but I've yet to find an official statement from Apple.

    Sam

  4. xgman macrumors 601

    xgman

    Joined:
    Aug 6, 2007
    #4
    can you install it to a single drive and then clone it over to your raid setup somehow?

  5. kirkbross thread starter macrumors 6502a

    kirkbross

    Joined:
    Mar 6, 2007
    Location:
    Los Angeles
    #5
    So I installed Lion on my Vertex 2... everything is fine. I'm just curious if there are any manual custom settings I should apply now to improve performance or longevity.

  6. smchan macrumors member

    Joined:
    Jul 22, 2008
    #6
    Lion does not like my 2x96G SSD RAID 0. After many attempts, it finally installed but has quirkiness in it's features that leave me feeling unsettled. For instance, AJA's disk I/O benchmarking tool can see my non-raid disk drives just fine but cannot work against my SSD RAID 0. It does work in SL. Apple's "About this computer" acts a bit funky when I try to look at the RAID array as well.

    I'm keen to try Lion but given the difficulties in installing on a RAID 0 array (commonly reported by others, as well), I'm rolling back to SL 'til some of the issues are addressed. (I am running Lion without issue on my kids' vanilla iMac and on my 2008-vintage 17" MBP)

    I think the issues I'm experiencing are problems with Lion's RAID 0 support and not related to SSDs.

    Sam

  7. VirtualRain, Jul 23, 2011
    Last edited: Jul 23, 2011

    VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #7
    I have an SSD RAID0 array (previously created when installing SL) and had no problems... but I did an upgrade of my SL install. I wasn't even aware that Lion supported "fresh" installs. I thought the only way you could do it was via a SL upgrade. Maybe that's part of your problem?

    If you're starting "fresh"... I would setup your RAID0 when installing SL, apply all patches and updates for SL, then upgrade to Lion. It should be fairly straight-forward.

    Of course, Lion doesn't support the "Recovery Partition" when installing on RAID arrays, but this shouldn't impact your ability to upgrade to Lion on a RAID0 boot volume... http://support.apple.com/kb/HT4649

  8. petere001 macrumors newbie

    Joined:
    Jul 20, 2011
    Location:
    Lowestoft UK
    #8
    was searching the forums and this is pretty much the closest forum i can find regarding ssd drives...

    what are peoples opinion on external ssd drives?

    good? bad?

    Pete

  9. j-banana macrumors newbie

    Joined:
    Jul 24, 2011
    #9
    @ pete

    external ssd ? they are cute but impractical considering cost and storage capacity.

  10. Dnix macrumors 6502

    Joined:
    Dec 9, 2010
    #10
    Since Lion is supporting TRIM now, I'm hoping it will also take care of "partition alignment" when you install to an SSD.

    I had to figure out how to do it by hand, for my laptop. It was a pain in the ***.

  11. mrdma macrumors newbie

    Joined:
    Jul 24, 2011
    #11
    ASFAIK, TRIM is only supported on APPLE SSD's, not all SSD's. And partitioning isn't required unless you are dealing with WINXP and lower. Linux and OSX both partition correctly.

  12. smchan macrumors member

    Joined:
    Jul 22, 2008
    #12
    I tried a fresh install and as a SL upgrade and it failed in both instances. I *think* the problem was that I had a non-Apple GTX285 in my Mac Pro and was using the NVidia injector to load the drivers. Not being very patient, I changed several things at one time - including removal of the GTX285 - and Lion finally installed. Note that I can do a fresh install using the 10.5.x disc no problem.

    However, I still had problems. The Aja disk benchmarking tool no longer works on my SSD RAID0 whereas it still works with spinning disks. The "About this Mac..." also refuses to show storage utilization when I select the SSD RAID. Between the install issues and the funky runtime behavior, my confidence is wavering, so I reloaded SL.

    I am running Lion on my MBP and my kids' iMac but will stick to SL on my Mac Pro 'til I'm feeling better about the issues I experienced. I also need to double check my business applications to make sure everything still works in Lion. (So far, my VPN client isn't happy on my MBP.)

    Sam

  13. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #13
    What exactly do you mean by a "fresh install"? How do you do that with Lion?

    As for your non-standard GPU... That's certainly an issue... people around here are constantly posting about new updates breaking their hacked drivers.

    Does AJA work on a non RAID Lion install or is it incompatible with Lion overall?

    It's definitely strange that your "Get Info" is unable to report capacity... that's bizarre.

  14. davs macrumors newbie

    Joined:
    Jul 25, 2011
    #14
    Hi Sam, Can you tell me how did you get GTX to work. I am as you doing a clean install of Lion - I tried everything with upgrading from SL and just could not get GTX to work - same setup as you MACPRO 1.1 and flashed GTX285.

    So now i thought i'l try fresh clean and again card would not work.
    I have 7700 as helper in slot 1 and GTX in slot 4 it all works great in SnowLeopard.:apple:

    Any help - tips ... Appreciated thanks

  15. VirtualRain, Jul 26, 2011
    Last edited: Jul 26, 2011

    VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #15

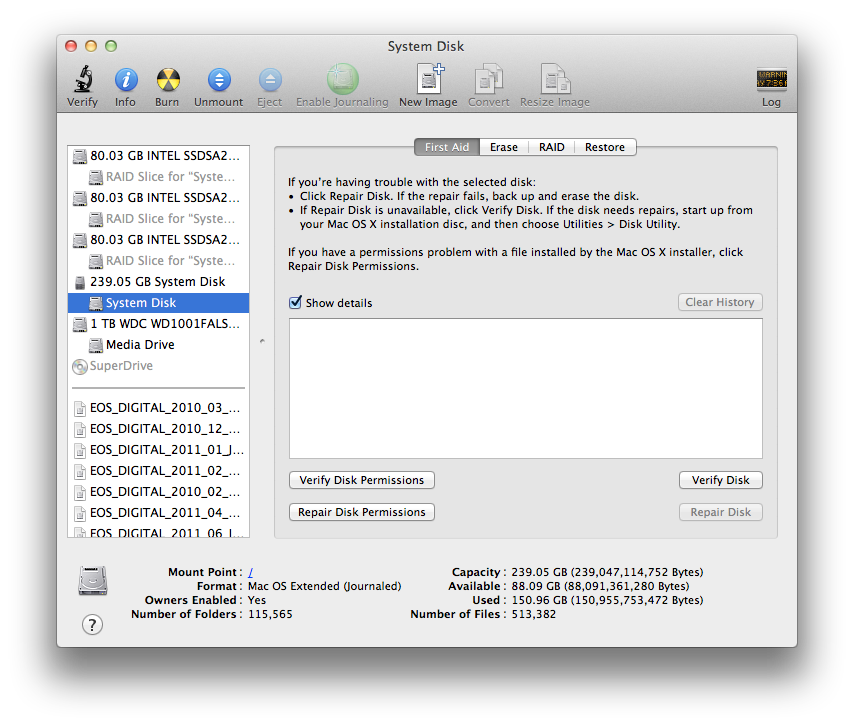

    So I did some more poking around on my RAID SSD set today... while it is working fine and reports the capacity and available disk space correctly, it is not fully compatible with disk utility. While Disk Utility sees is just fine, I can't get any of the first aid options to run... Verify or repair permissions. :confused:

    Edit: It seems this is a common issue... https://discussions.apple.com/thread/3193537?start=0&tstart=0 - The DiskUtil command line works fine however.


    Attached Files:

  16. smchan macrumors member

    Joined:
    Jul 22, 2008
    #16
    When I installed Lion on my kids' iMac, I found the download directory (in Applications, I think) which contains the disc image. The disc image is named InstallESD.dmg. Find it, burn it to a DVD using Disk Utility, and you'll be able to do a fresh install of Lion by booting the DVD - just as you would with SL.

    Hit up google and you'll find more specific instructions.

    Yes. Here are the scenarios I tested:
    - AJA on SL against SSD RAID 0 - works
    - AJA on SL against non-RAID hard drive - works
    - AJA on Lion against SSD RAID 0 - does NOT work
    - AJA on Lion against non-RAID hard drive - works

    Sam

  17. smchan macrumors member

    Joined:
    Jul 22, 2008
    #17
    Sorry for the confusion. I was not able to get the GTX285 to work in Lion - and I never really tried due to the SSD RAID 0 issues. I have a pair of non-standard cards: a flashed GT8800 (my helper card) and a standard GTX285 with a driver injector.

    The GT8800 works fine in Lion. For the brief moment I was successfully running Lion, I never bothered to re-install the GTX285. The GTX285 is back in now that I've reverted to SL.

    Sam

  18. smchan macrumors member

    Joined:
    Jul 22, 2008
    #18
    For what it's worth, I noticed this morning that EVGA is selling b-stock Mac edition GTX 285's for $129. I ordered one to replace my PC edition GTX 285 in my Mac Pro.

    http://www.evga.com/products/prodlist.asp?switch=20

    Sam
    PS I have no connection to EVGA at all. Just happy to get a real Mac edition GTX 285 for a decent price to use with my Adobe apps.
