Titanium PowerBook G4

I have been putting it off for a while now, but decided to pull apart my 867Mhz Titanium PowerBook G4 for a cleanup, SSD installation and thermal paste renewal.

I followed the iFixit guide for replacing the Logic Board (DVI+ models) to tear it down. All was smooth until I had to physically pull the logic board out from the chassis.

The thermal compound Apple used on this model is a black stick-on pad which, like tar is rock hard when cold and oozes when hot. Needless to say, this super substance had set like glue and my firm, but careful attempt to nudge the board out looked like it was going to cause the internal frame to bend and/or snap or bend the logic board before the thermal compound would let go.

Reading through the notes on the guide, they recommended to use a heat gun to warm up the compound from the heatsink down. I don't have a heatgun, so I decided it would be safe to re-connect the DC-in board and the black and grey power button connector next to it back in, connect to AC and press the power button. I left it like this for a few minutes (no display, or anything else was connected to the logic board). Once the heatsink became hot, I pulled the power and then continued.

The tar like substance gave way and stretched out like toffee. The rear ports were then tricky, but after some gentle nudging, I simply pushed the Ethernet port forward from the back of the 'book and it let go.

I began cleaning it up when I thought it would be good to get some photos. Unfortunately, I hadn't taken any before shots or temperature readings, but here are some internal, post-cleanup shots none-the-less.

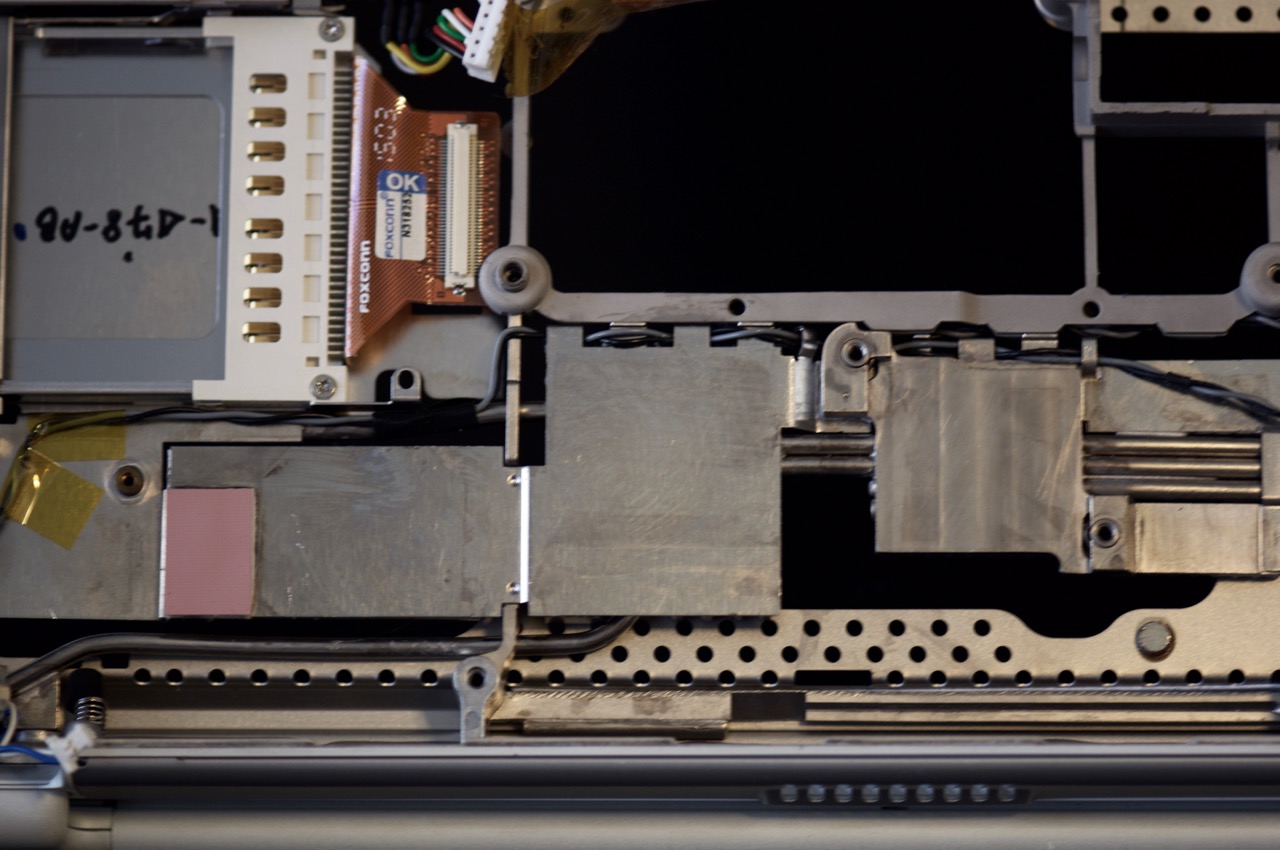

1. The underside of the heatsink, which is attached to the top case and internal frame. The flat areas to the right of the pink pad are for the GPU, the bus controller and then on the right is the CPU contact. I used a razor blade to lift the old, black thermal compound pad and two silicone heat pads, then cleaned it all up with Isopropyl Alcohol on a cotton tip.

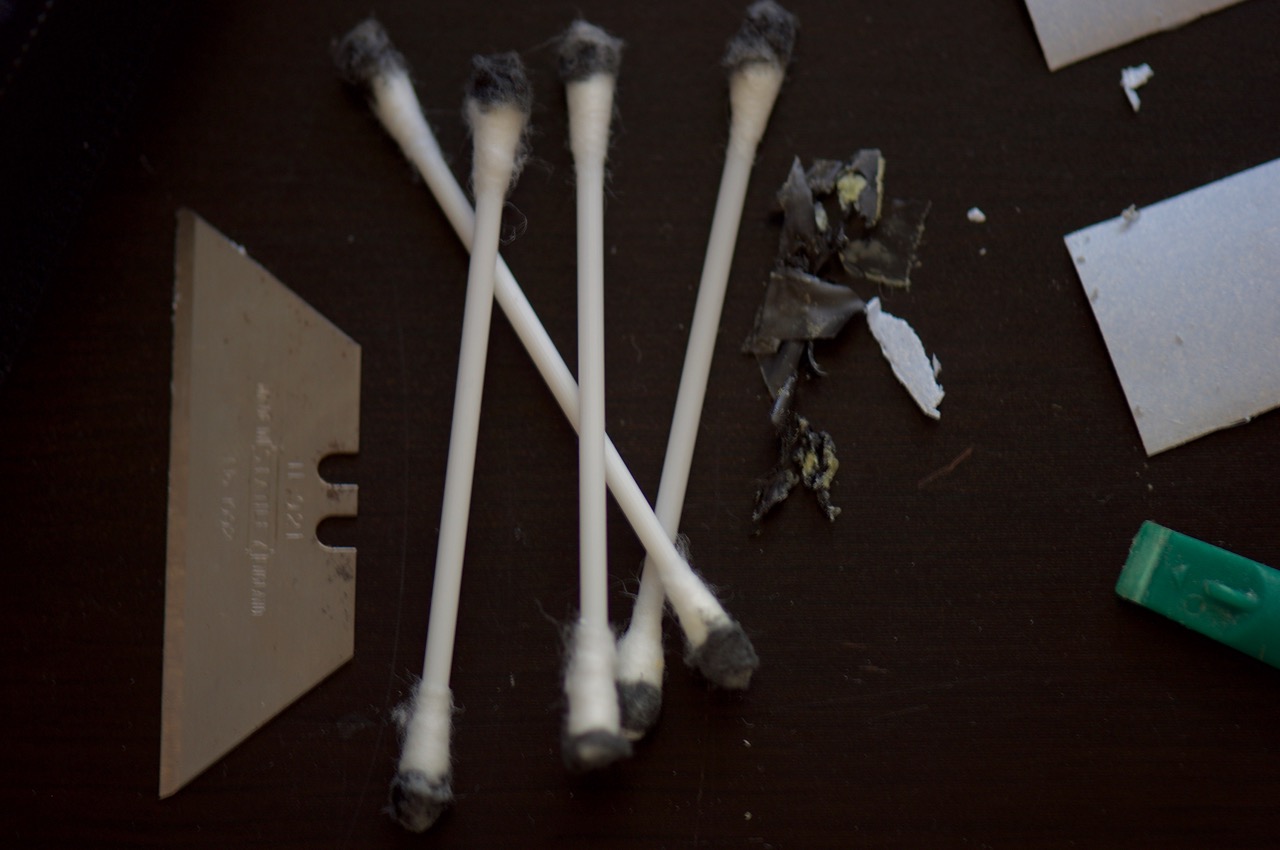

2. The evidence of the cleanup. As you can imagine from the state of the cotton tips, there was quite a bit to clean off the CPU itself, which was smothered in this black sticky compound. (My ears aren't normally this dirty!)

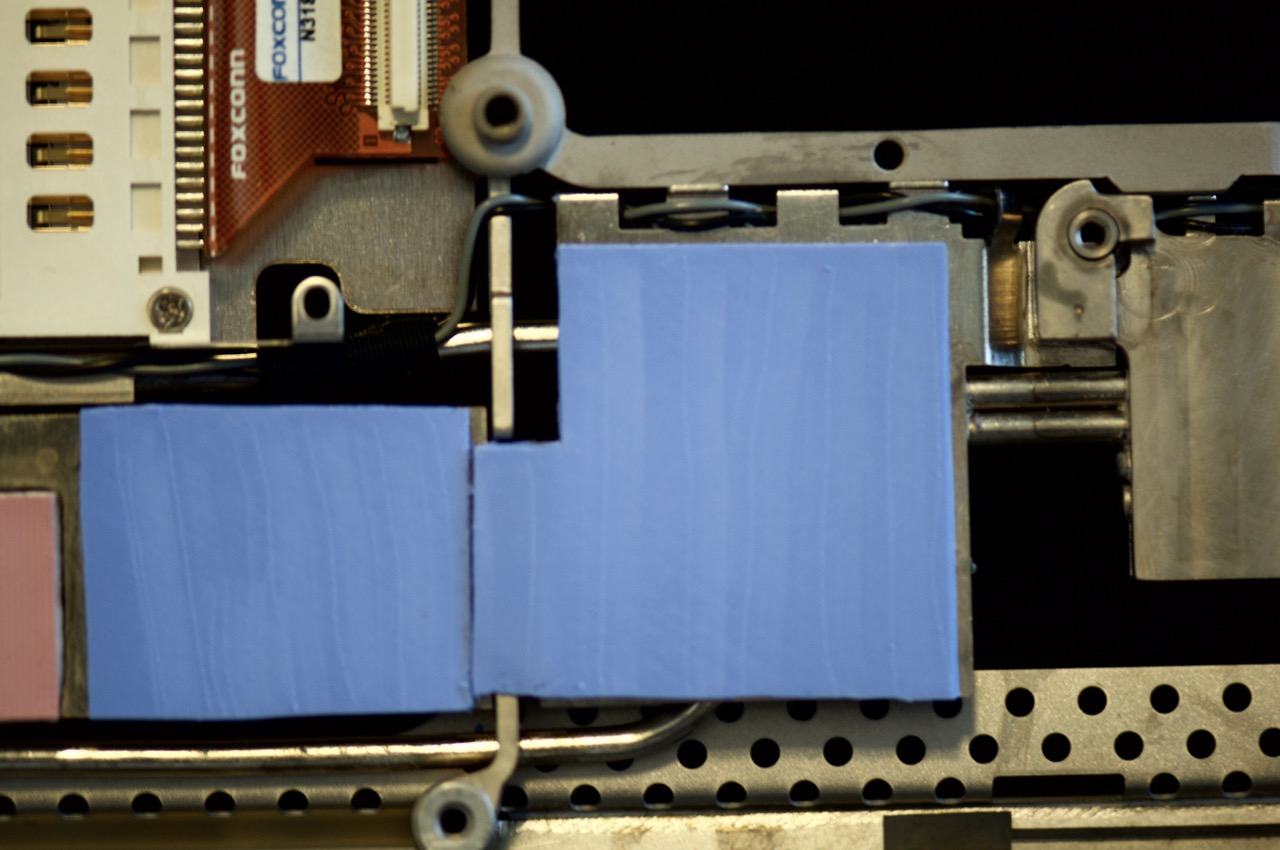

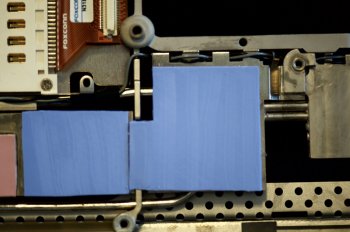

3. New silicone heat pads cut to shape and applied to the underside of the heatsink. These sit atop the bus controller (larger) and the ATi Radeon Mobility 9000 GPU and VRAM (smaller). As with my PowerBook G4 12" and Pismo thermal reconditioning, I used the same 2mm product, which is much thicker than the original. It took a bit of convincing to fit back together again without bulging, but it's all locked in tight now.

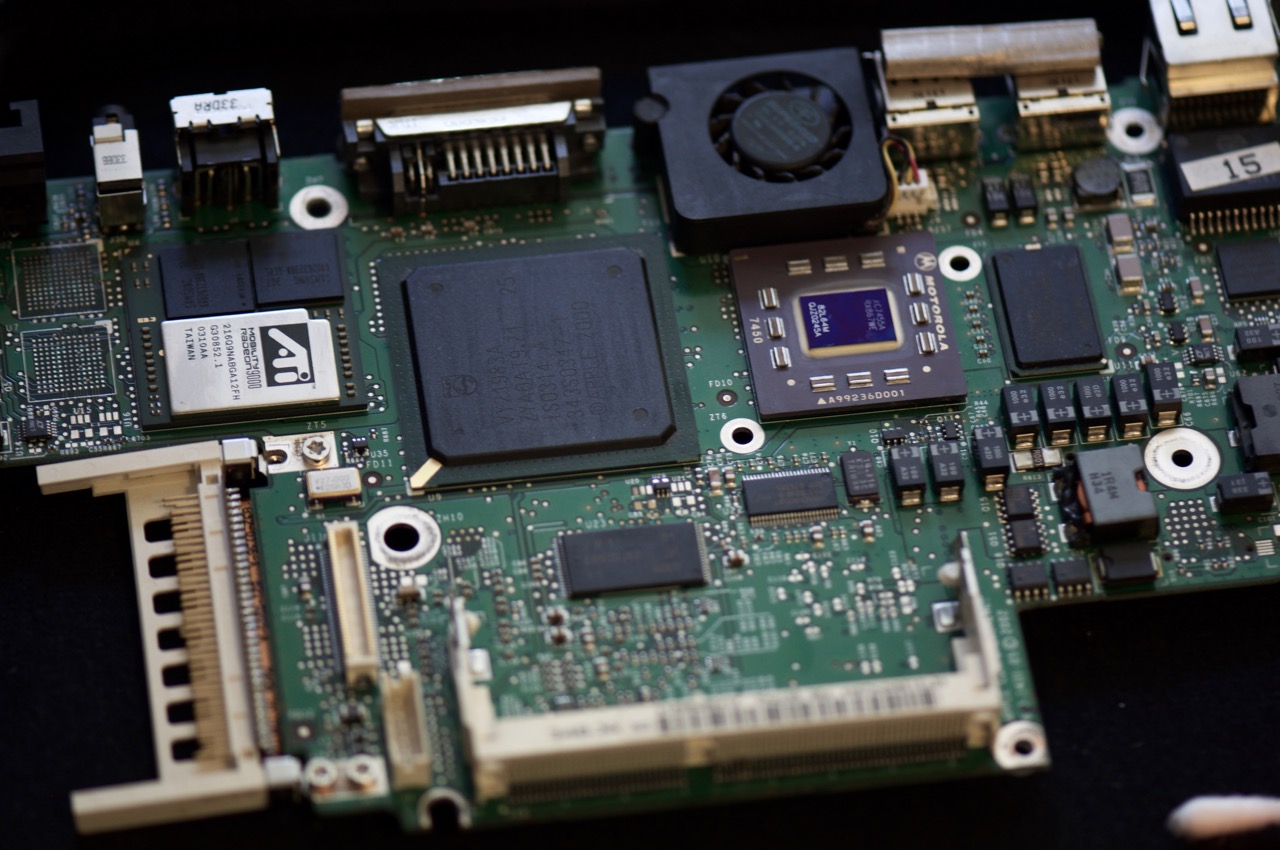

4. A beauty shot of the logic board after a clean up. I also took the opportunity to clean all the dust out of the fans and from all the nooks and crannies.

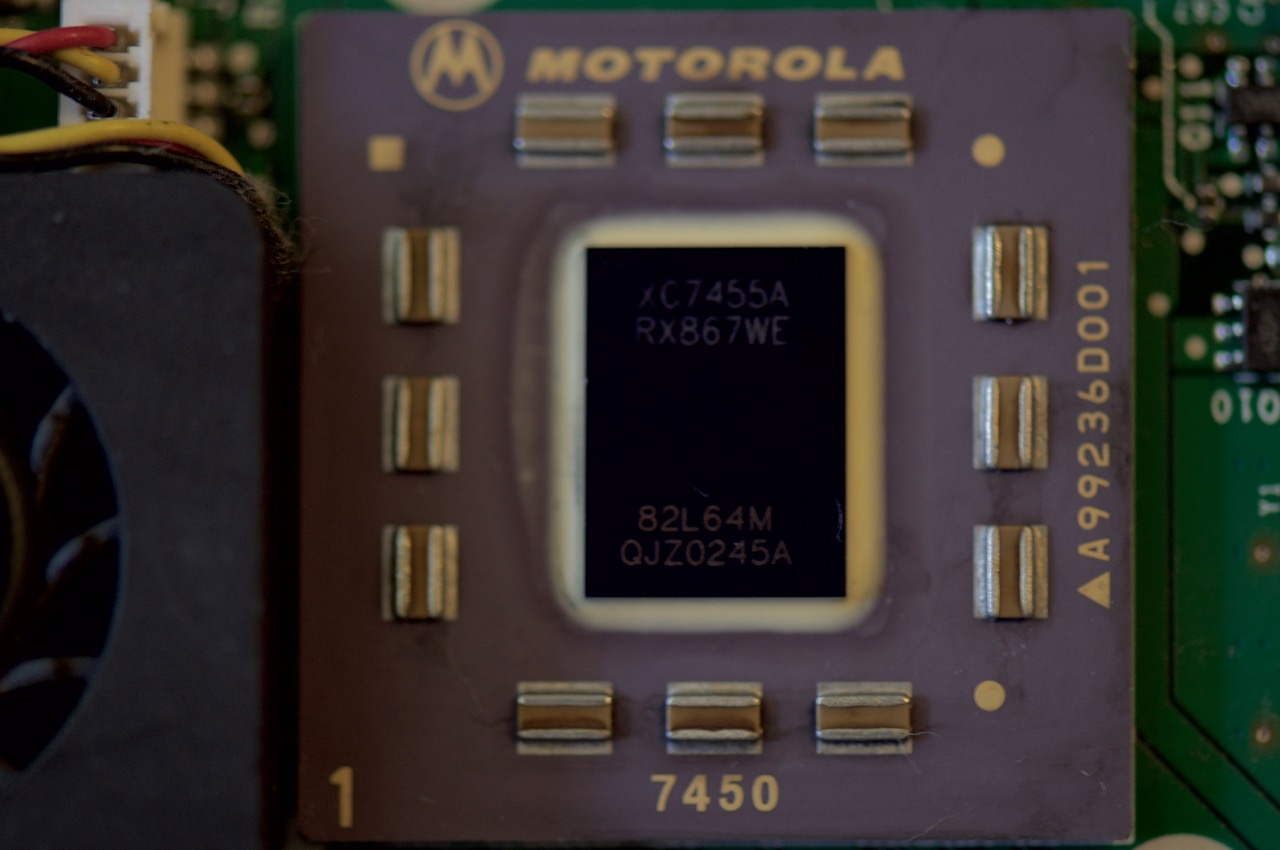

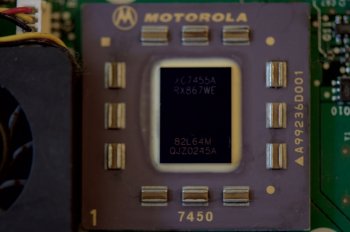

5. Up close and personal with the 7450 CPU for @LightBulbFun (What do you make of it?)

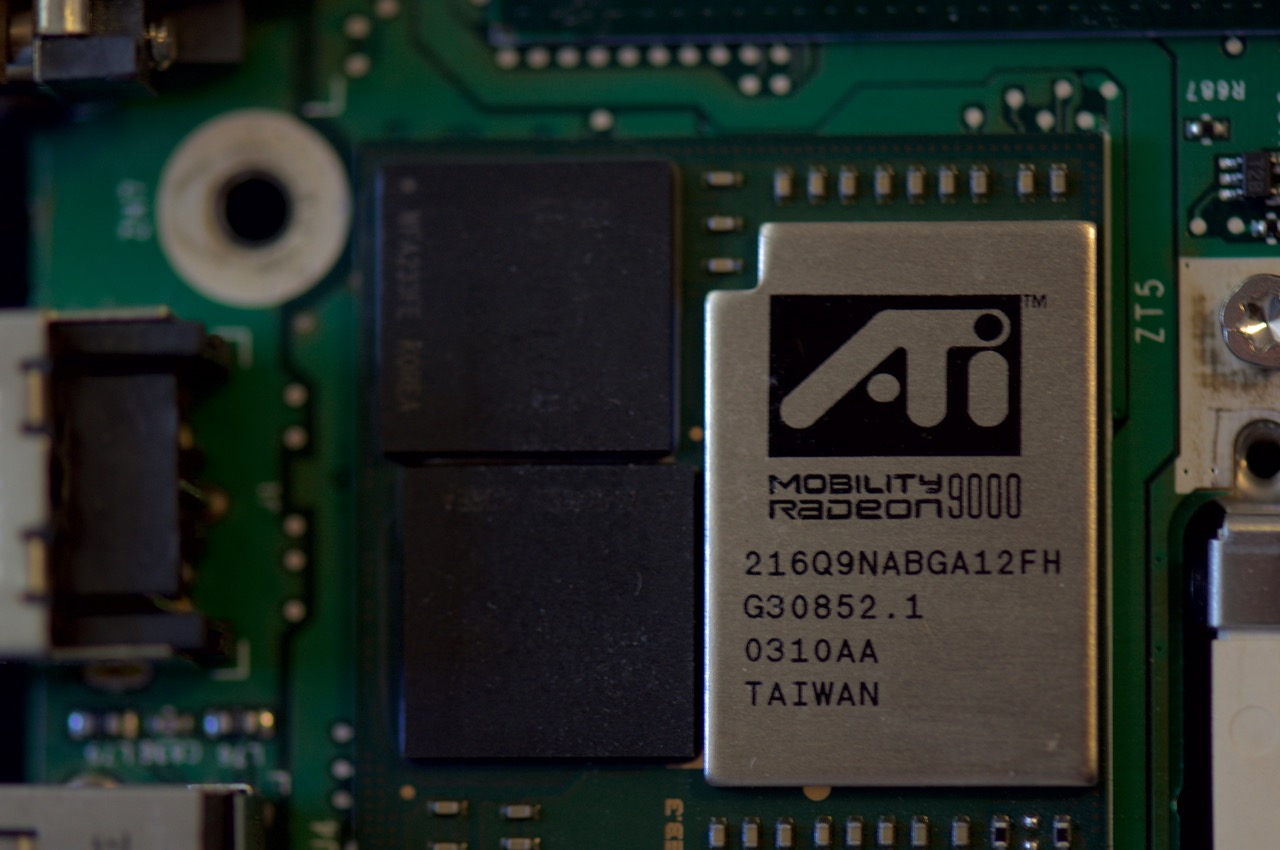

6. The not-so-bad Radeon Mobility 9000 w/32MB VRAM.

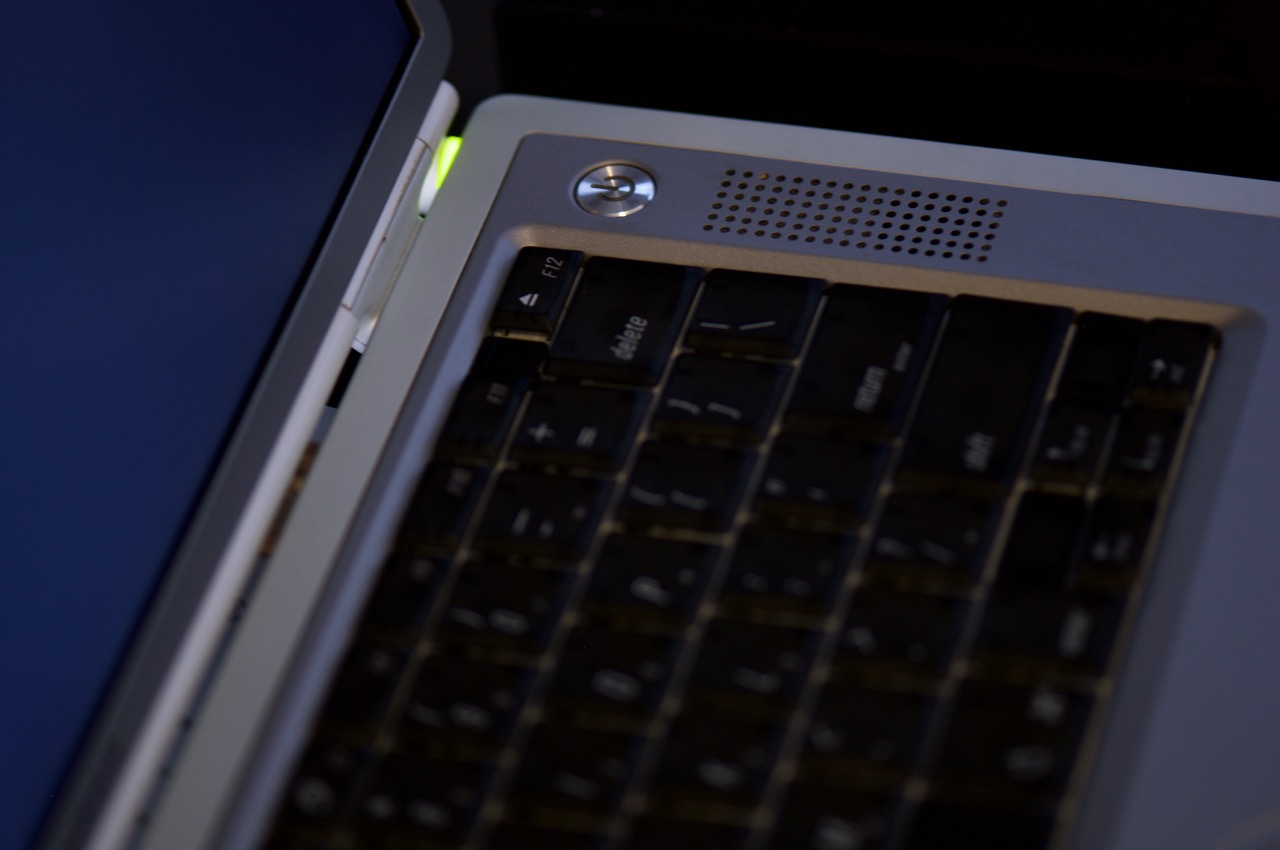

7. Love this design!


While having the TiBook open, I replaced the 80GB 5400 RPM HDD with a 32GB KingSpec mSATA SSD installed within a cheap ($9) mSATA->2.5" IDE adapter, which appears to be working well.

I'll update my "Post Your SSD/CF SATA/PATA Benchmark Results" thread once it has finished restoring.

I scheduled a few more repairs for this lazy Sunday.. more to come!

-AphoticD
