Triple GPU 5770 Mac Pro 2012

Discussion in 'Mac Pro' started by VillasManzanill, Mar 21, 2015.

  1. VillasManzanill macrumors member

    Joined:
    Mar 7, 2012
    #1
    Hi

    can i buy 2 more 5770 Ati cards (total of 3) and put them in my system? its for Final cut pro X, i know about the power supply thats not a problem. Am i going to have better performance? or is not even detected the 3rd one?

    Thanks!

  2. IowaLynn macrumors 65816

    IowaLynn

    Joined:
    Feb 22, 2015
    #2
    Take a look on http://www.barefeats.com tested with more than two but not sure 5770 was used, more high-end cards.

  3. thats all folks macrumors 6502a

    thats all folks

    Joined:
    Dec 20, 2013
    Location:
    Austin (supposedly in Texas)
  4. h9826790 macrumors G4

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #4
    May be he decided to use external power.

  5. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #5
    does any one know the answer to my question? am i going to gain more power in FCPX by putting 2 extra ati 5770 ?
    i know that if i add 1 more i will for sure, but if i add 3, does it detect it?

  6. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
  7. fuchsdh macrumors 65816

    fuchsdh

    Joined:
    Jun 19, 2014
    #7
    Dual GPUs are generally not supported well by many programs. I don't expect OS X would know what to do with triple GPUs, let alone individual programs that would need to be expressly written to address them.

  8. austinpike macrumors 6502

    Joined:
    Oct 5, 2008
    Location:
    MN
    #8
    I'm guessing you would be much better off putting your $ toward a single more modern card that would outperform 3x5770s.

  9. AndreeOnline macrumors 6502

    AndreeOnline

    Joined:
    Aug 15, 2014
    Location:
    Zürich
    #9
    Both FCPX and DaVinci Resolve can take full advantage of multiple GPUs.

    I don't see where there should be a problem with a 3rd GPU in the system—as long as it's properly powered.

    That said, FCPX was smooth for me on a single default 5870 1GB even before I switched to R9 280X 3GB.

    Why do you feel you need three cards?

  10. IowaLynn macrumors 65816

    IowaLynn

    Joined:
    Feb 22, 2015
    #10
    Plus, a single 5870 showed good deal better performance over a 5770, so unless you already have the 3 x 5770 I would look for a 7970 pair instead of the three you are intending or asking of.

  11. xcodeSyn macrumors 6502a

    Joined:
    Nov 25, 2012
    #11
    How are you planning to install 3 double-width 5770 video cards even if you work out the power issue? I know there are PCIe slot extension cables available, but still where do you expect to hold the third card inside the case? Finally the third card would be connected only through PCIe 2.0 x4, so its performance is definitely degraded. We just don't know by how much without testing.

  12. nismozcar300zx macrumors newbie

    Joined:
    Mar 22, 2015
  13. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #13
    As far as space goes, if you remove drive sleds 3 & 4 (and maybe 2) you can put in 3 double wide cards.

    XFX made a single width 5770.

  14. Tutor, Mar 23, 2015
    Last edited: Mar 23, 2015

    Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #14

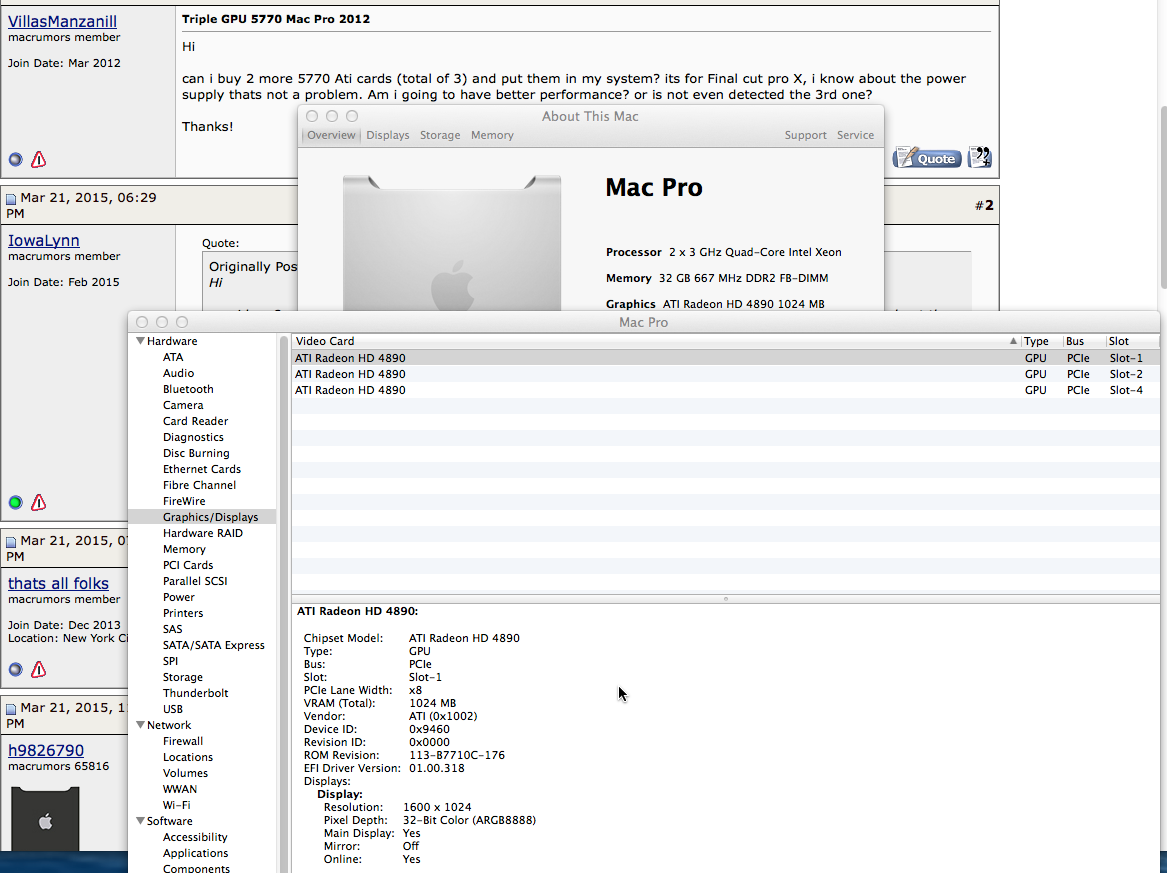

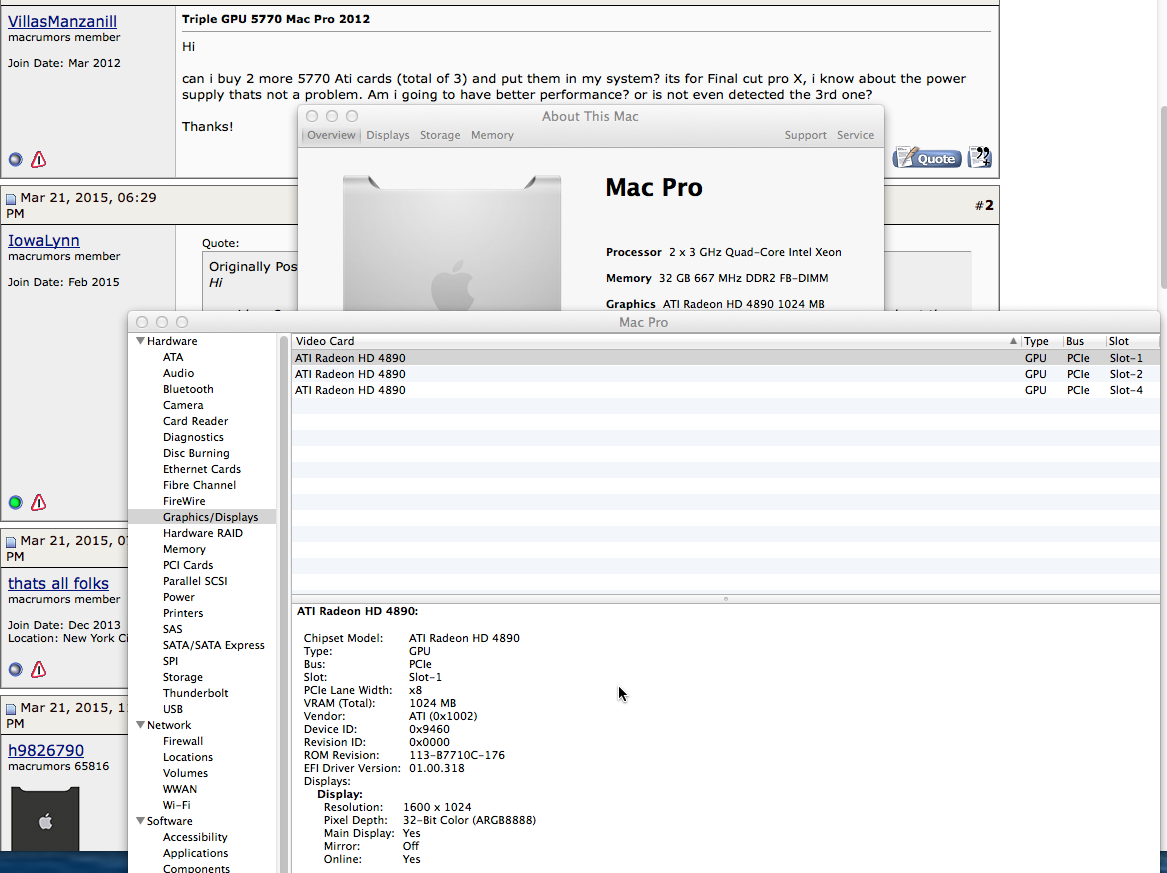

    More likely than not, all three 5770s will be recognized, but my 4890 ATI cards in my 2007 MP (put there only to answer your question) are to old to use with FCP. To install three double width PCIe GPUs you have to remove hard drives 2-4, if any, and limit your HD storage, beyond HD1, to that in the optical drive bay. I use an FSP BoosterX, also installed in the optical bay, to power my extra GPUs. See, also - http://forums.macrumors.com/showthr...mes+for+up+to+3+double+wide+gpus#post18872245 .


    Attached Files:

  15. DougTheImpaler macrumors 6502a

    Joined:
    Feb 28, 2006
    Location:
    Central Illinois
    #15
    The 5770 is so old that lots of single-GPU solutions will outperform 3 of them. Any of the bigger Kepler cards like a GTX 770 on up, or a Radeon 7950 should give you loads more OpenCL performance.

  16. Tutor macrumors 65816

    Tutor

    Joined:
    Jun 25, 2009
    Location:
    Home of the Birmingham Civil Rights Institute
    #16
    True, and a Titan X (Maxwell) would clean all of their clocks.

  17. VillasManzanill thread starter macrumors member

    Joined:
    Mar 7, 2012
    #17
    thanks for all your responses but i never got the actual answer to the question, does FCPX have a better performance with 3 cars 5770 ? does fcpx recognise 3 cards?

    thanks

  18. thats all folks macrumors 6502a

    thats all folks

    Joined:
    Dec 20, 2013
    Location:
    Austin (supposedly in Texas)
  19. IowaLynn macrumors 65816

    IowaLynn

    Joined:
    Feb 22, 2015
    #19
    Sounds like something Rob @Barefeats would be interested in...

  20. OS6-OSX macrumors 6502a

    OS6-OSX

    Joined:
    Jun 13, 2004
    Location:
    California
    #20
    Better performance in what way? What kind of footage are you dealing with? Multicam shoots? R3D, h.264, 5D, GH4? Are you transcoding? Rendering issues?

  21. nismozcar300zx macrumors newbie

    Joined:
    Mar 22, 2015
    #21
    Found one 5770, still looking for Mac Videocards. PM me if you have one to sell.

  22. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #22
    We don't sell 5770s.

    Applemecanix used to have the single slot XFX 5770.

    Get in touch and tell Dusty I said "Hi".
