U2 iPod mod project

Discussion in 'iPod' started by Fonzijr1964, Sep 16, 2008.

  1. Fonzijr1964 macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #1
    First off i have a U2 Video iPod as u can see in my sig.
    Because the not so new "new" classics are "thiner" than the 5th gen iPods i was thinking i could buy one of the 120GB HDD and pop it into my iPod.

    Will this work without changing the back

  2. Scarlet Fever macrumors 68040

    Scarlet Fever

    Joined:
    Jul 22, 2005
    Location:
    Bookshop!
    #2
    It should, because they use the same sized drives. You might have to move some foam suspension around though. That said, it wouldn't run the newer firmware, and wouldn't be a cheap exercise.

  3. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #3
    I know it wont run the new firmware i just want the space. i am a self proclaimed Audiophile and have so much music:D

    So the connectors are the same?

  4. MST macrumors 6502

    MST

    Joined:
    Dec 3, 2007
    Location:
    Surrey, UK
    #4
    Sounds like an interesting project, keep us posted ;)

  5. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #5
    if the conectors work like i think they do in my head :p than my biggest problem will be not scratching the Mint condition finnish :D :D :D

  6. svndmvn Guest

    Joined:
    Nov 6, 2007
    Location:
    Italy
    #6
  7. cherry su macrumors 65816

    cherry su

    Joined:
    Feb 28, 2008
    #7
    the connectors are the same. they're both PATA ZIF (zero insertion force) connectors.

  8. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #8
    The screens are the same

    I just want more space
    sweet looks like i can do it

  9. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #9
    so the connectors are the same and it will fit

    just one las forum check before i spend loads of money

    any other info i should know

  10. elmateo487 macrumors 6502a

    Joined:
    Jun 12, 2008
    #10
    take the ipod apart with a guitar pick. CAREFULLY. unplug the connector cable to the head jack, and hold switch first. Otherwise you could damage it. Do that first.

  11. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #11
    i am gonna use the disassembly tools cuz i dot wanna risk a guitar pic cuz i did that to my last iPod and scratched it all up

    Y do i need to open it first?

  12. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #12
    Ok so i have been analyzing the pictures on iFixit of the iPod HDD attachment point and it appears to be the same so I think i am going to move on with this project. I will be replacing the 5G screen with a 5.5G screen wile i have it open as well. My one question; Will the firmware on my iPod run the 120GB iPod Classic HDD?

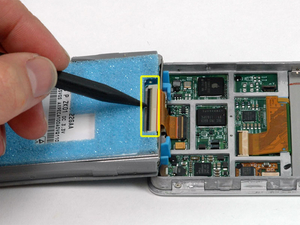

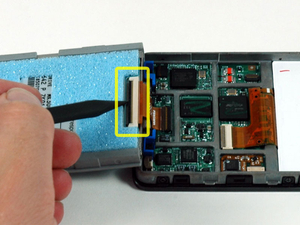

    I have attached photos of the attachment below, first one is the Classic the second one is the 5G video


    Attached Files:

  13. Fonzijr1964 thread starter macrumors 68000

    Fonzijr1964

    Joined:
    Feb 26, 2008
    Location:
    Maryland
    #13
    I need to know so i can decide if i should get a Colorware iPod Classic

    Anyone?

    Anyone?


    Will the firmware work with the 120GB HDD?
