understanding SMB - standalone file server in Windows 7 network and GUEST mode

Discussion in 'Mac OS X Server, Xserve, and Networking' started by joecool99, Nov 18, 2010.

  1. joecool99 Suspended

    joecool99

    Joined:
    Aug 20, 2008
    Location:
    USA
    #1
    MAC mini 10.6.5 server with SMB as a simple file sharing server for WORD documents.

    if the Guest mode is OFF, any Windows 7 workstation cannot execute NET commands

    example:

    C:\Users\timeclock>net view
    System error 1326 has occurred.

    Logon failure: unknown user name or bad password.

    the W7 has a valid username with password so it should execute the command with such privileges, right ?

    So why does SMB guest mode needs to be ON for it to work ? This is directly related to computer browsing issue with Windows on the network as described here:

    http://discussions.apple.com/thread.jspa?threadID=2651459&tstart=0

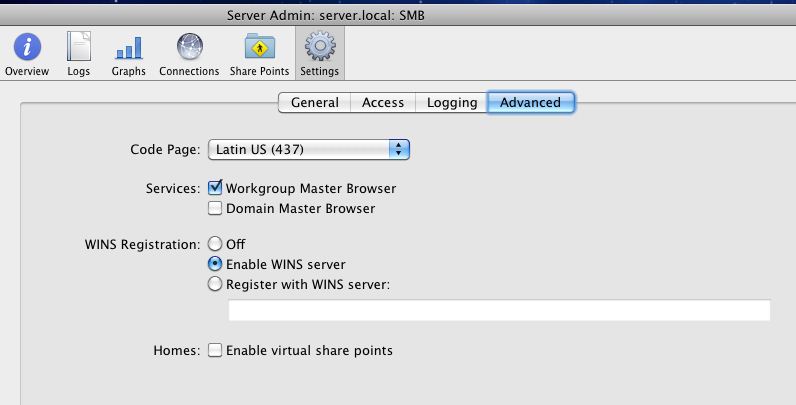

    what is the best setting in ADVANCED tab ? do i need need BOTH WMB and DMB enabled ?


    Attached Files:

  2. joecool99 thread starter Suspended

    joecool99

    Joined:
    Aug 20, 2008
    Location:
    USA
    #2
    SMB log WORKGROUP master browser not resolving properly ?

    this log is puzzling:

    Code:
    [2010/11/18 18:30:25, 0, pid=153] /SourceCache/samba/samba-235.5/samba/source/nmbd/nmbd_workgroupdb.c:dump_workgroups(282)
      dump_workgroups()
       dump workgroup on subnet     192.168.0.2: netmask=255.255.255.240:
      	WORKGROUP(1) current master browser = SERVER
      		SERVER 408c9a03 (Mac OS X Server)
      		TIMECLOCK-PC 40011003 ()
    [2010/11/18 18:30:25, 0, pid=153] /SourceCache/samba/samba-235.5/samba/source/nmbd/nmbd_workgroupdb.c:dump_workgroups(282)
      dump_workgroups()
       dump workgroup on subnet  UNICAST_SUBNET: netmask=    192.168.0.2:
      	WORKGROUP(1) current master browser = UNKNOWN
      		SERVER 40899a03 (Mac OS X Server)
    [2010/11/18 18:30:32, 0, pid=153] /SourceCache/samba/samba-235.5/samba/source/nmbd/nmbd_workgroupdb.c:dump_workgroups(282)
      dump_workgroups()
       dump workgroup on subnet     192.168.0.2: netmask=255.255.255.240:
      	WORKGROUP(1) current master browser = SERVER
      		SERVER 408c9a03 (Mac OS X Server)
      		TIMECLOCK-PC 40011003 ()
    [2010/11/18 18:30:32, 0, pid=153] /SourceCache/samba/samba-235.5/samba/source/nmbd/nmbd_workgroupdb.c:dump_workgroups(282)
      dump_workgroups()
       dump workgroup on subnet  UNICAST_SUBNET: netmask=    192.168.0.2:
      	WORKGROUP(1) current master browser = UNKNOWN
      		SERVER 40899a03 (Mac OS X Server)

    it alternates few times from SERVER (yes!) to UNKNOWN (why?)

    if i run LANscanner, the server shows as MB.

    Code:
    LANscanner v1.3 - ScottiesTech.Info

    Scanning LAN...

    SERVER            192.168.0.2  00-00-00-00-00-00  WORKGROUP  MASTER
    TIMECLOCK-PC      192.168.0.3  C4-46-19-A3-43-60  WORKGROUP

    Press any key to exit...

  3. timbloom macrumors 6502a

    timbloom

    Joined:
    Jan 19, 2002
    #3
    Just to clarify a little bit, as I'm not familiar with the inner workings of Samba, but are you saying that the Windows clients can still authenticate to the SMB file shares on this server with guest access off, but domain browsing is broken?

  4. joecool99 thread starter Suspended

    joecool99

    Joined:
    Aug 20, 2008
    Location:
    USA
    #4
    I understand there are 2 places to enable guest access. one is for what i believe general access. if i turn it off, windows have hard time seeing each computer on the network (also the server won't list the windows machines in the finder)

    the individual shares do not have guest access allowed. the server still is a Workgroup master browser. i just don't know if i need both domain and workgroup master.

    the log above is also confusing to me, why it says once server, once unknown
