unplugme71's home network build thread

Discussion in 'Picture Gallery' started by unplugme71, Feb 19, 2015.

  1. unplugme71, Feb 19, 2015
    Last edited: Feb 23, 2015

    unplugme71 macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #1
    Goal:
    To provide both private and public network access in the home for Internet access, file sharing, and other server services.

    Design:
    At least 2 Ethernet drops, 1 Telephone drop, and 1 Coax cable drop in each room of the house. Living room will have additional drops for entertainment devices. All drops will be patched in the utility closet.

    Equipment List:
    Tripp Lite 12U wall mounted rack
    Tripp Lite 48p Cat6 patch panel
    Tripp Lite 16 outlet, 20A switched PDU
    Tripp Lite SMART2200RM2UN UPS Battery Backup
    Ubiquiti Unifi Security Gateway, USG
    Ubiquiti Unifi Switch, 48port 500W POE+ (pre-ordered)
    Sonnet RackMac Mini
    2x Mac Mini 2.6Ghz, 8GB, 1TB
    Synology RS815+ Storage Array w/ 4x WD RE 4TB (on order)
    Synology RX415 Expansion Storage w/ 4x WD RE 4TB (on order)
    Supermicro SYS-5018A-FTN4, Atom 2.4Ghz 8 core, 16GB DDR3 ECC, 1x500GB WD Black, 2x256GB Samsung Pro 850 SSDs



    Pictures attached below...

  2. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #2

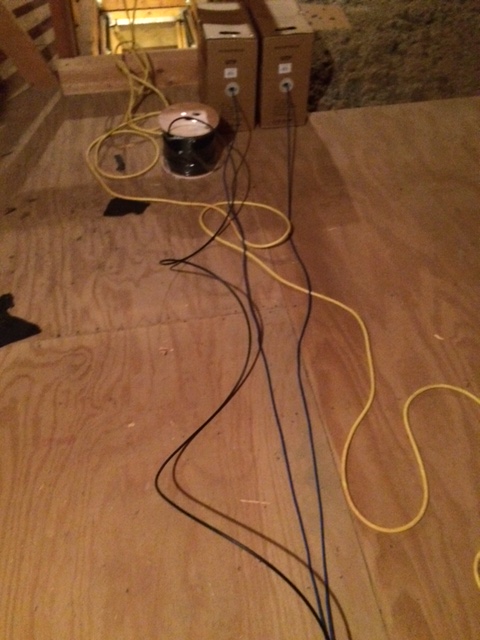

    Setting up the boxes for the pulls. I wish I bought an extra one for the telephone drop. Would've saved a lot of time!

    [​IMG]


    Attached Files:

  3. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #3
    Much needed tools to complete the project...

    [​IMG]


    Attached Files:

  4. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #4

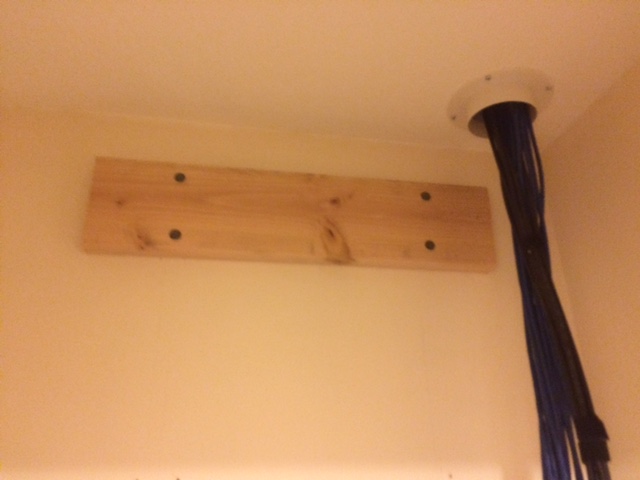

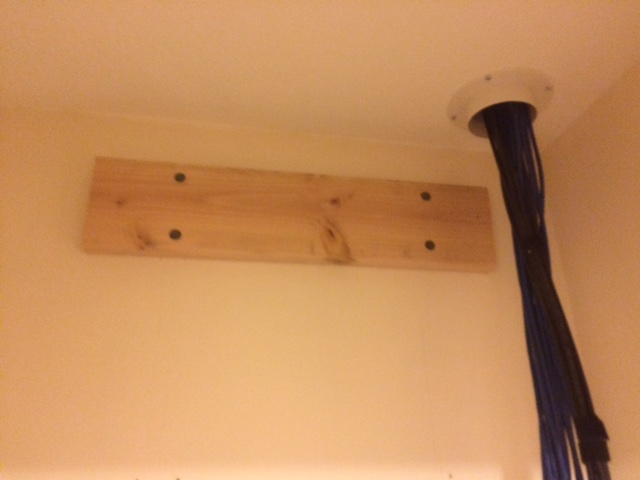

    All the runs merged through the utility closet. Using a 4" dryer vent tube to pass the wires through. Also, since the studs aren't spaced 16" apart, I had to secure two 2x6 boards across three studs for mounting the wall mounted rack.

    [​IMG]


    Attached Files:

  5. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #5

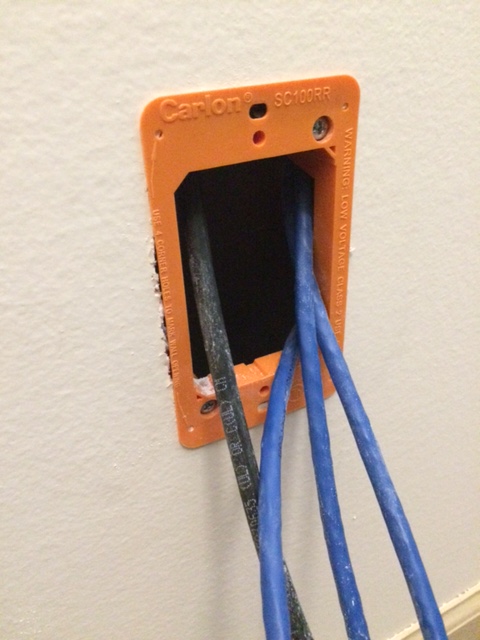

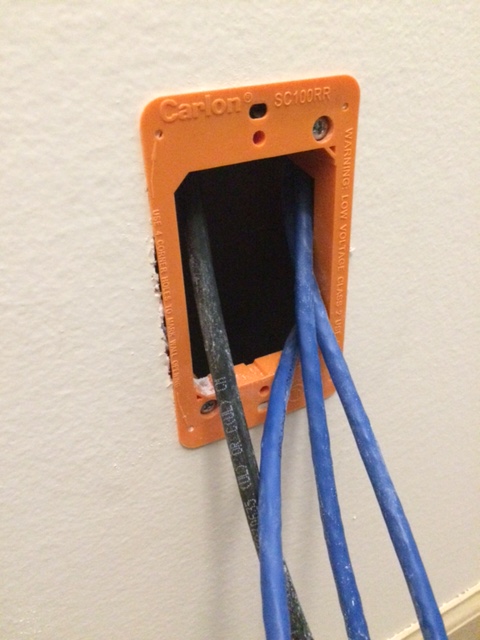

    Here's a drop for the bedroom.

    [​IMG]


    Attached Files:

    • wall.JPG
      File size:
      104.4 KB
      Views:
      2,039
  6. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #6

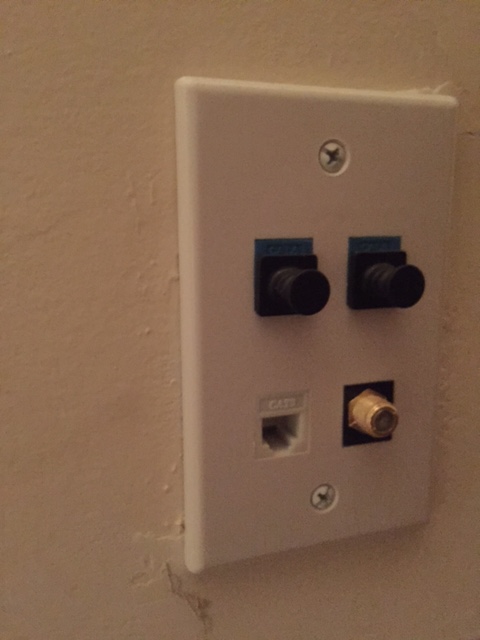

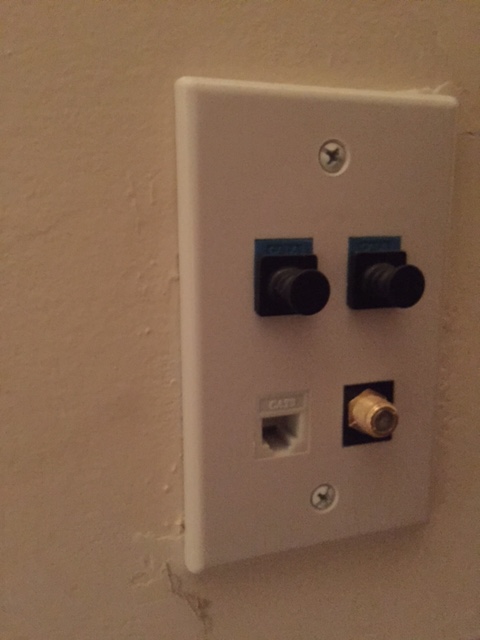

    Here's the wall plate on with the jacks...

    [​IMG]


    Attached Files:

  7. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #7

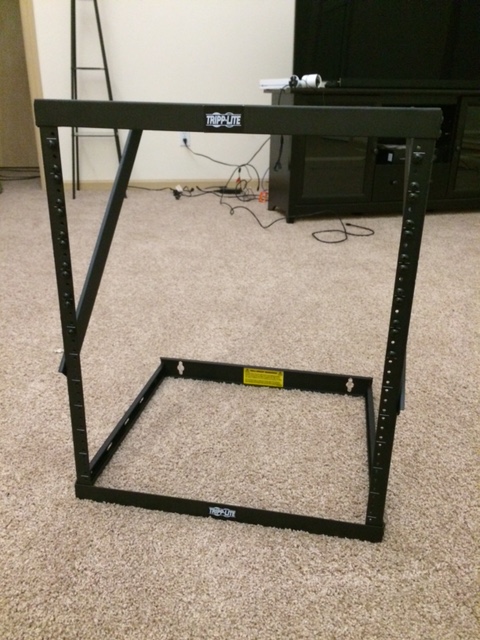

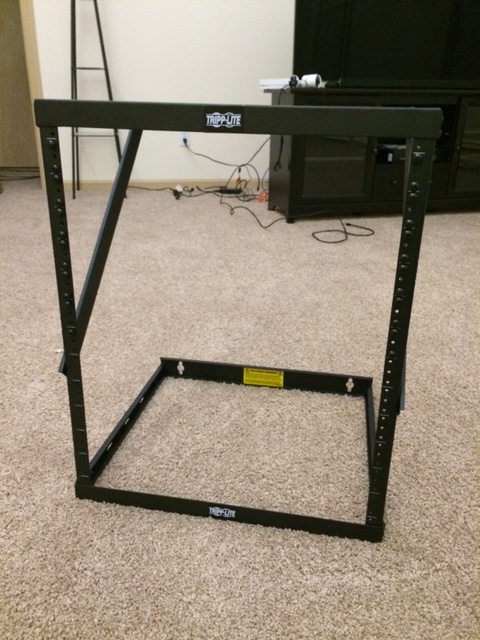

    Here's the wall mount rack assembled on the floor. This has reinforced side beams to handle the extra weight of the UPS device.

    [​IMG]


    Attached Files:

    • rack.JPG
      File size:
      143.7 KB
      Views:
      2,102
  8. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #8

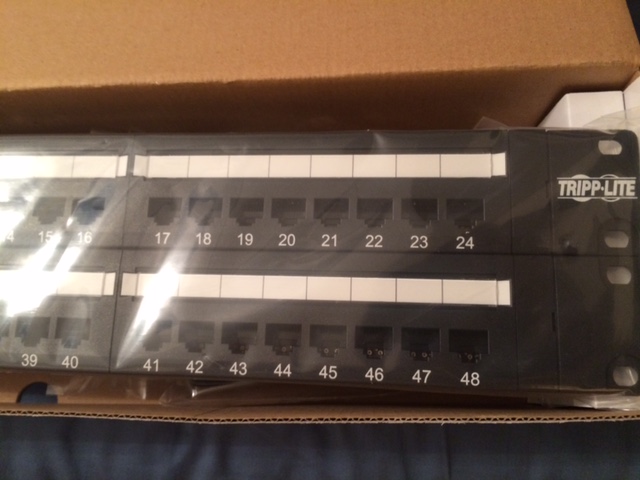

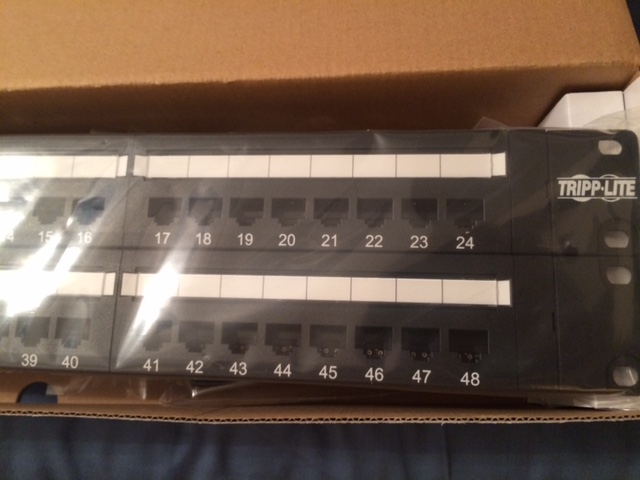

    Here's the 48port patch panel...

    [​IMG]


    Attached Files:

  9. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #9

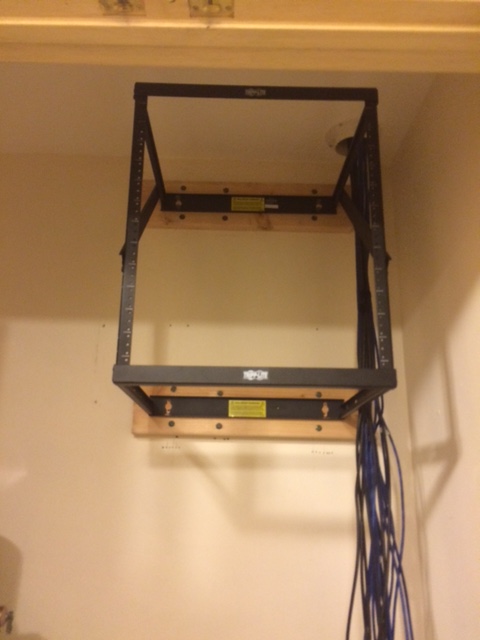

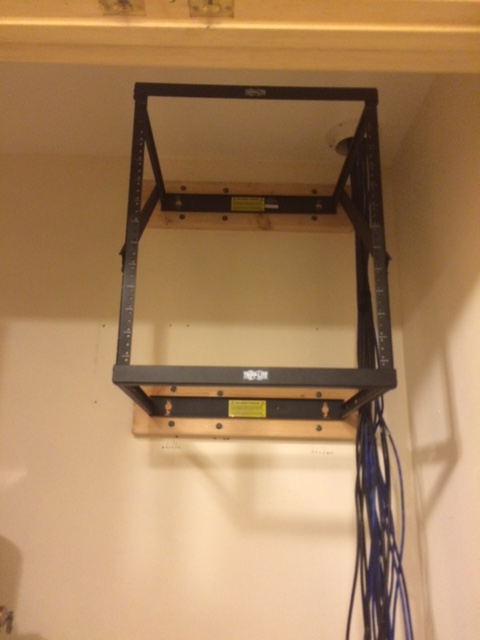

    And finally wall mounted...

    [​IMG]


    Attached Files:

  10. NOTNlCE macrumors 6502a

    NOTNlCE

    Joined:
    Oct 11, 2013
    Location:
    DMV Area
    #10
    Always cool to see others' home network setups. Looking forward to seeing its completion. Good luck!

  11. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #11

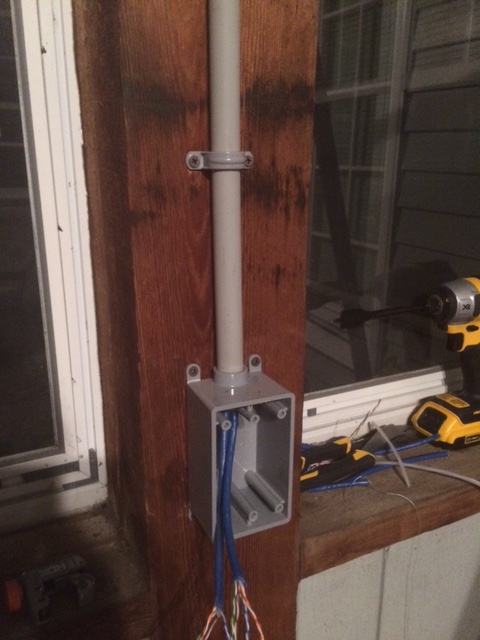

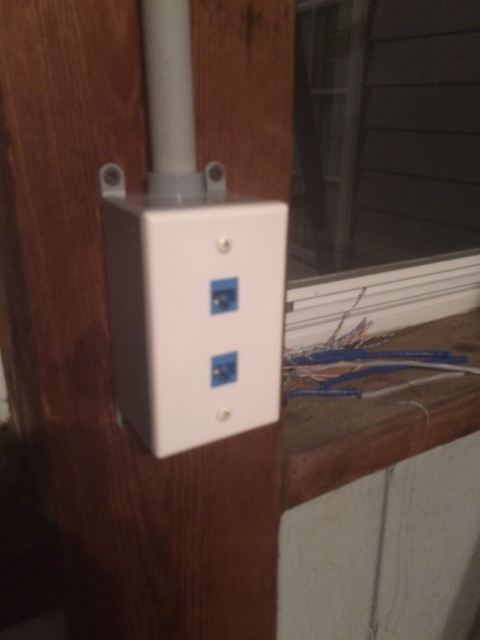

    Yes, I even have my sun room wired up for Ethernet. I figured if there's ever a need to put some device in here that only has Ethernet at least its pre-wired. Debating on installing an outdoor wireless access point in here too so my back yard can have wireless signal.

    [​IMG]


    Attached Files:

  12. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #12
    Does anyone know if they sell gray colored 2 outlet plates for Ethernet jacks?

    [​IMG]


    Attached Files:

  13. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #13

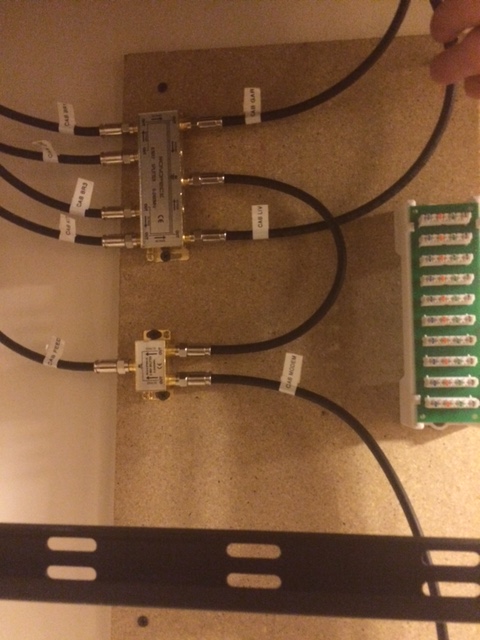

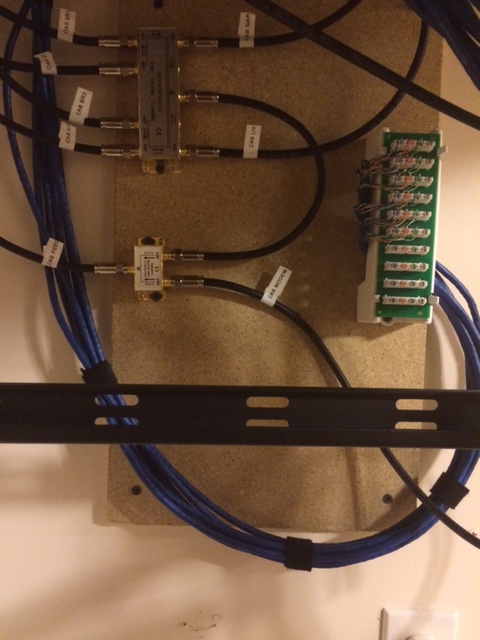

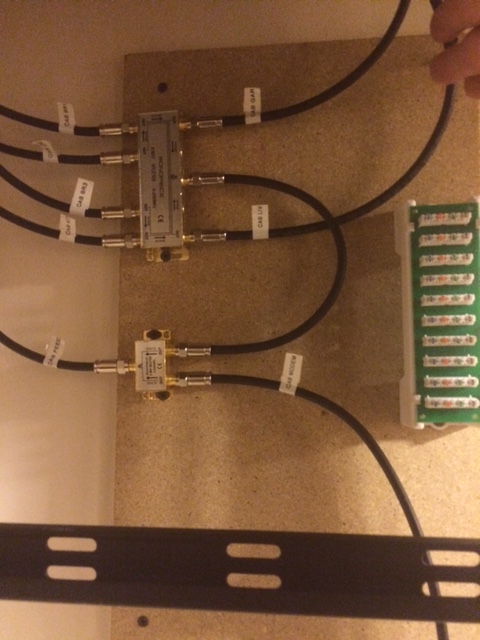

    Wiring up the phones and coax cables...

    [​IMG]


    Attached Files:

  14. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
  15. macgeek18 macrumors 68000

    macgeek18

    Joined:
    Sep 8, 2009
    Location:
    Northern California
    #16
    Recently wired and punched down a 2 story office building. Nothing like making your fingers raw with over 250 punch downs over 4 punch down racks over the course of a week.

  16. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #17
    yup, it can be a pain

  17. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #18

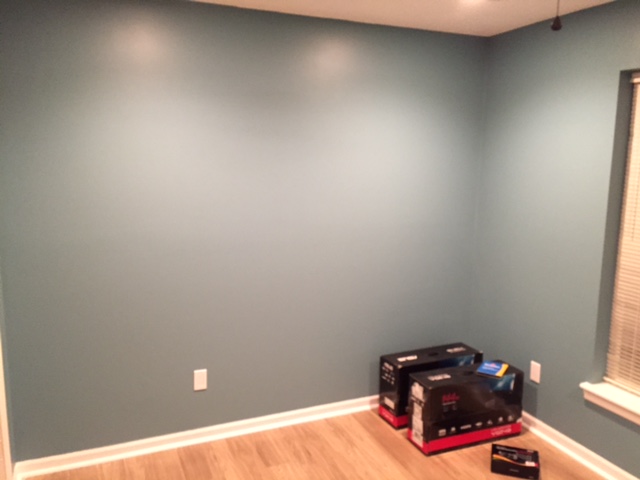

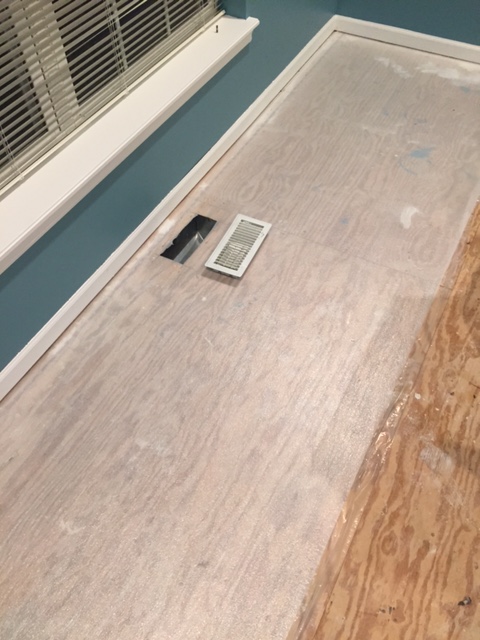

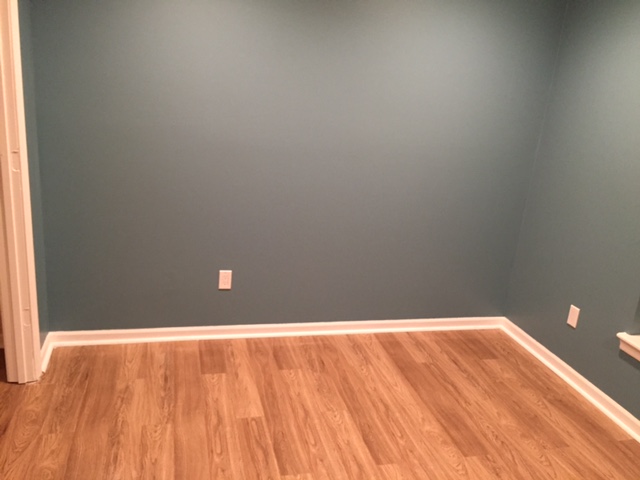

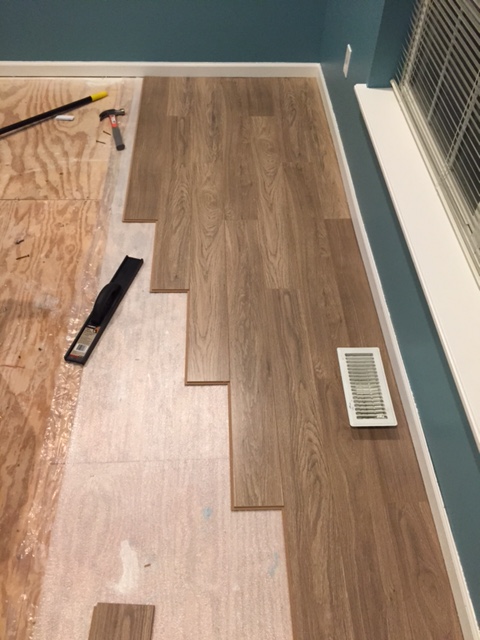

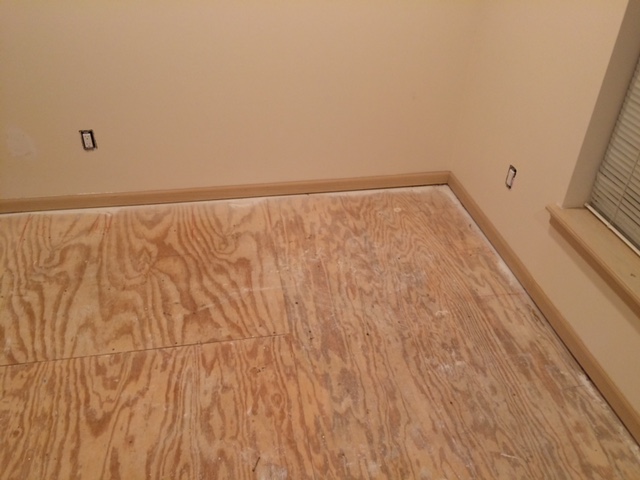

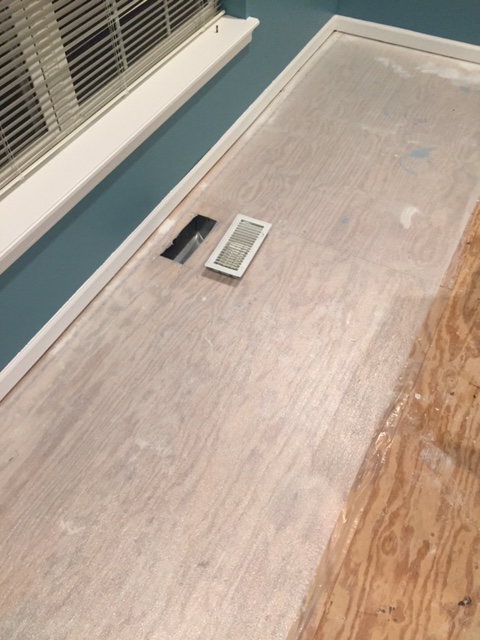

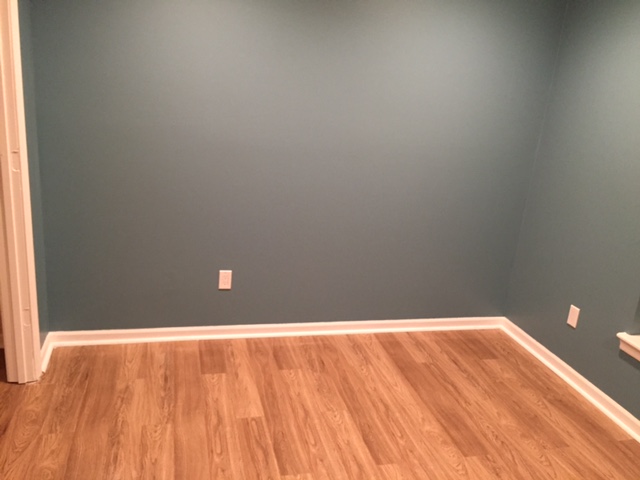

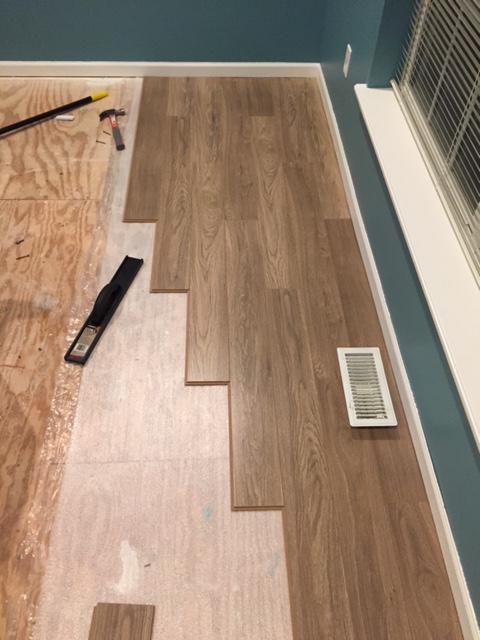

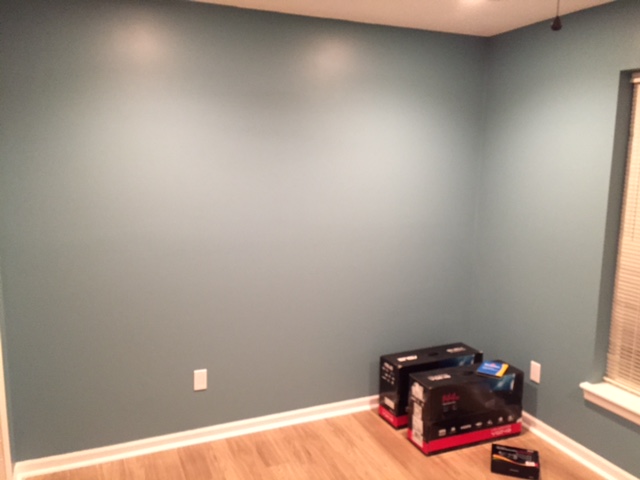

    So in prep for the network tech, I also wanted to redo my office. Here is the work I did...


    Attached Files:

  18. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #19

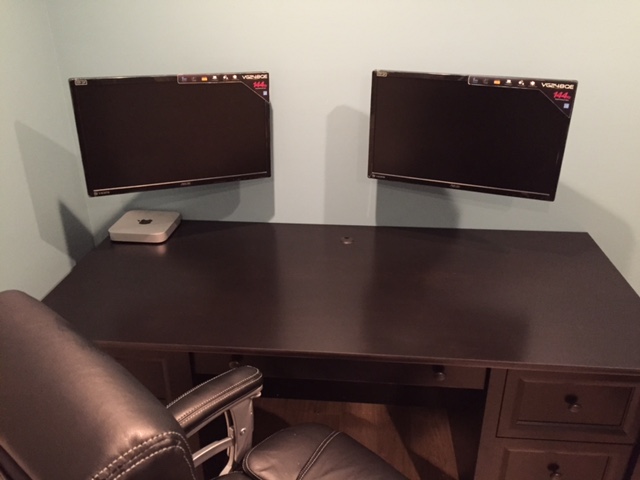

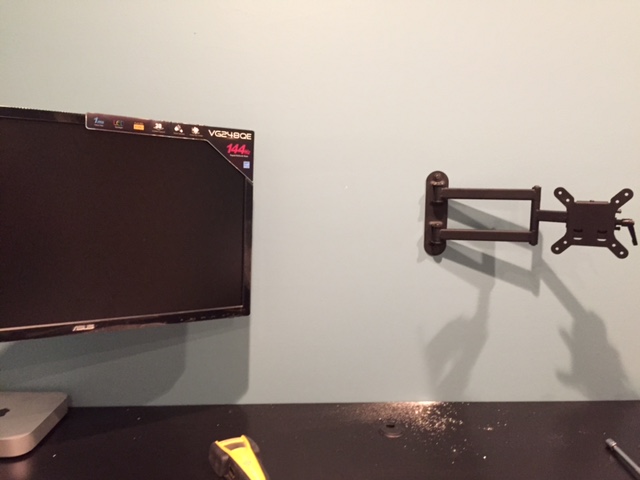

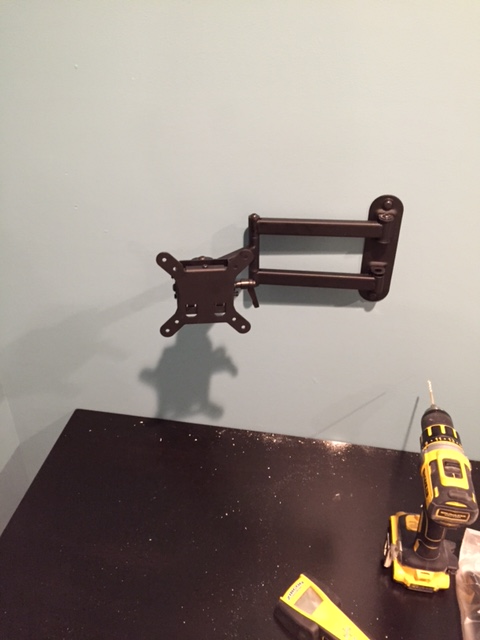

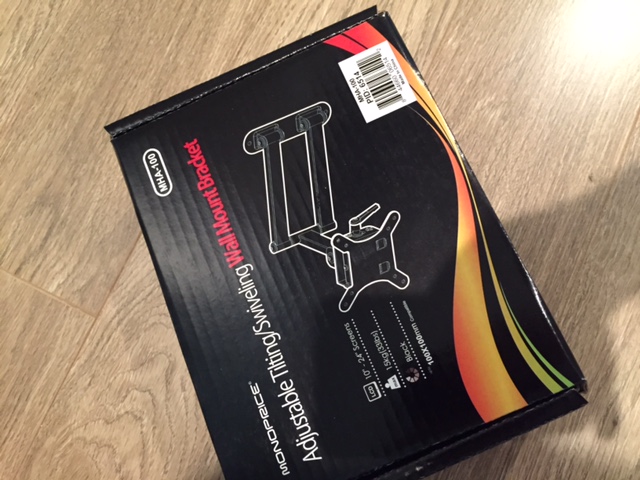

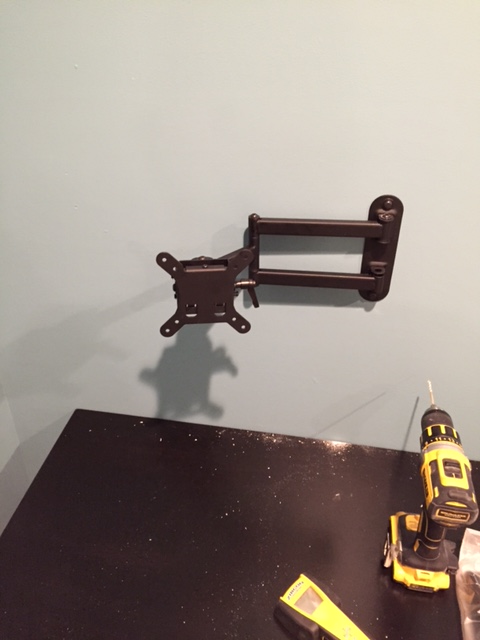

    and now time for some furniture and dual display wall mounted monitors...


    Attached Files:

  19. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #20

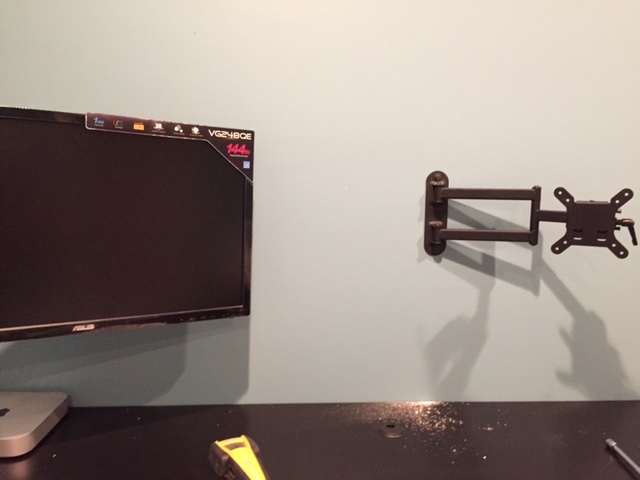

    and some more of that...


    Attached Files:

  20. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #21

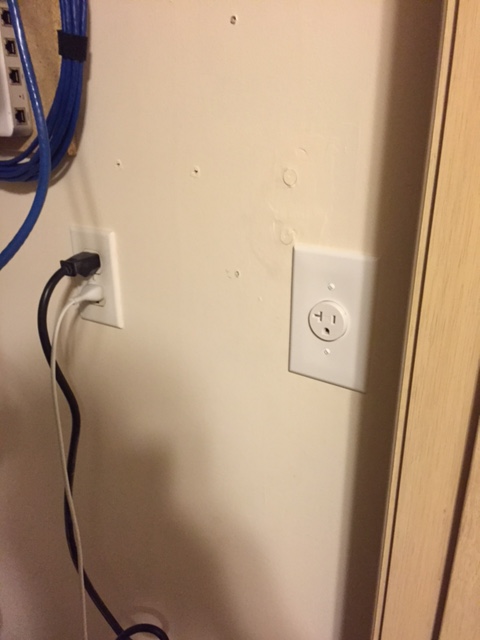

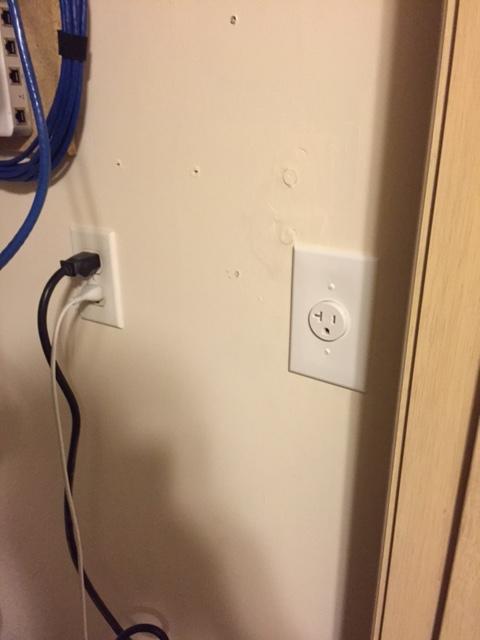

    Wired a 20A outlet for my UPS...


    Attached Files:

  21. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #22

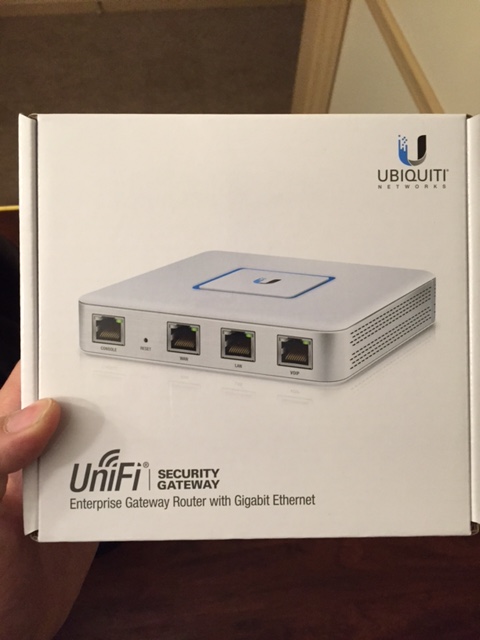

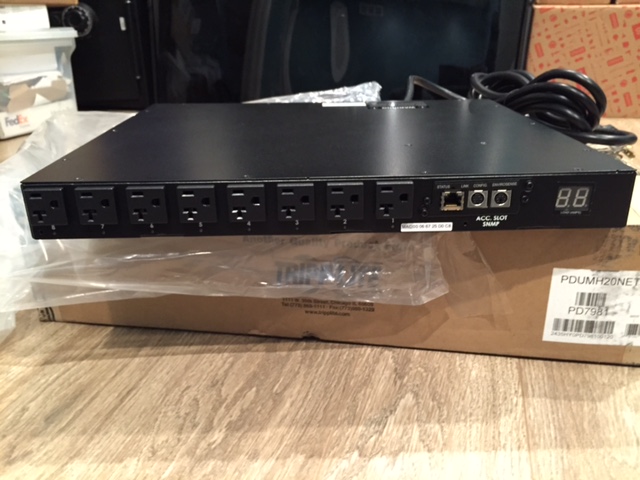

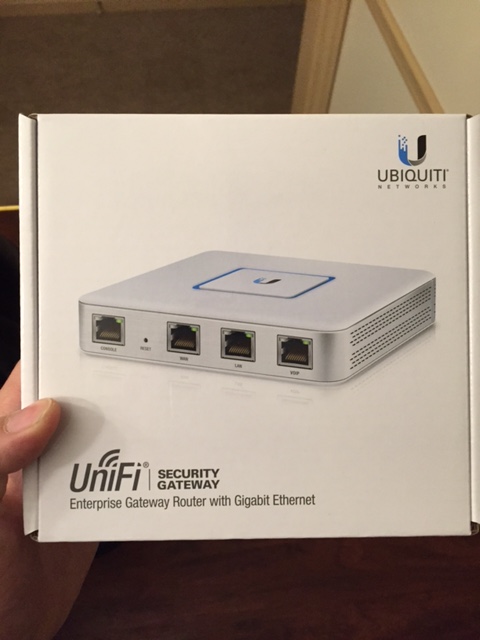

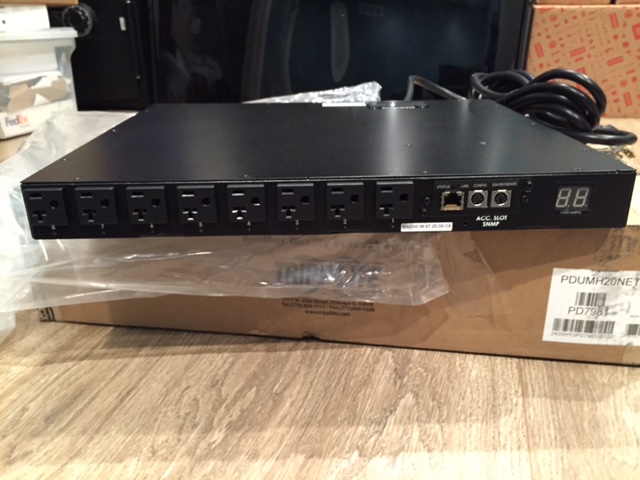

    Received my Ubiquiti USG and Tripp Lite 16port PDU


    Attached Files:

  22. unplugme71 thread starter macrumors 68030

    Joined:
    May 20, 2011
    Location:
    Earth
    #23
    PDU allows individual outlet switching. I can power on and/or off each outlet from the web based control panel. Great for hard rebooting a stubborn server.

  23. imaccooper macrumors regular

    imaccooper

    Joined:
    May 29, 2014
    Location:
    North Carolina
    #24
    Very cool. Looking forward to more updates.

    It appears that this isn't a house being built currently. Is it correct to assume that you are doing all of this while living in your house. More specifically, you are doing all of this work to a finished house and not during the building process. If so then how hard has it been for you to make some of those runs?

    Again, loving all of the stuff you are putting in and looking forward to updates.
