Updated Apple support documentation: conflicting 2017 iMac RAM specs

[Brookzy]

In the last few minutes apple.com has been updating with documentation for new products.

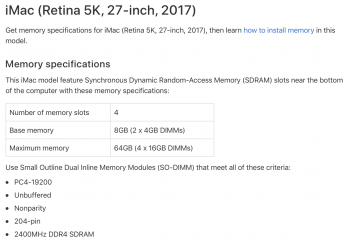

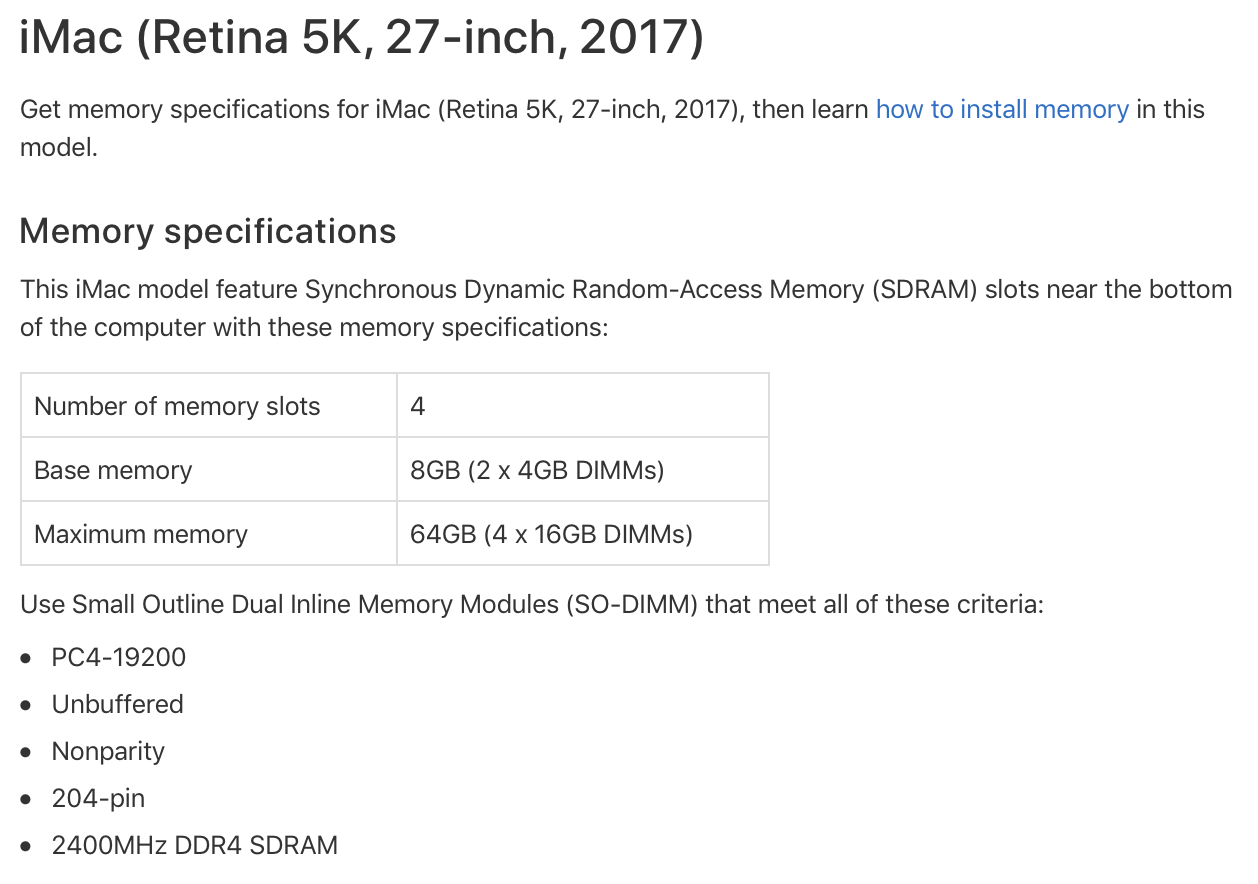

But this page lists these specifications for the RAM for the 2017 iMac:

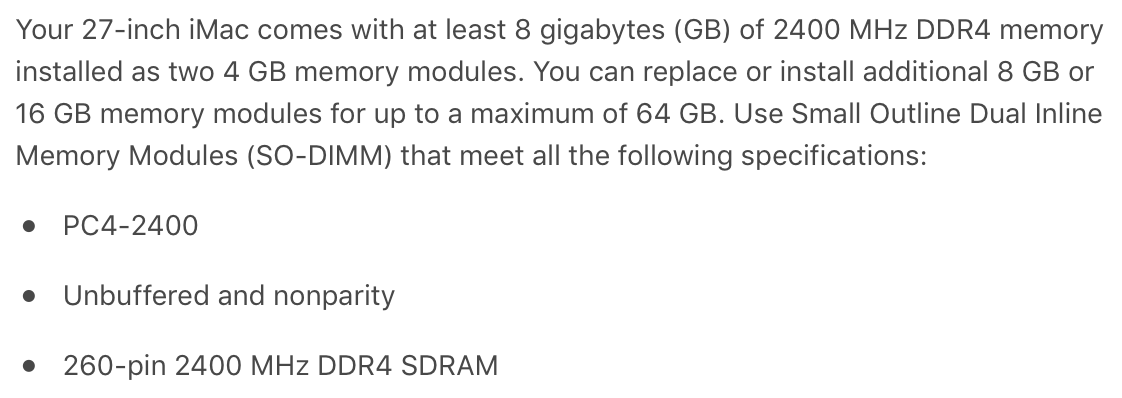

While the manual states differently:



Which is correct?



[dborod]

I believe that the DDR3 so-simms have 204 pins, whereas the DDR4 so-simms have 260 pins. It is unfortunate that there's inconsistency between these 2 Apple-sourced pieces of information.



[Brookzy]

I believe that the DDR3 so-simms have 204 pins, whereas the DDR4 so-simms have 260 pins. It is unfortunate that there's inconsistency between these 2 Apple-sourced pieces of information.

Thought so. I'll file a radar.



[Azenha]

Actually, the manual has an error of its own.

It refers to the SODIMMs as type PC4-2400, when in fact the correct denomination is PC4-19200.

https://en.wikipedia.org/wiki/DDR4_SDRAM

It blows my mind that a company as big as Apple can make such simple (yet confusing for newbies) mistakes on two different occasions...



[Brookzy]

Thought so. I'll file a radar.

Apple got back to me, stating they fixed the pin count inaccuracy.

Actually, the manual has an error of its own.

It refers to the SODIMMs as type PC4-2400, when in fact the correct denomination is PC4-19200.

https://en.wikipedia.org/wiki/DDR4_SDRAM

It blows my mind that a company as big as Apple can make such simple (yet confusing for newbies) mistakes on two different occasions...

This error remains. I will re-open the bug report with this issue.
