Upgrade iMac G3 via logic board swap?

Discussion in 'PowerPC Macs' started by Jiggly Billy, Jun 4, 2019.

  1. Jiggly Billy macrumors member

    Joined:
    Nov 2, 2012
    #1
    We may be picking up an iMac G3 400mhz DV model here soon, but I was wondering if you could swap in the later 500-700mhz model logic boards as a way to upgrade both the CPU & GPU at the same time. Would this work?

    Thank you all!

  2. philgxxd, Jun 5, 2019
    Last edited: Jun 5, 2019

    philgxxd macrumors regular

    philgxxd

    Joined:
    Feb 11, 2017
    Location:
    Malaga, Spain
    #2
    I tried a Summer 2000 500MHz motherboard from an iMac G3 Graphite and it were a simple swap for my 1999 400MHz iMac G3 DV. At least a 500MHz board from this moment in time will be possible to swap.

    I'm currently trying to repair a last model 700MHz and i noticed that the heatsink were different in shape and located slightly in another spot.

    I think you could move the older heatsink
    but a safer bet would be to have the divider panel of these newer iMacs. - I have to look again but i think the older heatsink is screwed while on the newer models it's fixed because it's part of the extruded metal divider panel-

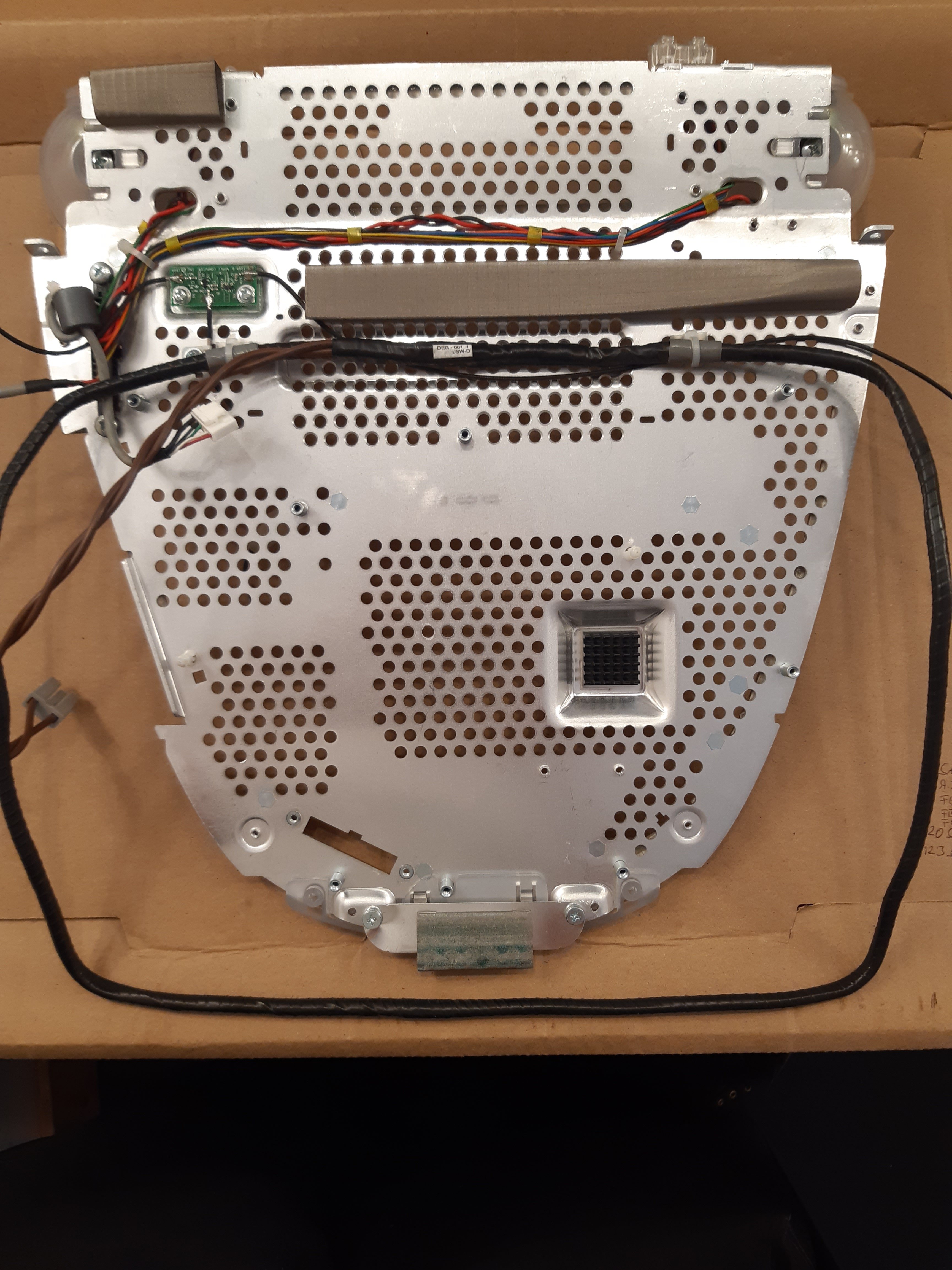

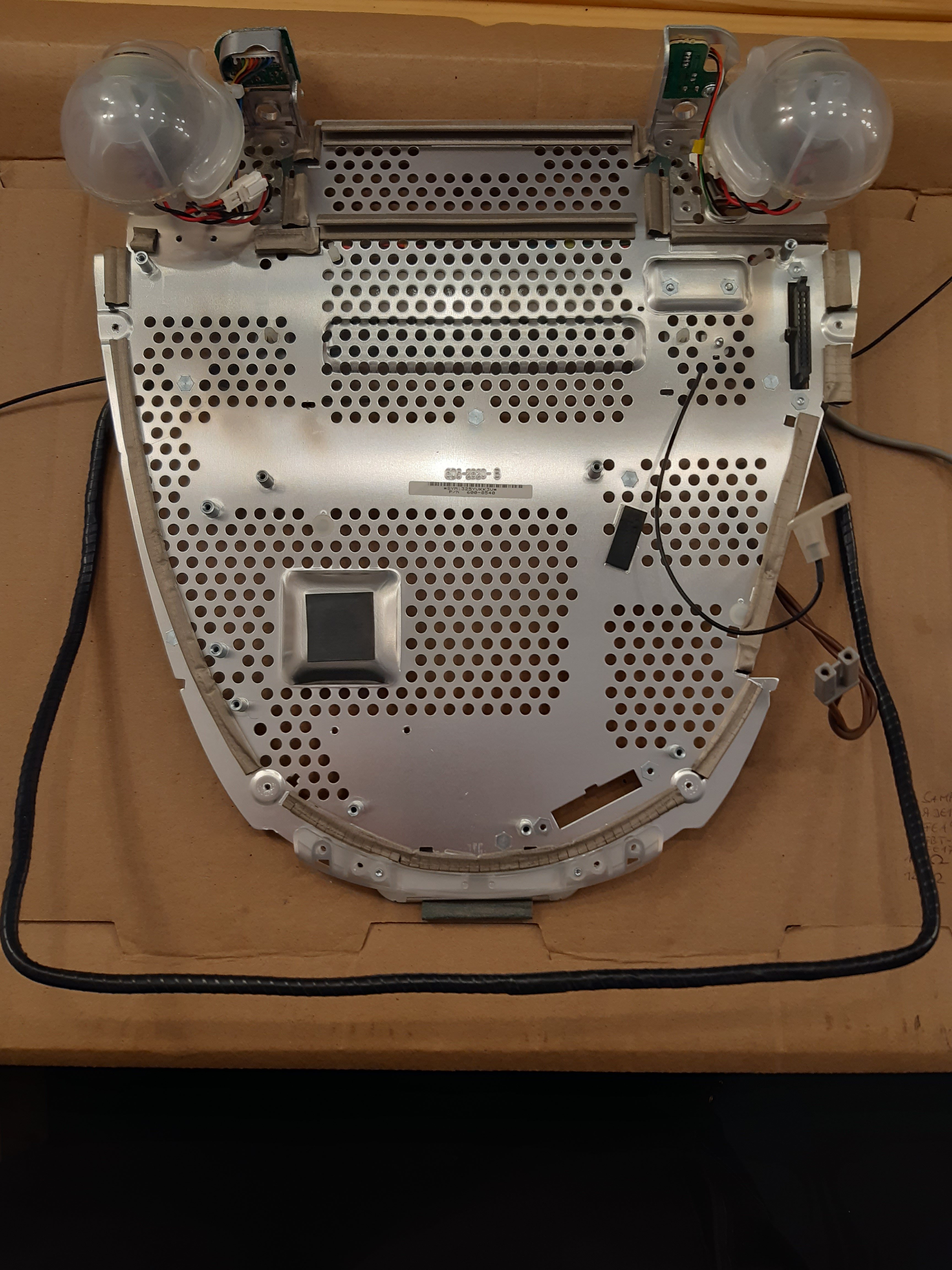

    Here are some photos of the divider panel from the 700MHz model. I will try to add some of the other one ASAP.

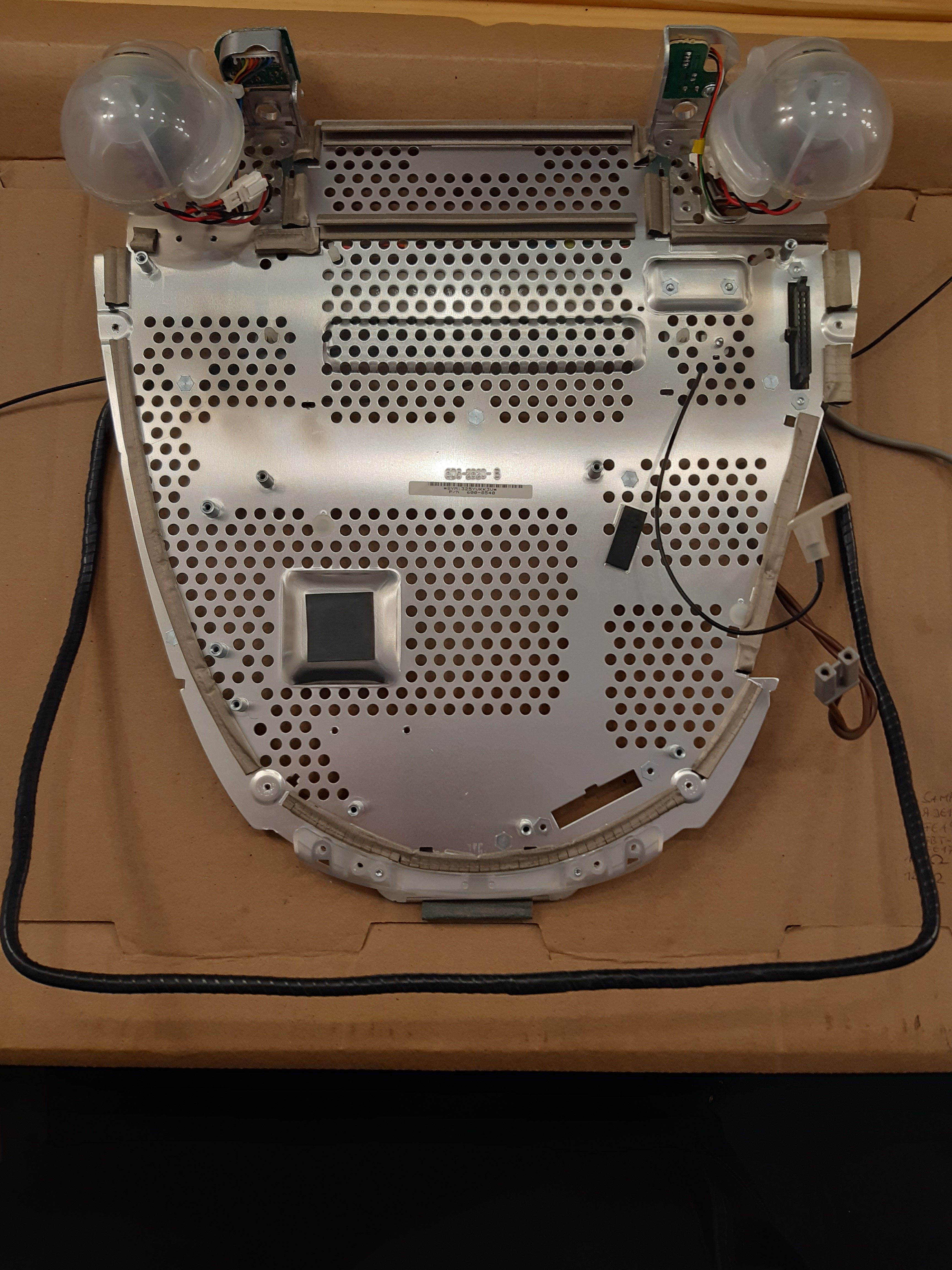

    1. Upperside (where the CRT and PAV board sits)

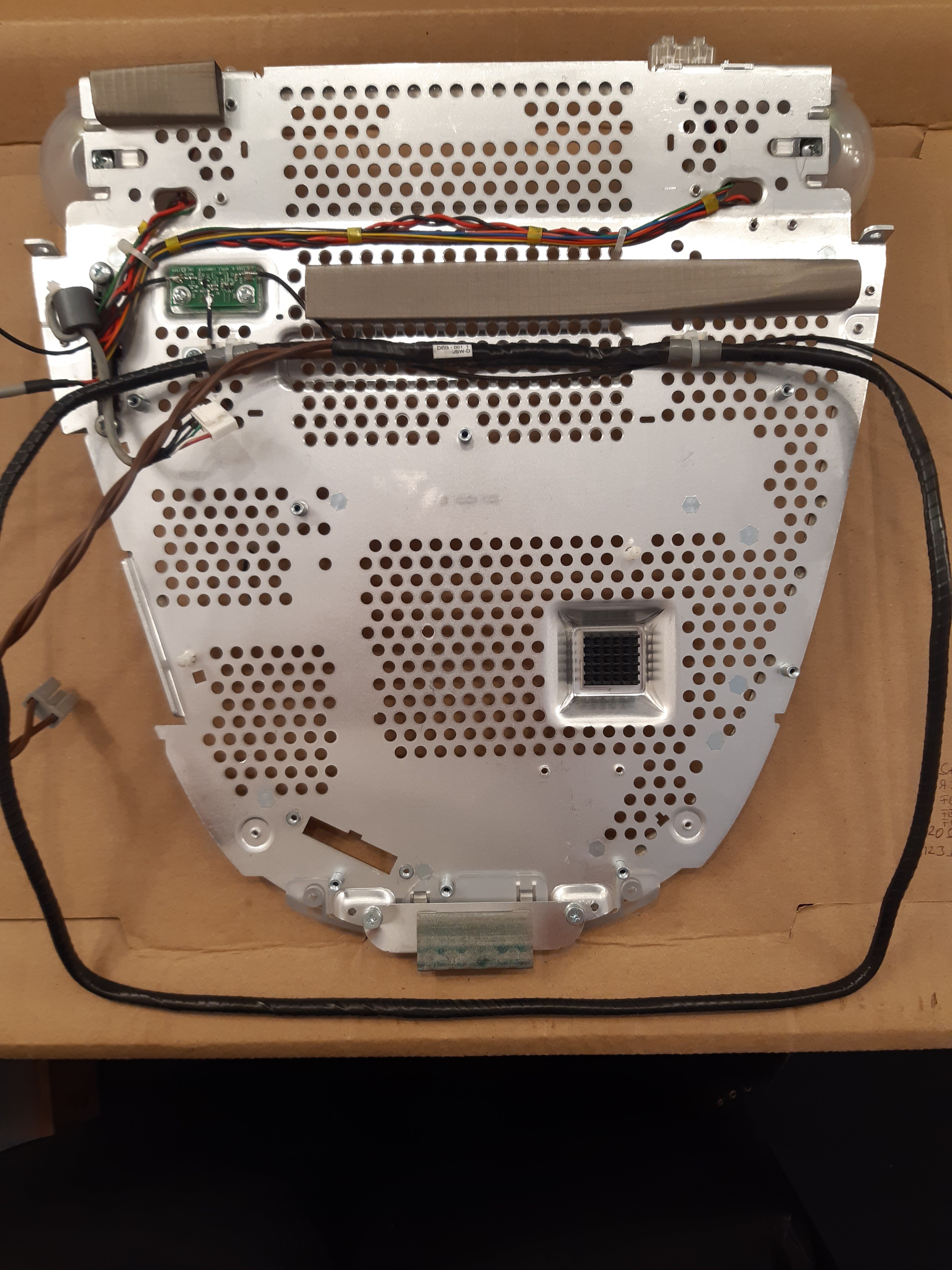

    2. Underside (where the Logic board sits)

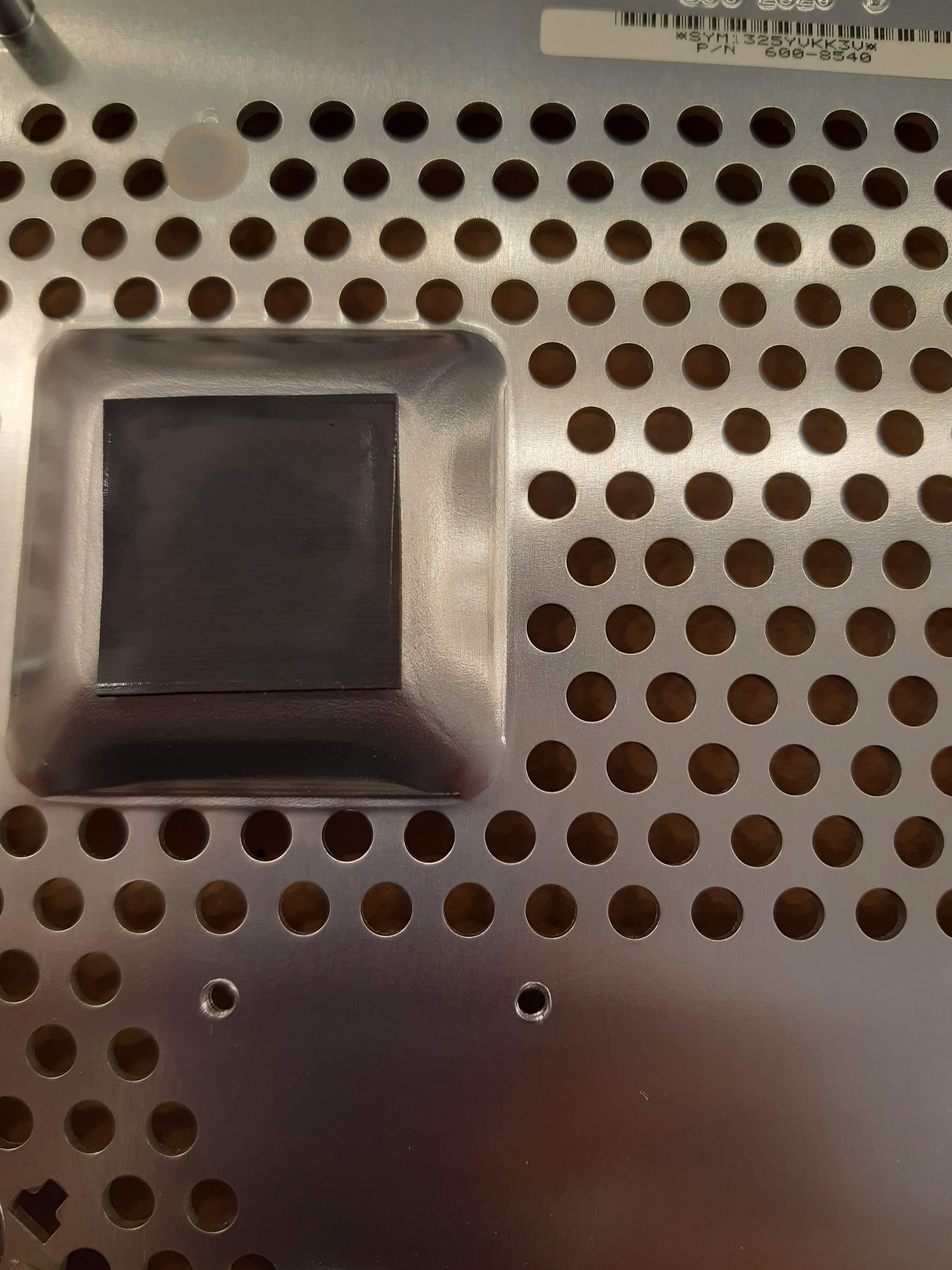

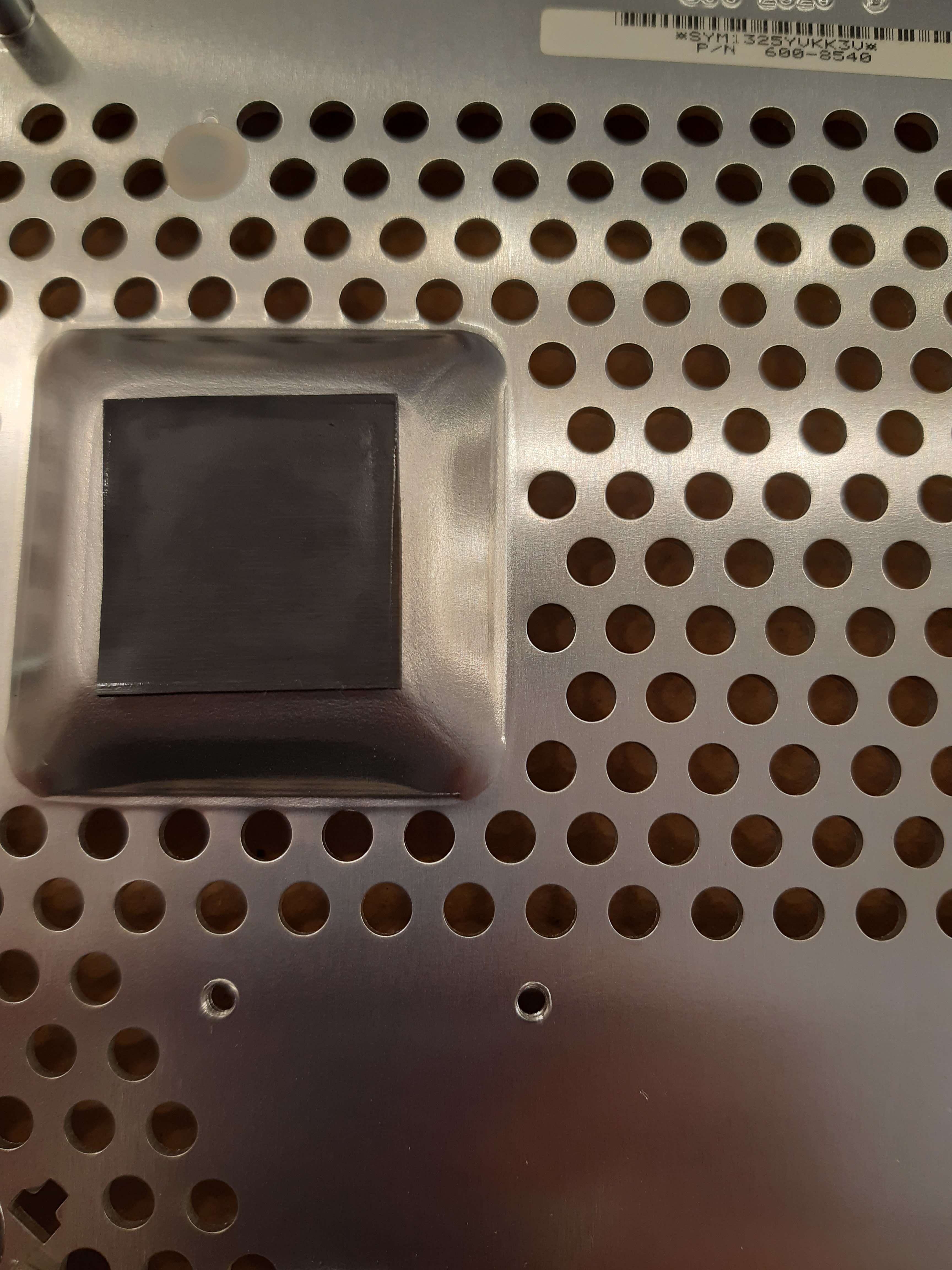

    There you have the heatsink with a thermalpad on it (i think it's 1mm thick)

    3. Close-up of the heatsink



  3. zackkmac macrumors 6502a

    Joined:
    Jul 7, 2008
    Location:
    Tulsa
    #3
    I have a graphite G3 400MHz (DV) and I swapped a 700MHz board into it several years ago from a snow model.

    In my case I don't recall there being any difficulties or the need to swap the divider/heatsink panel. In fact all I bought was the board itself.

  4. philgxxd macrumors regular

    philgxxd

    Joined:
    Feb 11, 2017
    Location:
    Malaga, Spain
    #4
    Interesting.
    Will have a look probably tomorrow and confirm if the heatsink is in another spot or not.

  5. philgxxd macrumors regular

    philgxxd

    Joined:
    Feb 11, 2017
    Location:
    Malaga, Spain
    #5

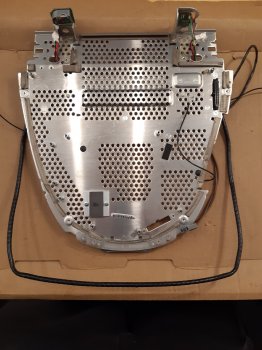

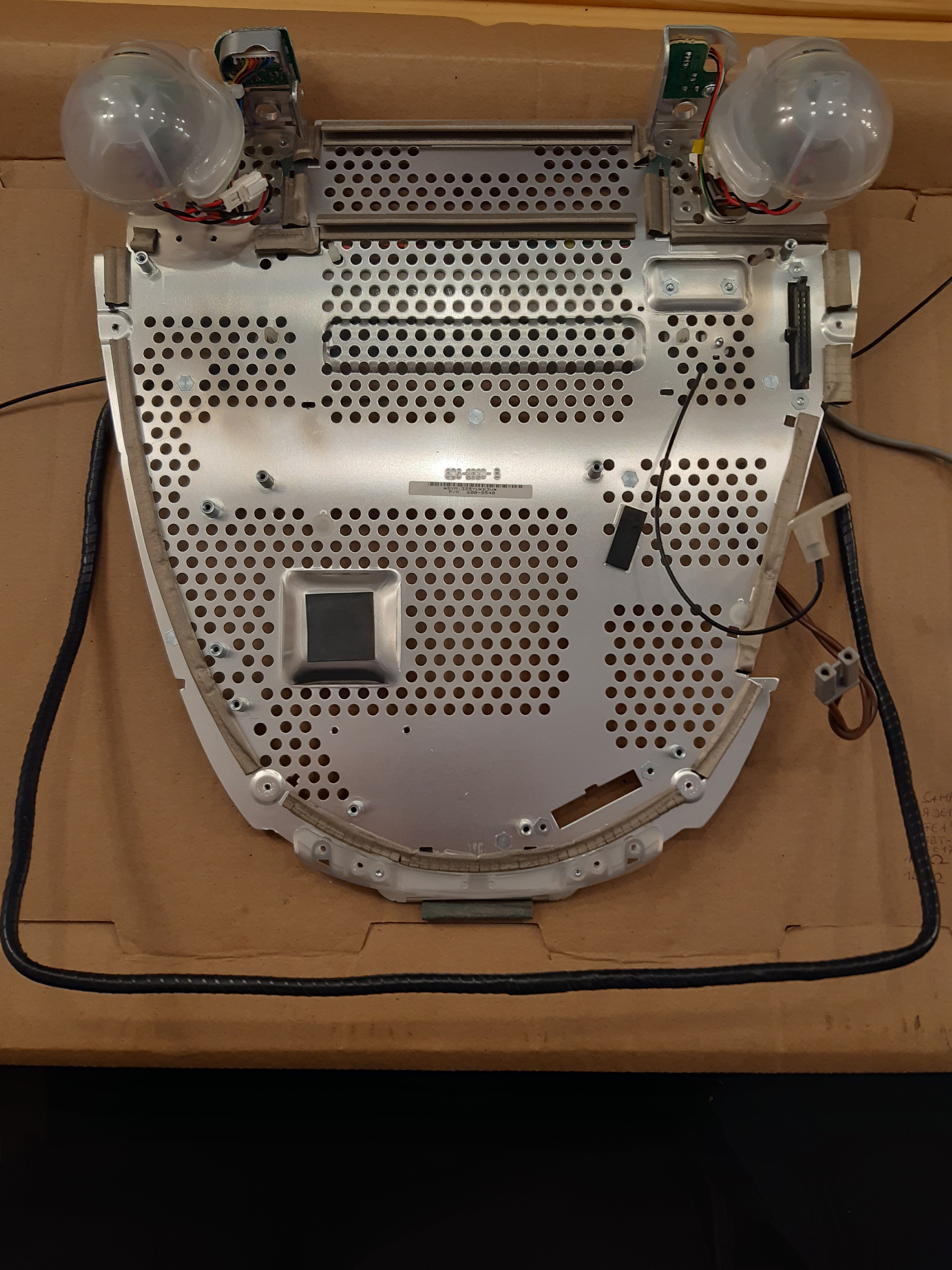

    1. Divider panel from iMac G3 500MHz Snow year 2000

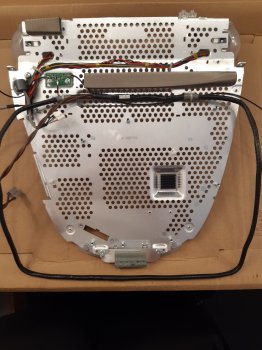

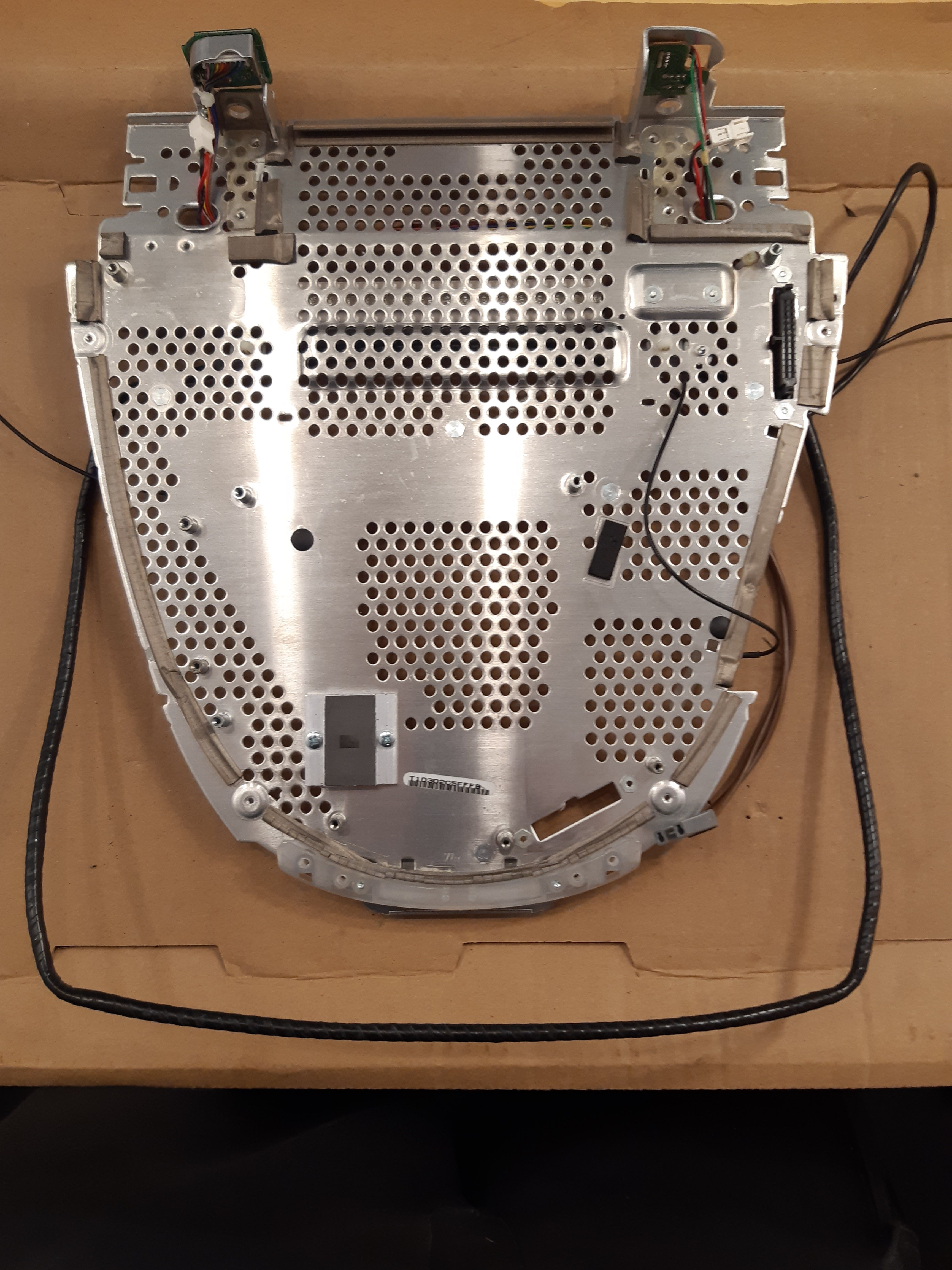

    2. Divider panel from iMac G3 700MHz Snow
    year 2001

    There are quite different so be aware.
    Maybe it depends on where it was made also as there were made in US, europe and Asia.
