Upgrade to 2TB HD 2010 iMac i5 2.8

Discussion in 'iMac' started by qwimjim, Jun 24, 2013.

  1. qwimjim, Jun 24, 2013
    Last edited: Jun 24, 2013

    qwimjim macrumors regular

    Jan 5, 2011
    Hey everyone, if I want to swap out my 1TB drive for a 2TB drive, the stock drive that is in there now is a 1TB WD Caviar Black 7200rpm, so would the WD 2TB Caviar Black WD2002FAEX be a good one to buy?

    And I read that the 2011 iMac's with thunderbolt drives are tricky to change the the HD's, and that there's a custom 7 pin connection and apple is using a non standard temperature sensor cable, etc.. are there any issues like this with the 2010 model? Ie temperature control or fan speed?
  2. toddzrx macrumors 6502a


    Nov 20, 2012
    Yes, the 2010 iMacs have a temp sensor in the HD just like the 2011's with a 7 pin connector.

    But why bother opening up the machine just for more storage? It'd be a lot easier to just go external. If you're going to go through the hassle of opening it, I'd replace your current HD with a small SSD for the OS, apps and your frequently used data, then go external for mass storage using FireWire or thunderbolt if you access it a lot.
  3. qwimjim thread starter macrumors regular

    Jan 5, 2011
    i have all my movies and music on an external and that works great, but the bulk of my data is photos, 700gb. i tried those on usb and it wasn't fast enough for loading, photoshop, etc.. i didn't want to invest in a firewire enclosure if it wasn't going to do the trick and don't have thunderbolt.

    what about the OWC SSD kit where split the sata connector and add an SSD and stuff it in the imac where there's some empty space? i saw their youtube tutorial, any downside to this?
  4. qwimjim thread starter macrumors regular

    Jan 5, 2011
  5. Bear macrumors G3

    Jul 23, 2002
    Sol III - Terra
    I believe the 2010 iMacs had a 2 TB option, you could go and buy a 2TB replacement drive for it. This will probably cost more however.
  6. ZMacintosh macrumors 65816


    Nov 13, 2008
    I know alot of Seagate and Hitachi drives seem to work, so if you have a hitachi or seagate drive currently, get a similar model but obviously 2TB.
    I know the seagate DM2001 (iirc) should work fine.
    otherwise you can get the cable adapter for pretty cheap on ebay, ifixit or other places.

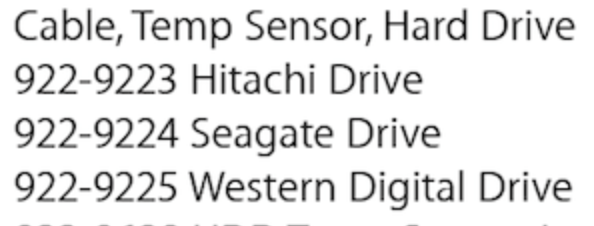

    i attached an image with part numbers for the cable.

    Attached Files:

  7. filipinowise macrumors newbie

    Jul 30, 2013
    Hello, I have an 2011 A1311 21.5", is there a HDD temp sensor? I didn't see it like the sensor wire like the 2010 iMac A1311 models that went to the hdd. I only see a ODD_Temp wire that runs/grounded to he super-drive. I've upgraded to a 1TB Seagate Hdd and the fan is running a bit loud. Thanks for you help and input.
