Upgraded 3.46GHz 12-core 2010 Mac Pro faster than new 2.7GHz Mac Pro?

kennyman

macrumors 6502
May 4, 2011
256
35
US
Thanks for that. So even on integer. About 6% faster on floating point. About 19% faster on memory throughput.
I would say that the overall experience and system responsiveness, are better than the old MP, but it is not by a huge margin. You can judge by yourself from the information below (comparing top end nMP and old MP, both 12-Core machines).

Integer Performance
Barefeats nMP is 38050
Old MP is 38126

Floating Point Performance
Barefeats nMP is 42041
old MP is 39718
Difference is - 2323

Memory Performance
Barefeats nMP is 5152
old MP is 4705
Difference is - 447

I was just comparing it to the MacPro on Geekbench 3 online

http://browser.primatelabs.com/geekbench3/204819

So, CPU processing power and memory bandwidth are not that far from MP 4,1/5,1 dual setups.


jkheit

Guest
Original poster
Aug 27, 2010
44
0
I would say that the overall experience and system responsiveness, are better than the old MP, but it is not by a huge margin. You can judge by yourself from the information below (comparing top end nMP and old MP, both 12-Core machines).

Integer Performance
Barefeats nMP is 38050
Old MP is 38126

Floating Point Performance
Barefeats nMP is 42041
old MP is 39718
Difference is - 2323

Memory Performance
Barefeats nMP is 5152
old MP is 4705
Difference is - 447

I was just comparing it to the MacPro on Geekbench 3 online

http://browser.primatelabs.com/geekbench3/204819

So, CPU processing power and memory bandwidth are not that far from MP 4,1/5,1 dual setups.
Thanks Kenny. Seems like it's pretty close. 5/10% difference. The video cards are where the difference comes in. It will be interesting to see if the FirePros will be something that can be added to the old Mac Pro. If so, these old souped up Mac Pros may be the machine to have for a bit longer, with the expansion abilities...


peabo

macrumors regular
Feb 14, 2008
201
0
Thanks Kenny. Seems like it's pretty close. 5/10% difference. The video cards are where the difference comes in. It will be interesting to see if the FirePros will be something that can be added to the old Mac Pro. If so, these old souped up Mac Pros may be the machine to have for a bit longer, with the expansion abilities...
I think that can already be done, but for the price of 2 FirePros you could have a new Mac Pro as they are $3500 each.


kennyman

macrumors 6502
May 4, 2011
256
35
US
I think that can already be done, but for the price of 2 FirePros you could have a new Mac Pro as they are $3500 each.
Question is; my friend - do you really need 2 fire pros? Do you want to invest on a GPU release in 2012 for USD 3500? Funny thing is now that FCP 10.1 is released, my RED files 4K editing works much better that before on my old Mac. Wonder why it was not released earlier on:confused:


Donar

macrumors 6502
Jul 12, 2008
356
44
Germany
..
Funny thing is now that FCP 10.1 is released, my RED files 4K editing works much better that before on my old Mac. Wonder why it was not released earlier on:confused:
Marketing ;)

"See how fast the new Mac Pro with FCPX 10.1 is, and look here how slow the old MacPro with FCPX 10.0x is."

If Apple released FCPX 10.1 earlier, people would have realized that FCP X 10.1 is not only faster on the new MacPro, but also on the original MacPro (and even uses two GPU if available).

Smart move.


kennyman

macrumors 6502
May 4, 2011
256
35
US
Marketing ;)

"See how fast the new Mac Pro with FCPX 10.1 is, and look here how slow the old MacPro with FCPX 10.0x is."

If Apple released FCPX 10.1 earlier, people would have realized that FCP X 10.1 is not only faster on the new MacPro, but also on the original MacPro (and even uses two GPU if available).

Smart move.
hahaha....you are right! I can tell you honestly that I have seen a drastic change on how FCP handles raw red 4K files and even 5K files now with FCP 10.1 update.

Previously I had to either render red files to ProRes or use the proxy (background rendering to get the chance to view the files). Now it is kind of magic, that same old hardware works.

Another thing is NVIDIA can also work on their drivers to make sure MAC OS takes advantage of the GPU compute power. They are also behind here, not sure whether they are upset with Apple lol


kennyman

macrumors 6502
May 4, 2011
256
35
US
Thanks Kenny. Seems like it's pretty close. 5/10% difference. The video cards are where the difference comes in. It will be interesting to see if the FirePros will be something that can be added to the old Mac Pro. If so, these old souped up Mac Pros may be the machine to have for a bit longer, with the expansion abilities...
Totally, we can still squeeze some more power out of the 2010/2012 MP for another 2-3 years. Now that the reviews for nMP 12-Core is out, I can confirmed that the raw CPU performance of dual X5690 is still more or less same with E5-2697 v2. In terms of CPU rendering and raw CPU power, we can still keep the old MP. My MP`s spec is below, let me know if you need any benchmark scores or any other info before upgrades.

MP 2010
2 Xeon X5690
48 GB RAM
1 SSD #on pcie card
1 GTX 680

I guess we will just have to wait and see what Maxwell GPUs bring to the table. Hopefully MVC will do his magic and we can have decent single cards with good performance under the hood in OSX.


Updates, here are some benchmark scores for comparison

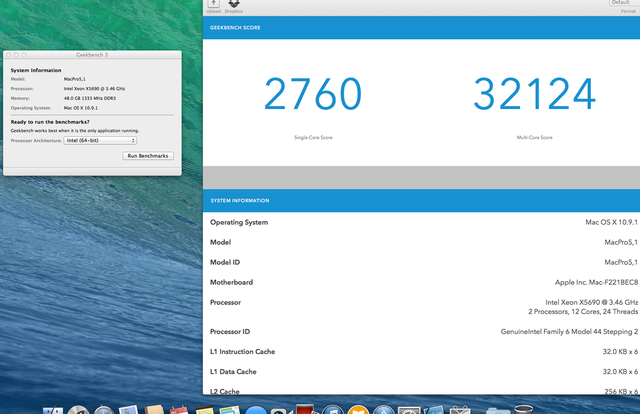

Geekbench 3

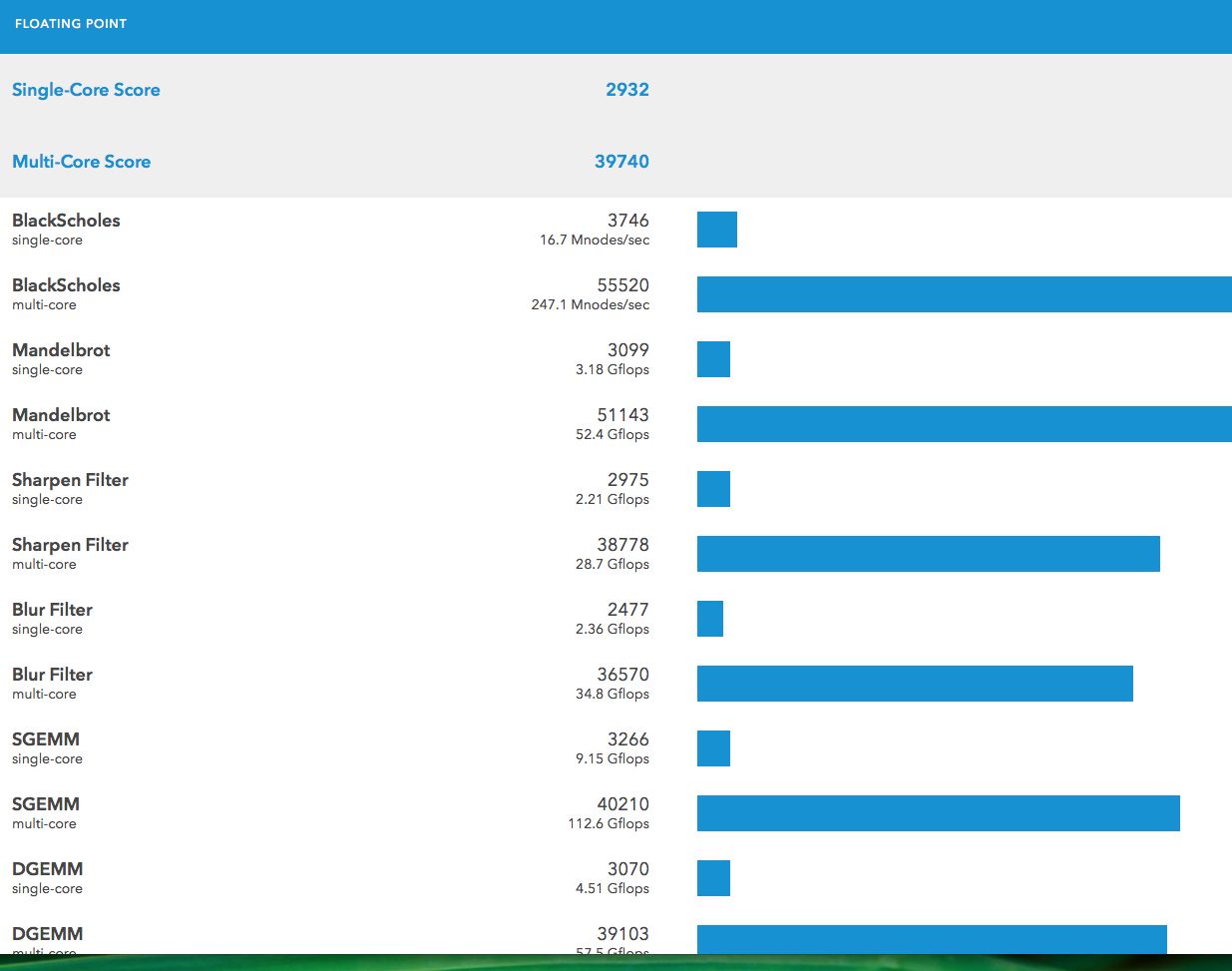

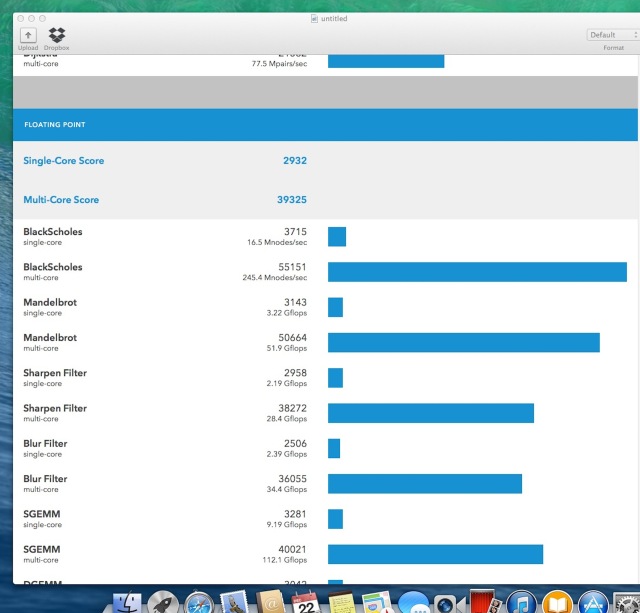

Geekbench 3 Floating Point

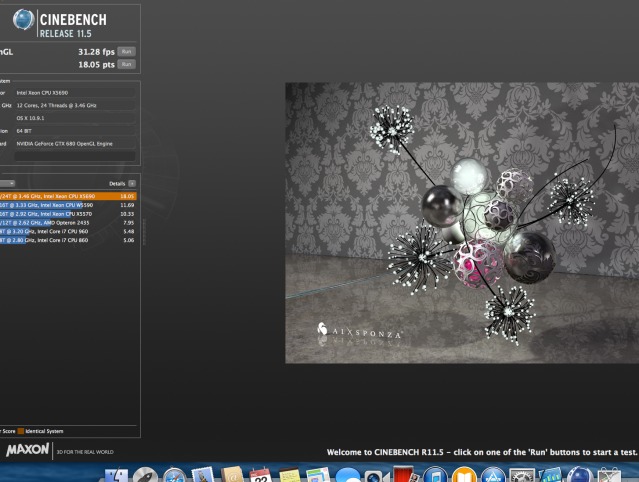

Cinebench R11.5 with GTX 680

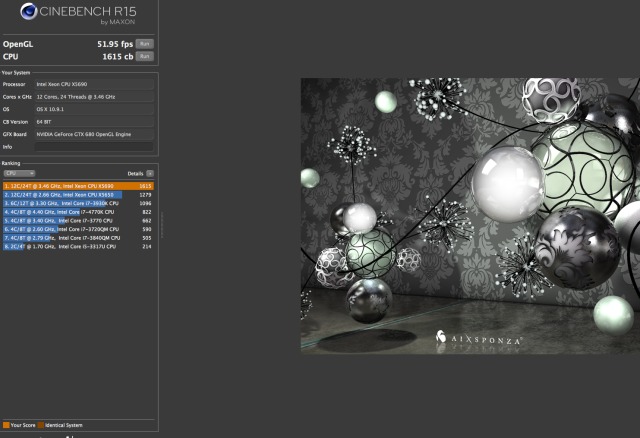

Cinebench R15 with GTX 680

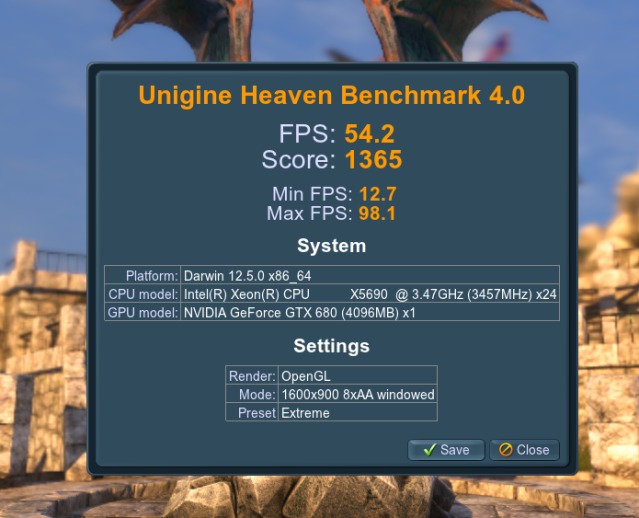

Heaven Benchmark with GTX 680


Last edited:

kennyman

macrumors 6502
May 4, 2011
256
35
US
Those who have GTX 780, will have higher scores in both Cinebench and Heaven.

Last edited:

Upgrader

macrumors 6502
Nov 23, 2014
307
49
MP 2010
2 Xeon X5690
48 GB RAM
1 SSD #on pcie card
1 GTX 680
Hey Kenny,

Re your 48gb RAM, do you have 6x8gb sticks installed? I have the same dual X5690 chips as you with 32gb RAM (4x8gb) and my Geekbench score is around 31,000. Just trying to troubleshoot my score as it should be similar to yours. I’m guessing it’s the RAM config.

Cheers.


ssls6

macrumors 6502a
Feb 7, 2013
546
147
Totally, we can still squeeze some more power out of the 2010/2012 MP for another 2-3 years.

Updates, here are some benchmark scores for comparison

Heaven Benchmark with GTX 680

The heaven score is a bit fake since you're running mountain lion.


Gav Mack

macrumors 68020
Jun 15, 2008
2,192
17
Sagittarius A*
Not too obsessed with benchmarks, but all round I would imagine the gap bar single core has closed with the Sintech/nMP 2nd gen 1Tb blade option closing the gap on the disk i/o.


kennyman

macrumors 6502
May 4, 2011
256
35
US
@Upgrader
Yes, I have Samsung DDR3 6 x 8GB ones. I believe you can achieve better scores by removing the memory sticks. But no need to troubleshoot scores lol

It always fluctuates, just be happy with the scores. It also depends on OS, but it is all right to have between 31000 to 32000 with similar setup, all good.

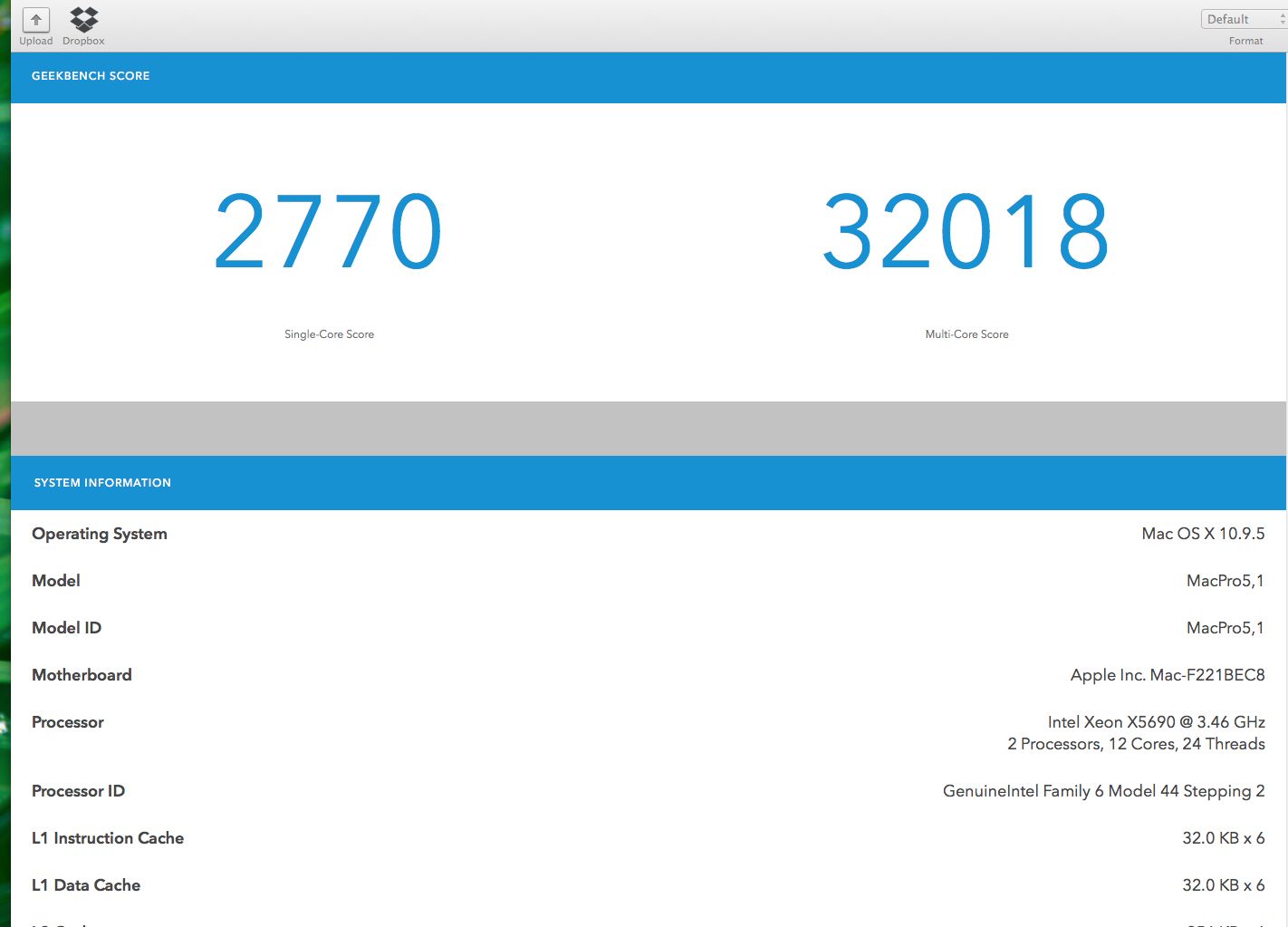

Scores on mavericks

https://forums.macrumors.com/attachment.php?attachmentid=518960&stc=1&d=1418295481


Attachments

apphotography

macrumors regular
Nov 19, 2014
134
0
Thanks Kenny. Seems like it's pretty close. 5/10% difference. The video cards are where the difference comes in. It will be interesting to see if the FirePros will be something that can be added to the old Mac Pro. If
The D700 Fire Pro cards don't compare well to the options you have for Mac Pro towers.


kennyman

macrumors 6502
May 4, 2011
256
35
US
The D700 Fire Pro cards don't compare well to the options you have for Mac Pro towers.
True, there are more GPU options available currently for the cMP than nMP. I just hope that the nMP 2015/2016 would have the same GPU connectors and same TDP as 2013 MP. i also use a nMP and would like to be able to replace the GPUs in the near future.


666sheep

macrumors 68040
Dec 7, 2009
3,624
219
Poland
True, there are more GPU options available currently for the cMP than nMP. I just hope that the nMP 2015/2016 would have the same GPU connectors and same TDP as 2013 MP. i also use a nMP and would like to be able to replace the GPUs in the near future.
If you mean to drop 2015/2016 GPU into 2013 nMP – you won't be able to do it, even if the connector will remain the same. 2013 won't have EFI drivers and BIOS for other GPUs than D300/500/700 in its firmware.


kennyman

macrumors 6502
May 4, 2011
256
35
US
If you mean to drop 2015/2016 GPU into 2013 nMP – you won't be able to do it, even if the connector will remain the same. 2013 won't have EFI drivers and BIOS for other GPUs than D300/500/700 in its firmware.
Hmm...you are right, I would not be able to change the system definition from MP 6,1 to MP 7,1. That might be a an issue, I think I will just have to live with it.


h9826790

macrumors G5
Apr 3, 2014
13,978
6,594
Hong Kong
It's hard to tell. Of course it will not be an easy task, however, how can a 4,1 use X5690? May be someone can figure out how to turn a 6,1 to a 7,1 later on.


Tutor

macrumors 65816
Tock Tic principle controls - it's like clockwork, but the tock precedes the tick

It's hard to tell. Of course it will not be an easy task, however, how can a 4,1 use X5690? May be someone can figure out how to turn a 6,1 to a 7,1 later on.
MP6,1 to MP7,1 ain't going to happen. Why could a 2006 MP (tock) be tricked into thinking that it is a 2007 MP (tick)? Same processor family. Why could a 2009 MP (Nehalem) (tock) be tricked into thinking that it is a 2010 (tick) or fake 2012 (Westmere) MP (just a processor w/in same family swap) ? Same processor family. If Apple had made a Sandy Bridge MP (tock) , then it could be tricked into thinking that it was an Ivy Bridge MP (tick) because they're part of the same Sandy Bridge processor family. See where this is leading - because the Ivy Bridge (tick) was the end of the Sandy Bridge family, those owners are stuck there. Now maybe a Haswell MP (if there is one) (tock) can be tricked into thinking that it's a Broadwell MP (if there is one) (tick) [see discussion here: 1) http://en.wikipedia.org/wiki/Broadwell_(microarchitecture) ], 2) http://en.wikipedia.org/wiki/Westmere_(microarchitecture) and 3) http://en.wikipedia.org/wiki/Mac_Pro .

P.S. - A MP4,1 can use 5690s just by doing the 4,1 to 5,1 hack/trick [as you've already apparently done] and by installing the 5690s properly.

Last edited:

Upgrader

macrumors 6502
Nov 23, 2014
307
49
@Upgrader
Yes, I have Samsung DDR3 6 x 8GB ones. I believe you can achieve better scores by removing the memory sticks. But no need to troubleshoot scores lol
Ha, I guess I mean I'm trouble shooting my upgraded set up - I was concerned that maybe I'd over tightened a heat sink or something else was wrong with what I'd done, making the score lower. Just trying to get the absolute best from the unit. Now I've used it on a job though I'm not sure that 1000 missing points really matters. The machine flies although I could do with another 16gb RAM.


zebity

macrumors member
Aug 1, 2008
68
17
Australia
Just did the 12 Core X5690 Upgrade

Hi Mac'ers,

Just did the dual X5690 3.46 12 Core upgrade on dual 3.06 X5675 12 Core Mid 2012 Mac Pro.

I have been waiting for processor cost to come down, which they have.

Geekbench 64 comparision:

Single-Core: 2617 -> 2792 (6.7% increase)
Multi-Core: 28451 ->31603 (11.1% increase)

<Score>
2792 Single-Core Score 31603 Multi-Core Score
Section Description Single-Core Multi-Core
Integer Processor integer performance 3066 37512
Floating Point Processor floating point performance 2961 39508
Memory Memory performance 1909 3975

Geekbench 3.3.2 for Mac OS X x86 (64-bit)
System Information
MacPro5,1
Operating System Mac OS X 10.10.3 (Build 14D136)
Model MacPro5,1
Model ID MacPro5,1
Motherboard Apple Inc. Mac-F221BEC8
Processor Intel Xeon X5690 @ 3.46 GHz
2 Processors, 12 Cores, 24 Threads
Processor ID GenuineIntel Family 6 Model 44 Stepping 2
L1 Instruction Cache 32.0 KB x 6
L1 Data Cache 32.0 KB x 6
L2 Cache 256 KB x 6
L3 Cache 12.0 MB
Memory 64.0 GB 1333 MHz DDR3
BIOS Apple Inc. MP51.88Z.007F.B03.1010071432
</Score>

This combined with fact that I get PCI-e slots which I have used for Areca RAID card and Nvidia GTX Titan, mean that I have enough cpu grunt and greater flexibilty with old Mac Pro than new Mac Pro, which provides "Thunderbolt" that is useful for ..... nothing much to my mind.

It would be great if I could also get 10GBE, but this would require require removal of Areca RAID as you are limited only 2 16 Lane PCI-e cards.

Instead I have bonded the two 1GBE ports together for greater network bandwidth.

Zebity
(Mac Pro 2012 with 2 x 3.46GZ + Areca + Nvidia GTX Titan)

Last edited:
