Upgraded 4,1 to 5,1 with x5690 now loud beep under load

[kiwirob]

Hi,

I've gone through the upgrade process and installed 2x delidded x5690 CPU's and everything runs pretty good until the machine is a few minutes into heavy load.

Running 10.11 El Capitain.

Over ~= 65%+ for a few minutes there is a solid beep that stays until the load is taken down below ~=50%

Also when awaking from Sleep the machine will also beep when it is under load when put asleep (but not necessarily beeping).

I have installed Macs Fan Control and none of the CPU temps are that high. I can get the error to occur with the CPU A Diode Temp below 75ºC (167ºF) with load at 100%. I'm using "yes > /dev/null &" for load and 12 processes is about 50%, 24x is 100%. if I Killall Yes processes the noise instantly goes away and if I kill each one at a time the noise goes away when I'm down to about 10 or 11 Yes processes running.

I have also reset PRAM and thank my SMC reset worked fine too.

Have checked console logs to try find an error message for the noise but can't find anything.

Any suggestions on where I might be able to track down the cause of the error?

Thanks

Kiwirob



[h9826790]

Hi,

I've gone through the upgrade process and installed 2x delidded x5690 CPU's and everything runs pretty good until the machine is a few minutes into heavy load.

Running 10.11 El Capitain.

Over ~= 65%+ for a few minutes there is a solid beep that stays until the load is taken down below ~=50%

Also when awaking from Sleep the machine will also beep when it is under load when put asleep (but not necessarily beeping).

I have installed Macs Fan Control and none of the CPU temps are that high. I can get the error to occur with the CPU A Diode Temp below 75ºC (167ºF) with load at 100%. I'm using "yes > /dev/null &" for load and 12 processes is about 50%, 24x is 100%. if I Killall Yes processes the noise instantly goes away and if I kill each one at a time the noise goes away when I'm down to about 10 or 11 Yes processes running.

I have also reset PRAM and thank my SMC reset worked fine too.

Have checked console logs to try find an error message for the noise but can't find anything.

Any suggestions on where I might be able to track down the cause of the error?

Thanks

Kiwirob

Did you try reseat the CPU?



[ActionableMango]

Any suggestions on where I might be able to track down the cause of the error?

I don't know off hand.

I would think it is in the logs and that you were on the right track, but it could be non-obvious and hard to find. A strategy to narrow it down would be to keep a system clock up on your desktop. When the beep happens, look at the time including the second. That way you can look at the logs again but narrow it down to a window of events that occurred within a few seconds of that time.

If there is still nothing in the logs, I wonder if there is a beep alarm happening automatically in the firmware of the logic board, so the OS doesn't know about it and doesn't log it. You could look for audible alarms in the service manual PDF.



[bsbeamer]

If this is NOT an install issue that is fixed by re-installing the processor (and cleaning the board/socket), these details might help:

what build/version of El Cap?
any chance you've recently installed a security update?
what firmware/Boot ROM Version are you running?



[kiwirob]

Did you try reseat the CPU?

Yes I did reseating the CPU with no luck.

So with the processors when I removed the original heatsinks the original quad xeon processors had a black plastic spacer guard around them that was the same size as the delidded cpu sicks above the pcb. I decided to use them because they should help stop over tightening the heatsink and causing damage.

Update:

So I have just swapped out the processor tray and installed it in a genuine 5,1 and everything booted up fine but the same long beep sound when the processors were put under load.

I think this narrows the issue down the processor tray and/or one or both x5690 CPU's.

I also when through the long process of installing the Apple Diagnostic into /System/Library/CoreServices/.diagnostic so I could do the hardware check (on the upgraded cMP 4,1) and everything passed with flying colours.

Can I run a dual processor board with a single processor? I might be able to determine if it's one of the x5690's thats causing the problem.



[ActionableMango]

Can I run a dual processor board with a single processor? I might be able to determine if it's one of the x5690's thats causing the problem.

Yes. The fans will run full blast, but other than that it will work.



[orph]

wait are you using a macpro 5.1 tray in a macpro 4.1?

edit
yes you can boot with just one cpu, it's one of the default testes to do after a dual cpu upgrade (people used to over/under tighten 4.1 and lose ram slots etc)

if you use a 5.1 tray in a 4.1 (or vice versa) the fans will operate at full blast, so as long as you have a 4.1 with a 4.1 tray it's ok (even a 4.1 with 5.1 firmware will need a 4.1 tray)



[kiwirob]

If this is NOT an install issue that is fixed by re-installing the processor (and cleaning the board/socket), these details might help:

what build/version of El Cap?
any chance you've recently installed a security update?
what firmware/Boot ROM Version are you running?

I went down the rabbit hole of upgrading to High Sierra so I could get the firmware upgrade.

No I'm sitting on OSx 10.13.4
Boot ROm Version: MP5,10085.B00
SMC Version (System) 1.39f5
SMC Version (Processor Tray) 1.39f5

All security up dates are updated

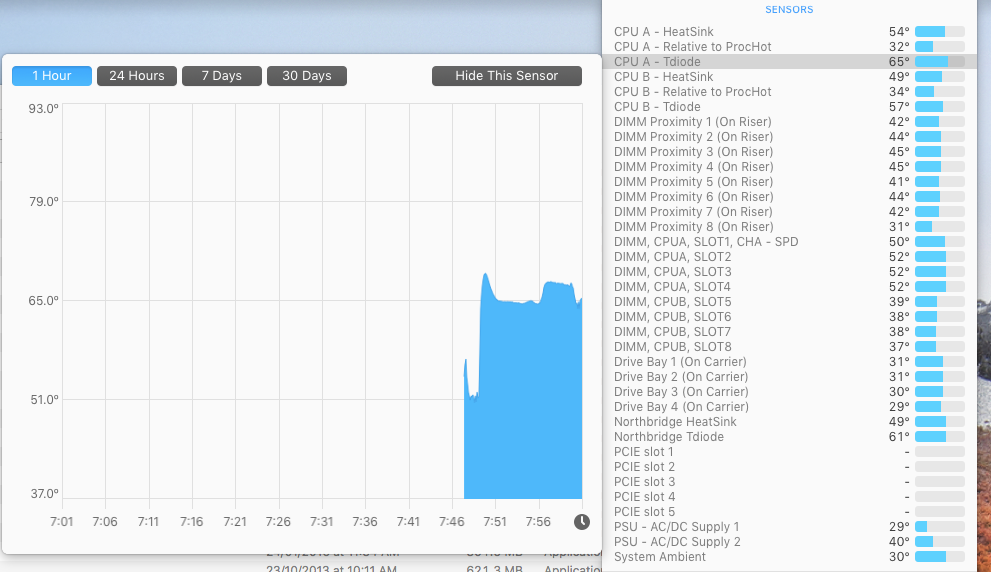

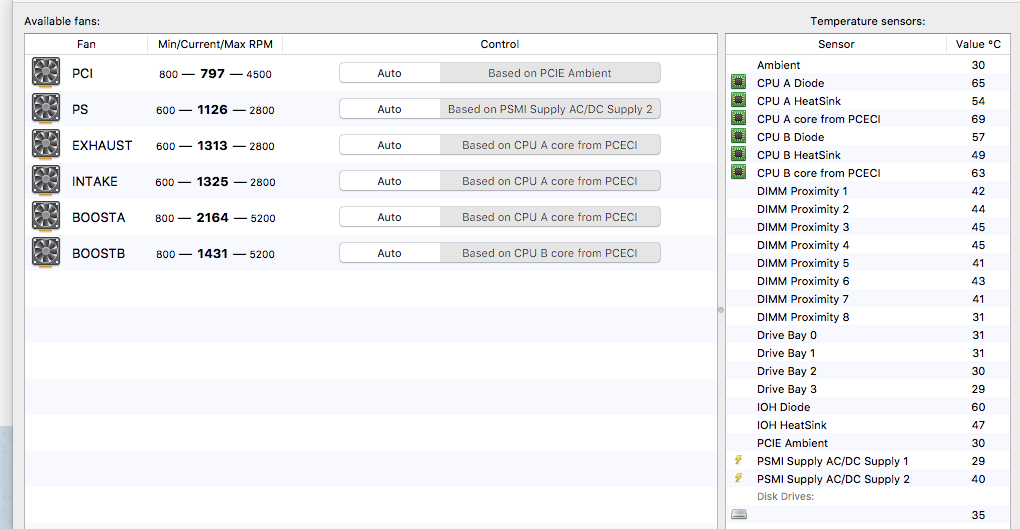

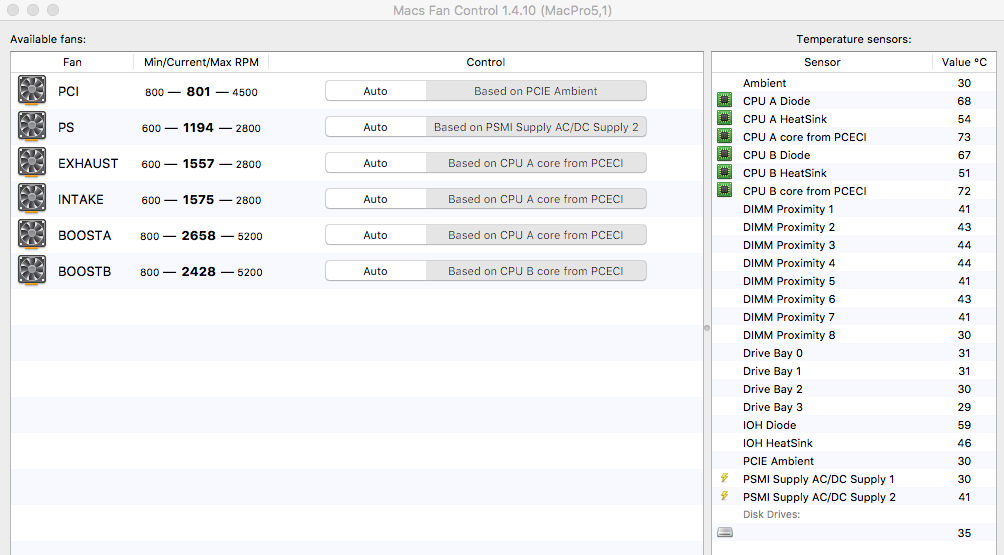

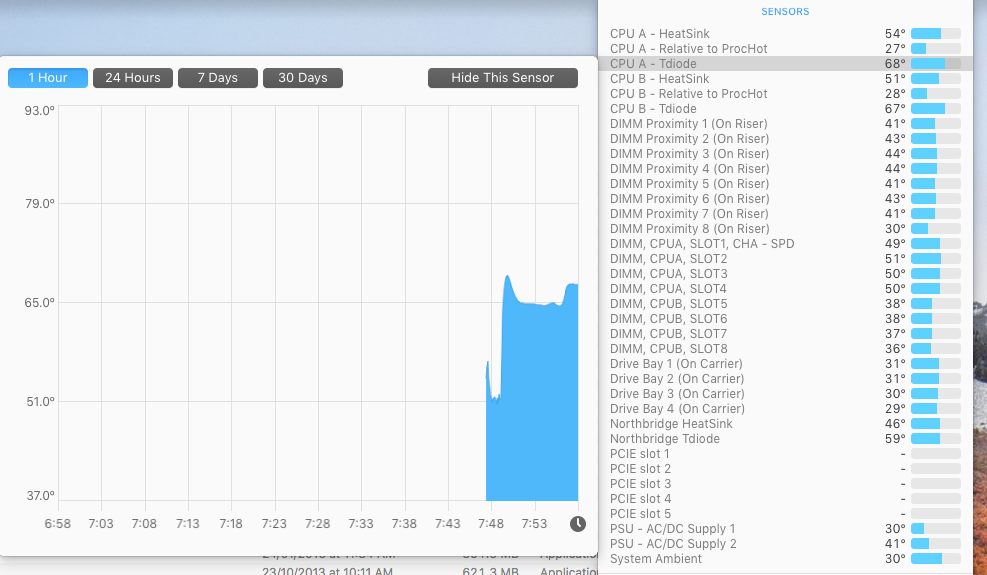

I have included a couple screen shots from Macs Fan Control and iStat Menu's that were taken with the CPU's under load and beep happening.

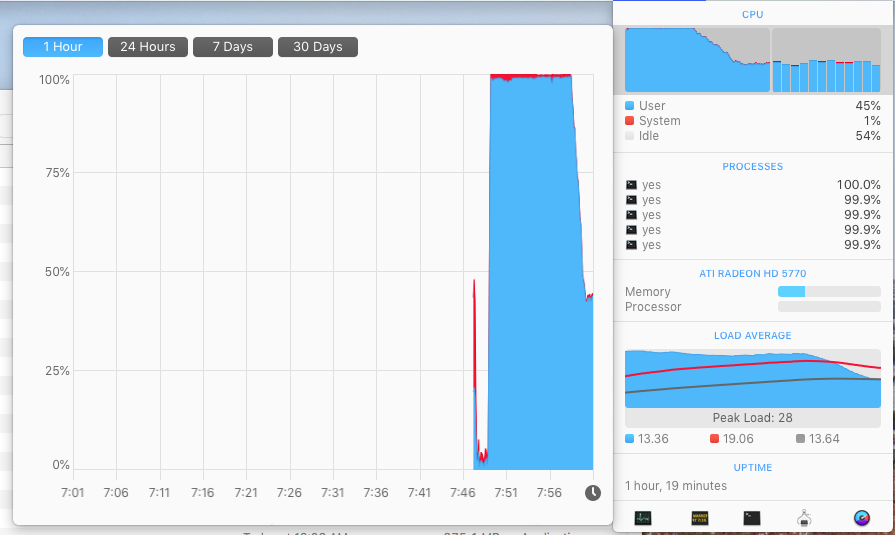

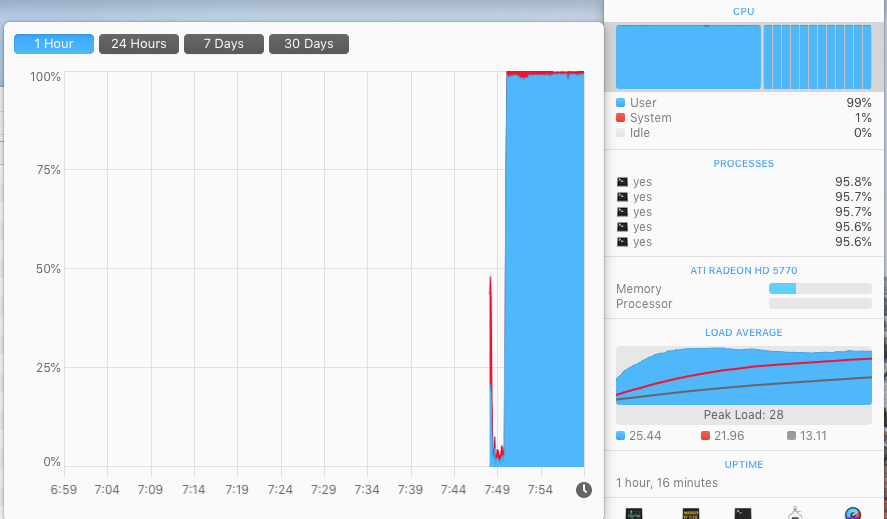

[doublepost=1525370919][/doublepost]The first 3 screenshots where taken when the long beep was occurring, the next 3 were taken after the CPU load was reduced and the beep stopped. Very little difference in temperatures etc...



[h9826790]

I went down the rabbit hole of upgrading to High Sierra so I could get the firmware upgrade.

No I'm sitting on OSx 10.13.4
Boot ROm Version: MP5,10085.B00
SMC Version (System) 1.39f5
SMC Version (Processor Tray) 1.39f5

All security up dates are updated

I have included a couple screen shots from Macs Fan Control and iStat Menu's that were taken with the CPU's under load and beep happening.
[doublepost=1525370919][/doublepost]The first 3 screenshots where taken when the long beep was occurring, the next 3 were taken after the CPU load was reduced and the beep stopped. Very little difference in temperatures etc...

All temperature looks normal indeed. However, I suspect you use the WRONG reference temperature for MacsFanControl (even though this should has nothing to do with your problem).

IMO, you better use the CPU Diode temperature, but not the "from PCECI" temperature.

And I also suggest to only install a single CPU into socket A for diagnosis purpose. Just in case one of the CPU is bad.



[kiwirob]

So to update my diagnostics on this.

Removed Processor B and ran up system with only Processor A in => No Problem
Swapped ram from Proc B into Proc A slots => No Problem
Installed Proc B into Proc A (swapped processors) => No Problem
Reinstalled Original Proc A in Proc B socket => loud constant beep after 2-3 mins 100% load

In every case the CPU diode temps never went over 65ºC

Im wondering if it's a problem then with either the PSU not liking the additional 130W from the 2nd x5690 processor or if the issue is with the 2nd Processor socket??

Also interesting that the fault can be instigated upon waking from sleep mode when put to sleep under 100% load. This has me thinking its possibly power related also.



[h9826790]

So to update my diagnostics on this.

Removed Processor B and ran up system with only Processor A in => No Problem
Swapped ram from Proc B into Proc A slots => No Problem
Installed Proc B into Proc A (swapped processors) => No Problem
Reinstalled Original Proc A in Proc B socket => loud constant beep after 2-3 mins 100% load

In every case the CPU diode temps never went over 65ºC

Im wondering if it's a problem then with either the PSU not liking the additional 130W from the 2nd x5690 processor or if the issue is with the 2nd Processor socket??

Also interesting that the fault can be instigated upon waking from sleep mode when put to sleep under 100% load. This has me thinking its possibly power related also.

The PSU is rated 980W, and so many members running dual X5690 for years now without any issue. So, power should not be the issue. Especially if the issue can be fix by swapping CPU, then obviously it's not power related.

And if you can fix that by swapping processor. Then better just swap it, use it, and forget about the beep.



[bsbeamer]

I'm running 2 x 3.46GHz (X5690) with 128GB RAM and a GTX 1080 FE (rated at 180W). PCIe slots are fully loaded with cards. SATA bays are fully loaded with SSDs. Have not seen my UPS display creep much above 600W when rendering with CUDA enabled software (GPU taxing). When not taxing the system, it's typically around 250W for normal operations with multiple apps open.

Have worked on many client machines with similar configurations in the past few years and I've never seen the system draw more than 750W on those with a digital display UPS. (I'm sure it's happened to some people.)

Unless your PSU is bad, the PSU is not the causing the issue. Your GPU "MIGHT" be contributing if it's underpowered, not evenly distributed, or not properly connected, but does not sounds like that is the case. Seems like an issue with your CPU install or the board itself. Check the daughter board connection and clean the connection on both sides. Check that there isn't a stray piece of hair or any dust near the CPUs that could be contributing to overheating. If you are not connected via UPS (battery backup) get a power meter, check your source power to see if it's spiking low/high.



[kiwirob]

ok further progress update

I have another genuine 5,1 running 10.12.6 but flashed with the High Serria firmware update

Boot Rom MP51.0085.B00
SMC Version (System) 1.39f11
SMC Version (Processor Tray) 1.39f11

And I also have another set of x5690's

So I put both x5690's with their lids on in the cMP 5,1 => under load same continuous long error beep as with the flashed 4,1
I used a new x5690 with one of the 4,1 5690's in the 5,1 => under load same continuous long error beep
I swapped out the 4,1 5690 with the other one => under load same continuous long error beep
I put in the 2nd new 5690 in the 5,1, so two new cpu's => under load same continuous long error beep

While the error beep is happening the systems are fully responsive, there is no crash, kernel panics, or logs that I have found. I reduce the load the a beep goes away.

This is starting to get very weird. If the processors were faulty I'd expect to see some panic or the system to freeze, but nothing, just a long continuous beep until I reduce the load below 50%. The 4,1 ran for close to an hour earlier today before the dreaded beep started and I was starting to think the problem might have sorted itself out.



[bsbeamer]

what else is connected to your system?
what is in PCIe slots?



[kiwirob]

If you are not connected via UPS (battery backup) get a power meter, check your source power to see if it's spiking low/high.

I'm not connecting to a UPS currently.

I do happen to have a internet over power system in my house connected. Perhaps that is messing up the power, but I have other computers also connected and no problems.
[doublepost=1525397697][/doublepost]

what else is connected to your system?
what is in PCIe slots?

4,1 has an Apple ATI Radeon 4870 (I think from memory it's not currently got CPU's in it)
5,1 has an Apple ATI Radeon 5870

So nothing else fancy in there



[NoFoo Panda]

I’m curious if you ever solved this issue? I have a 2012 5,1 and recently upgraded to the 3.46 12 core with full 128gb ram. When I try to do any rendering of any kind, say in After Effects, I get a solid sustained high pitched beep that sounds like the same thing you are experiencing here. I have checked my heat levels and nothing is out of ordinary. When running Lexmark I do get a failure while running the CPU stress test, but I do not know enough to know what that means. It’s just a clue, and I know for sure its the cpu.

I’d love any help I can get!
