Upgrading 15" MBP to 1920x1200 - anybody interested in a step-by-step guide? :)

Discussion in 'MacBook Pro' started by alexharries, Feb 28, 2009.

  1. alexharries macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #1
    Hi everyone,

    Having found this 46 page macrumors thread about fitting a 1920x1200 display in 15" Macbook Pros, I decided to do my best to summarise the thread and then try and write a step-by-step guide to upgrading your screen.

    I've posted up my first-draft write-up and detailed instructions list from this thread at:

    Greayhead.co.uk wiki: installing a high res display on a Macbook Pro

    The edited highlights from this entire thread can also be found at:

    Greyhead.co.uk wiki: WUXGA conversion research page

    Hope this all helps someone, and a huge amount of thanks goes to baxterbrittle for starting the thread and noetus for writing up an excellent guide.

  2. wbyung macrumors member

    Joined:
    Jan 16, 2009
    #2
    We need to know at least the panel we are going to use.

    Take Dell M4400 as an example, it has 15.4" WUXGA RGB-LED panel. I spent sometime looking for the details of this panel but in vain.

    The older guides used CCFL screen which are definitely not a candidate for the unibody Macbook Pros.

  3. alexharries thread starter macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #3
    Hi wbyung,

    Read my guide linked above - it should clear up which panels you can and cannot use (currently no WUXGA or WSXGA LED-backlit panels seem to be available to buy separately, so it can't be done on LED-backlit models at the moment).

    Al

  4. wbyung macrumors member

    Joined:
    Jan 16, 2009
    #4
  5. alexharries thread starter macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #5
    Wbyung, thank you very much! Good find - I'll update the guide now.

  6. nick9191 macrumors 68040

    Joined:
    Feb 17, 2008
    Location:
    Britain
    #6

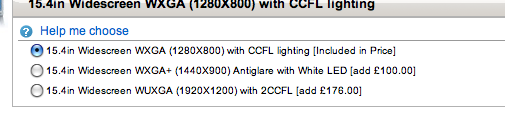

    I'm looking at the M4400 now and all I see are these options for the screen.


    Attached Files:

  7. alexharries thread starter macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #7
    Hi Nick,

    I'm wondering whether it might be a US-only option at the moment?

    Al

  8. Patriks7 macrumors 65816

    Patriks7

    Joined:
    Oct 26, 2008
    #8
    This looks like a pretty nice idea, and something I will probably try once I update (which won't be for another 3 years :p) But good luck to those brave ones trying it out!

  9. alexharries thread starter macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #9
    3 years?! Why wait that long? ;o)

  10. wbyung macrumors member

    Joined:
    Jan 16, 2009
    #10
    Changing the LCD panel this time isn't going to be easy. The bezel has to be replaced with a custom one. This requires a CAD design sent to a machineshop and would add about $200 to the cost.

    I really wish the 15inch Macbook had a matte option. I prefer traditional glossy screen over glass glossy or matte. Right now, there is no easy way to swap the panels in this machine.

    I don't really like the size of 17inch Macbook Pro and it is much more expensive.

    Errr...

  11. alexharries thread starter macrumors newbie

    Joined:
    Feb 27, 2009
    Location:
    London, UK
    #11
    Hi wbyung, can you give me some more details about why a custom bezel needs to be made, and for which models please?

  12. panzer06 macrumors 68030

    panzer06

    Joined:
    Sep 23, 2006
    Location:
    Kilrath
    #12
    He's got to be referring to the new unibody. The SR LED would not need any such thing. The biggest detriment I see is the high cost for those replacement 1920x1200 LED screens. It's over $500 just for the screen!

    My 1920x1200 CCFL cost just over $200. Now that I have it working again on my 2.16 x1600-based system, I am getting rid of that nvidia 8600 based SR failure waiting to happen (already replace logic board once).

    Great work on the new resources btw.

    Cheers,

  13. pandashark macrumors newbie

    Joined:
    Oct 18, 2007
    #13
    has anyone had luck upgrading the screen on 15.4" LED backlit macs? I have an A1260 (Santa Rosa, 2.5 GHz), and I was wondering if I can upgrade to a WSXGA screen (1680X1050).

    Obviously, the new MBP's have that option when you buy then, so could I use one of those screens (assuming i can acquire one) in my laptop? Also, would something like this work?

    http://www.laptopz.com/samsung-ltn154bt-154-wxga-laptop-lcd-screen-glossy-led-p-17978.html

    I'm having difficulty finding much out upgrading the screen on this model laptop.

  14. xi mezmerize ix macrumors 6502a

    xi mezmerize ix

    Joined:
    May 24, 2010
    Location:
    Maryland, USA
    #14
    What would be the point of doing this? Everything would be so small.

  15. peapody macrumors 68040

    peapody

    Joined:
    Oct 7, 2007
    Location:
    baltimore, md
    #15
    I did it.. on my 2.16ghz MBP classic. I had an LG antiglare 1900x1200 panel and DAMN :eek: type was small!! Made me hunch forward and squint to read texts.

  16. pandashark macrumors newbie

    Joined:
    Oct 18, 2007
    #16
    I began using a 1900X1200 screen on a 17" MBP, and I actually like the increased resolution and screen space (even though everything is smaller), so I figured moving to a 1650X1050 on a 15.4" MBP would be roughly equivalent. I agree that 1900X1200 would be way too small for a 15.4" though.

    What products (lcd screens) and can I buy to put in a 15.4" LED MBP at WSXGA+ (1680X1050) resolution? i think that's the main problem i'm trying to figure out, there's no resources on that, and there seems to be very few options.

    btw, I believe you can currently get a WSXGA+ panel on the new 15.4" MBPs from Apple...

  17. kunal2sh macrumors newbie

    Joined:
    Dec 11, 2010
    #17
    okay guys i am planning on buying the new macbook pro unibody! 15" but drawback is resolution! i can buy the samsung SEC5443 that is used in Dell M4400 which LED...now the main question is..will the connectors be the same and is it guaranteed to work? please let me know about connectors! thanks alot in advance!!
