Using iMac G5 as external monitor, "it can be done"

Discussion in 'PowerPC Macs' started by dxerboy, Mar 6, 2011.

  1. dxerboy macrumors member

    Joined:
    Oct 28, 2007
    #1
    Hi all, long time lurker here.

    Well, my G5, after two mobo replacements (years ago--under warranty) due to the bad caps, finally had the power supply go the other day. After removing the PS I can see the telltale bulge in a couple of caps inside.

    I'm ready to move on, but set on trying my best to salvage what I can, especially the display. (I'm thinking of getting a 13" MBP.) I know I know, extensive google searches all reveal that "you can't do it" (or that VNC is the only way--no thanks) but I finally stumbled across something interesting--a PDF file that outlines exactly how to do it, with success (albeit with a 17", mine's 20").

    I have renewed hope that this can be done, and I'm willing to put some time and effort into it. (Yes I'm fully aware that said time and effort will not necessarily make the most economic sense when new 20" monitors are $150 or whatever--call it sentimental attachment, as well as "wouldn't it be so cool...", also my sister is an electronics whiz and wants to give it a go.)

    Back to the task: it looks like a simple operation to locate the cables out from the LCD, patch to DVI and power (yes I know my blown PS is a disadvantage -- I think).

    Does anyone here have any experience with this? (I searched but the search term "g5" is ignored, thus it's difficult to narrow down results.)

    Here's the PDF file I mentioned -
    http://users.skynet.be/fa835376/pas a pas.pdf

    And yes it's in french. I actually know french and also google translated it and pieced it together again:
    http://www.circlerranch.ca/skishop/other/g5_monitor_trans.pdf
    BTW, in the translation, "food" and "diet" refer to the power supply unit! (From french "alimentation".) Funny stuff :)

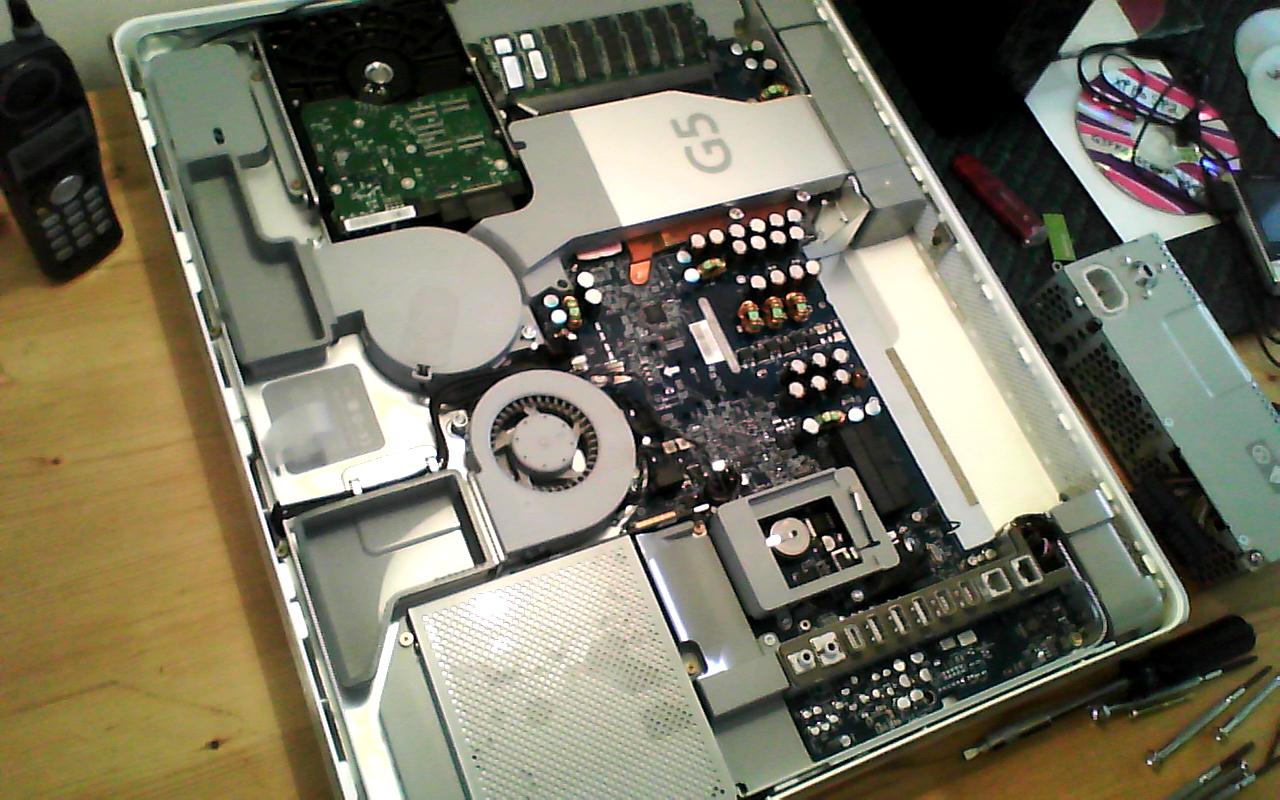

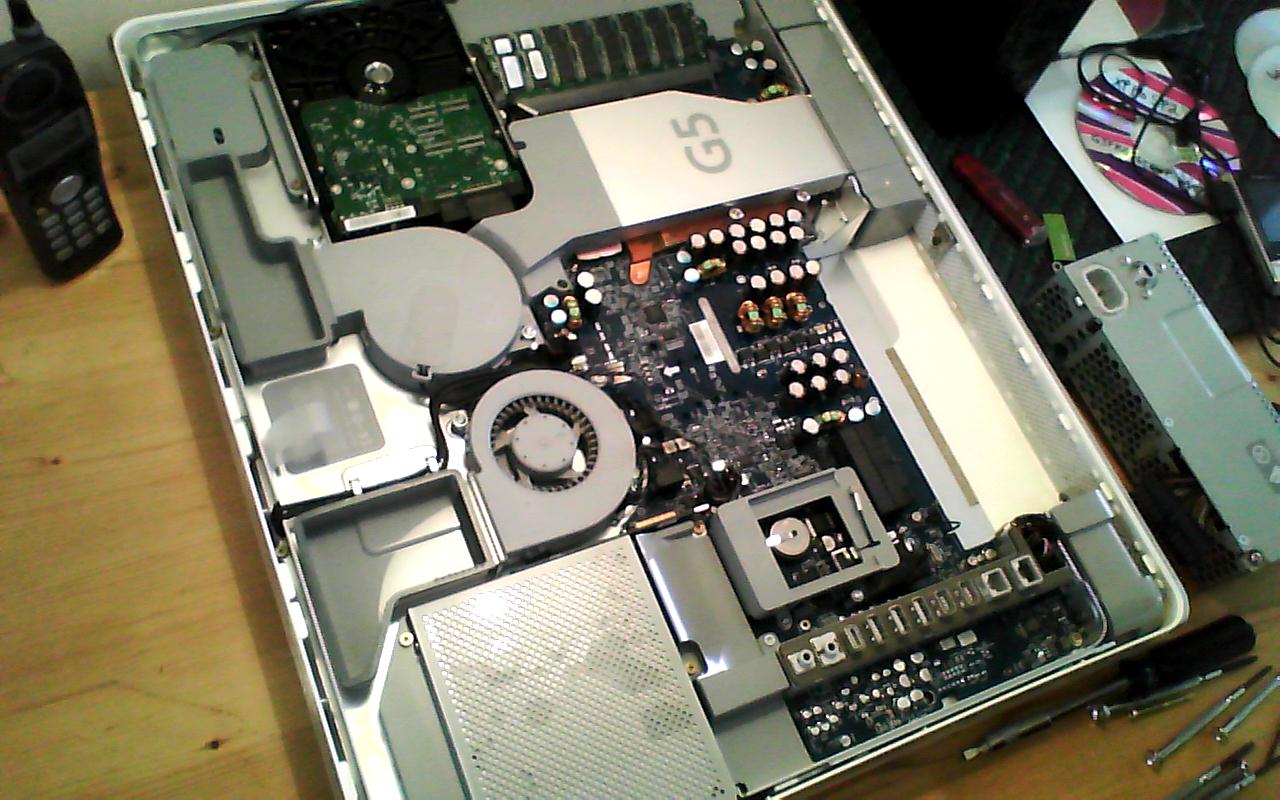

    And I've attached an image (cause everybody likes pics) of my G5 guts.

    Thanks in advance for any thoughts...!


    Attached Files:

  2. OrangeSVTguy macrumors 601

    OrangeSVTguy

    Joined:
    Sep 16, 2007
    Location:
    Northeastern Ohio
    #2
    I don't think you can just attach or hack a DVI connector to the cable to the LCD display. You will need an expensive video controller adapter which basically negates the whole idea.

  3. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
    #3
    Very nice guide, thanks for sharing. In your case, external PSU will be required, as your is blown. With these instructions, I think it could be possible to fit Macbook or mini guts inside iMac G5 case :)
    Nice info for creative minds.

  4. dxerboy thread starter macrumors member

    Joined:
    Oct 28, 2007
    #4

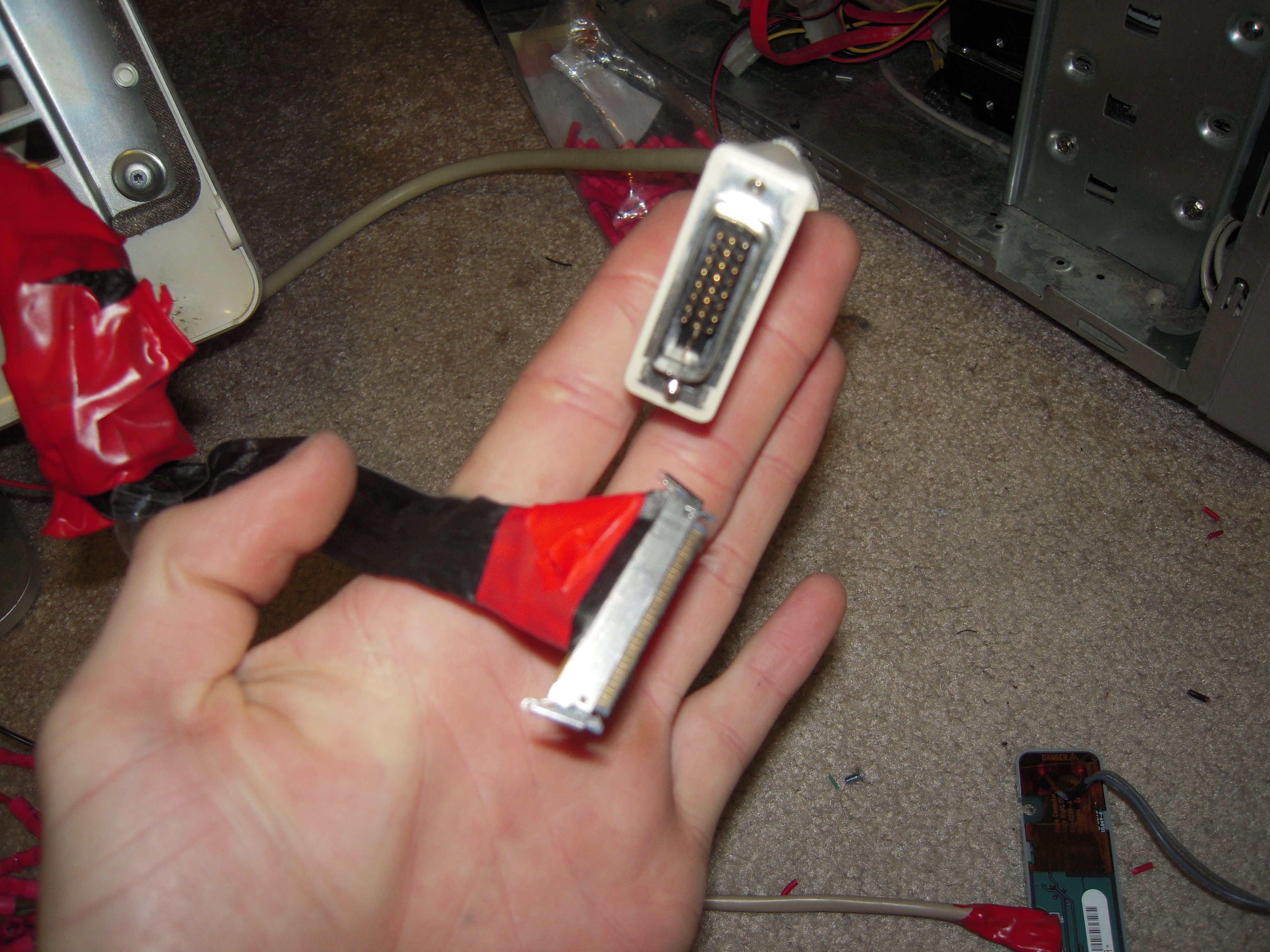

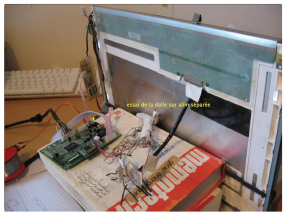

    I believe the PDF guide shows how to use the video controller from the iMac, as seen in the following pic. The guide states all you need is your G5 and a DVI cable.

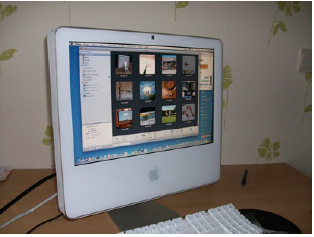

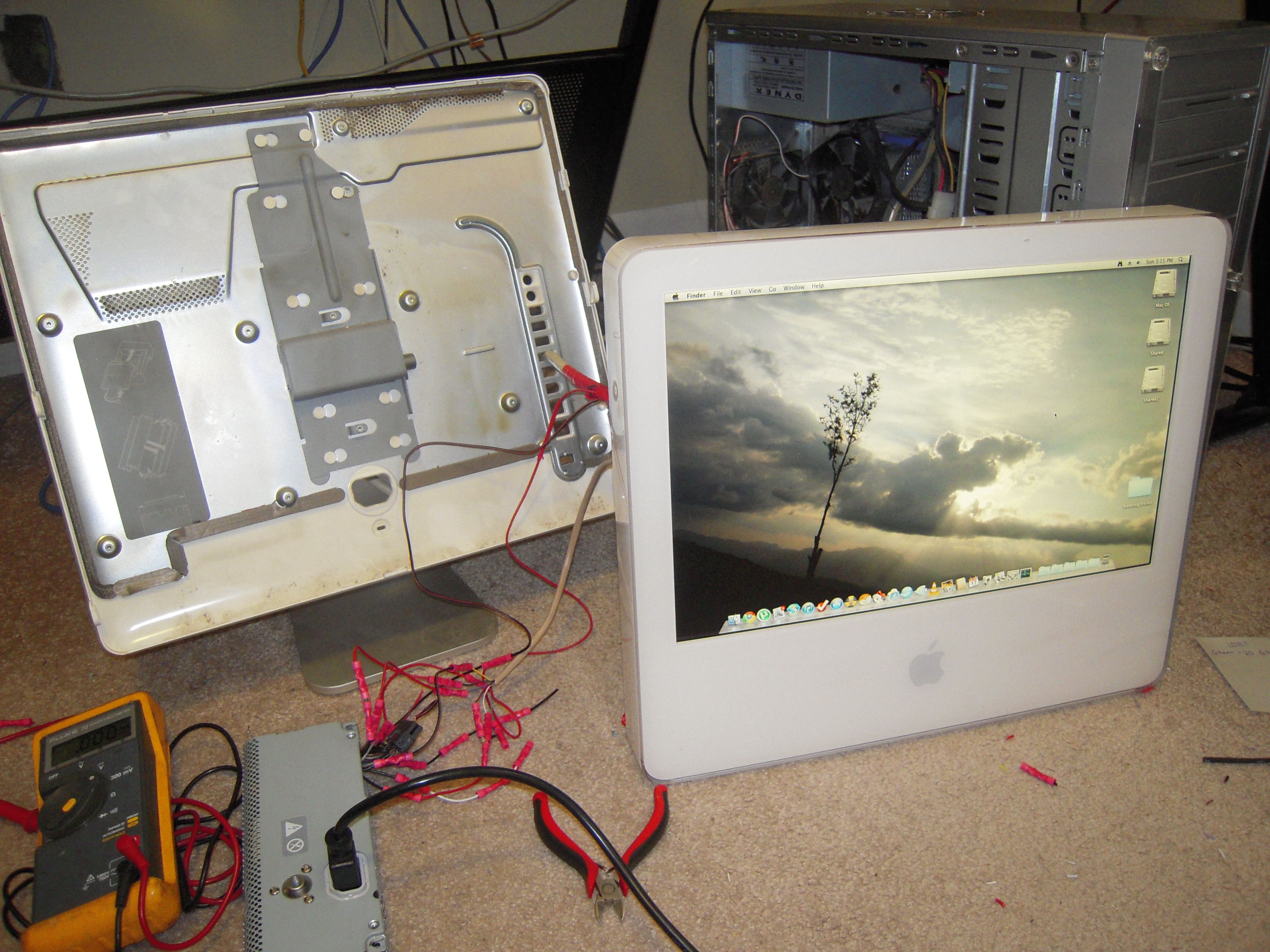

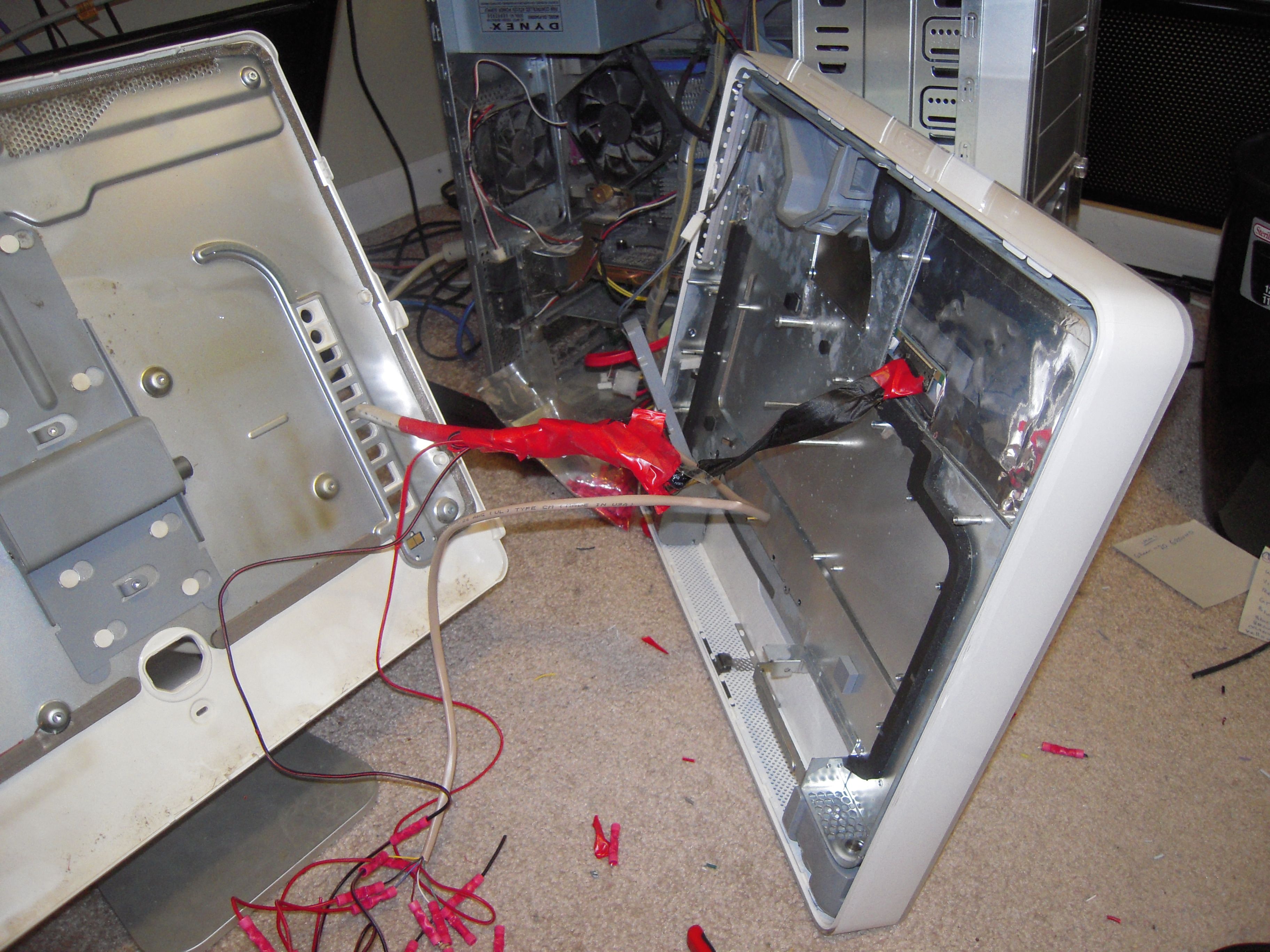

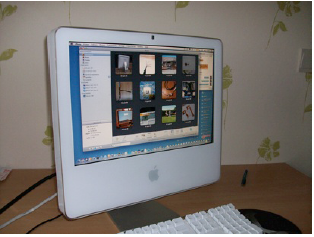

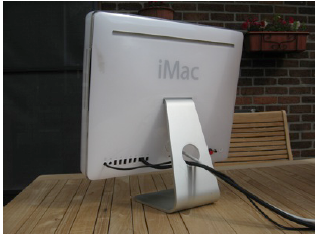

    Also attached a couple of pics of the final product: (like I said, it seems "it can be done...") :)

    I am hoping "it has been done..." by someone here too ... anyone?


    Attached Files:

  5. MacHamster68, Mar 6, 2011
    Last edited: Mar 6, 2011

    MacHamster68 macrumors 68040

    MacHamster68

    Joined:
    Sep 17, 2009
    #5
    i only know of one that was sold here in the uk on ebay last year ,it was a 17" model , the chap had gutted the iMac used the display and the rest of the parts had if i remember that right been from a samsung or lg monitor and it worked even speakers and the usb and firewire ports on the back did , there was only 4 new connections just under the powerconnector to connect for usb firewire and speakers and dvi ,inside was a gutted belkin hub normally for under the mini to make use of the existing port holes

    sorry had not saved the details
    but maybe that guy is here on the forum either the one who did build it or the one who bought it it was sold early last year , i missed the auction end by 1 hour ...fell asleep ..would have fitted so perfect next to my iMac :(

  6. electrikbill macrumors newbie

    Joined:
    Apr 17, 2011
    Location:
    Minnesota
    #6
    Success!

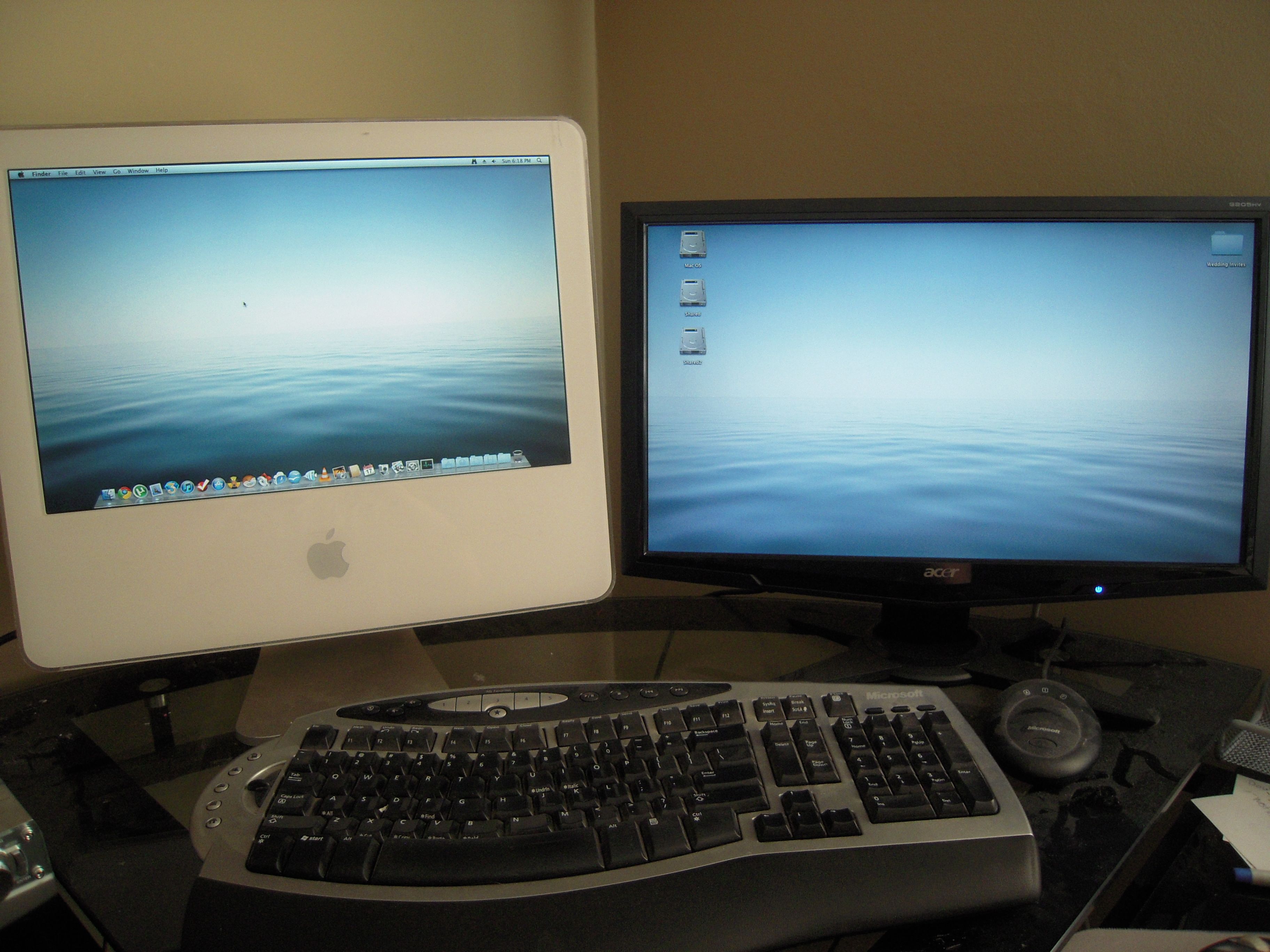

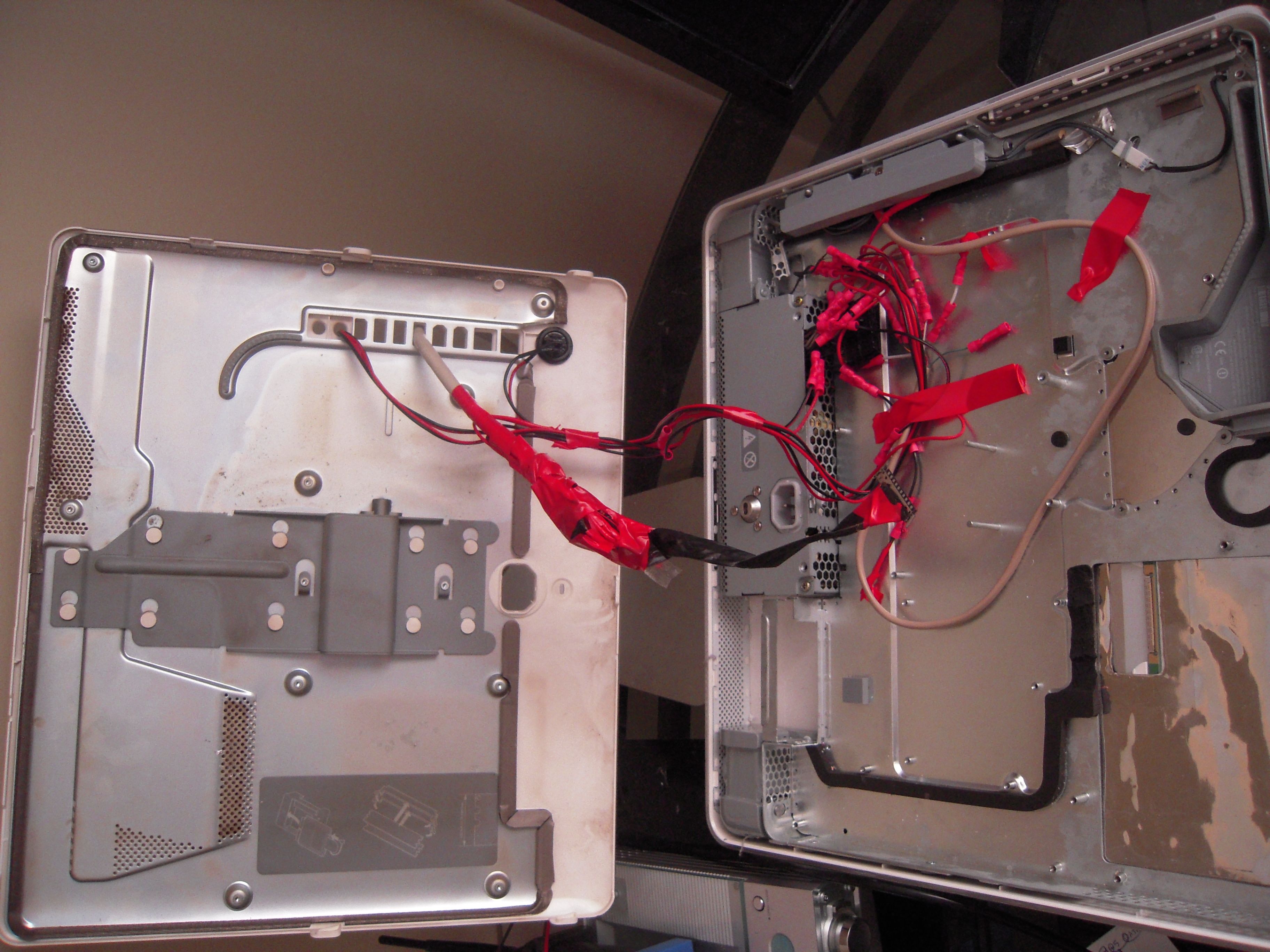

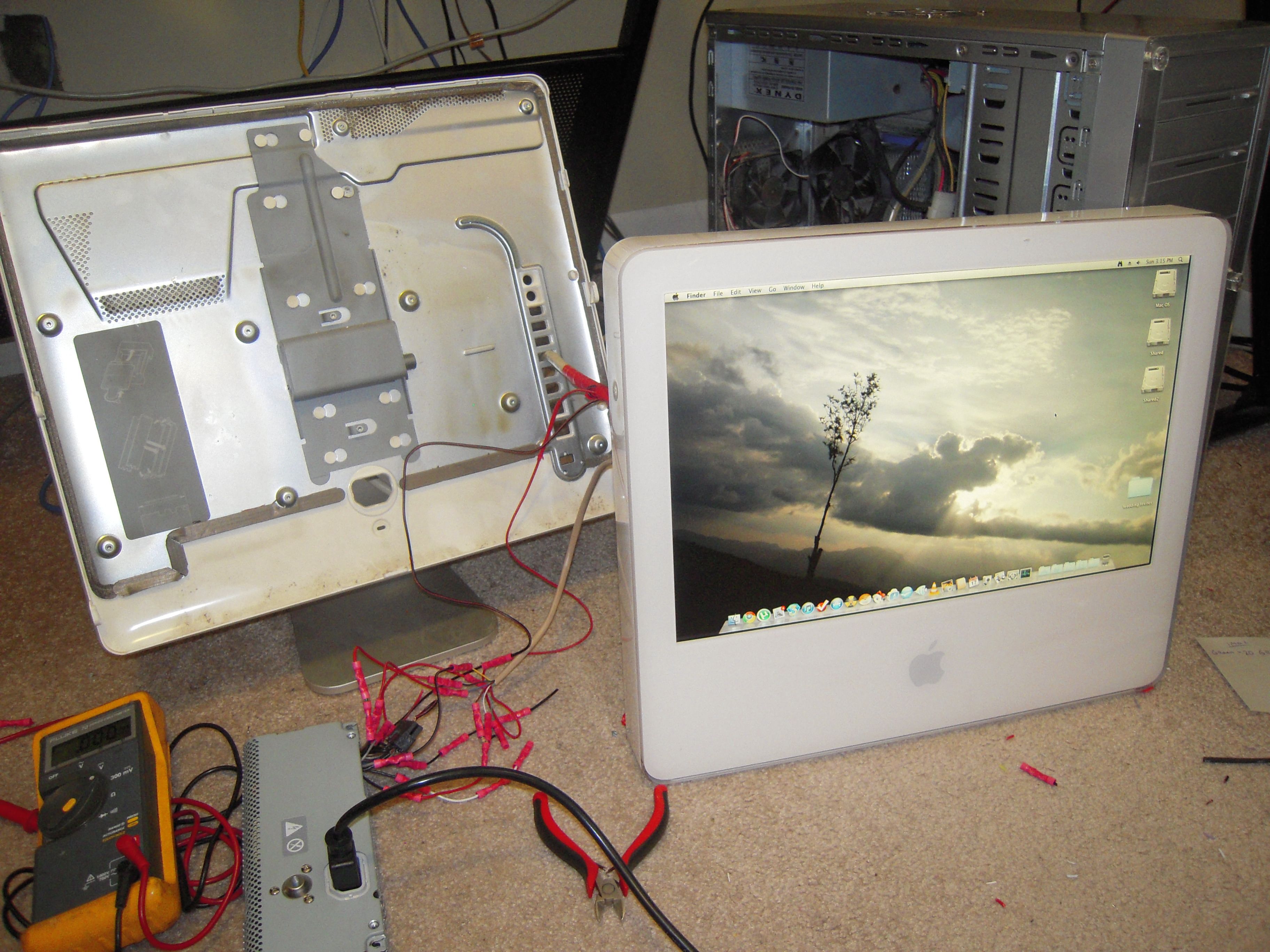

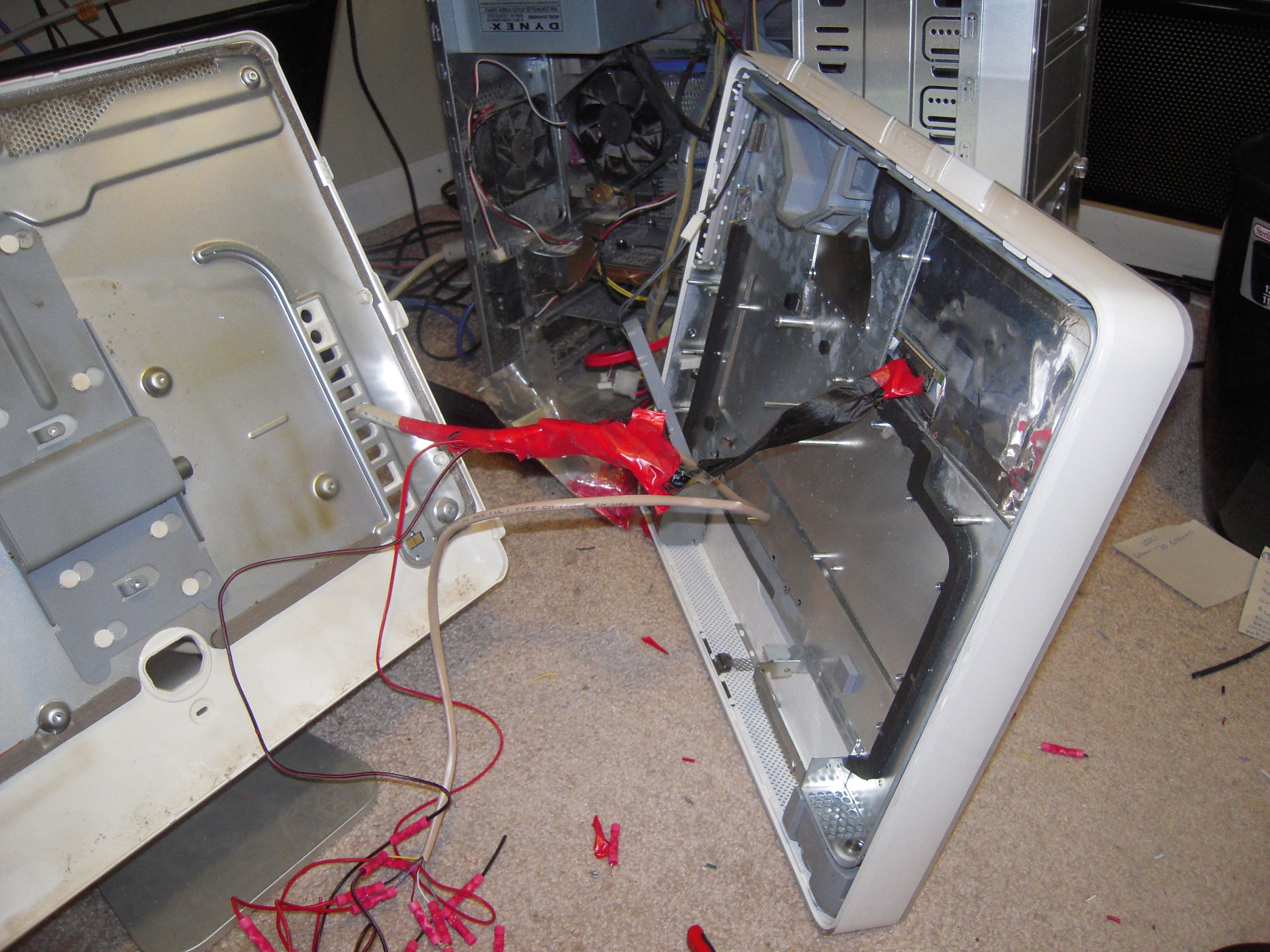

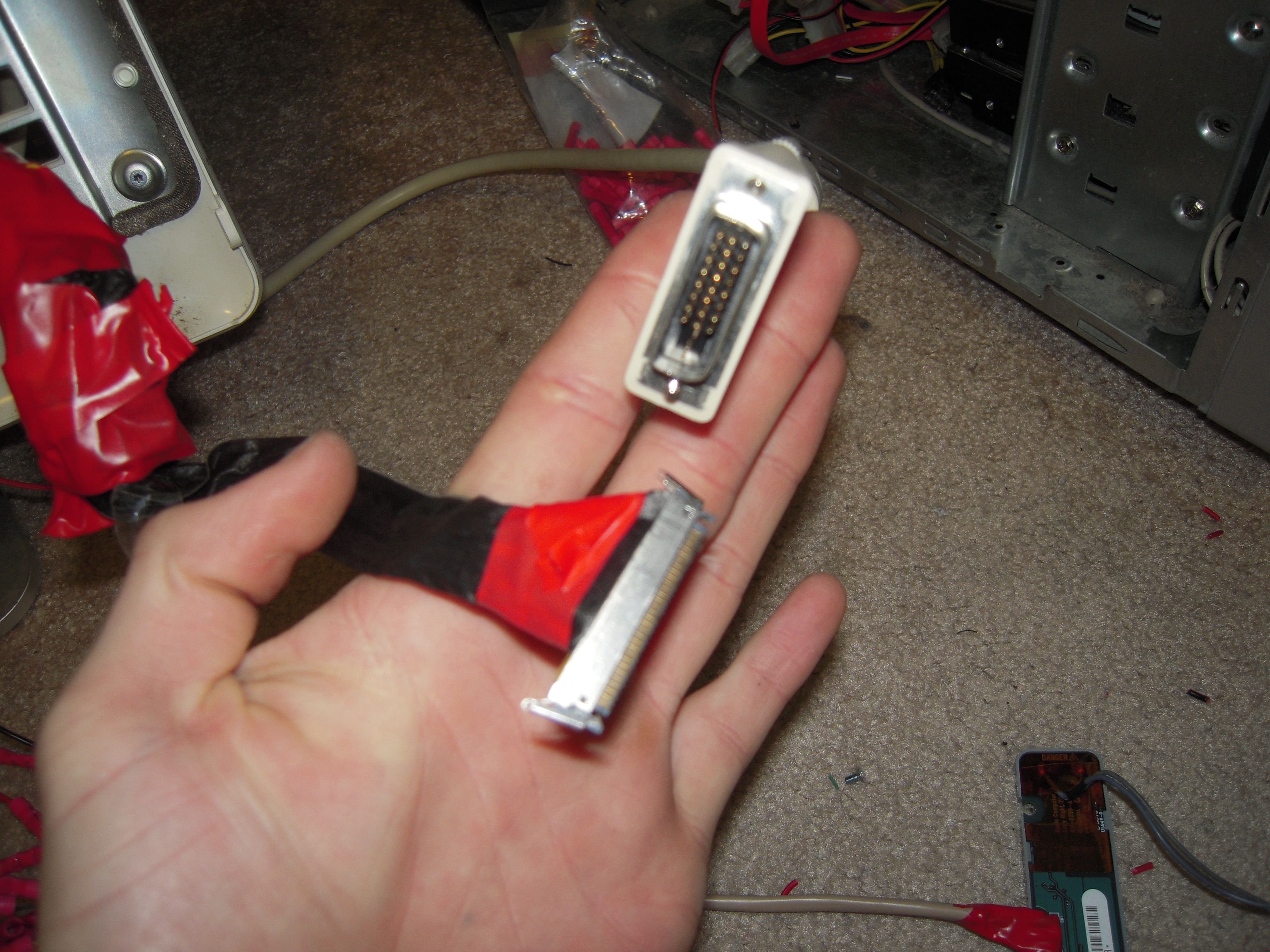

    So I found that french PDF proving it can be done, and I did it!! A DVI cable can be directly patched to the LVDS from the monitor. It took me two days but i figured it out and it works very well. I have another broken iMac that I will try the same mod on so that i have dual matching monitors. The only problem is that the backlight does not turn off when the computer puts displays to sleep, but it does when the comp shuts down, I can live with that. I'll post pics of my process. I used the original power supply but any power supply with 12vdc, 5vdc, and 3.3vdc output will do.


    Attached Files:

  7. electrikbill macrumors newbie

    Joined:
    Apr 17, 2011
    Location:
    Minnesota
    #7

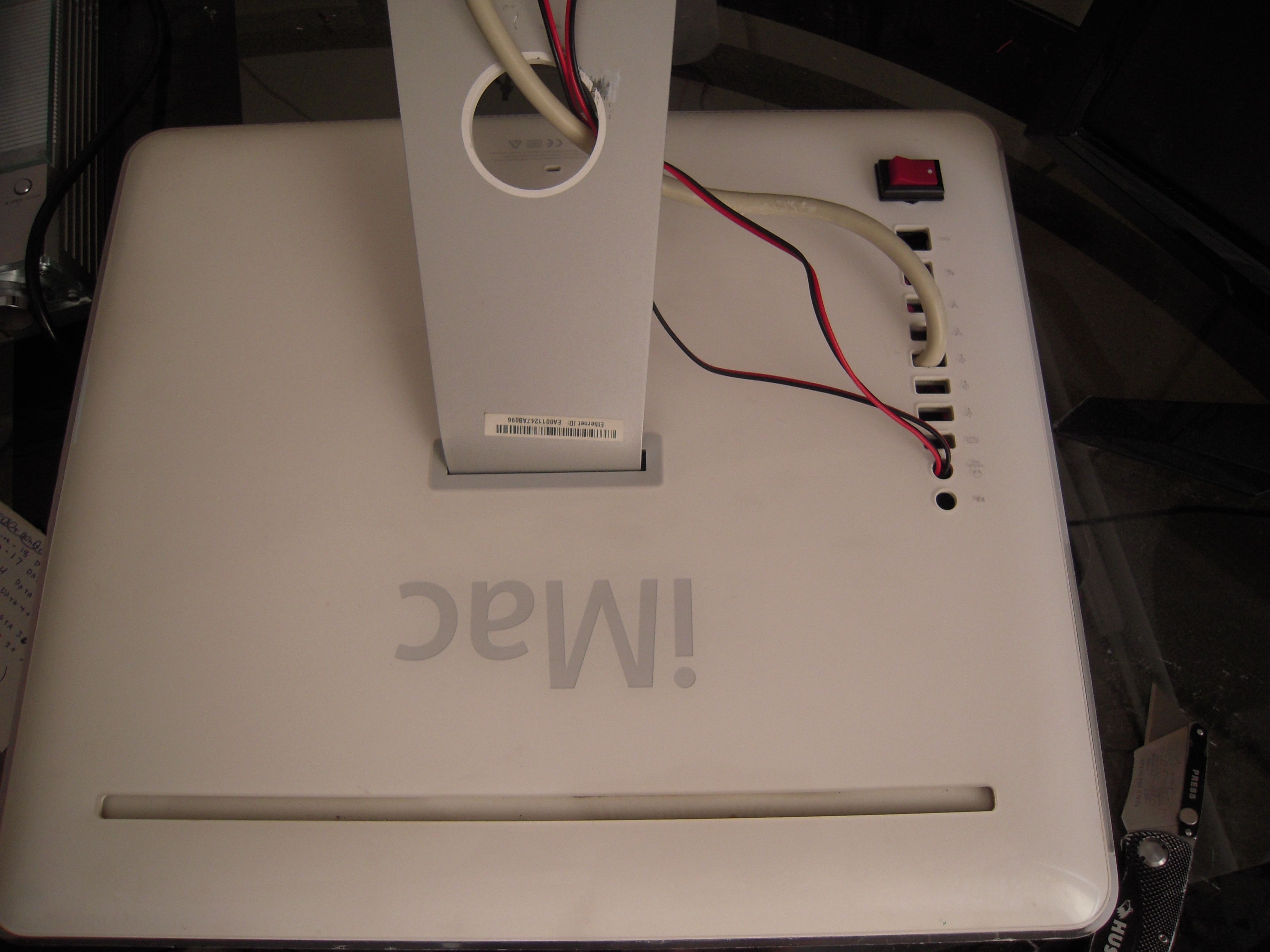

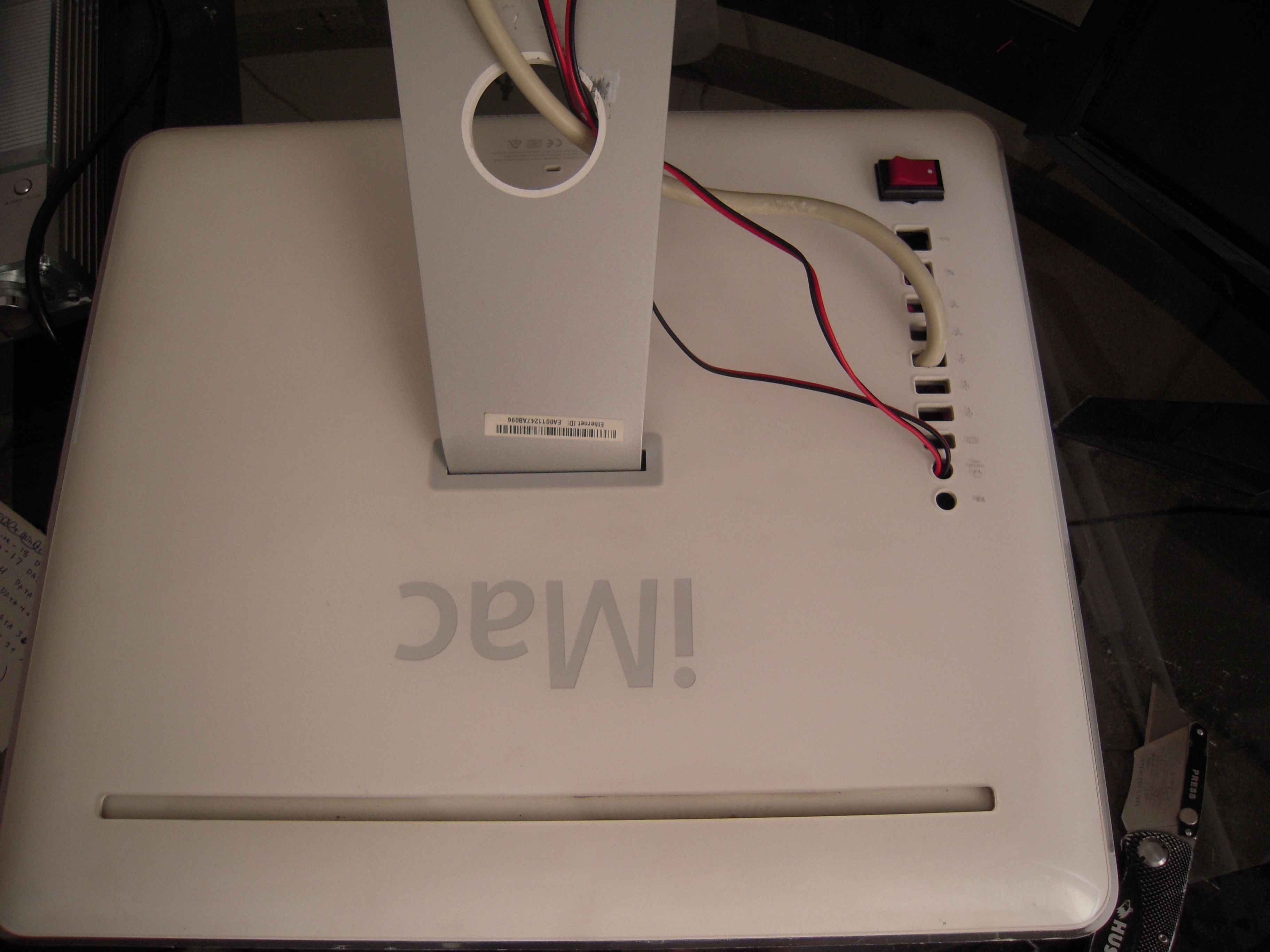

    Here's a pic of the back, I added a power switch in case i need to turn it off for some reason. And the red and black cables are for the speakers, they lead to a stereo 3.5mm headphone jack which plugs into the computer.
