Using standard telephone wired headset (Plantronics or Similar) with iPhone

Discussion in 'iPhone' started by shelby67, Jun 13, 2009.

  1. shelby67 macrumors newbie

    Joined:
    Apr 21, 2009
    #1
    Is there any way that I can continue to use my old school wired headsets that are mono and have a boom mic with my new iPhone. I just don't care for Bluetooth and would prefer wired. I have looked and didn't see any wired headsets or adapters that seem to work. I would even be willing to solder one up if I had to and knew how to wire it.

    Thanks
    Paul

  2. shelby67 thread starter macrumors newbie

    Joined:
    Apr 21, 2009
  3. shelby67 thread starter macrumors newbie

    Joined:
    Apr 21, 2009
    #4
    So that will work? The jack on the iPhone looked to be recessed enough to cause a problem. That would make my day if it works though....

  4. shelby67 thread starter macrumors newbie

    Joined:
    Apr 21, 2009
  5. saintpako macrumors newbie

    Joined:
    May 6, 2010
    #6
    Telephone Headsets converts to iPhone

    Hi,

    I had a similar problem. I wanted to switch from my corded headset with an RJ11 plug to 3.5mm for my iPhone. Searched around for a solution and found Accutone offers many adapters for this purpose. They can convert 2.5mm plug headset into 3.5mm for iPhone as well.

    Check out their website for more information:
    http://www.accutone.com

    :apple:
    Pako

    P.S. I switched to using Shockwave 115 for my iPhone, it's awesome.

  6. amps macrumors member

    Joined:
    Jul 2, 2009
    #7

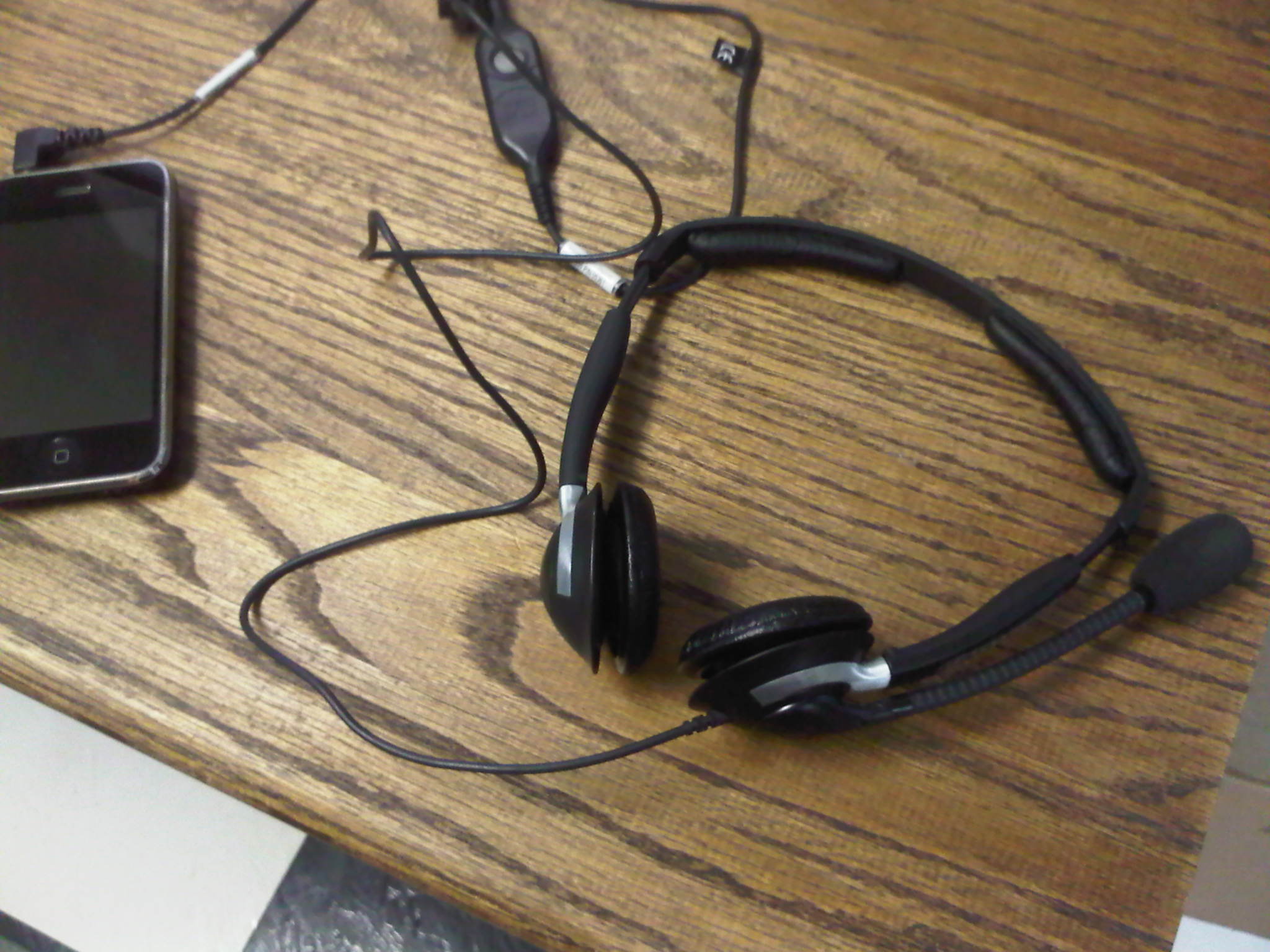

    I use this setup with the Sennheiser 550. Actually works great. I use it at home primarily or if I'm working in a data center with a lot of background noise.

    The music quality is not good but for voice calls, it's fantastic. Not sure I'd want to venture into public with it though.

    SENN CC550 OVER HEAD XL BIN HE 109.00 109.00

    SENN CBB01 BLACKBERRY/IPHONE 3 39.00 39.00


    Attached Files:

  7. saintpako macrumors newbie

    Joined:
    May 6, 2010
    #8
    Have you find what you wanted yet, I am using this telephone headset. I think you can get them on amazon.

    Please do share what you end up buying?

    Pako :apple:

  8. shelby67 thread starter macrumors newbie

    Joined:
    Apr 21, 2009
  9. NickRno77 macrumors regular

    Joined:
    Jun 9, 2010
    Location:
    Hertfordshire, UK
    #10
    Does the headset you recommended have a 3.5mm Jack ? The info on the headset link says has RJ11 ?

  10. themadrussian macrumors regular

    Joined:
    Jun 15, 2010
    #11
    I believe that the Apple TTY adapter allows you to use standard telephone headsets with the iPhone.

  11. tomans macrumors newbie

    Joined:
    Aug 24, 2011
    Location:
    Stockholm, Sweden
    #12
    DIY Plantronics headset adapter for iPhone 3 GS

    Sorry for waking up an old thread: I made an adapter from a 3,5mm 4-pole connector and used 2 resistors at 120 ohm as a basic summary circuit.

    It connects a Plantronics headset to my iPhone 3GS. It works, and sound quality in telephone calls is good, but I would not use it to listen to music :).

    There is a button on the headset cord, which short-circuits Plug tip (microphone) to ground (sleeve). That button does not have any function when connected to the iPhone.

    The summary circuit might not be needed, but I added it for safety (don't want to damage the iPhone). At least it does no harm. Resistance value can be between 47 -> 200 ohm I believe, take what you have. Select 0,1w resistors if you can to save space.

    Apple iPhone pinout can be found here:
    http://pinouts.ru/PortableDevices/iphone_headphone_pinout.shtml

    My Plantronics (mono) headset pinout is:
    Plug tip: Microphone (white)
    Middle: Ear-piece (+) (red)
    Sleeve: Ground for both microphone (copper) and ear-piece (blue)

    Strip the headset chord
    ------------------------
    Cut the 2,5mm stereo plug from the headset. Strip the outer sleeve.

    Red and blue cords are coated with a thin resin film that is best removed by burning them with a cigarette lighter. Be careful, the resin burns fast. Neglecting to burn off the resin will result in poor soldering properties.

    Strip the white cord from its plastic sleeve. Join all strands of the plain copper cord. Be thorough, one single strand in the wrong place can ruin (i.e. short-circuit) the whole adapter.


    Connections:
    -------------
    Left and right channels from the iPhone are each connected to a 120 ohm resistor. The other end of the resistors is shorted and soldered to the red cord (Ear-piece+ on the headset).

    Microphone on iPhone ->White cord (Microphone on headset)

    Common/ground on iPhone->Blue and Copper cords (ground on headset)

    Snug fit
    -------
    I managed to cram the summary circuit and all soldering joints into a standard 3,5 mm plug case. Some care is needed, but it fits right in there if you select low-wattage resistors.

    The microphone on my headset is not very sensitive but it works although you have to speak up a bit. Newer headsets with more sensitive microphone might behave better.

    Hope someone can make Some use of this ;)
