Using the same SATA Cable for a WD Blue SSD?

[markoconnell]

Hello, I’m looking to have dual drives in my Mid-2011 iMac 21.5" swapping the Optical Drive with the WD Blue SSD in place. I’m wondering if it’s a straight swap using the same SATA cable from the Optical?

Thanks!



[Juicy Box]

Hello, I’m looking to have dual drives in my Mid-2011 iMac 21.5" swapping the Optical Drive with the WD Blue SSD in place. I’m wondering if it’s a straight swap using the same SATA cable from the Optical?

Thanks!

No,

You can use adapter cables, or caddies like the OWC one:

OWC Data Doubler for iMac 09-11 KIT compatible

Data Doubler for iMac 09-11 KIT OWC compatible

www.amazon.com

If you don't need the kit, you can get just the caddy cheaper here:

OWC Data Doubler Optical Bay Hard Drive/SSD Mounting Solution for iMac 2009-2011.

OWC Data Doubler Optical Bay Hard Drive/SSD Mounting Solution for iMac 2009-2011.

www.amazon.com



[nambuccaheadsau]

On both 2011 iMacs, the SATA speed of the hard drive is 6Gbps and the optical drive speed is 3Gbps so there may be a slower speed on an SSD installed in the optical drive position.



[The_Croupier]

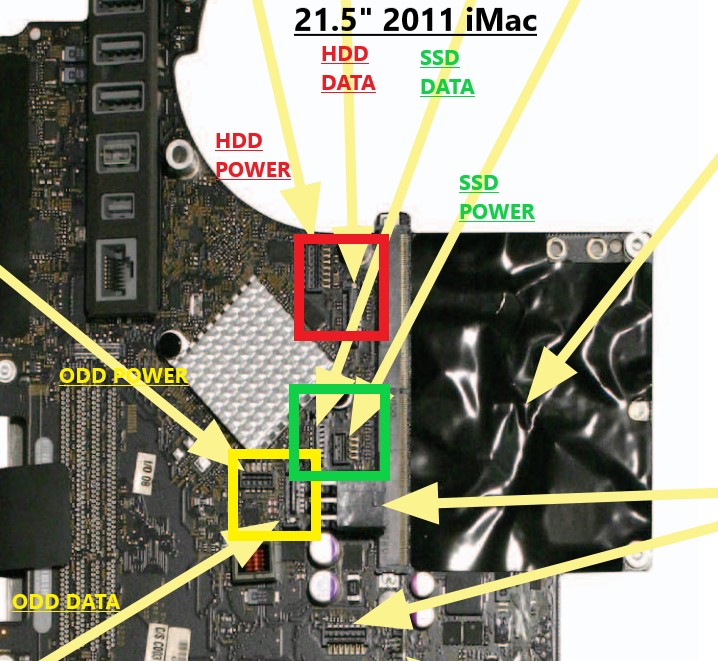

Why dont you just use the extra 6Gbps SATA port.

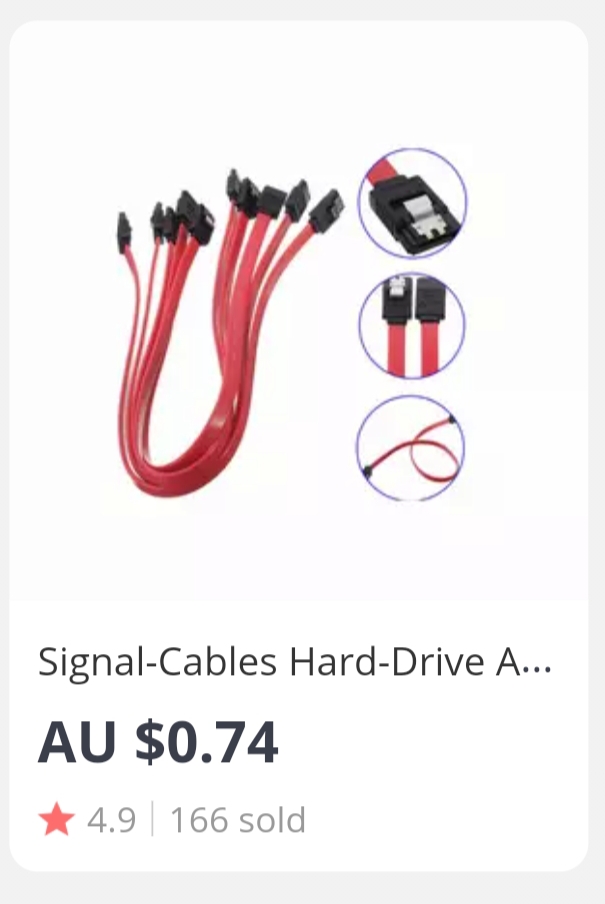

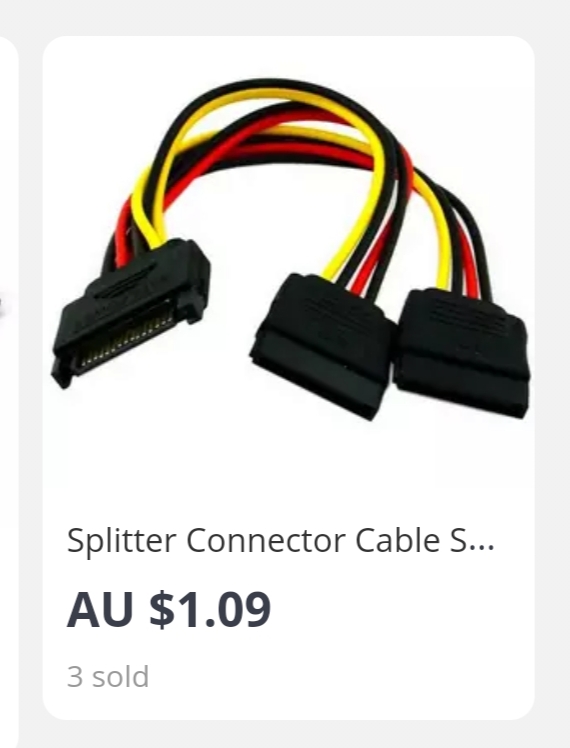

A few $ for some cables (power splitter /SATA data) and double sided tape.
It's what I do and once the screen is on it looks pretty 😉
