[Warning] Bootcamp 5 may cause system slowdown and crash !!

Discussion in 'Windows, Linux & Others on the Mac' started by IA64, Jan 3, 2014.

  1. IA64 macrumors 6502

    Joined:
    Nov 8, 2013
    #1
    I found out that my maxed iMac 2013 is running OK but experiencing hiccups or slowdowns sometimes. I could monitor the latency, DPC count and ISR and tried to clean boot, uninstall everything from scratch but nop, nothing helped.

    Outlook 2013 was taking 5 seconds to load, other applications were OK.

    I then had one BSOD with crash minidump. After analyzing the output, it turned out to be a driver causing excessive memory paging. The only solution was to test the system with Driver Verifier. It turned out to be KeyAgent.sys from Apple. I renamed this file and my system is blazing fast again. Outlook takes less than a second to load. No more hiccups. Worth mentioning that the volumeUp/Down shortcuts are not working and Bootcamp manager is not working anymore but that's fine.

    Now my latency is way below 400us :

    PER CPU MEASURINGS
    _________________________________________________________________________________________________________
    Highest latency on CPU 0: 34.60314 µs
    Highest latency on CPU 1: 60.11563 µs
    Highest latency on CPU 2: 31.67067 µs
    Highest latency on CPU 3: 35.77613 µs
    Highest latency on CPU 4: 31.96392 µs
    Highest latency on CPU 5: 32.25717 µs
    Highest latency on CPU 6: 42.66604 µs
    Highest latency on CPU 7: 57.76965 µs


    _________________________________________________________________________________________________________
    SYSTEM INFORMATION
    _________________________________________________________________________________________________________
    Computer name: IMAC-IA64
    OS version: Windows 8 , 6.2, build: 9200Highest latency on CPU 7: 57.76965 µs
    Hardware: iMac14,2, Apple Inc., Mac-27ADBB7B4CExxxx1
    CPU: GenuineIntel Intel(R) Core(TM) i7-4771 CPU @ 3.90GHz
    Logical processors: 8
    Processor groups: 1
    RAM: 32708 MB total


    =================================


    You can test it yourself :

    How to enable Driver Verifier:

    Start > type "verifier" without the quotes > Select the following options -

    1. Select - "Create custom settings (for code developers)"
    2. Select - "Select individual settings from a full list"
    3. Check the following boxes -
    - Special Pool
    - Pool Tracking
    - Force IRQL Checking
    - Deadlock Detection
    - Security Checks (Windows 7 & 8)
    - DDI compliance checking (Windows 8)
    - Miscellaneous Checks
    4. Select - "Select driver names from a list"
    5. Click on the "Provider" tab. This will sort all of the drivers by the provider.
    6. Check EVERY box that is NOT provided by Microsoft / Microsoft Corporation.
    7. Click on Finish.
    8. Restart.

    Important information regarding Driver Verifier:

    - If Driver Verifier finds a violation, the system will BSOD.

    - After enabling Driver Verifier and restarting the system, depending on the culprit, if for example the driver is on start-up, you may not be able to get back into normal Windows because Driver Verifier will flag it, and as stated above, that will cause / force a BSOD.

    If this happens, do not panic, do the following:

    - Boot into Safe Mode by repeatedly tapping the F8 key during boot-up.

    - Once in Safe Mode - Start > type "system restore" without the quotes.

    - Choose the restore point you created earlier.
    If you did not set up a restore point, do not worry, you can still disable Driver Verifier to get back into normal Windows:

    - Start > Search > type "cmd" without the quotes.

    - To turn off Driver Verifier, type in cmd "verifier /reset" without the quotes.
    ・ Restart and boot into normal Windows.


    Cheers...

  2. ayeying macrumors 601

    ayeying

    Joined:
    Dec 5, 2007
    Location:
    Yay Area, CA
    #2
    No problems here. Running 8.1 with Bootcamp 5

  3. jenzjen macrumors 68000

    Joined:
    Aug 20, 2010
    #3
    Where did you get your boot camp driver package from? Apple support site and/or did you update any manually?

  4. Gav Mack, Jan 9, 2014
    Last edited: Jan 9, 2014

    Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #4
    I'd send that bug report to Apple!

    On a side note I have started comparisons on the New Mac Pro bootcamp drivers today version 5.0.5510 with the standard 5.0.5033 versions with the aim of getting Windows 7 x64 working with EFI installation instead of Windows 8 as Apple have inexplicably dropped support for Windows 7 - the most popular workstation OS by far.

    Drivers signed on 16th November and KeyAgent.sys is unchanged at 4.0.2.0 unlike quite a few others.

  5. IA64 thread starter macrumors 6502

    Joined:
    Nov 8, 2013
    #5
    I tried both. One downloaded from Apple website 5033 and another one 52xx using BCA. I am very positive about this bug and I simulated it on another bootcamp machine with Windows 8.1

    You need to run Driver Verifier from Microsoft to confirm it.

  6. Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #6
    If there's any other files other than KeyAgent.sys possibly involved send me a PM and I can see if you can try some out of this newer build I have for the nMP. There are a few changed in the bootcamp.msi also but I still have quite a way to go to unpack all the drivers and examine each inf.

  7. IA64, Jan 9, 2014
    Last edited: Jan 9, 2014

    IA64 thread starter macrumors 6502

    Joined:
    Nov 8, 2013
    #7
    I also removed the AppleHFS and AppleMNT drivers installed with bootcamp.

    They cause some lockups infrequently and too much ISR, and I mean too much.

    I removed both files and services ( sc del applemnt | sc del applehfs ) and my interrupt latency is down to 20-50 microsecond now.

    I installed MacDrive and it's handline HFS+ much better. Tags and thumbnails are generated on an external drive now and all is good.

    *** ERROR: Module load completed but symbols could not be loaded for AppleMNT.sys
    Probably caused by : AppleMNT.sys ( AppleMNT+5dc )
    BUGCHECK_STR: 0x8E


    *** ERROR: Module load completed but symbols could not be loaded for AppleMNT.sys
    Probably caused by : AppleMNT.sys ( AppleMNT+5dc )
    BUGCHECK_STR: 0x8E
    PROCESS_NAME: notepad.exe
    FAILURE_BUCKET_ID: 0x8E_AppleMNT+5dc
    Bugcheck code 1000008E



    Warning : ParagonHFS will reinstall those two drivers so don't install it. Even the version 10 caused me too much headache. I'll probably purchase the MacDrive 9xx. Version 8 of MacDrive did corrupt my external drive partition but this one seems to be stable.




    So far that's how my latency looks like with 10.9 GB in use ( 40 opened tabs in Chrome, playing Flac audio, office and Lync 2013 in background and 109 processes started )


    [​IMG]


    Current measured interrupt was always above 300 and the highest Interrupt/ ISR and DPC were always above 600.

    OS is much smoother. No hiccups whatsoever.

  8. Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #8
    These are the file version differences in the nMP 5510 Win 8 build from 5033.

    Apple Control Panel.exe 5.0.2.0 > 5.0.3.0
    AppleHFS.sys 4.1.0.0 > 5.0.0.1
    AppleMNT.sys 4.0.1.0 > 5.0.0.0
    Bootcamp.exe 5.0.1.0 > 5.0.3.0

  9. IA64 thread starter macrumors 6502

    Joined:
    Nov 8, 2013
    #9
    I have AppleMNT 5.0 but AppleHFS is still 4.1

    Bootcamp 5 built 5270. I can't find version 5510 anywhere and BCP won't download version above 5270

  10. Gav Mack macrumors 68020

    Gav Mack

    Joined:
    Jun 15, 2008
    Location:
    Sagittarius A*
    #10
    5510 is only downloadable off the new Mac Pro via boot camp assistant!

  11. IA64, Jan 9, 2014
    Last edited: Jan 9, 2014

    IA64 thread starter macrumors 6502

    Joined:
    Nov 8, 2013
    #11
    Ok nice but what to do ? I'm stuck with this old version ?



    Edit :

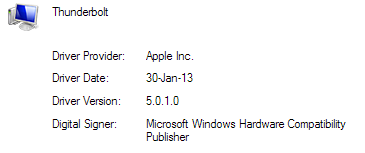

    Would you also please check the Thunderbolt driver version ? mine gives me a lot of headache

    [​IMG]

  12. wedda macrumors member

    Joined:
    Aug 11, 2014
    #12
    My NVIDIA drivers in windows 8.1 will give me about 600.. what are you using?
