Water cooling a 2009 Mac Pro cpu

Discussion in 'Mac Pro' started by Thecoretechreview, Mar 20, 2017.

  1. Thecoretechreview macrumors newbie

    Joined:
    May 30, 2016
    Location:
    Melbourne Australia
    #1
    hi guys

    I wanted to start the conversation on this subject.

    I have a 2009 4,1 Mac Pro now running a 980x 3.33ghz i7 with a GTX 680 and 12gb of 1333mhz ram.

    I have noticed the cpu idling around 40c right now, ambient is around 30c on a summers day here in Melbourne Australia.

    During games in Windows, it can get into the mid 60's Celsius with fans controlling via macs fan control app.

    I have spotted all in one coolers on the market these days that have refillable reservoirs and therefore the ability to shorten or adjust the hoses.

    http://www.raijintek.com/en/products_detail.php?ProductID=37

    And

    http://www.lepatek.com/eng/product_content/31/1/76/#produkte


    Both of the above claim to have the brackets to fit to lga 1366 CPUs that exist on the Mac Pro.

    2 questions.
    • Are the stand offs that hold the apple cooler the same dimensions as a standard 1366 cpu?
    • What happens to the fans when the apple cooler is removed? Do they go crazy?
    Thanks in advance!

    Phil

  2. Filin Contributor

    Filin

    Joined:
    Mar 7, 2010
    Location:
    Ukraine
    #2
    Hi Phil.
    1. No. Dimensions are different. See attached images.
    2. You can control fans with software like MacsFanControl. But before OS start fan will go crazy.
    3. Standart Apple cooler also cooling chipset heatsink. If you remove it you will get northbridge overheating.
    So my opinion, that watercooling not good idea for cMP.

    MacPro 5,1 Single CPU Board
    [​IMG]

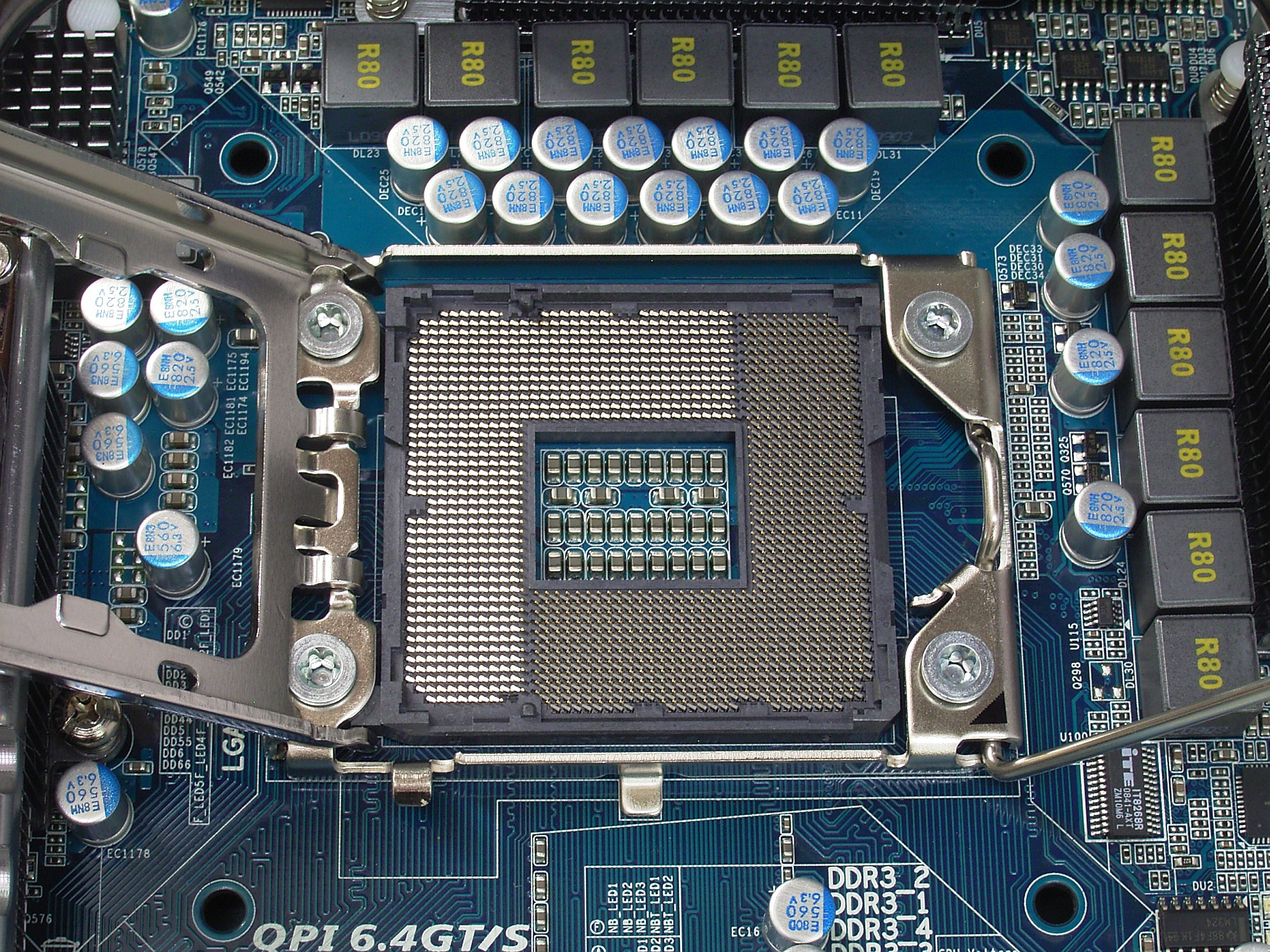

    Standart LGA1366
    [​IMG]

  3. h9826790, Mar 20, 2017
    Last edited: Mar 20, 2017

    h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #3
    Not 100% sure, but my understanding is that the heatsink mount points are non standard on the cMP. So, none of those after market liquid cooler work OOTB for the cMP regardless which socket is.

    Mid 60 is nothing for the CPU, I often stress my CPU to high 70 24/7. That's way below the thermal throttling temperature, no way can cause any damage.

  4. Theophany macrumors 6502a

    Theophany

    Joined:
    Nov 16, 2008
    Location:
    NW London.
    #4
    Also, bear in mind they're Xeon chips, not i7s. They're server grade CPUs and will take a hell of a lot more thermal punishment over their lifetimes than a desktop grade chip.

  5. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #5
    May be OP really using the i7, it's a know fact that 980x is compatible on the cMP. And some guys actually go for these CPU because they were a bit cheaper.

  6. Chicane-UK macrumors 6502

    Joined:
    Apr 26, 2008
    #6
    Those CPU temperatures seem pretty decent actually to me... the ambient is a little higher, but the load temperature is very reasonable.

    Not sure the amount of hassle to get something like this setup will be worth the tradeoff / benefits TBH.

  7. 666sheep macrumors 68040

    666sheep

    Joined:
    Dec 7, 2009
    Location:
    Poland
  8. Thecoretechreview thread starter macrumors newbie

    Joined:
    May 30, 2016
    Location:
    Melbourne Australia
    #8
    Hi guys,

    Thanks for the replies, it's good to see the conversation is going.

    I shall measure up the mount points in comparison to the standard, and share it with you all.

    I am running a i7 980x, I mostly play games but didn't want a PC due to needing Mac OS X access.

    I have to admit, I forgot about the north Bridge!

    My aim is to reduce noise..... I will be attacking the GPU department in another thread.
    --- Post Merged, Mar 20, 2017 ---
    Thanks for the images, thats really helpful.

    Regarding the fans, which fans go crazy? All of them or just the CPU section of the case?

  9. Thecoretechreview thread starter macrumors newbie

    Joined:
    May 30, 2016
    Location:
    Melbourne Australia
    #9
    Hey guys,

    So I measured up the CPU tray to check clearance.

    I found that a 120mm fan/radiator would not fit the height of the trays opening and would require mods I'm not willing to do. My idea is that the tray would still be removable and want everything to fit there.

    I found the following
    CPU pump/reservior combo
    https://www.alphacool.com/shop/cpu-cooler/intel-amd/20228/alphacool-eisbaer-solo-2600rpm-black

    low profile 90 degree fittings
    https://www.alphacool.com/shop/fitt...0-anschraubtuelle-900-drehbar-g1/4-deep-black

    A radiator that fitted
    https://www.alphacool.com/shop/radi...xt45-full-copper-92mm-single-radiator?c=20543

    a universal Northbridge cooler.
    https://www.alphacool.com/shop/gpu-...l-hf-14-smart-motion-universal-nickel-edition

    and checked to see if there was enough space using fusion 360.

    here is what I have come up with.
    https://www.dropbox.com/s/vymzebklut2gt5o/cpu tray clearance.jpg?dl=0

    https://www.dropbox.com/s/slz2um4f5v0r2r0/macpro cpu tray cooler.jpg?dl=0

    what does everyone think?

  10. Filin Contributor

    Filin

    Joined:
    Mar 7, 2010
    Location:
    Ukraine
    #10
    Hi,
    you forgot about CPUs mosfets

  11. h9826790, Apr 4, 2017
    Last edited: Apr 4, 2017

    h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #11
    How you going to mount the water block on to the CPU tray with the Apple style non standard mounting points?

  12. Thecoretechreview thread starter macrumors newbie

    Joined:
    May 30, 2016
    Location:
    Melbourne Australia
    #12
    I have access to a 2 axis cnc machine to make a new adapter for the water block.

    Filin: I take your point about the mosfets. I noticed that the current heatsink was touching them with some thermal transfer pads. Most likely I will cool those with some stick-on heat sinks commonly found on motherboards in the PC world.

  13. h9826790 macrumors 604

    h9826790

    Joined:
    Apr 3, 2014
    Location:
    Hong Kong
    #13
    I was thinking about 3D printing, however, not sure which material can do the job. If you can CNC the parts, that should be a much better option.

  14. kwikdeth macrumors 6502a

    Joined:
    Feb 25, 2003
    Location:
    Tempe, AZ
    #14
    honestly, i'd recommend buying an empty mac pro case and attempting to fit all this stuff inside of it before you destroy your existing case.

    even 70C is well within the thermal envelope design for that CPU. noise issues aside, you're nowhere near a threshold that would cause a problem with the CPU.

    why not go hackintosh? you're already running non-standard CPUs and video cards, going to a hackintosh wouldnt be a huge leap and you'll have a much easier time getting silent components. I run a dual xeon hack with Noctua heatsinks and silent seasonic power supplies, makes way less noise than a mac pro.

    i understand sometimes its really just about the challenge but I have to wonder how much return you'd get out of this for the amount of time, money, and work involved.

  15. Thecoretechreview thread starter macrumors newbie

    Joined:
    May 30, 2016
    Location:
    Melbourne Australia
    #15
    Hi Kwikdeath,

    Just to be clear, I am not going to make any mods to the case or components that are not replaceable, I appreciate your comments about doing a hackintosh but that is a much more expensive route considering that I would have to buy everything. And sell everything I already have.

    Noise is my main concern, but the main reason for doing this is to tinker! And all components would be transferable to my next machine..... Which could be a hackintosh if apple don't pull their finger out and get this new Mac Pro done soon!
